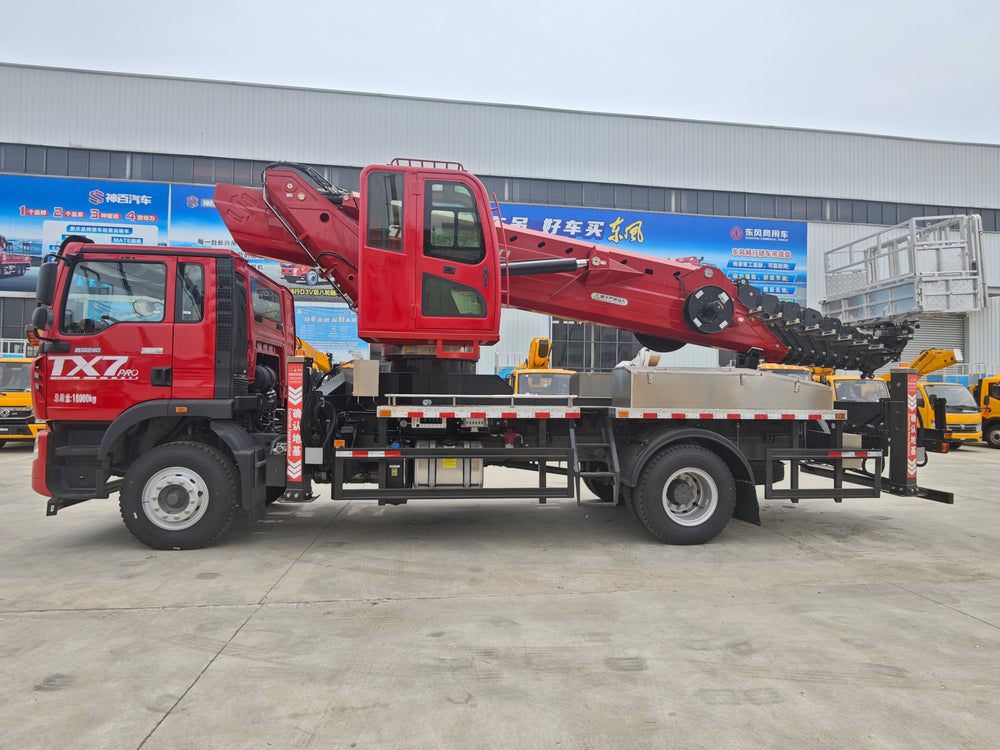

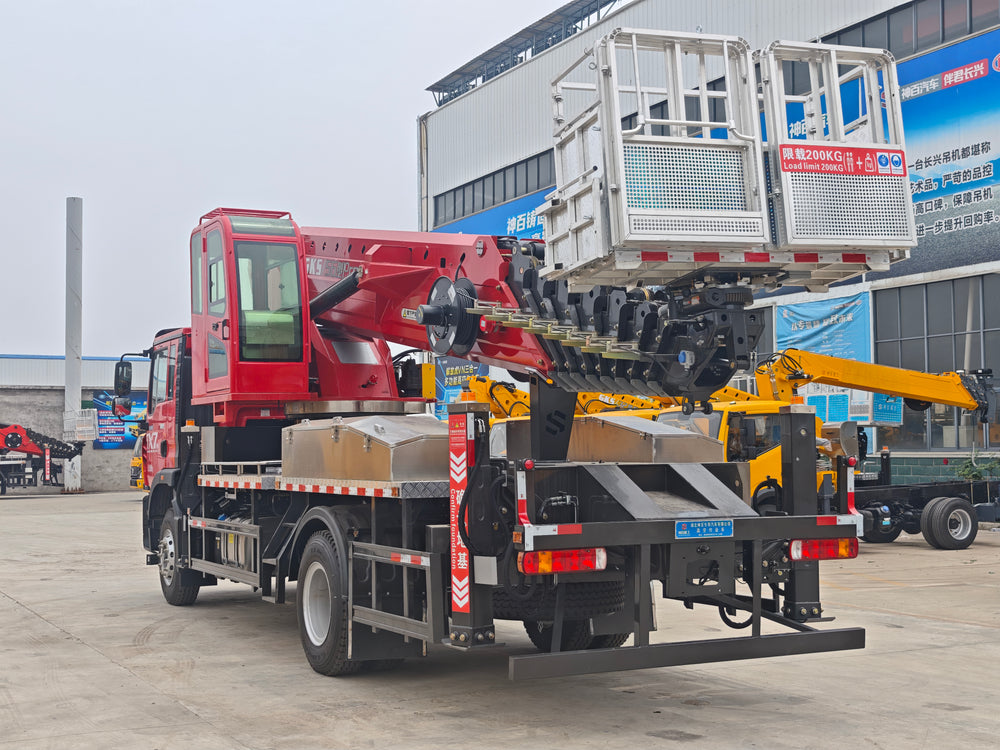

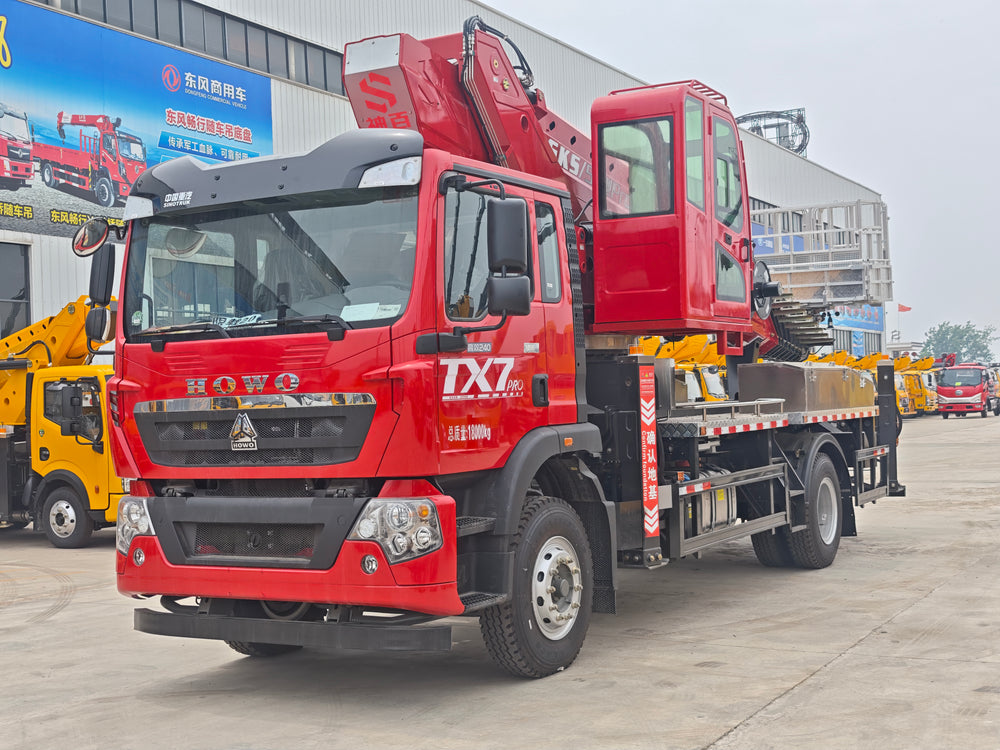

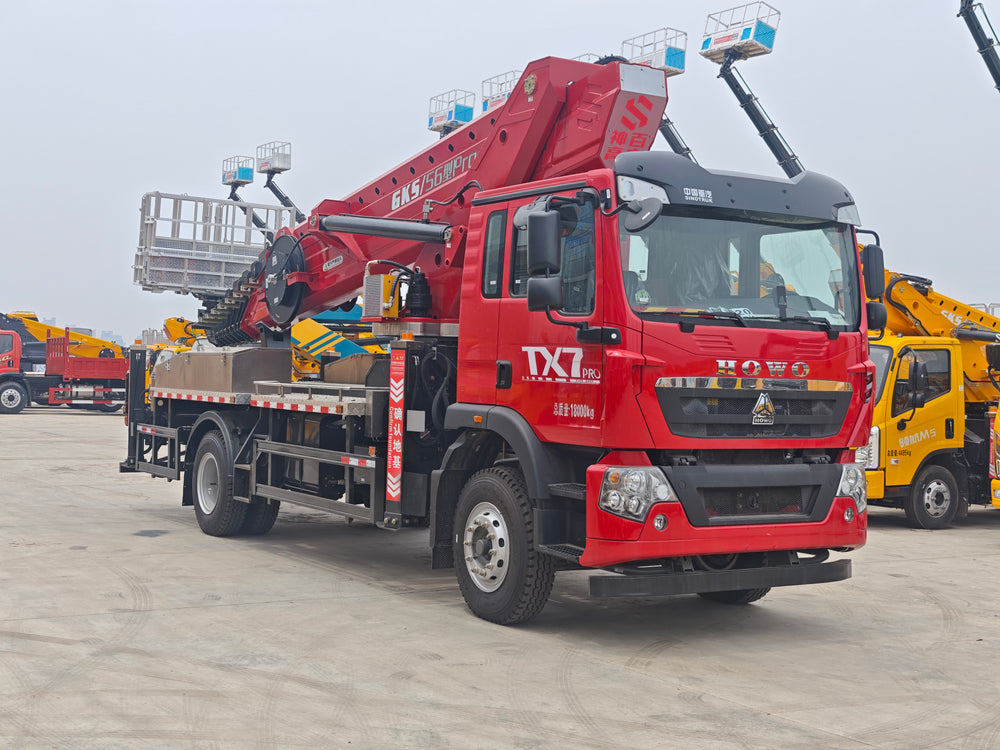

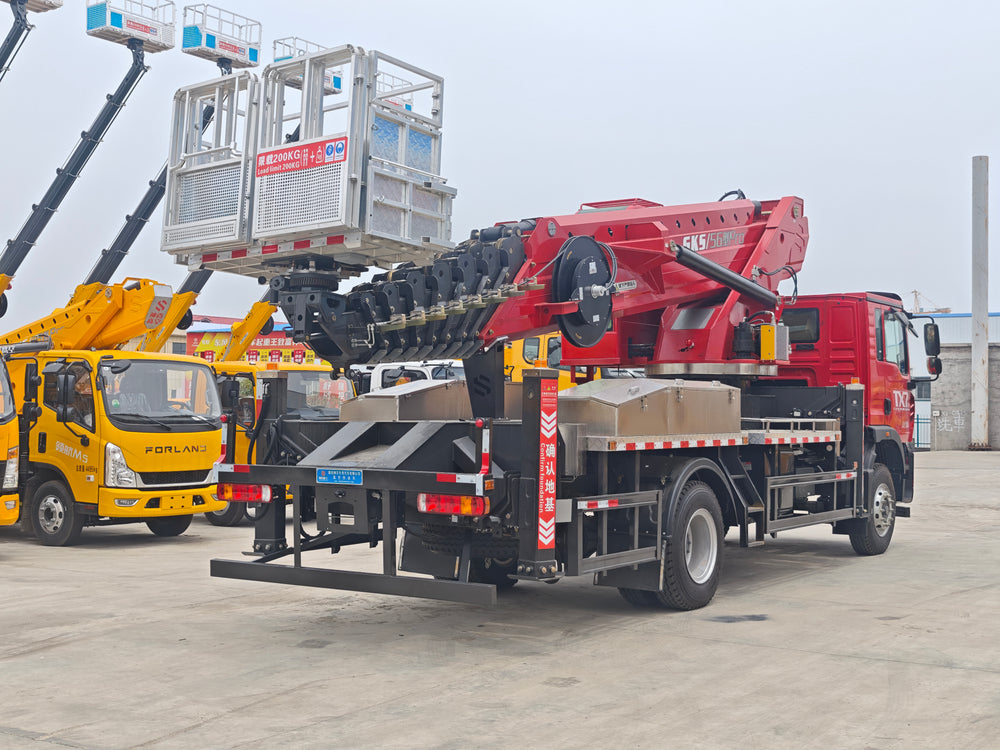

Sinotruk Howo TX GKS56 Pro Aerial Work Platform
Request a Quote Now
| Item | Specification |
|---|---|
| Announcement Model | ABC5187JGKZZ6 Aerial Work Platform |
| Chassis | Howo TX 4×2, Weichai 240HP, 4.6L Displacement |
| Gross Vehicle Weight | 18000 KG |
| Curb Weight | 17870 KG |
| Engine | Weichai 240 HP, 4.6L Displacement |
| Gearbox & PTO | HW95508STC2 Gearbox + HW45ZC Flange‑type Power Take‑off |
| Wheelbase | 5000mm / 4700mm / 4500mm |
| Chassis Frame | Three‑layer reinforced frame (8+5+5/303) |
| Overall Dimension | 9650mm × 2500mm × 3930mm |
| Tyre | 10.00R20 (Mixed tread pattern, 18PR) |
| Front / Rear Axle | 7‑ton front axle, 13‑ton heavy‑duty rear axle |
| Cab | TX‑D cab, multifunctional steering wheel, manual rear‑view mirror, main airbag + auxiliary simple seat, 7‑inch full‑HD LCD central control screen (MP5), 200L fuel tank |
| Superstructure Model | GK56 Pro Version |
| Max. Working Height | 52 m |
| Max. Working Outreach | To be confirmed |
| Platform Rated Load | To be confirmed |
| Boom Slewing Angle | 360° continuous rotation |
| Platform Dimension | 3200mm × 1000mm × 1100mm |
| Platform Slewing Range | 360° continuous rotation |
| Boom Structure | 9‑section boom, 8‑section synchronous telescoping; second boom through‑shaft with 4‑steel‑rope design |
| Control System | Domestic well‑known electric control system, equipped with wireless remote controller |
| Hydraulic System | Electro‑hydraulic proportional valve, stepless speed regulation, emergency power source equipped |
| Outrigger | X‑type, 4 pcs 3‑section outriggers, independent bidirectional adjustment |
| Outrigger Span | Transverse: 9050mm; Longitudinal: 9000mm |
| Platform Accessories | Oversized stainless‑steel toolbox, anti‑slip aluminum alloy walk‑on plate, stainless‑steel guardrail |
| Safety Devices | Upper operation cabin, upper‑lower interlock, limit protection, soft‑leg protection, emergency power source, double‑way hydraulic balance valve, load monitoring protection, wind speed sensor protection, outrigger extension protection |
