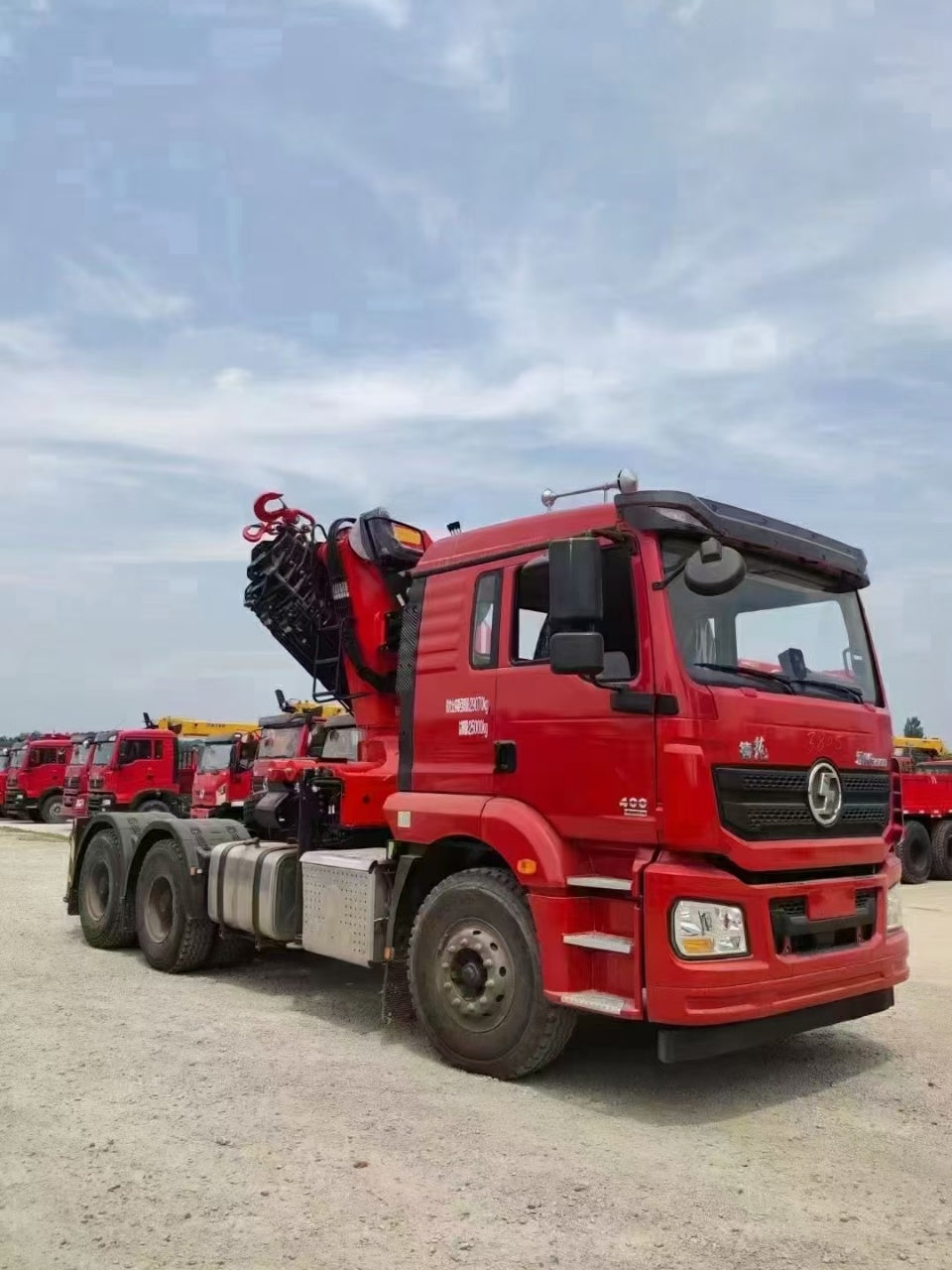

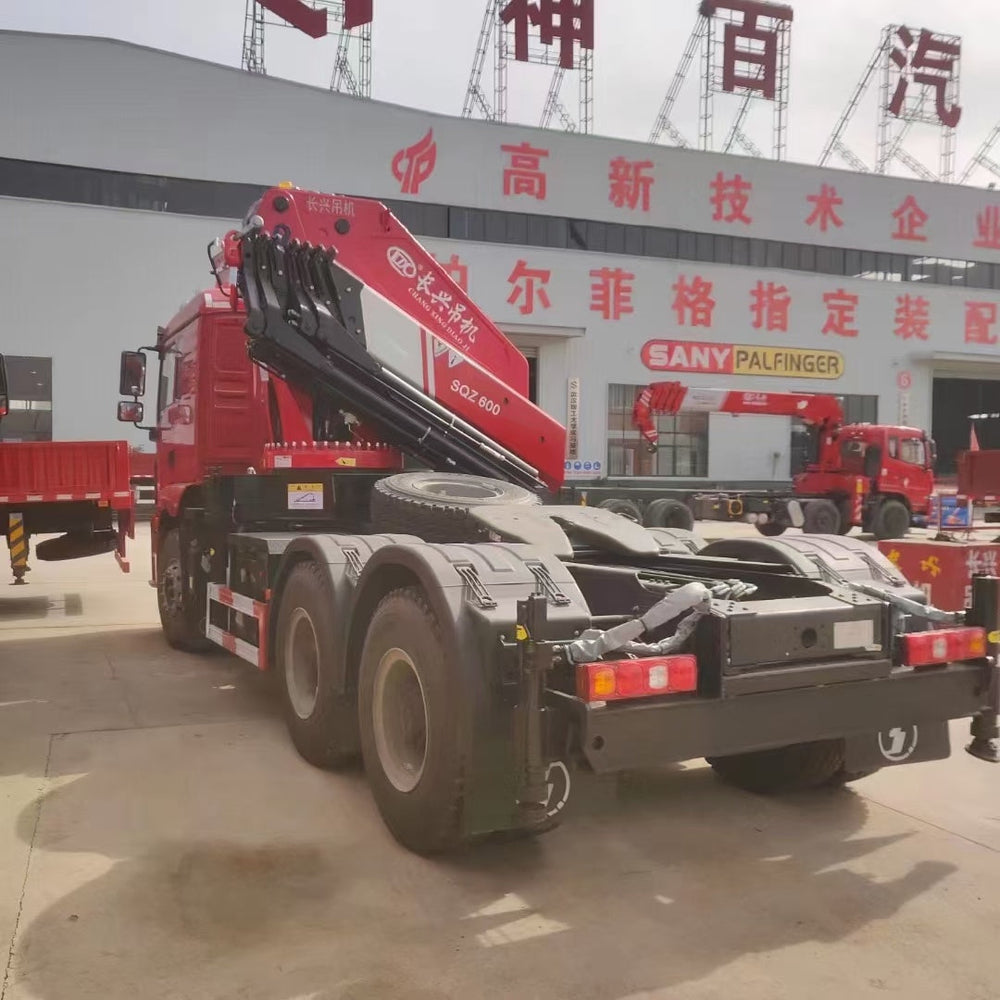

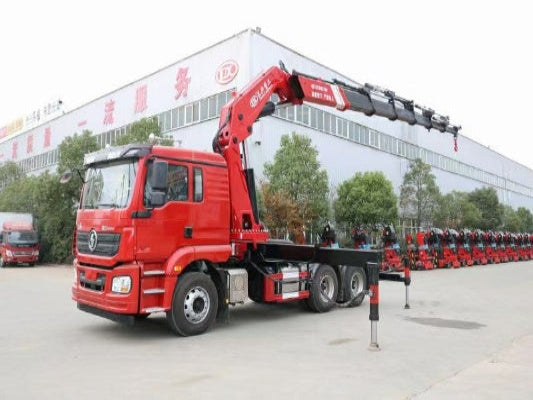

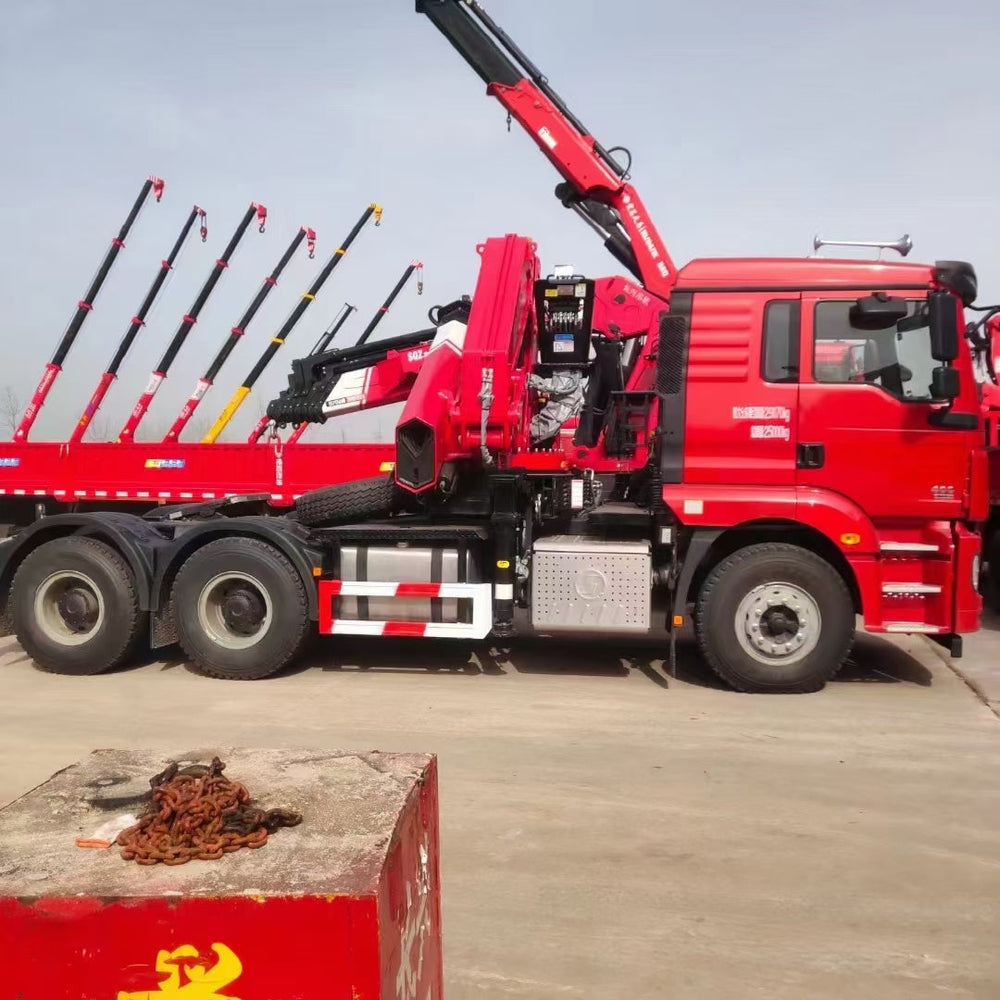

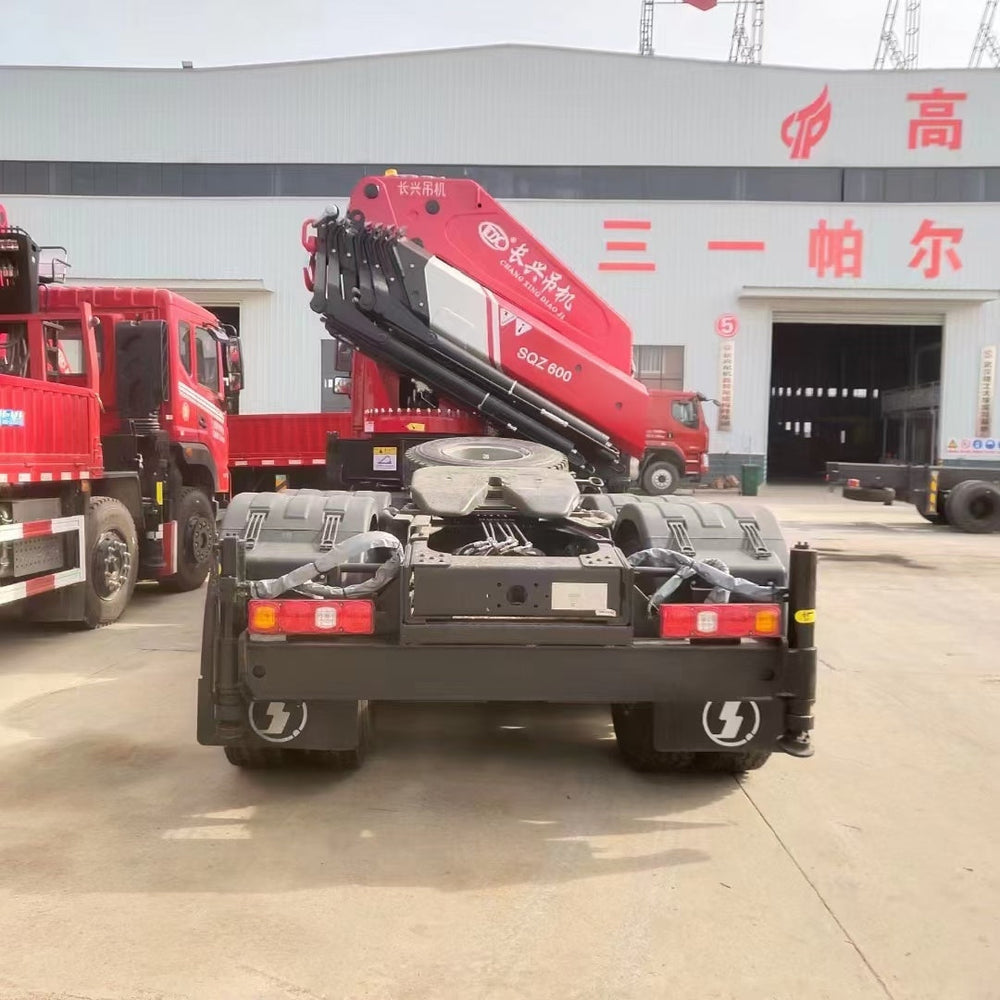

SHACMAN 6×4 Knuckle Boom Crane
Request a Quote Now
| Item | Parameter |
|---|---|
| Engine | Weichai WP12.460 / WP10H400 high-torque engine |
| Announcement Model | SX4259JQQMC4Z1 |
| Gearbox | Fast 12-speed with high-low range synchronizer |
| Kerb Weight | 19800kg |
| Overall Vehicle Dimension | 8025×2550×3800/3950mm |
| Wheelbase | 3975+1400mm |
| Front/Rear Axle | 7.5t / 16t wheel reduction axle |
| Cab Suspension | 4-point airbag floating suspension |
| Final Drive Ratio | 4.266 |
| Differential Lock | Dual differential lock, excellent mud terrain escape capability |
| Braking System | Dual-circuit braking system, enhanced braking performance & driving safety |
| Chassis Frame | 308mm, 8+7+8 laminated structure |
| Vehicle Stability Control | Electronic Stability Control (ESC) |
| Tire | 12.00R20 steel wire tire |
| Air Conditioning | Automatic constant temperature air conditioning |
| Central Control Screen | 10-inch intelligent central control screen |
| Cab Tilt | Electric cab tilting function |
| Driver Seat | Airbag suspension driver seat |
| Steering Wheel | Multi-function steering wheel |
| Driving Recorder | Standard equipped |
| Key System | Remote control key |
| Door & Window | Electric power windows |
| Headlamp | LED headlamp |
| Anti-lock Braking System | ABS, standard equipped |
