Name: DongFeng GKS32Pro Aerial Work Platform Truck
Brand: Shenbai
SKU: dongfeng-gks32pro-aerial-work-platform-truck
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

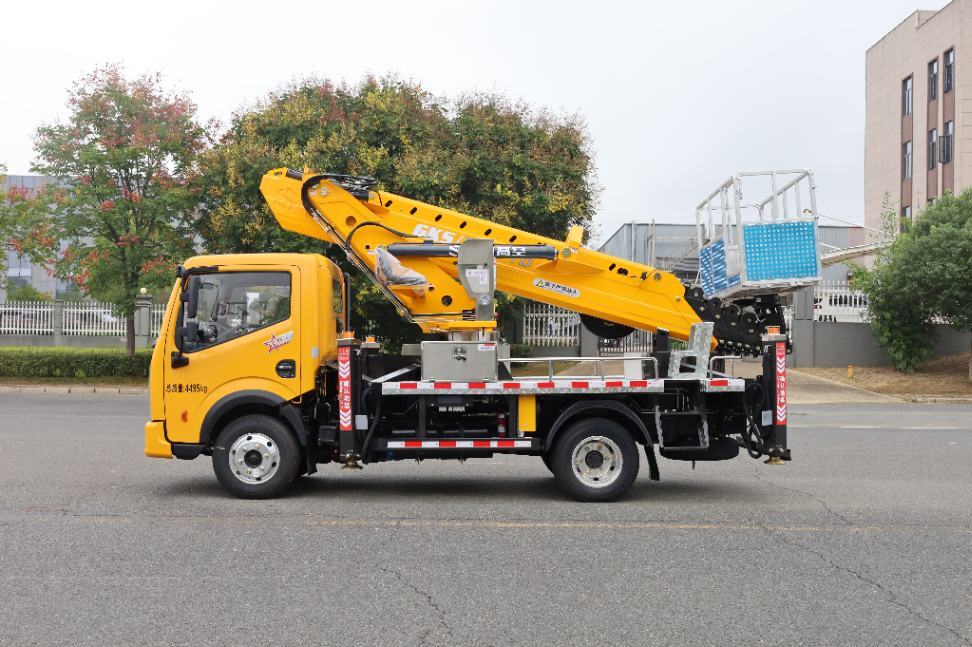

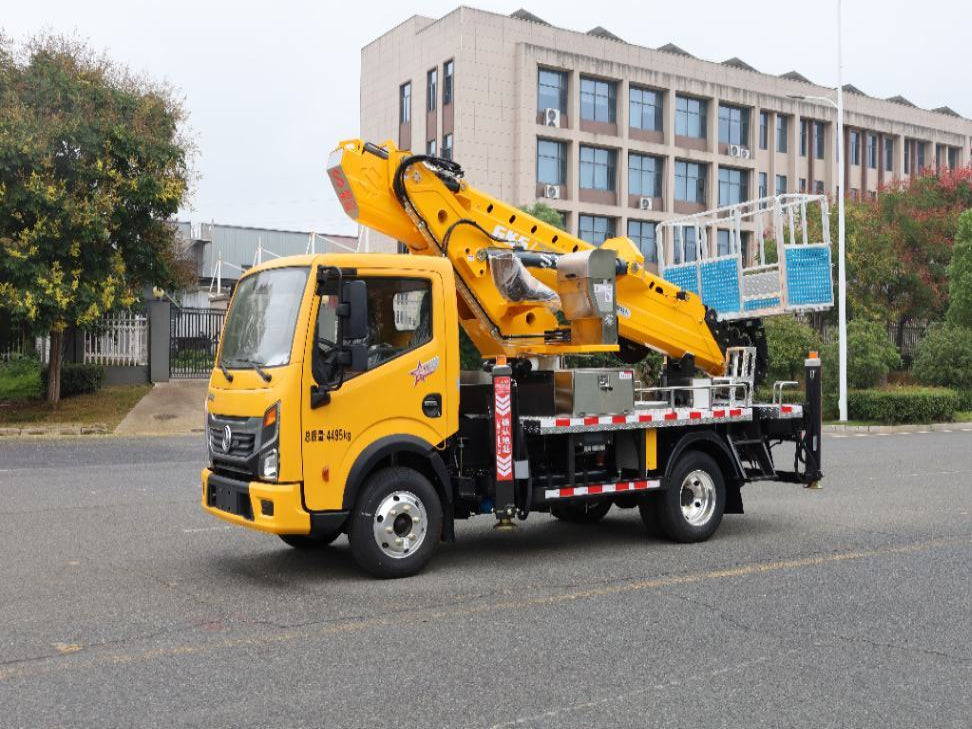

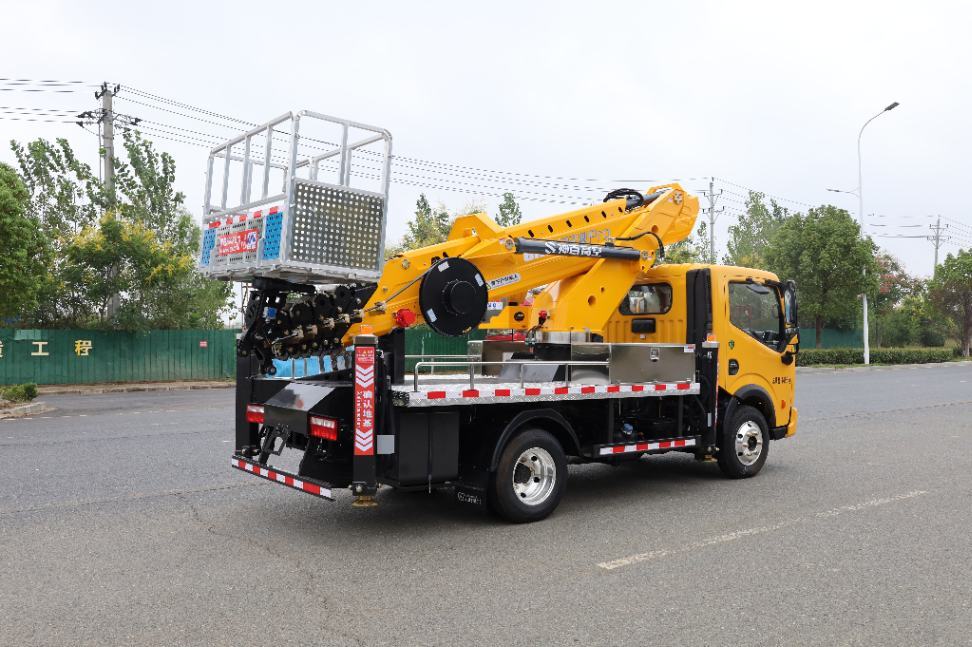

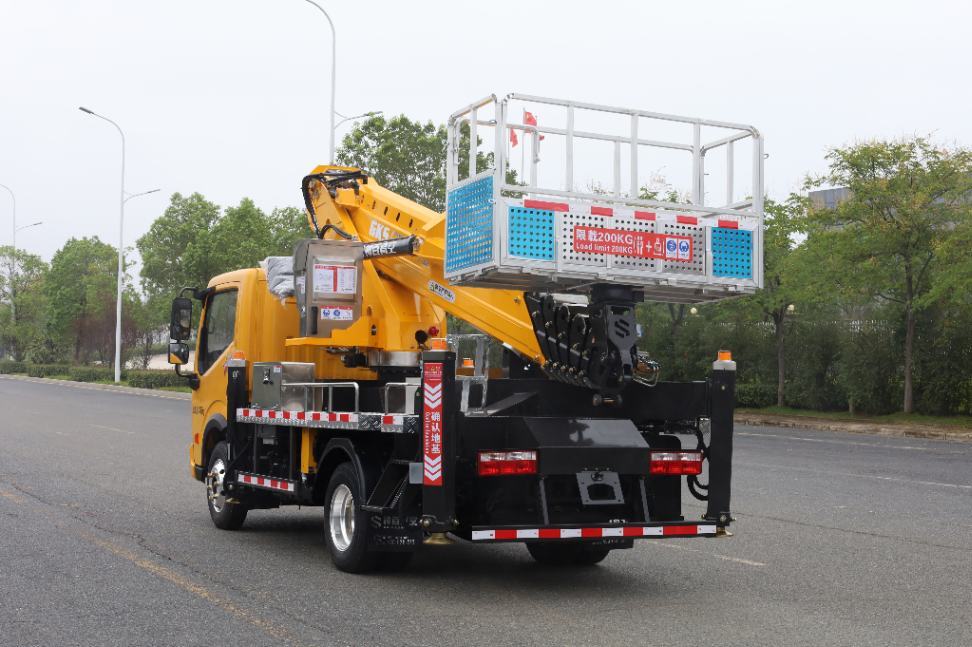

DongFeng GKS32Pro Aerial Work Platform Truck

1 / 10

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Chassis Configuration

Item	Parameter
Chassis Model	Dongfeng Dolica K5
Gross Vehicle Weight	4495 kg
Curb Weight	4365 kg
Engine	Quanchai 150 HP Diesel Engine
Transmission	Wanliyang 5-speed Manual Gearbox
Wheelbase	2950 mm
Overall Dimension	5995×2200×3100 mm
Tire Spec	650R16LT
Brake	Air Cut-off Brake

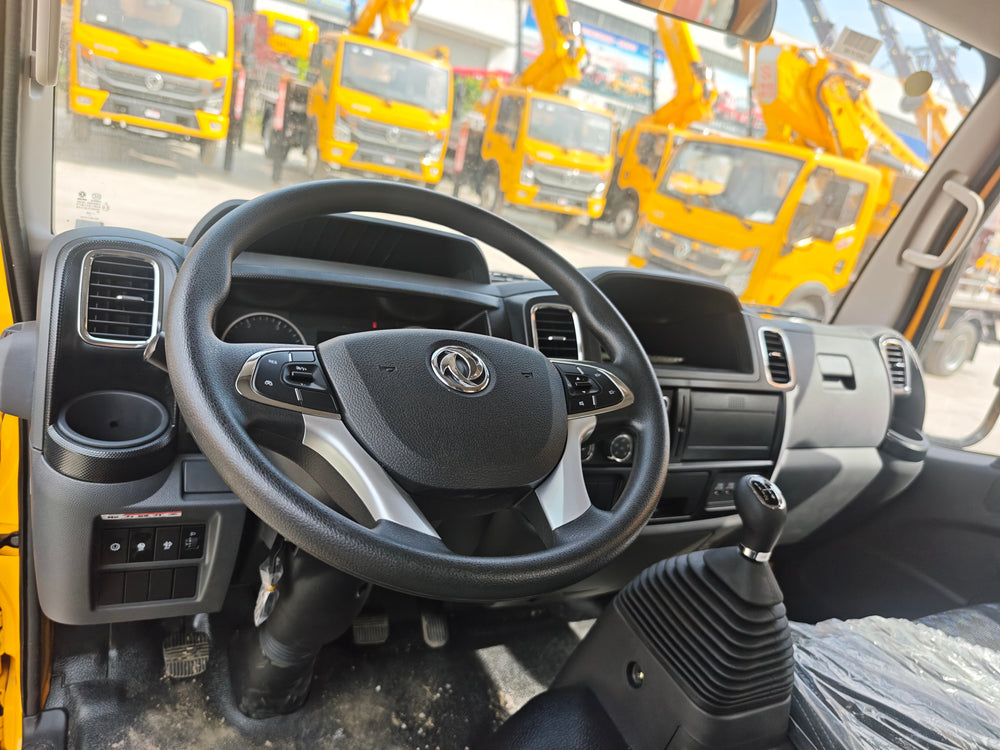

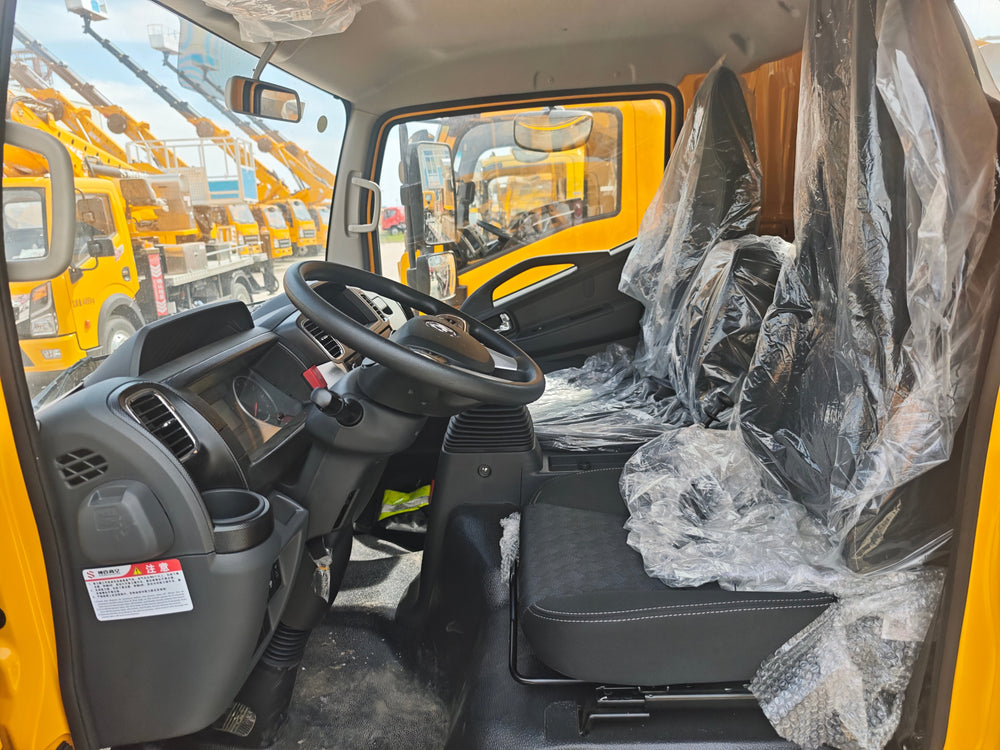

Standard Accessories	Power Window, Air Conditioner, Central Door Lock

2. Superstructure (GKS32 PRO)

Item	Parameter
Max Working Height	30.6 m
Max Working Radius	17 m
Rated Platform Load	200 kg
Boom Slewing Range	360° Full Rotation
Platform Dimension	1800×700×1000 mm, max unfolded width:3800 mm
Platform Rotation	Unlimited 360° Rotation

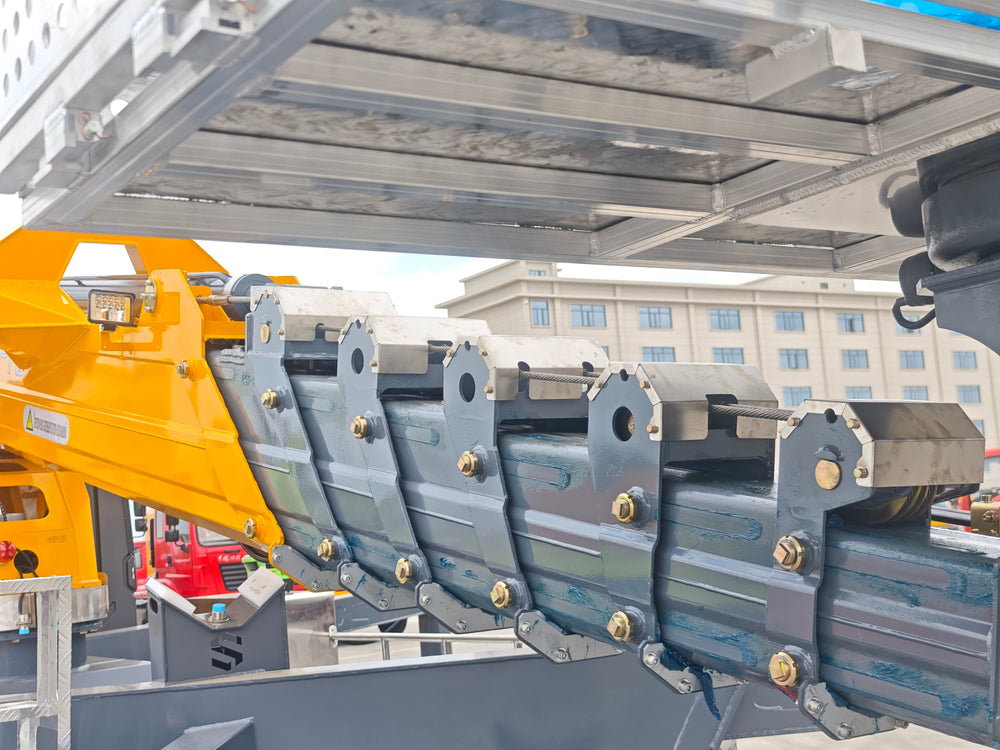

Boom Structure	7-section boom, 6-section synchronous extension; spare steel cable for emergency crew descending
Boom Material	960 High-strength Steel Plate
Lifting Cylinder	Dual Thickened Lifting Cylinders
Outrigger	X-type, 4 independent double-stage legs; Span: Trans 6000mm / Long 5800mm
Subframe	Box-type Subframe + 3-layer Trapezoidal Reinforced Slewing Base

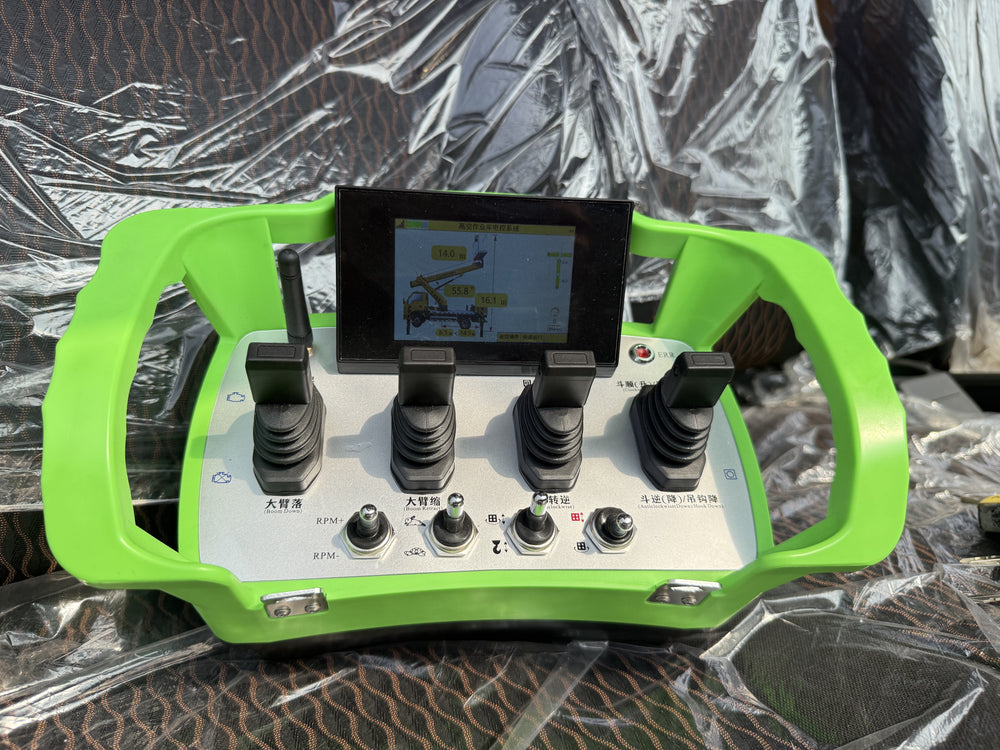

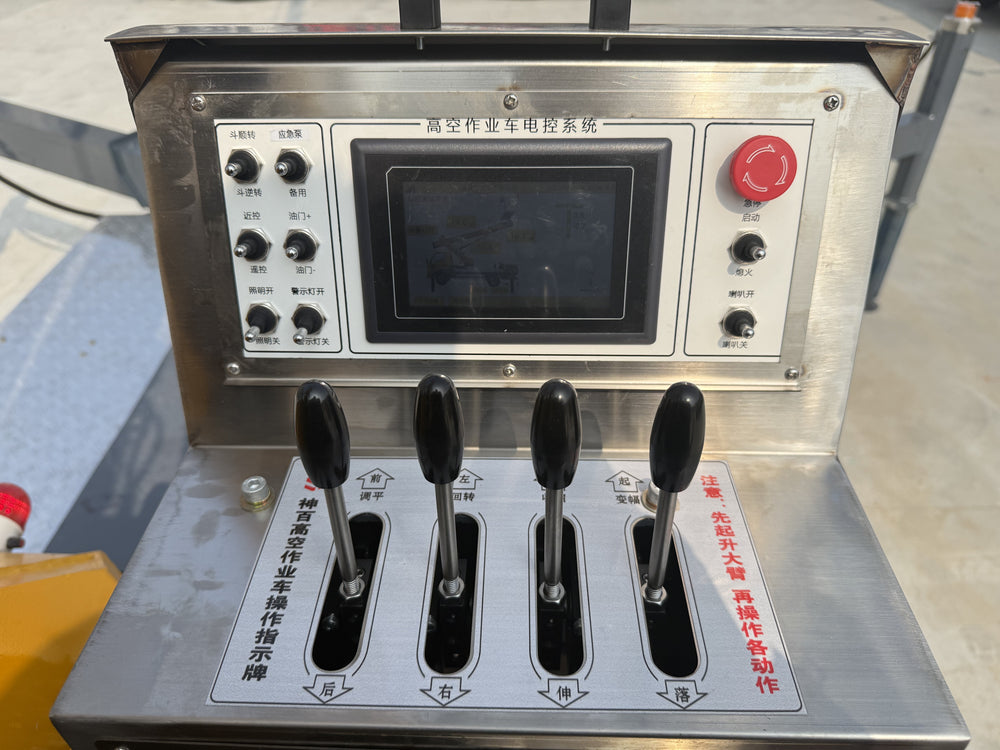

Control System	Famous Domestic ECU, Wireless Remote + Upper Control with Display Screen

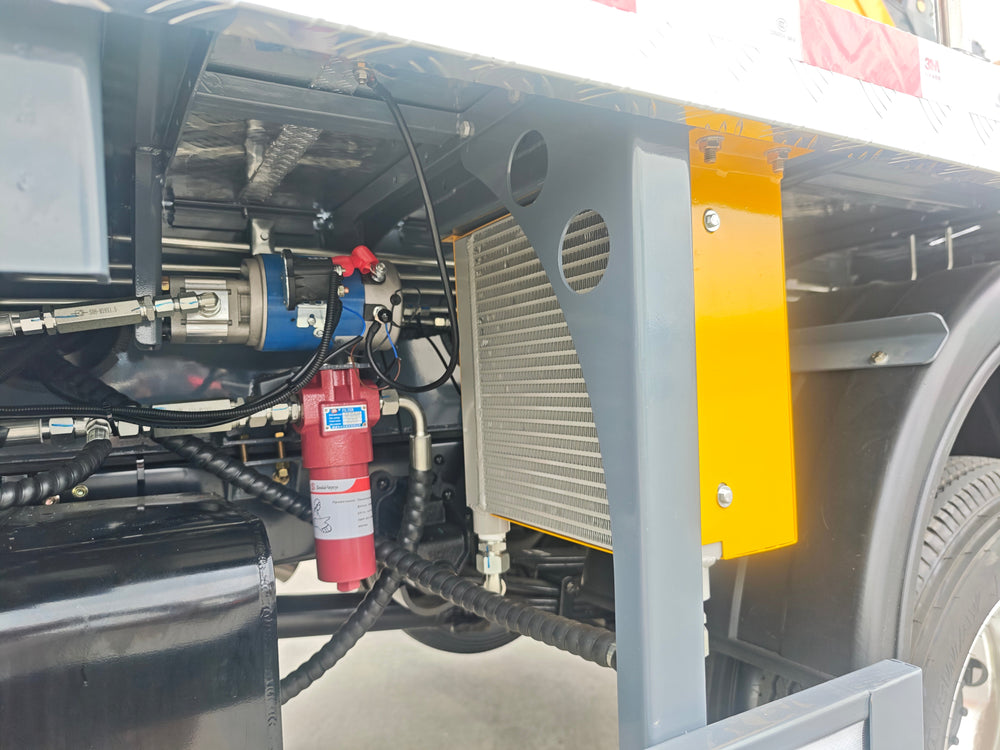

Hydraulic System	Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit
Walkway	Anti-slip Aluminum Alloy Walkboard
Safety Devices	Upper-lower Cabin Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection
Optional Parts	Upper Operation Cabin, 1T Winch
Total Boom Length	27 m
Overall Vehicle Height	3.1 m
