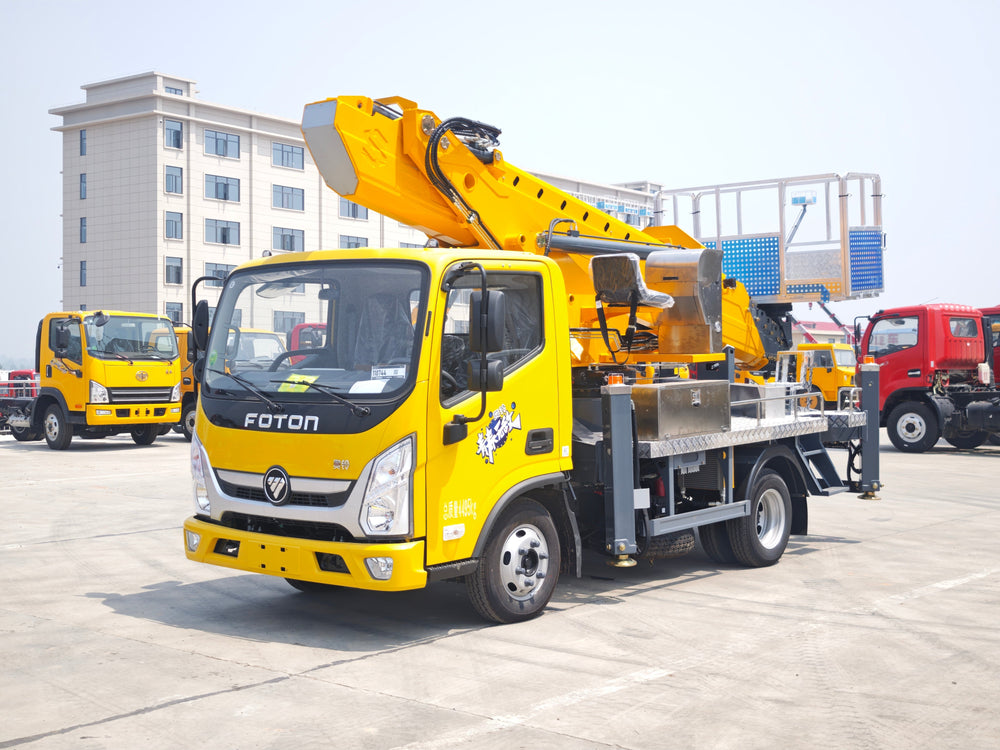

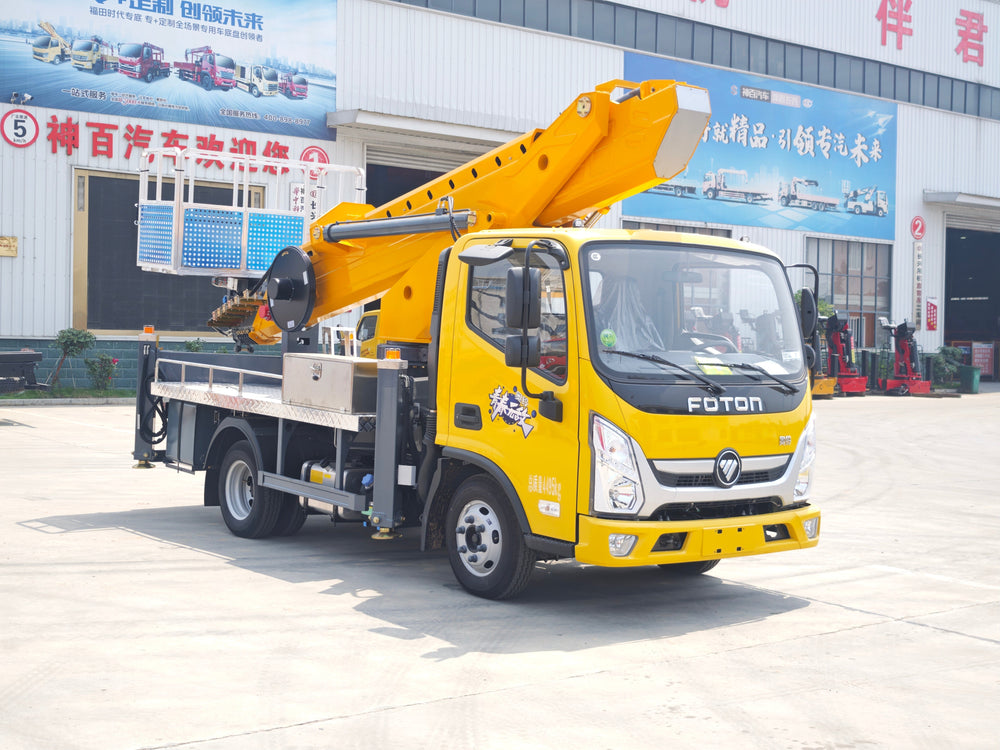

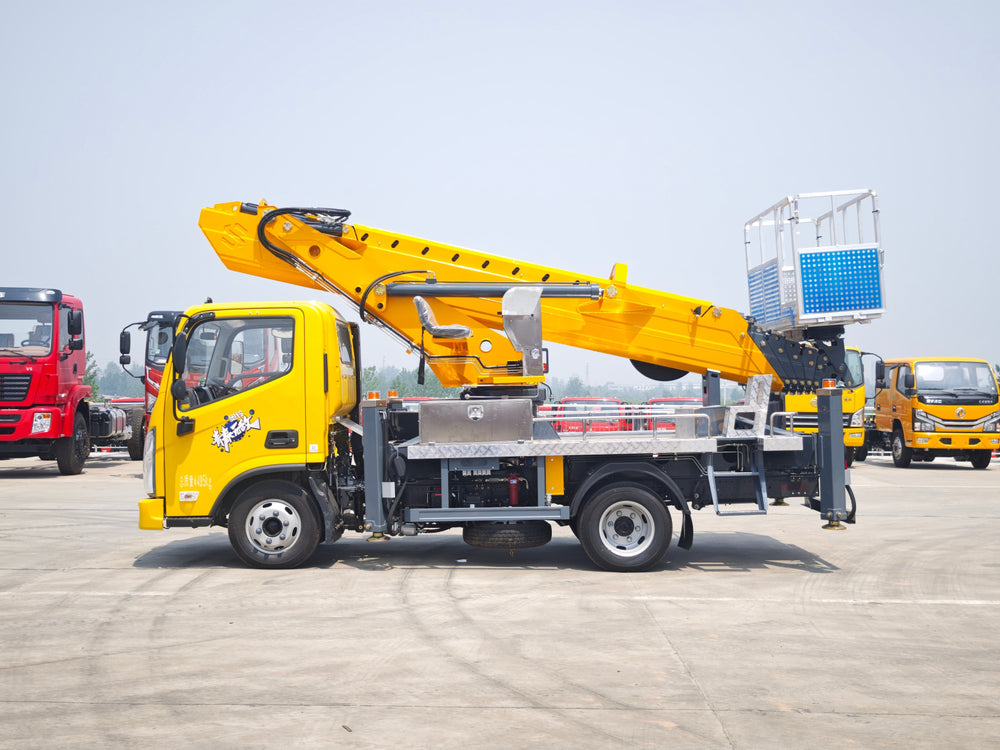

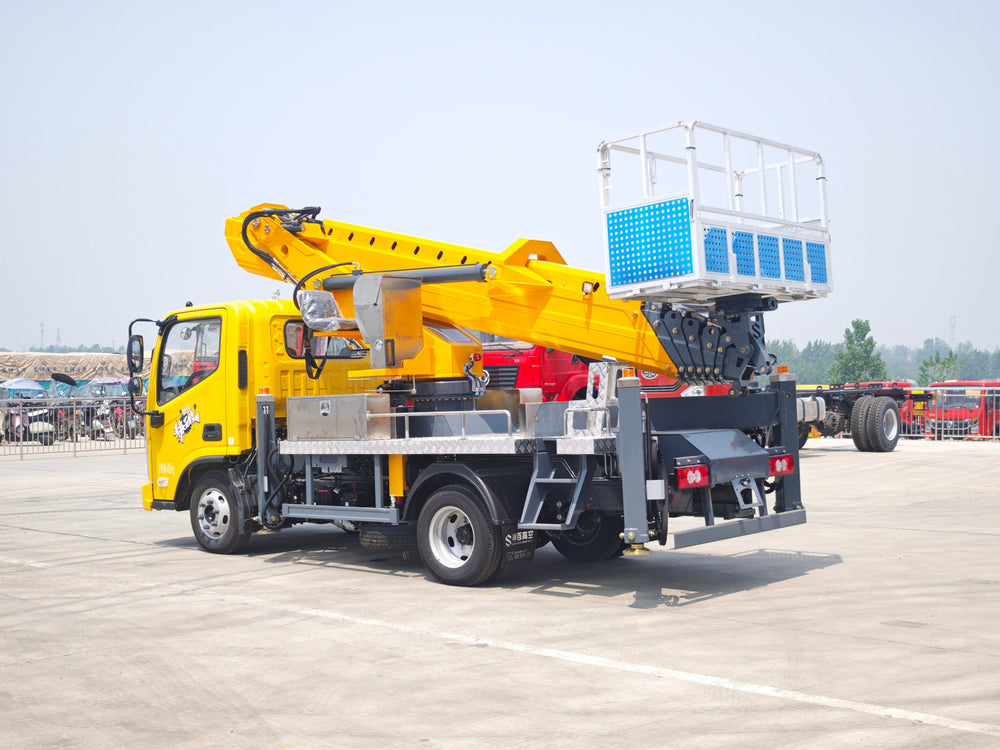

Foton GKS35 Pro Aerial Work Platform Truck
Request a Quote Now
- Chassis Configuration
| Item | Parameter |
|---|---|
| Chassis Brand & Cab | Foton Aoling Youth Edition, Heavy-duty Short Wheelbase |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Engine | Yunnei 151 HP Diesel Engine |
| Transmission | Wanliyang 8-speed Smooth-shift Gearbox |
| Wheelbase | 2800 mm; 180mm Factory Double-layer Widened Frame, 5T Rear Axle |
| Overall Dimension | 5995×2200×3150 mm |
| Tire Spec | 6.50R16 / 7.00R16 |
| Brake Type | Air Cut-off Brake |

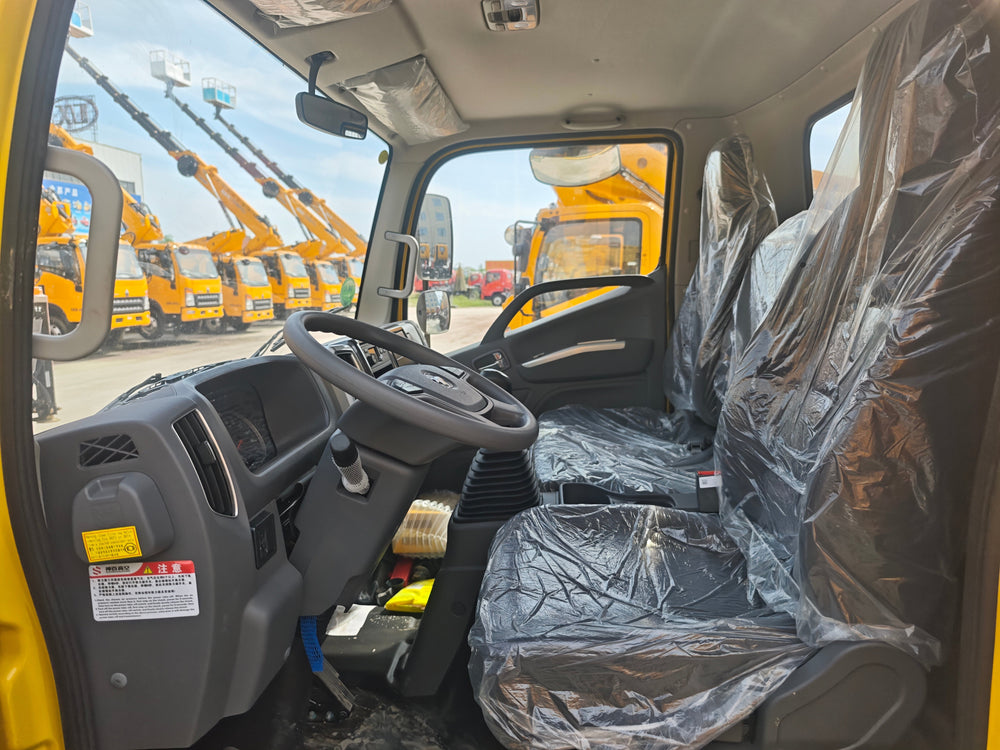

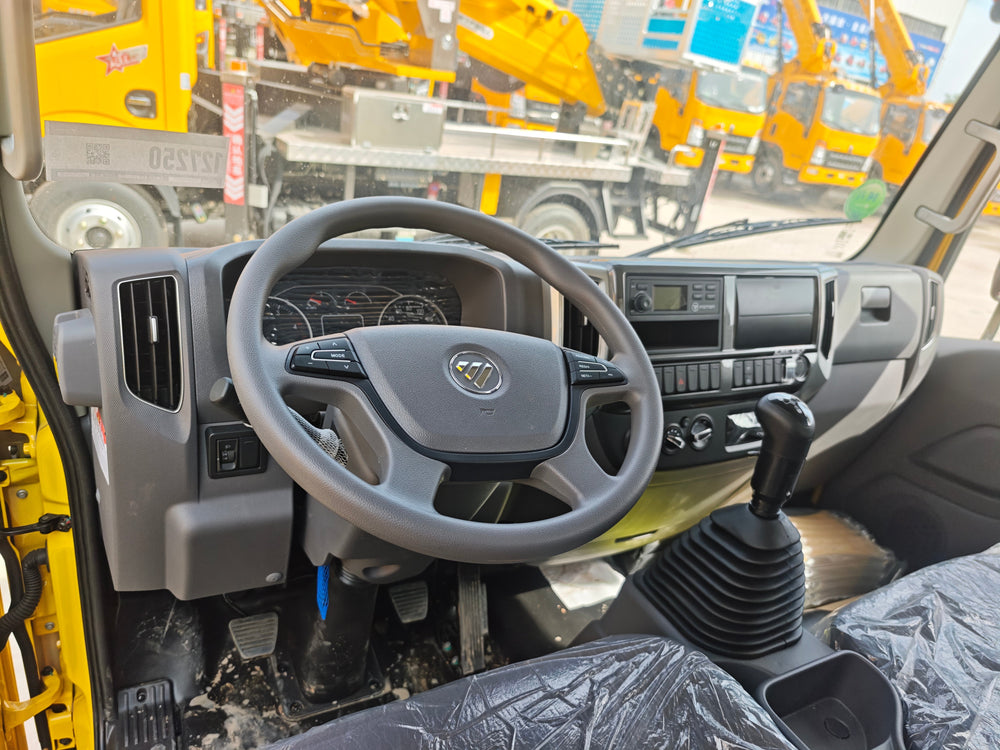

| Standard Accessories | Power Window, Air Conditioner, Central Lock, Multifunctional Steering Wheel |
| Core Advantage | Minimum Turning Radius, Heavy-load Blue-plate, 7-section boom for 33.8m working height |
2. Superstructure (GKS35)
| Item | Parameter |
|---|---|
| Max Working Height | 33.8 m |
| Max Working Radius | 16.5 m |
| Rated Platform Load | 200 kg |
| Boom Slewing Range | 360° Full Rotation |
| Platform Size | 1800×700×1000mm (max unfolded width:3.8m) with 9-inch basket slewing support |
| Platform Rotation | Unlimited 360° Rotation |

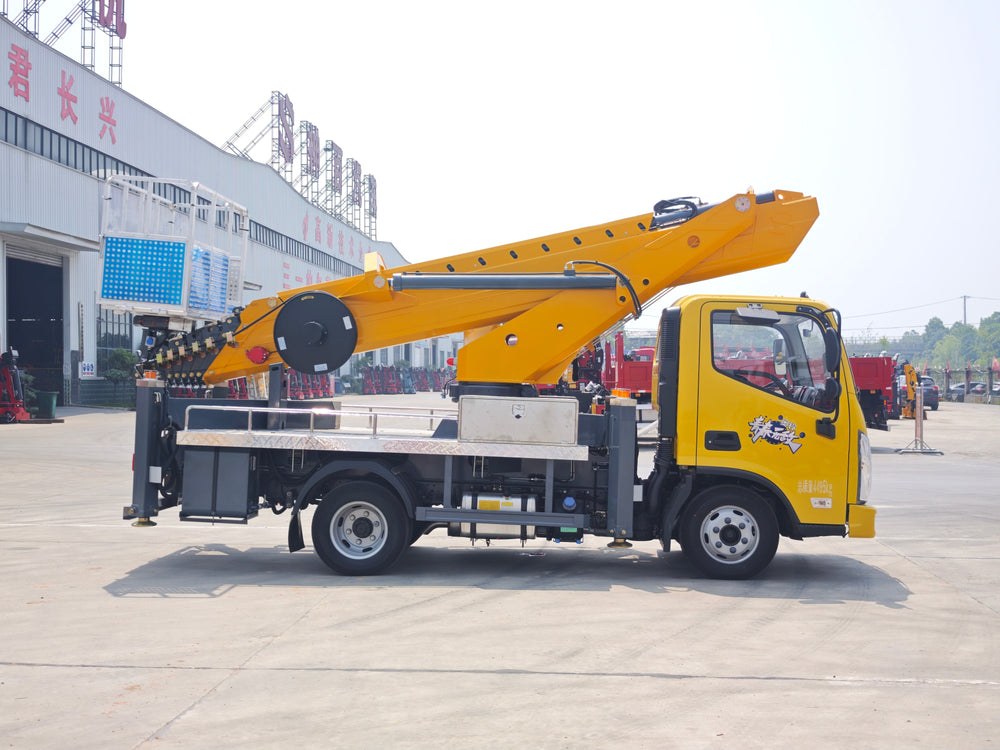

| Boom Structure | 7-section boom, 6-section synchronous extension; spare steel cable for emergency descending |
| Main Material | Lightweight 960 High-strength Steel Plate |

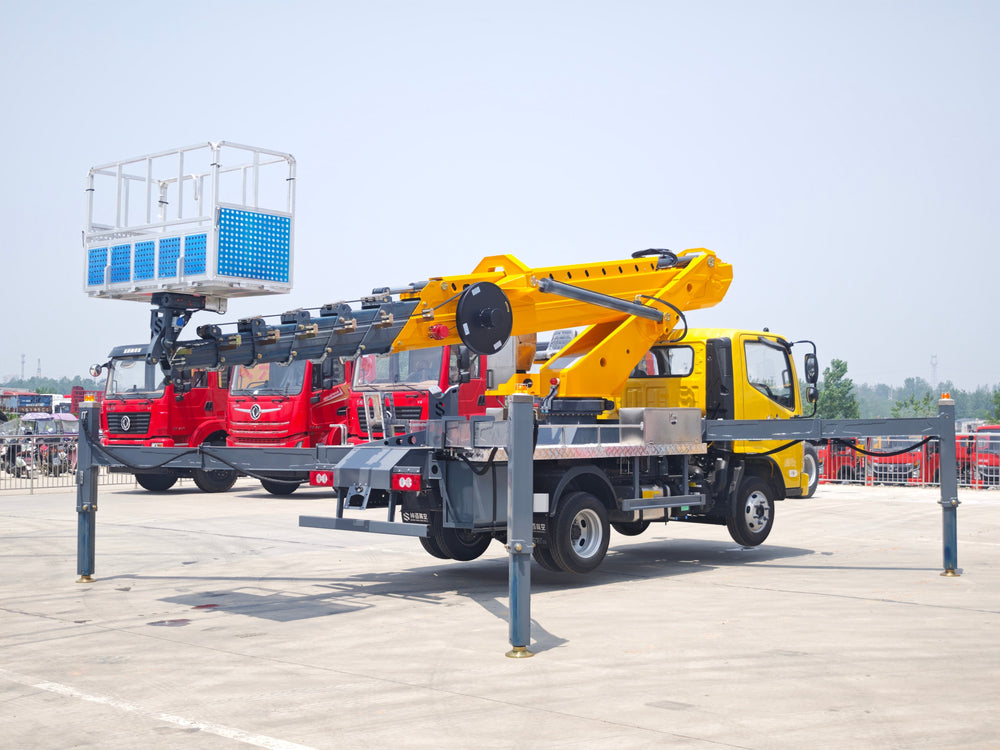

| Outrigger | X-type, 4 double-stage independently adjustable legs; Trans/Long span:6m |

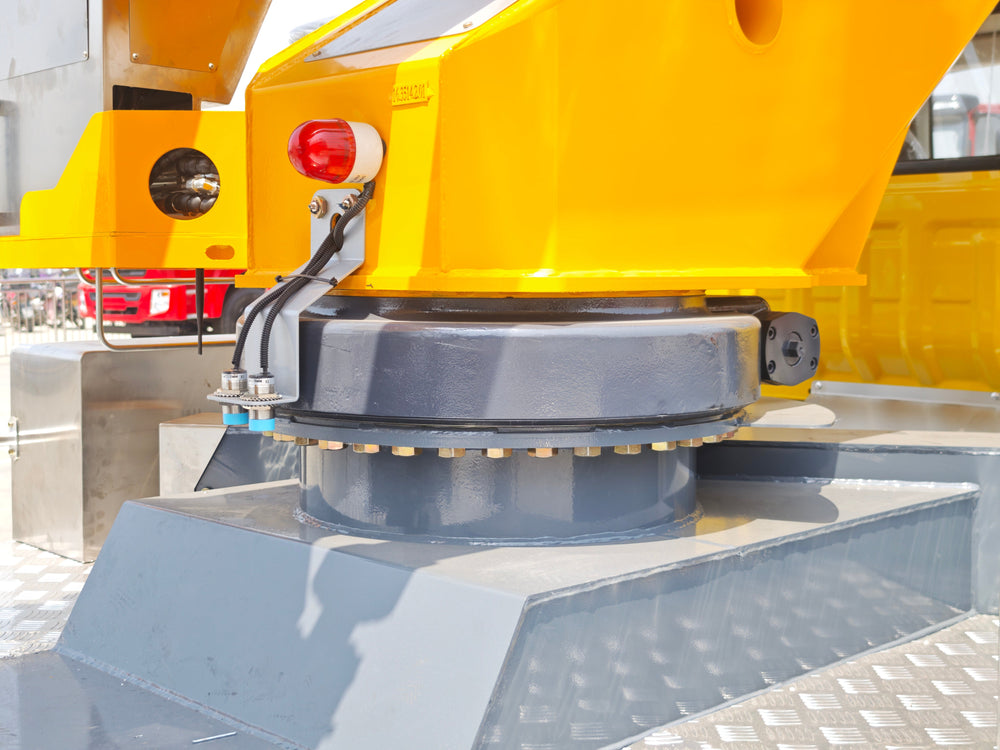

| Subframe | Box-type Subframe + 3-layer Reinforced Trapezoidal Slewing Base |

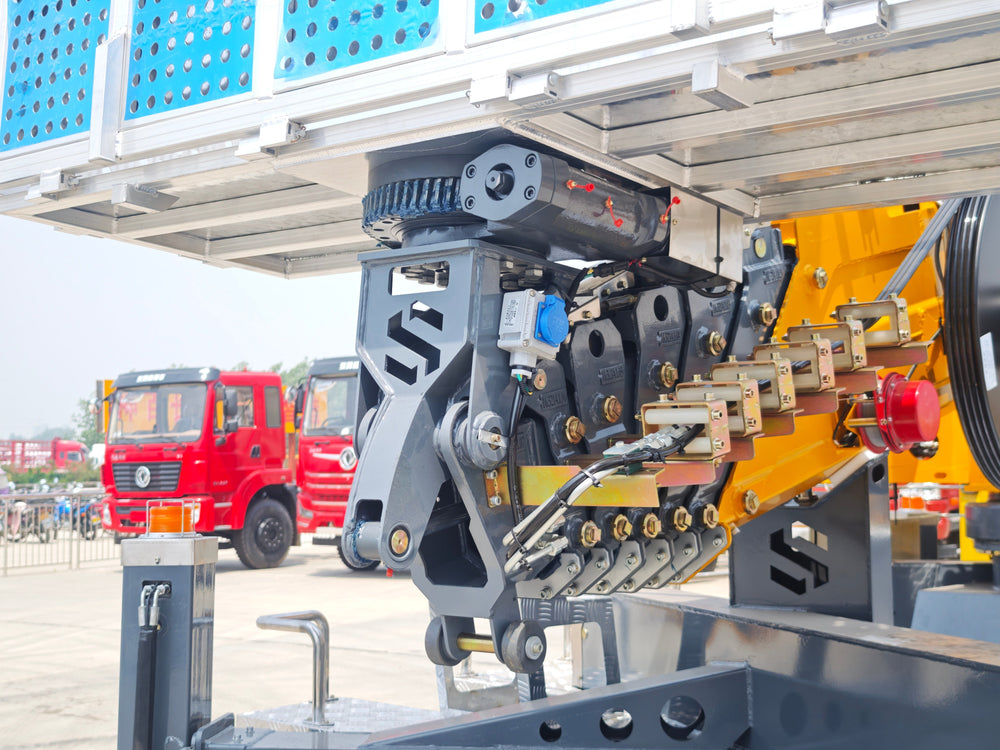

| Control System | Domestic Famous ECU, Wireless Remote + Upper Control with Display Screen |
| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed Regulation + Emergency Power Unit |
| Walkway | Anti-slip Aluminum Alloy Walkboard with Stainless Steel Guardrail |

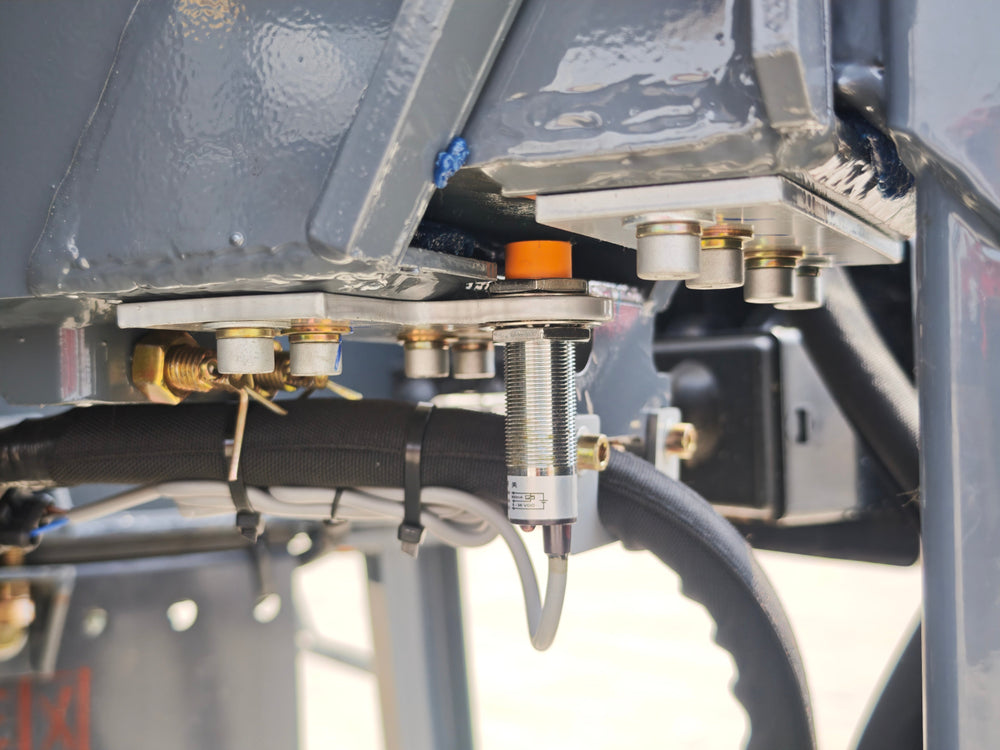

| Safety Devices | Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Outrigger Protection |
| Optional Parts | Upper Operation Cabin, 1T Winch |
| Boom Length | 30.3m |
