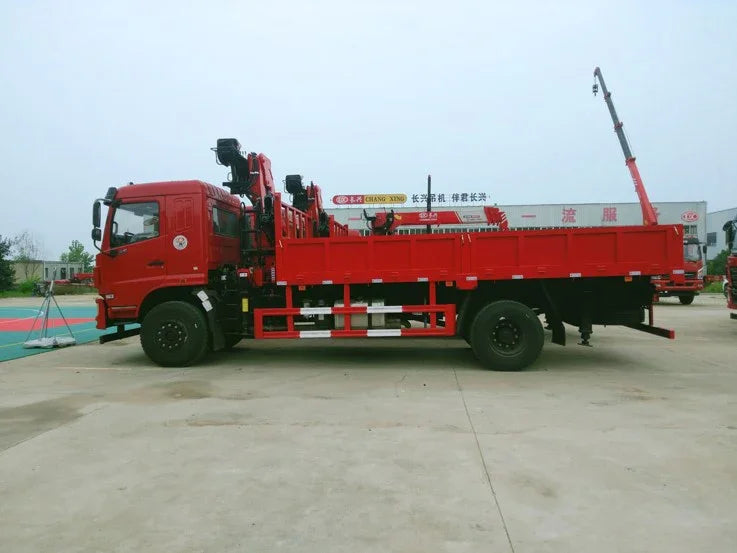

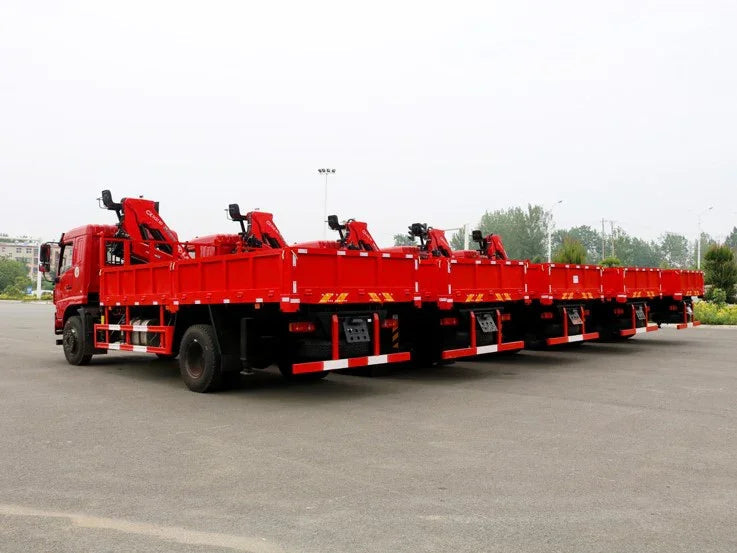

Dongfeng 4T Knuckle Boom Crane
Request a Quote Now
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
Dongfeng |
|
Drive Type |
Left Hand Drive 4*2 |
|
Vehicle Size(mm) |
7000*2300*3600 |
|
G.V.W(kg) |
12000 |
|
Engine Model |
YC4E140-33 |
|
Engine power |
140HP/103KW |
|
Emission Standard |
Euro 2 |
|
Wheelbase |
3800mm |
|
Cab Capacity |
2 |
|
Transmission |
8JS85TC |
|
Front/Rear Axle |
3.5T/6T |
|
Tyre Size |
8.25R16 |
|
Fuel tank |
145L |
|
Container Size |
4200 × 2300 × 600mm |
|
Container material |
Q235 carbon steel |
|
Container thickness |
Side panels 3 mm, bottom panel 5 mm. |
|
Crane Brand |
CX/SQZ80-3 |
|
Maximum lifting weight |
4T |
|
Working angle |
360-degree rotation |
|
Maximum lifting height |
9M |
|
Working radius |
6.25M |
|
Quantity of telescopic arm |
3-section |
|
Rear outriggers |
Equipped with |
|
3.Crane parameters |
|
|
|
|
|
|
|
