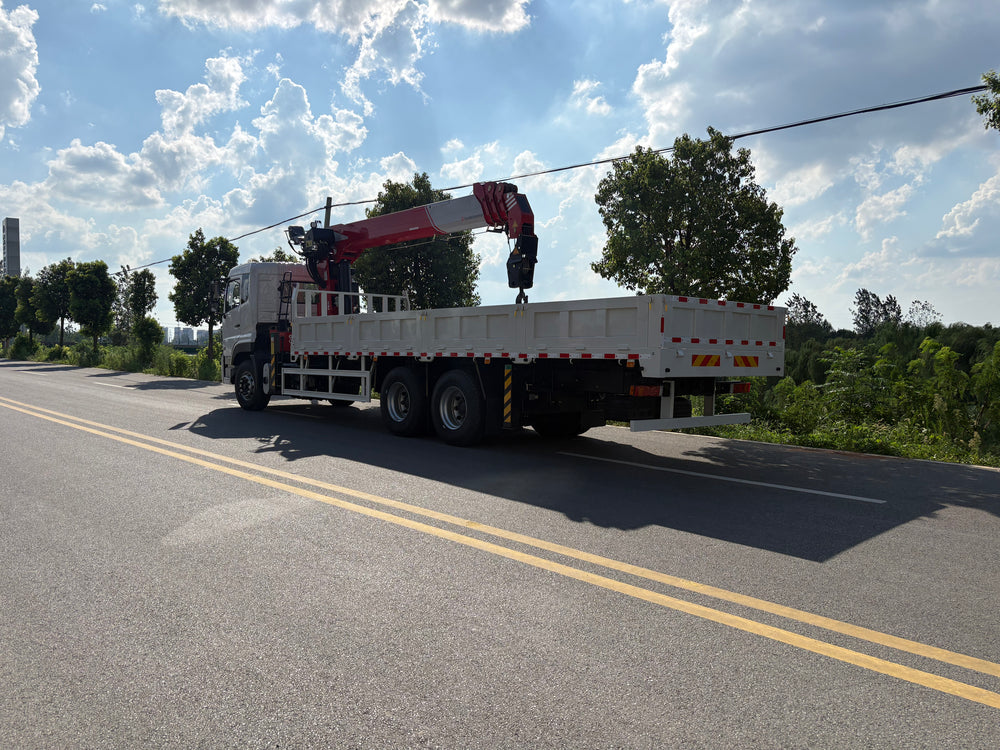

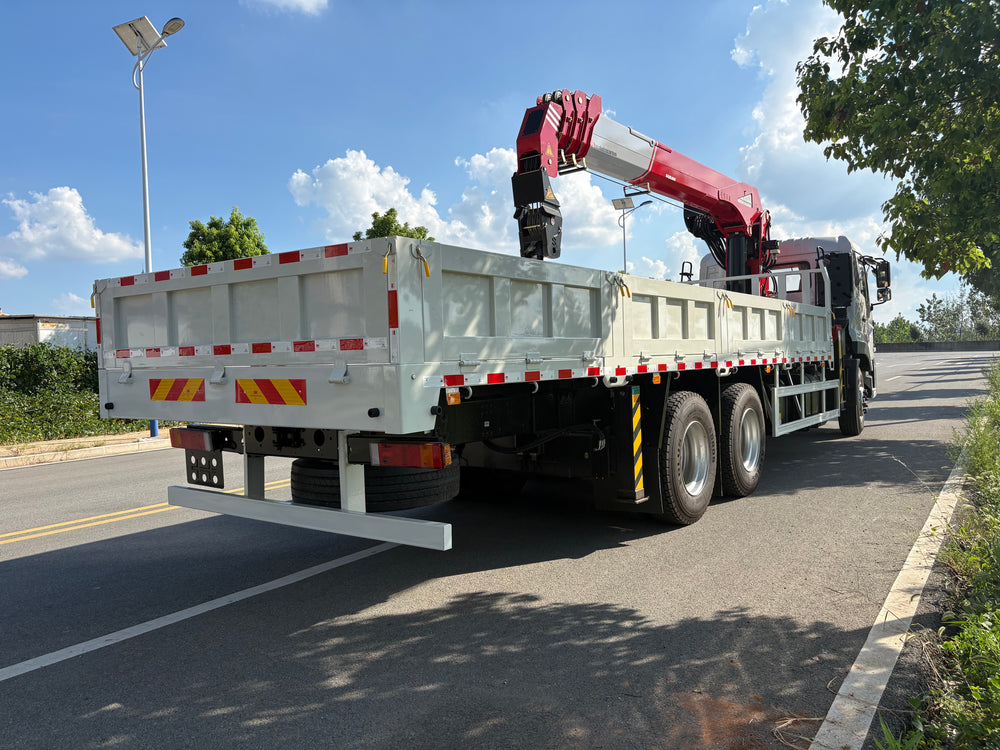

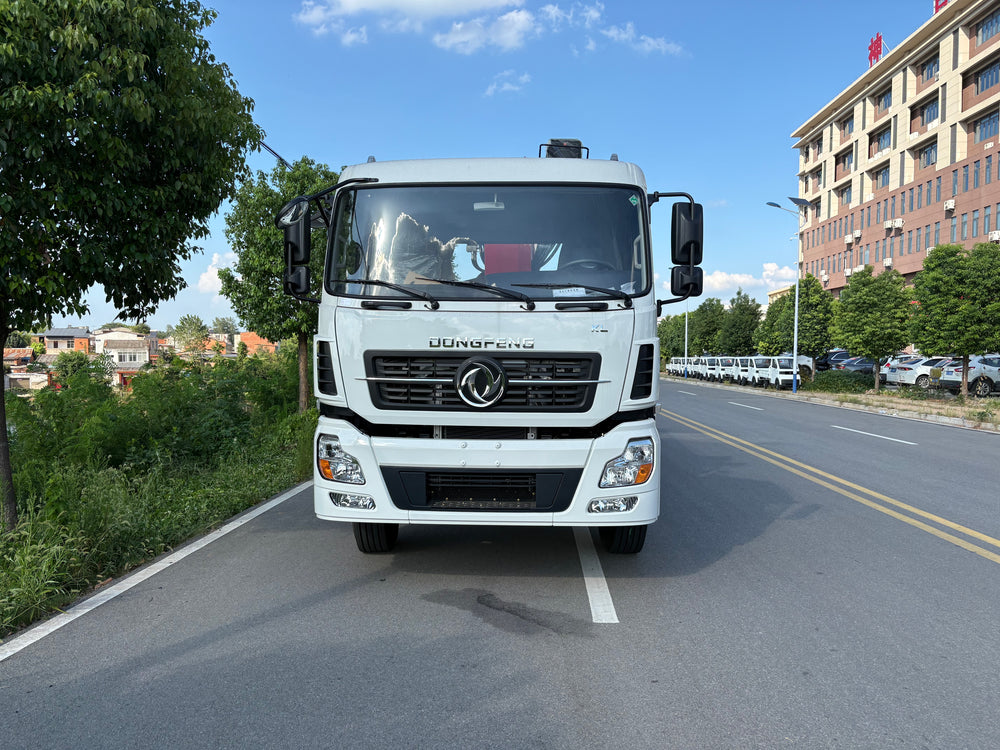

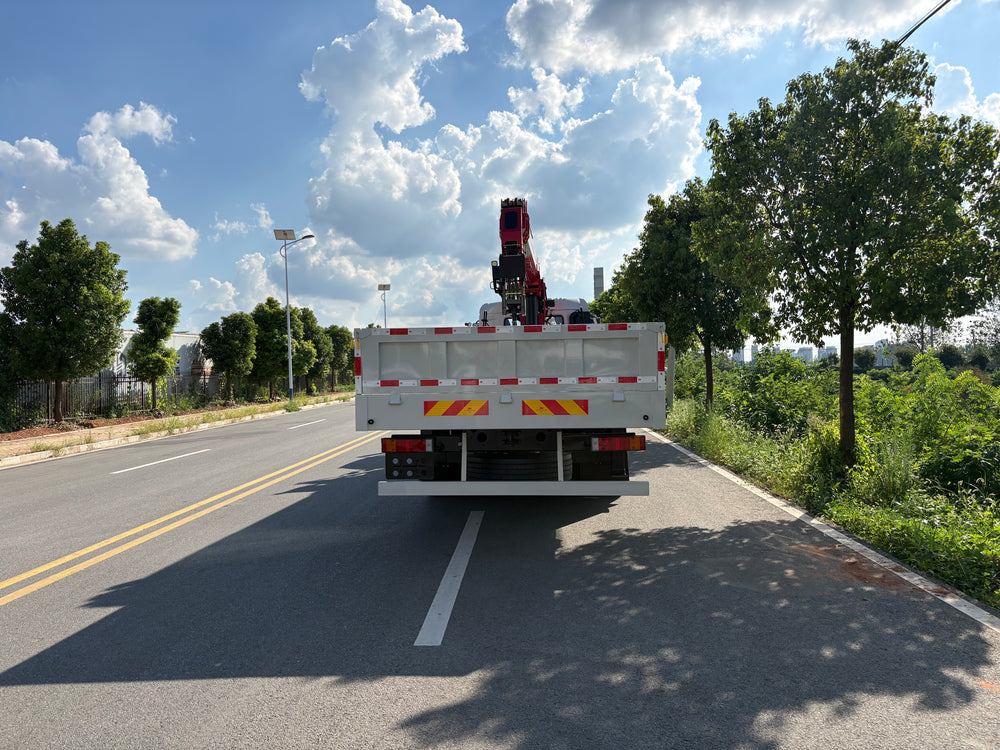

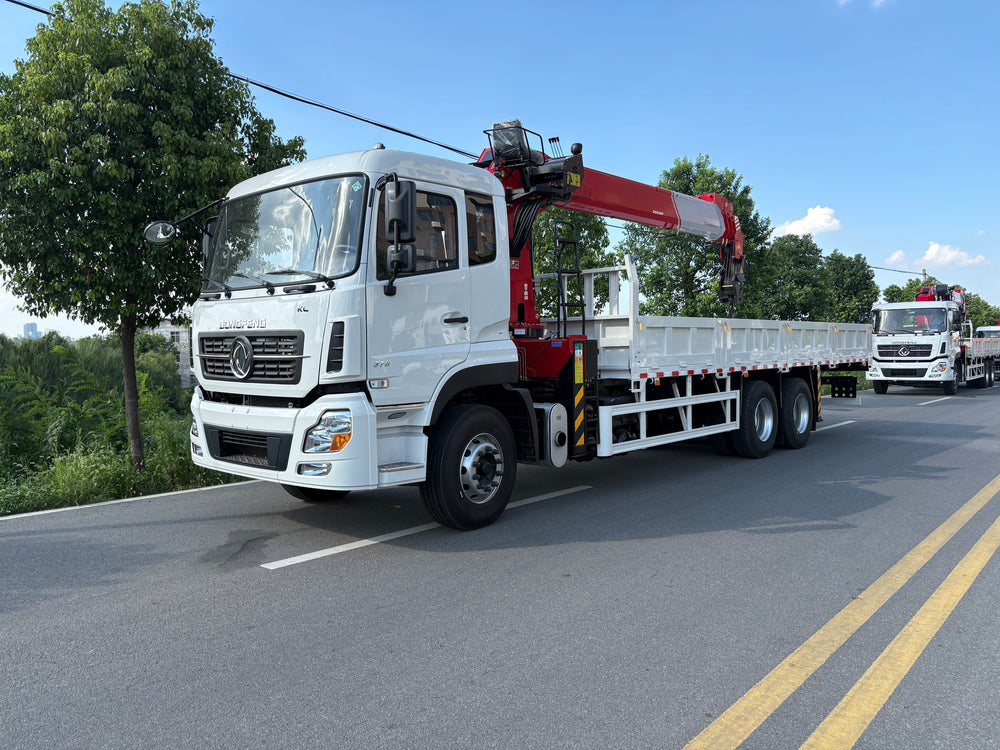

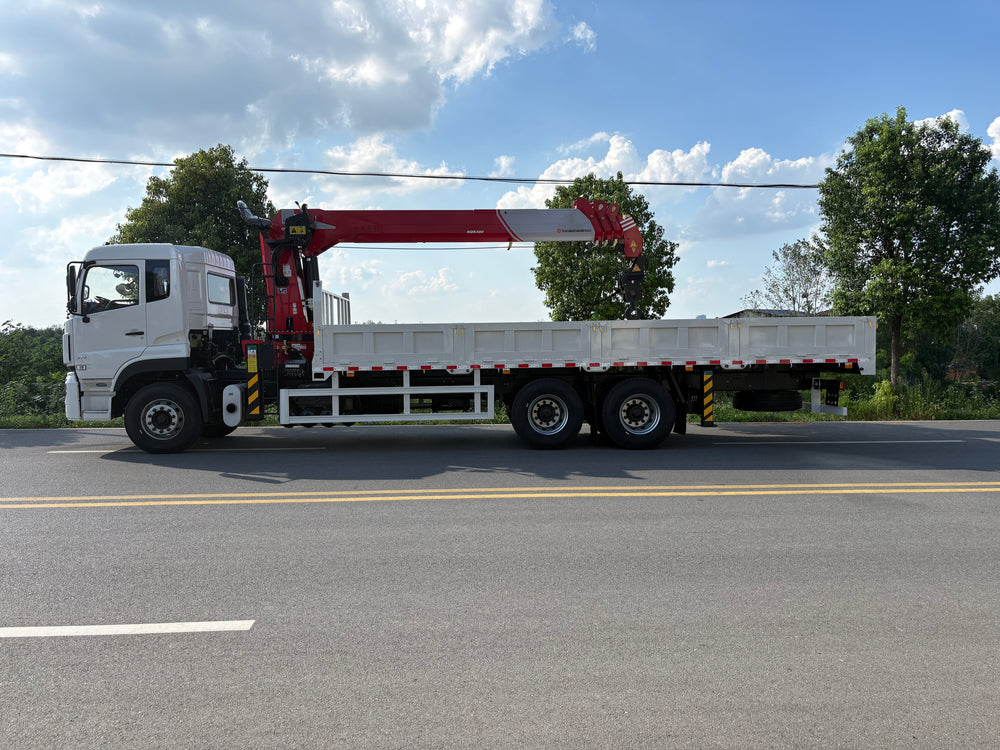

Dongfeng 6×4 12-ton Truck‑mounted Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Chassis Configuration | |
| Cab | Dongfeng D310 Semi‑sleeper Cab |
| Engine | Cummins 375 HP (Model: LK375 33), 9.5L Displacement, Euro‑II Emission Standard |
| Transmission | Fast 12‑speed Transmission with Synchronizer |
| Wheelbase | 5600+1350 mm |
| Rear Axle | Dual 13‑ton Rear Axles |
| Tyre | 12R22.5 |
| Fuel Tank | 400L All‑steel Diesel Tank |
| Superstructure‑Crane | |
| Crane Brand & Model | Changxing 12‑ton 4‑section Straight Boom Crane, Model: SQS300‑4 |
| Max. Lifting Capacity | 12 Tonnes |
| Operation Mode | Upper‑station Operation with Aerial Seat |
| Working Radius | 15 m |
| Lifting Height | 16.3 m |
| Hydraulic System | Gear Single‑unit Pump, Dual‑operation Single Pump Valve, Single‑section Outrigger, Winch (Orbit Motor), with Radiator |
| Rear Outrigger | Double‑chamber Hydraulic Rear Outriggers |
| Superstructure‑Cargo Box | |
| Box Structure | Side plate 3 mm, Bottom plate 5 mm Welded Structure, 480 High‑strength Steel; 4 mm Thickness Cross Beam, Cross‑beam Spacing 28 mm; 4 mm Thickness Side Beam, Frame Border 12 cm; 4‑segment Side Board; Full‑length Main & Auxiliary Longitudinal Beams |
| Cargo Box Dimension | 8000 × 2450 × 550 mm |
| Box Color | Jade White |
