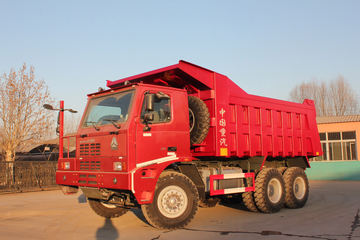

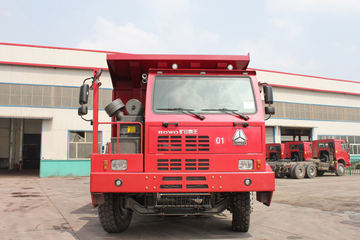

Sinotruk HOWO 370hp 6X4 Wide-Body Mining Dump Truck
Request a Quote Now
| Basic Information | ||
| Driving License Required | A1, A2, B2 | - |
| Wheelbase | 3800+1500 | mm |
| Model | ZZ5707S3840AJ | - |
| Drive Type | 6×4 | - |
| Front Track | 2750 | mm |
| Rear Track | 2520 | mm |
| Curb Weight | 23 | tons |
| Rated Load Capacity | 52 | tons |
| Gross Vehicle Weight | 75 | tons |
| Overall Dimensions (L×W×H) | 8.5×3.3×3.67 | m |
| Maximum Speed | 50 | km/h |
| Minimum Ground Clearance | 340 | cm |
| Minimum Turning Radius | 22 | m |
| Maximum Gradeability | 42 | % |
| Approach Angle | 32 | ° |
| Departure Angle | 40 | ° |
| Engine Parameters | ||
| Engine Model | Sinotruk WD615.47 | - |
| Displacement | 9.726 | L |
| Maximum Output Power | 273 | kW |
| Maximum Horsepower | 370 | HP |
| Maximum Torque Speed | 1500 | rpm |
| Maximum Torque Speed Range | 1100~1600 | rpm |
| Emission Standard | National II / Euro II | - |
| Optional Engine | D12.42-30 | - |
| Transmission Parameters | ||
| Transmission Model | HW19710 | - |
| Number of Gears | 9 | gears |
| Cargo Box Parameters | ||
| Cargo Box Dimensions (L×W×H) | 5.8×3.1×1.8 (Rectangular) | m |
| Superstructure Parameters | ||
| Vehicle Brand | Haowo 70 Mining Overlord | - |
| Lifting Type | Yangzhou Hyva | - |
| Maximum Tipping Angle | 51 | ° |
| Cargo Box Lifting Time | 25 | s |
| Tires | ||
| Number of Tires | 10 | pcs |
| Tire Specification | 14.00-24 | - |
