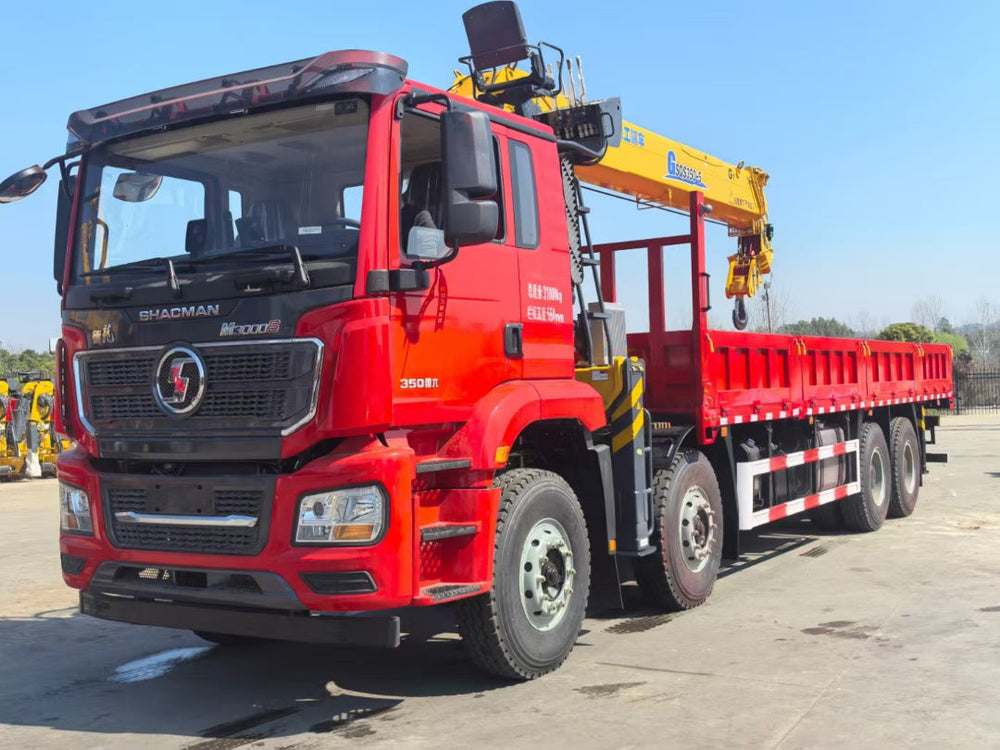

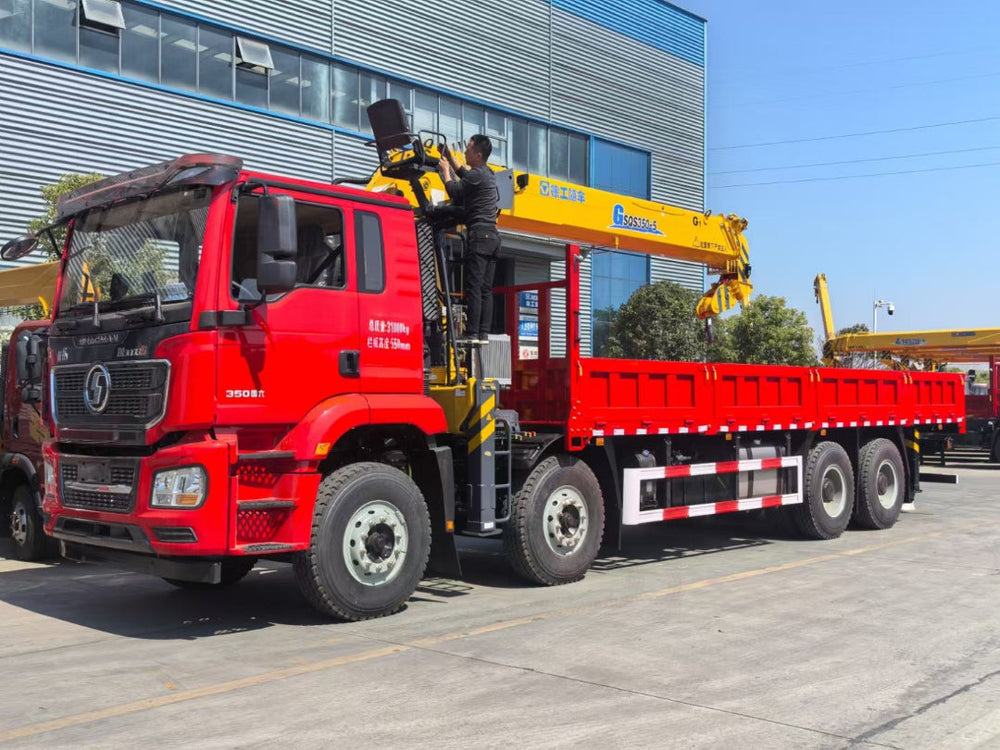

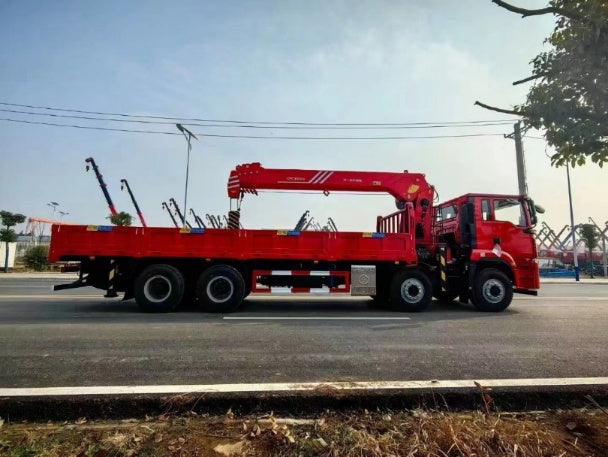

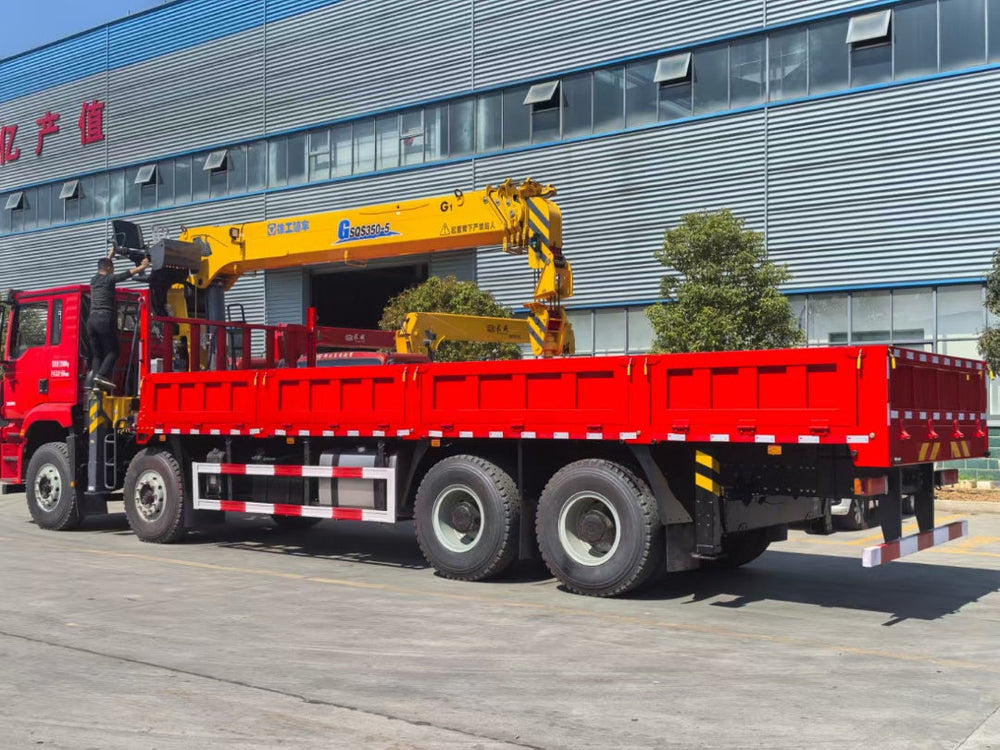

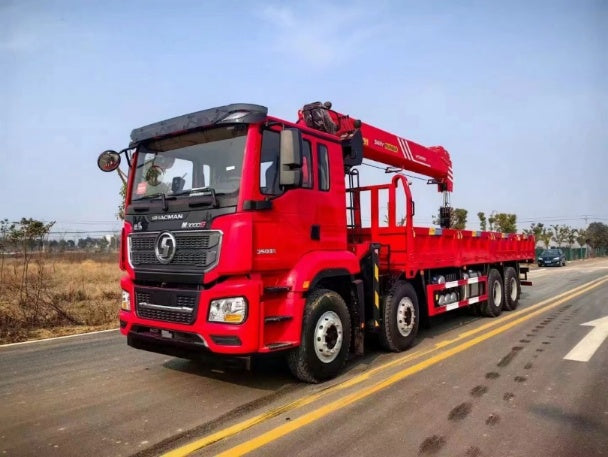

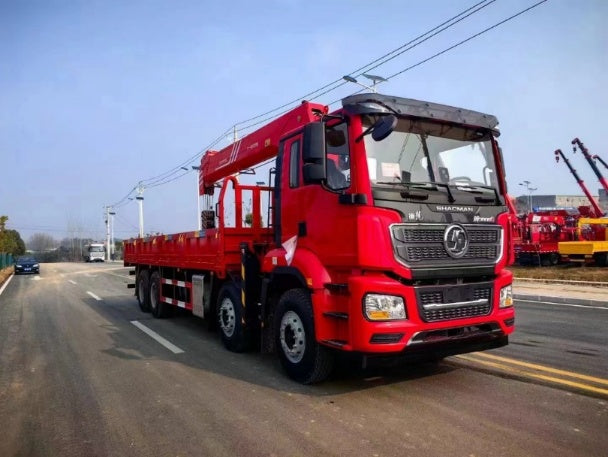

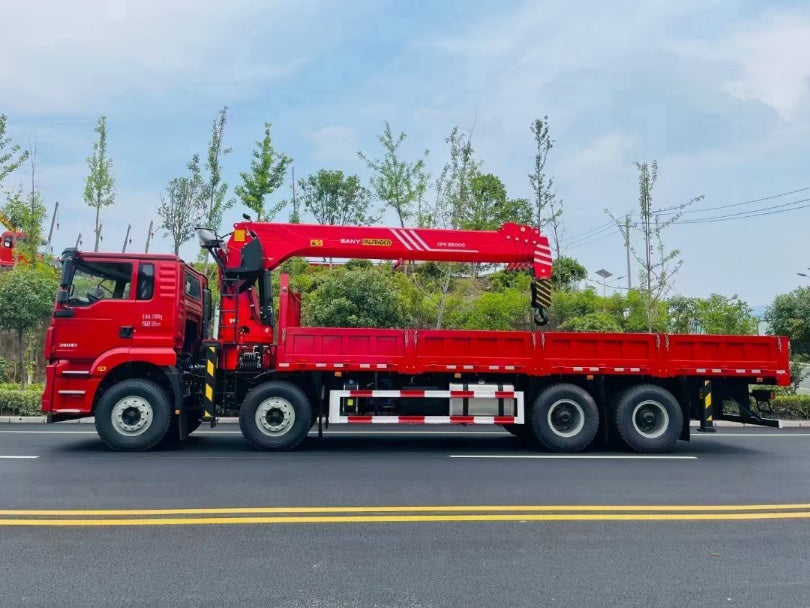

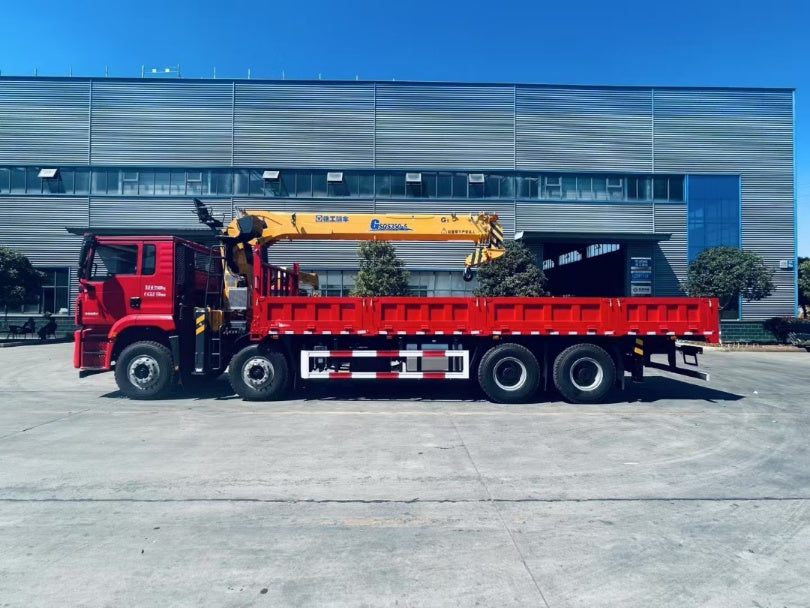

SHACMAN 8×4 Telescopic Boom Crane
Request a Quote Now
1. Basic Dimension & Weight Parameters
| Parameter | Value |
|---|---|
| Wheelbase | 2100+4575+1400 mm |
| Gross Vehicle Weight | 31000 KG |
| Optional Curb Weight | 20200KG / 20800KG / 22800KG / 24000KG |
2. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | National VI Weichai P8.350 (WP8.350E62) |
| Transmission | Fast 12-speed gearbox (Model 12JSD160T iron housing with QHG50 flange PTO) |
| Front & Rear Axle Configuration | Front axle: 7.5 tons; Rear axle: 16-ton wheel reduction axle (MAN two-stage cast axle, final drive ratio 4.266) |
| Differential Lock | Standard inter-wheel differential lock + inter-axle differential lock (dual differential locks, excellent mud escape performance) |
3. Main Standard Configuration
| Parameter | Value |
|---|---|

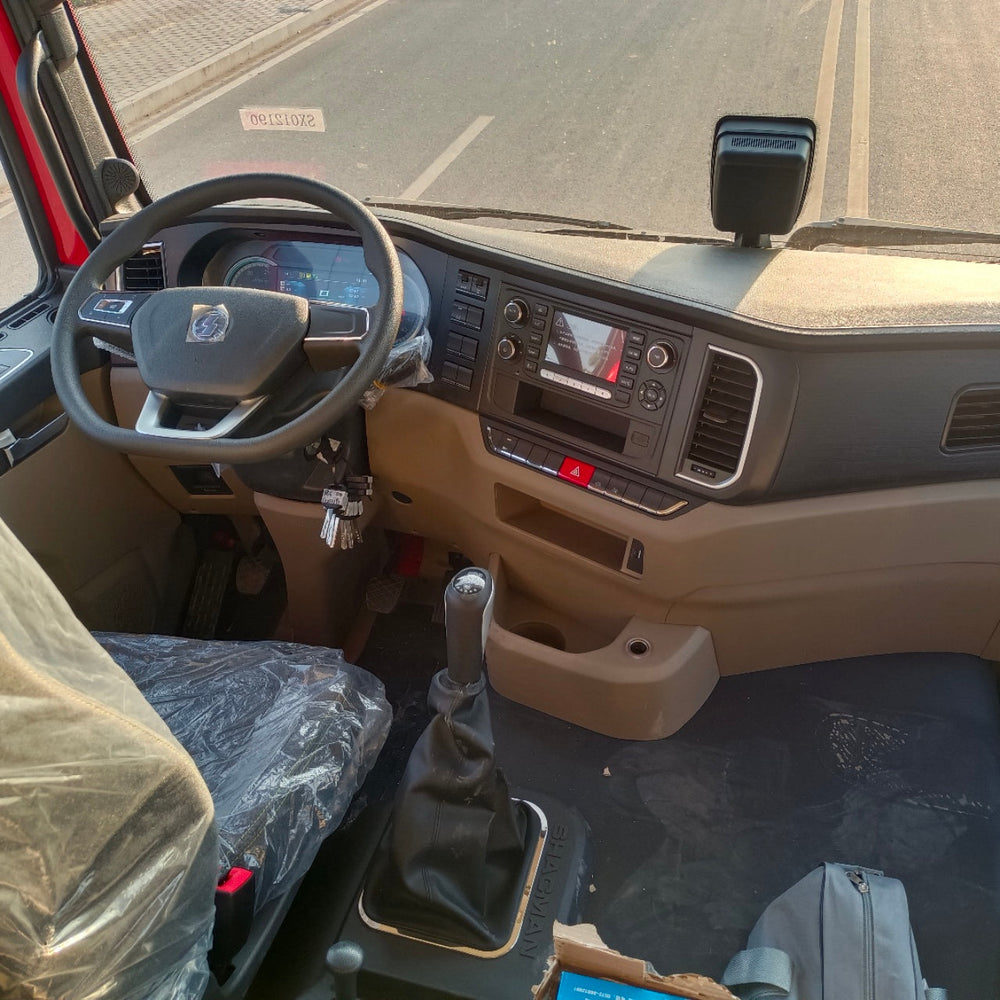

| Cab Model | New M3000S cab (low roof version with sun visor, no deflector) |
| Instrument & Steering | LCD display screen, multifunctional steering wheel (basic version with ordinary steering wheel in base trim) |

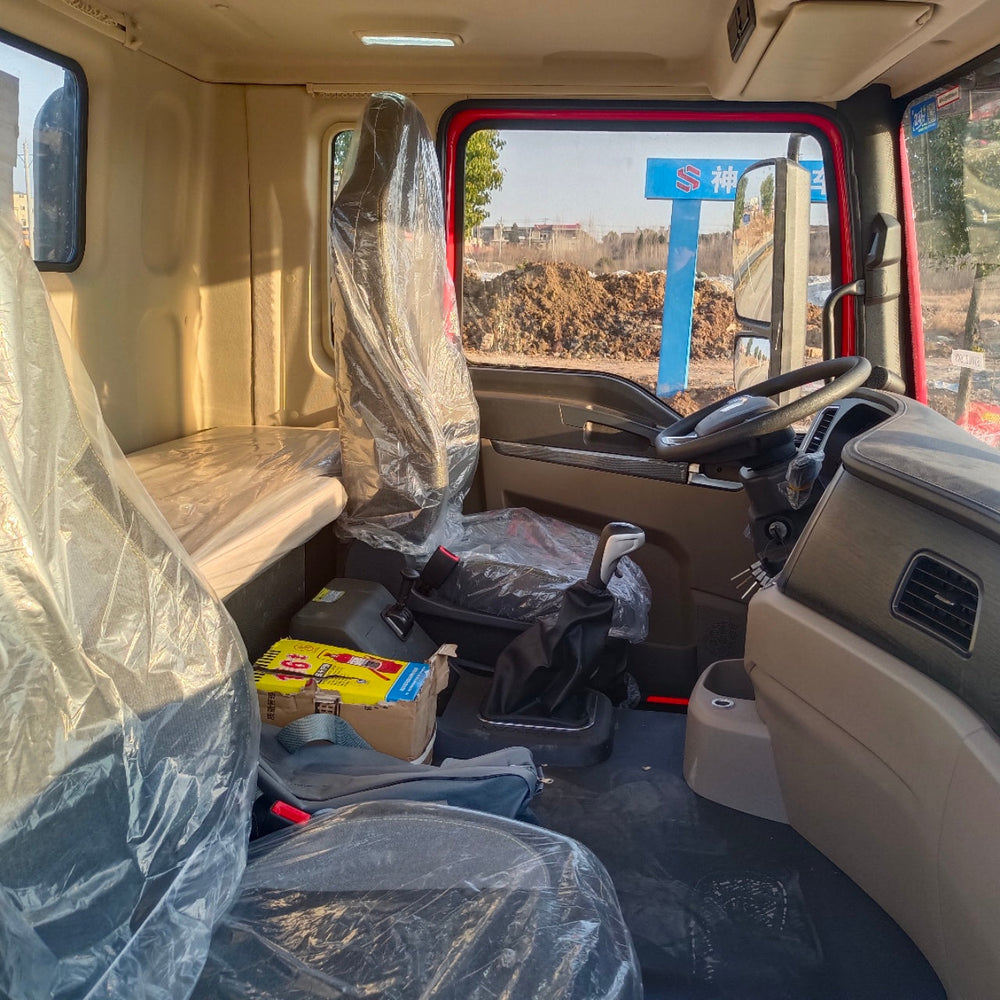

| Seat Configuration | Four-point suspension air suspension driver seat, air main seat with single bunk |
| Tire Spec | 12.00R20 steel wire radial tire |
| Frame Specification | 320mm through-type three-layer main beam, dimension 866×320 (8+5+8) |
| Fuel Tank | 400L aluminum alloy fuel tank |
| Clutch | Domestic-made clutch |
| Brake System | Drum front axle, ABS system equipped |
| Suspension System | Multi-leaf spring front suspension; multi-leaf spring rear suspension with double saddle bolts |
4. Electrical & Interior Accessories
| Parameter | Value |
|---|---|
| Air Intake & Cooling | Central air filter, aluminum radiator, ordinary exhaust system |
| Battery | Maintenance-free storage battery |

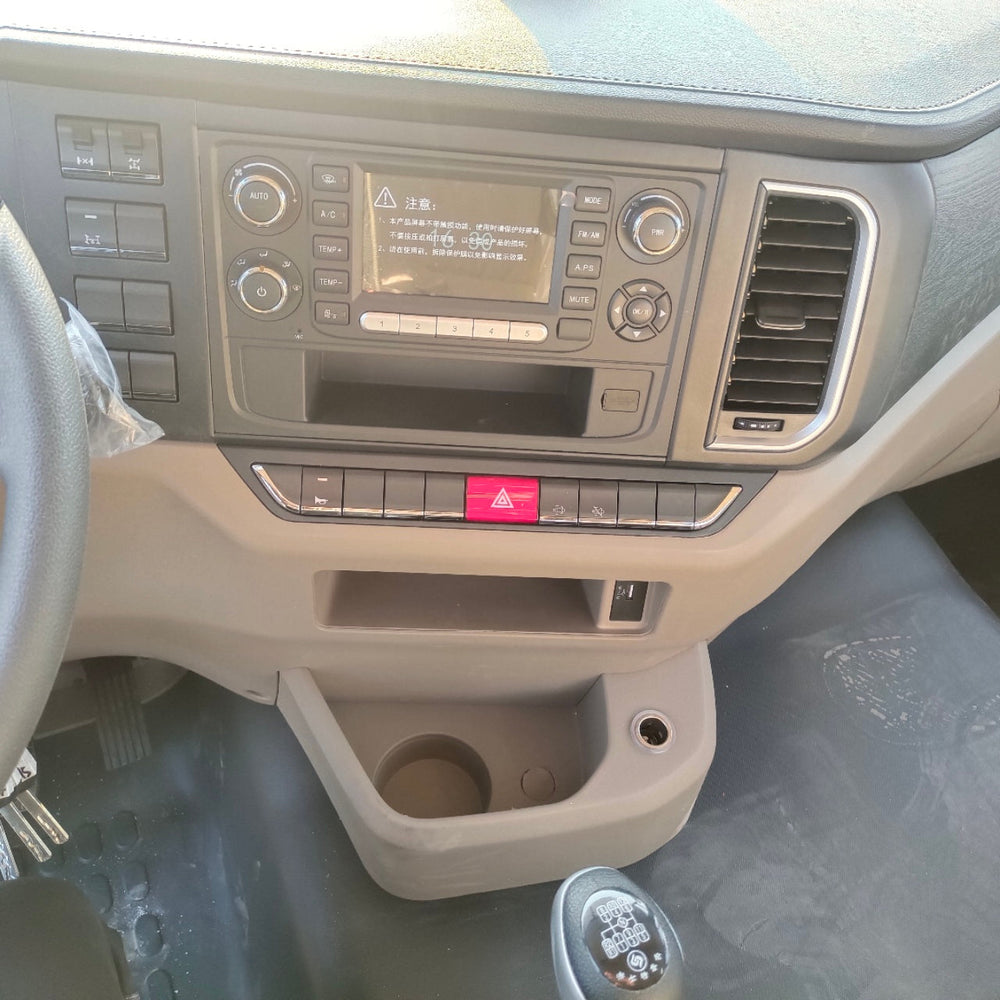

| Air Conditioning | Electronically controlled constant temperature automatic air conditioner (original factory air conditioner) |
| Cab Tilt Mode | Manual hydraulic tilting mechanism |

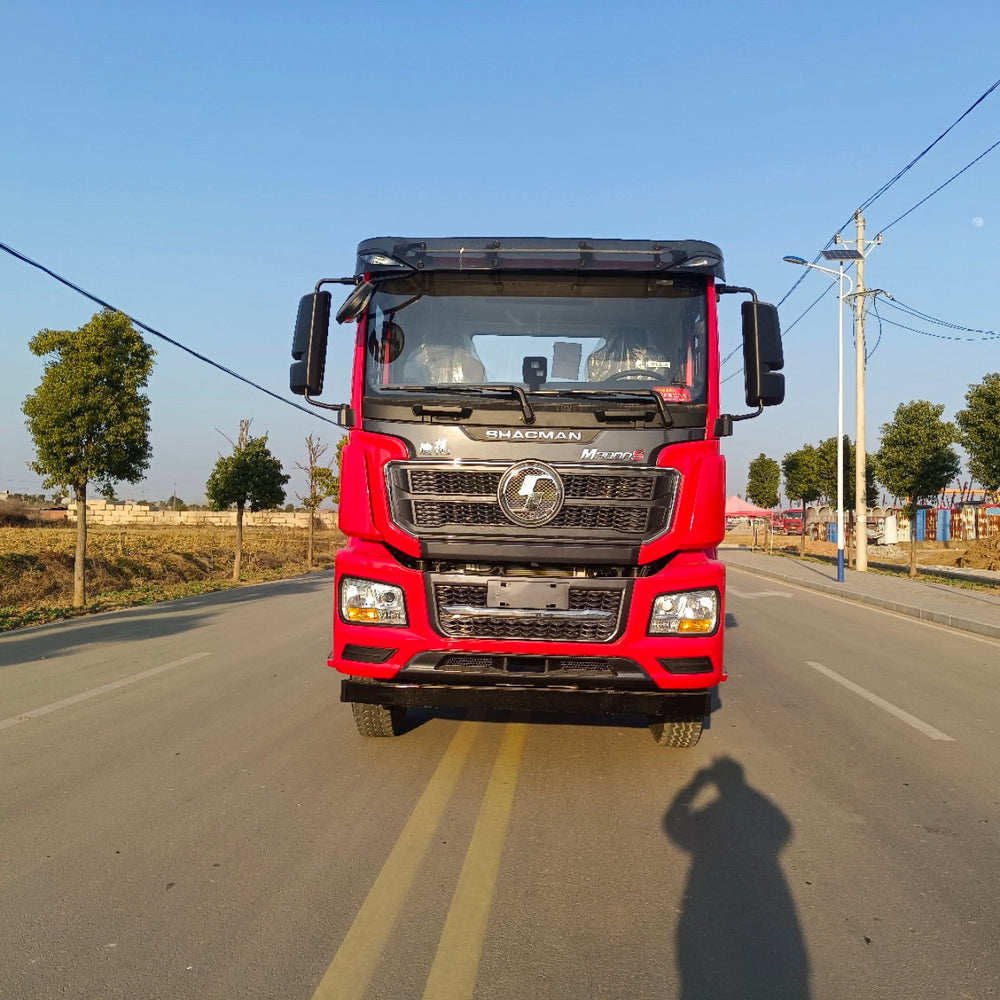

| Entry & Exterior Parts | Three-stage boarding steps, highway-style front bumper, lever-type rear view mirror, halogen headlamps |
| Window & Lock System | Electric window lifters, remote-controlled central door locking |
| On-board Device | Driving recorder, Tianxingjian Intelligent Version configuration |
| Traction Structure | Front left traction pin seat & rear traction bracket |
5. Crane Upper Body Matching Instruction
| Parameter | Value |
|---|---|
| Compatible Crane Range | Fit 12–20 ton straight boom cranes of all brands; Total vehicle overload-free for folding boom cranes below 40 tons |
| Body Color Option | Neon Red |
