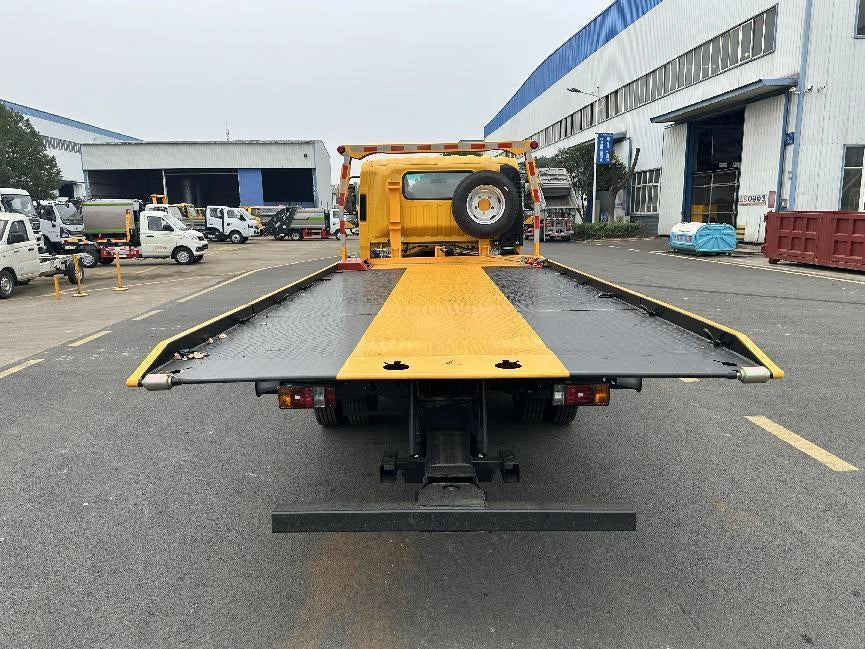

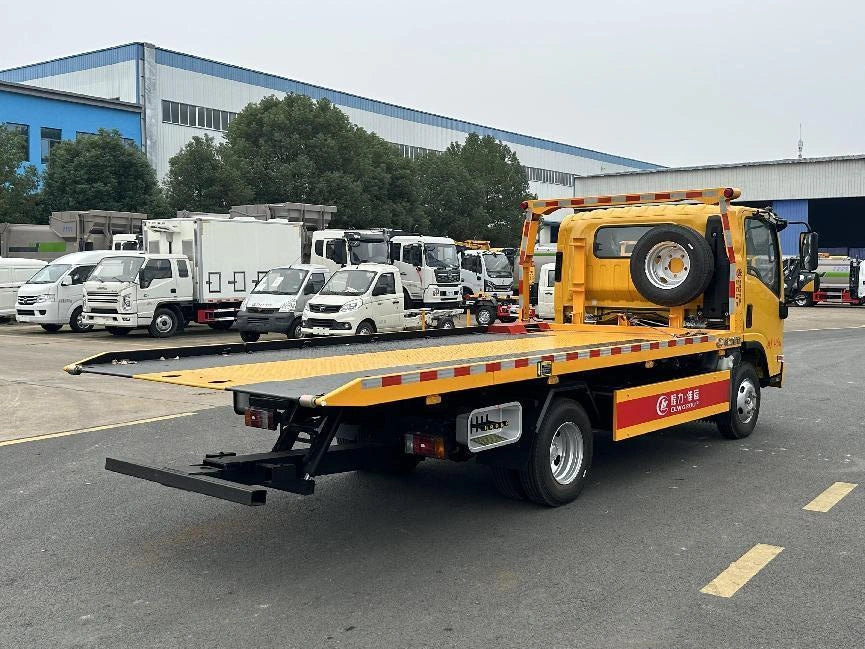

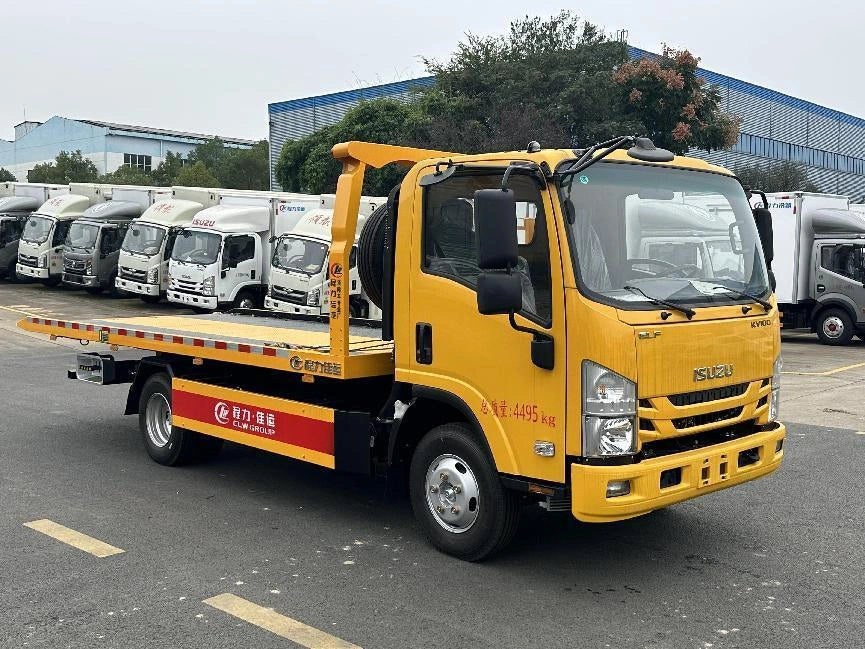

Isuzu tow truck (25-50T)

Isuzu tow truck (25-50T)
Isuzu tow truck (25-50T)
Isuzu tow truck (25-50T)
Isuzu tow truck (25-50T)
1 / 4
Isuzu tow truck (25-50T)
Isuzu tow truck (25-50T)
Isuzu tow truck (25-50T)
Isuzu tow truck (25-50T)

ISUZU Heavy-Duty Wrecker / Tow Truck (25–50T) – Key Specifications



Parameter Specification
Vehicle Type Heavy-Duty Rotary Wrecker / Recovery Tow Truck
Chassis Model ISUZU GIGA (C/E Series / S&E Series)
Drive Configuration 8×4 (also available in 6×4 / 10-wheel configuration)
GVWR 25 – 50+ tons
Overall Dimensions (L×W×H) ~11,430 × 2,500 × 3,270 mm

Engine & Drivetrain



Parameter Specification
Engine ISUZU 6WG1 Series turbocharged diesel
Horsepower 350 – 520 HP (6WG1-TCG62 up to 520HP)
Displacement 15.68L
Emission Standard Euro IV / V / VI
Transmission FAST 12-speed manual (12JSD240TA-B) / ZF 8-speed optional
Fuel Diesel

Performance & Capacity



Parameter Specification
Max Towing Capacity 25 – 50 tons
Max Boom Lifting Capacity 50 tons (retracted) / 10 tons (fully extended)
Max Lifting Height 12 meters
Boom Rotation 360° continuous rotation
Boom Sections 3-section design
Boom Reach 10 – 15 meters (adjustable)

Chassis & Axles



Parameter Specification
Wheelbase 2,100 + 4,325 + 1,370 mm
Front Tires 385/65R22.5
Rear Tires 315/80R22.5
Brakes ABS, air brake system
Steering LHD / RHD available

Recovery Equipment



Parameter Specification
Main Winch 50-ton capacity (2 × 25-ton winches)
Auxiliary Winches 10 – 20 tons (optional)
Wire Rope 45 meters, steel cable
Underlift / Wheel Lift Integrated, supports 100–150T towing capacity
Outriggers 4-point hydraulic stabilizers with automatic leveling
Control Dual-side linkage + wireless remote control

Cab & Features



Parameter Specification

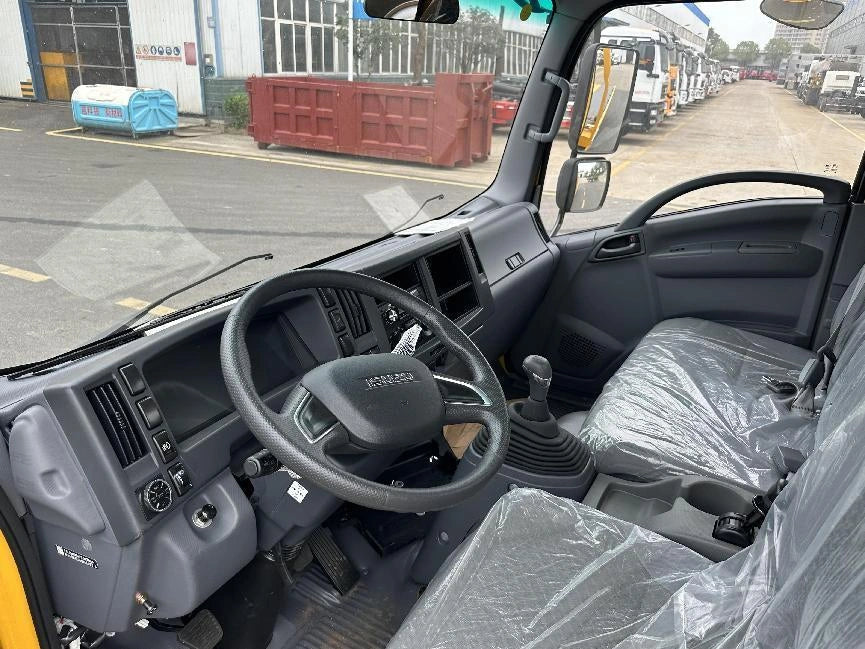

Cab ISUZU GIGA 5X Series, spacious ergonomic design
Air Conditioning Standard
Lighting LED warning lights, 3 rear working lights
Additional Real-time load monitoring, joystick controls
