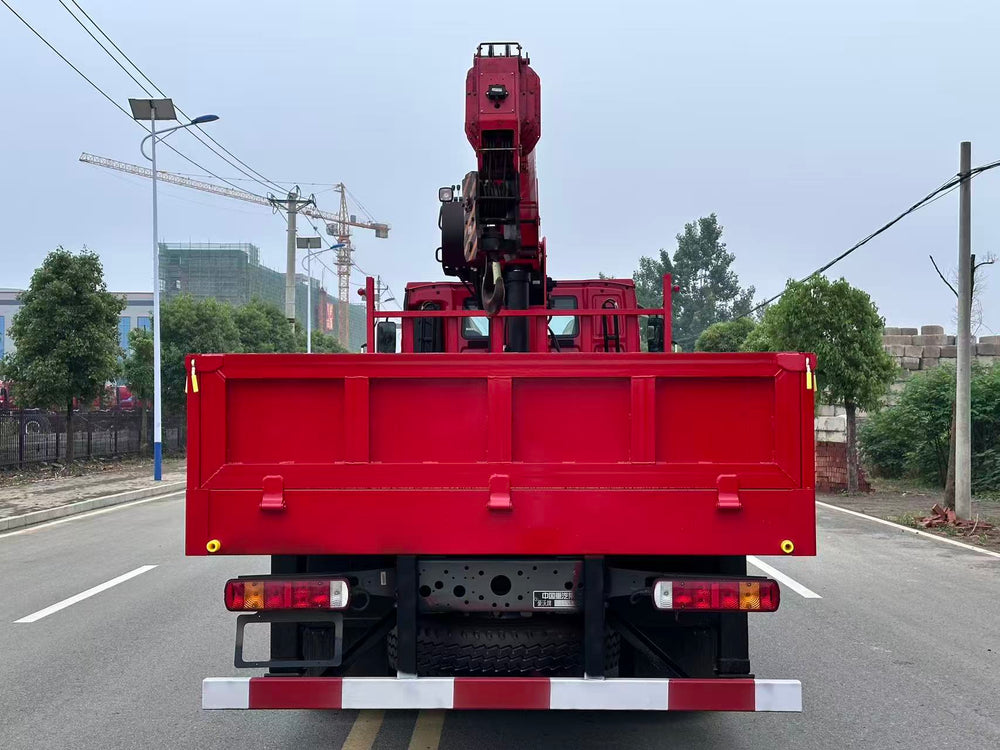

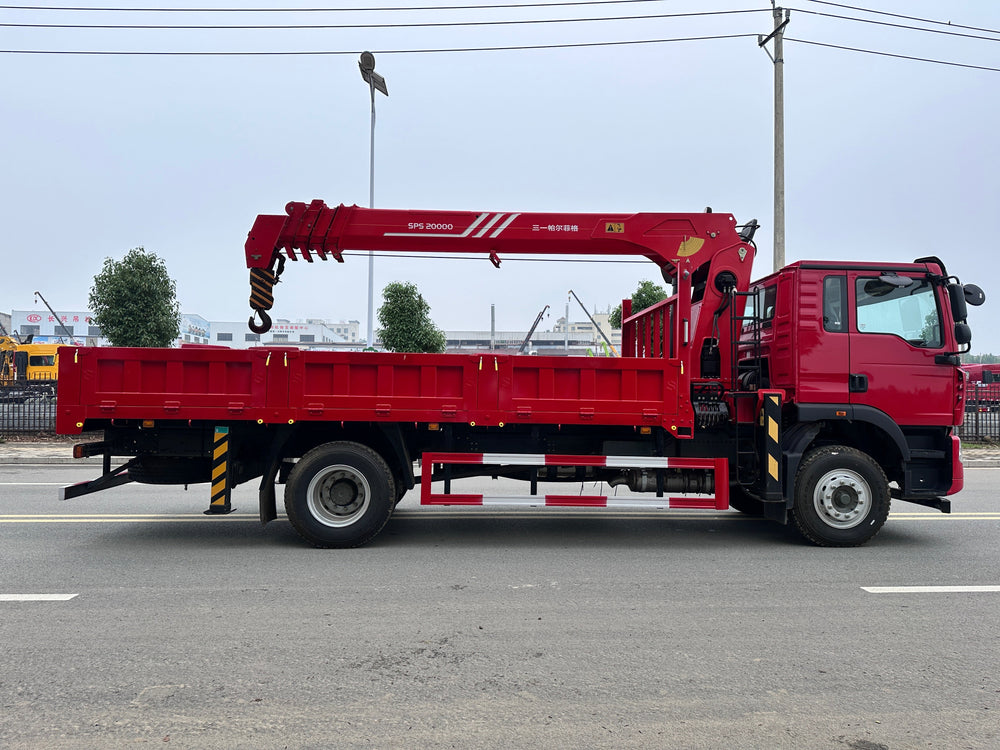

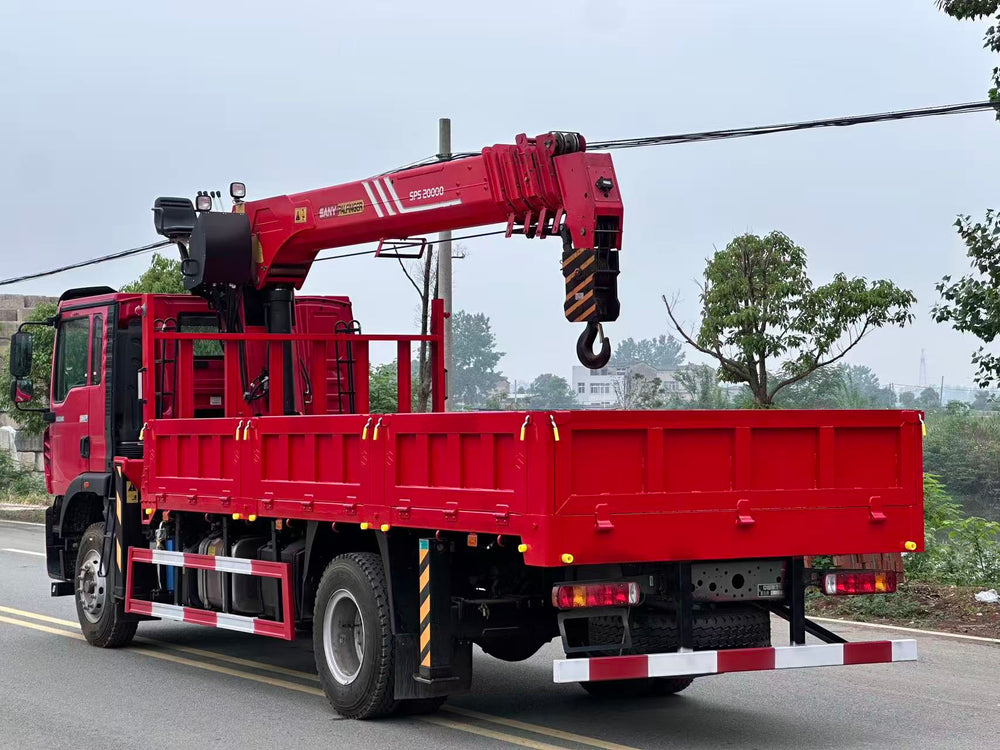

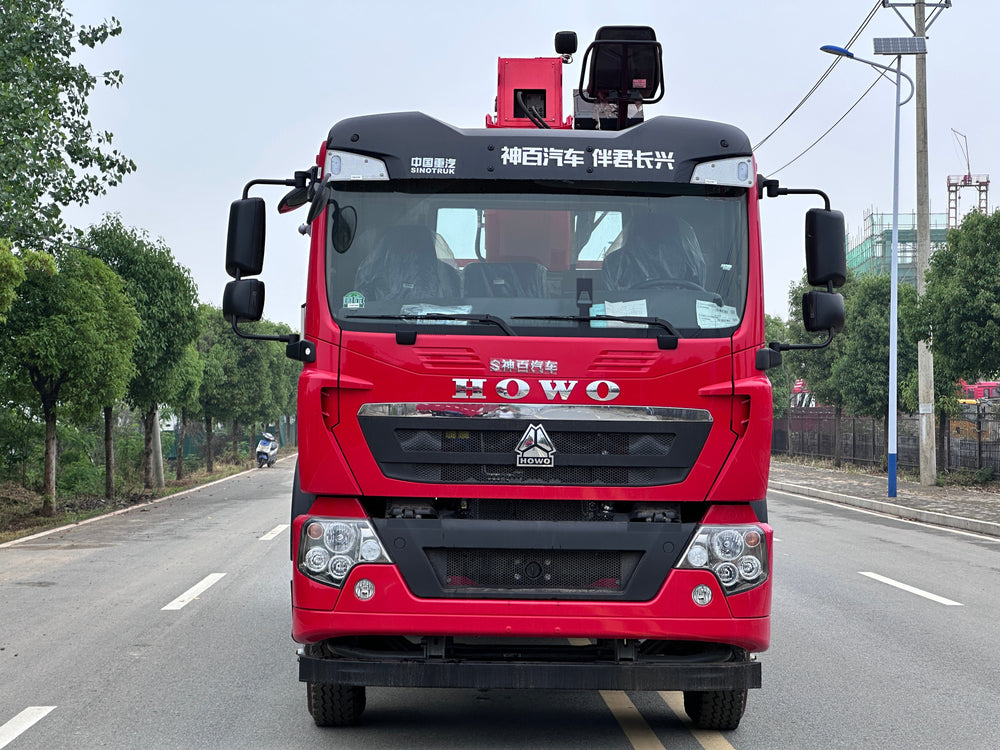

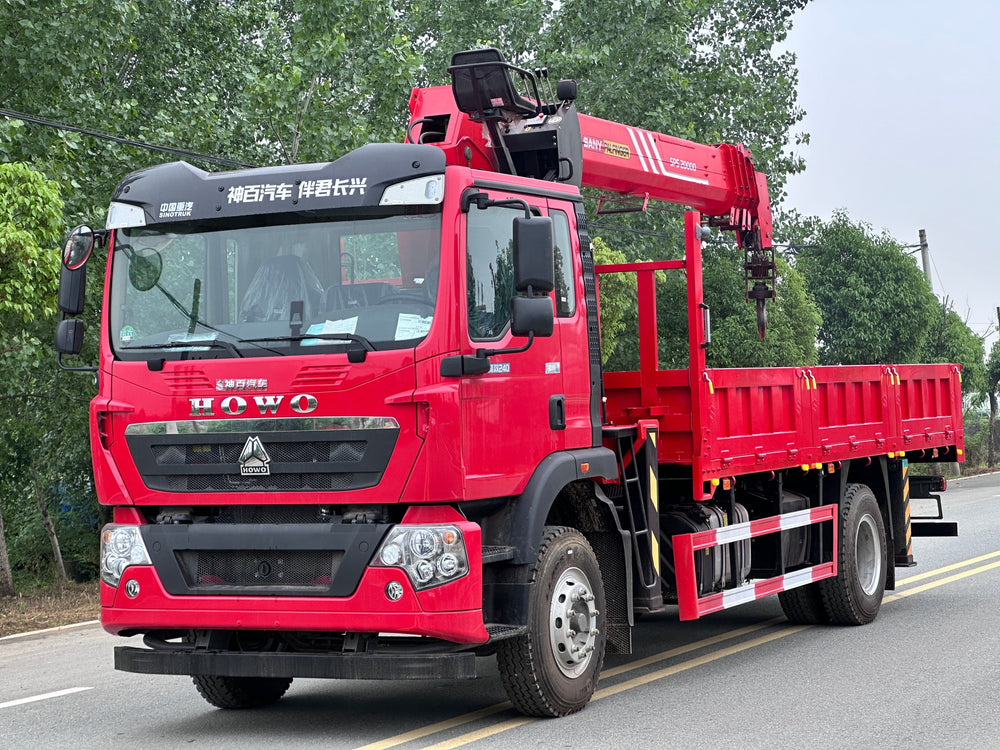

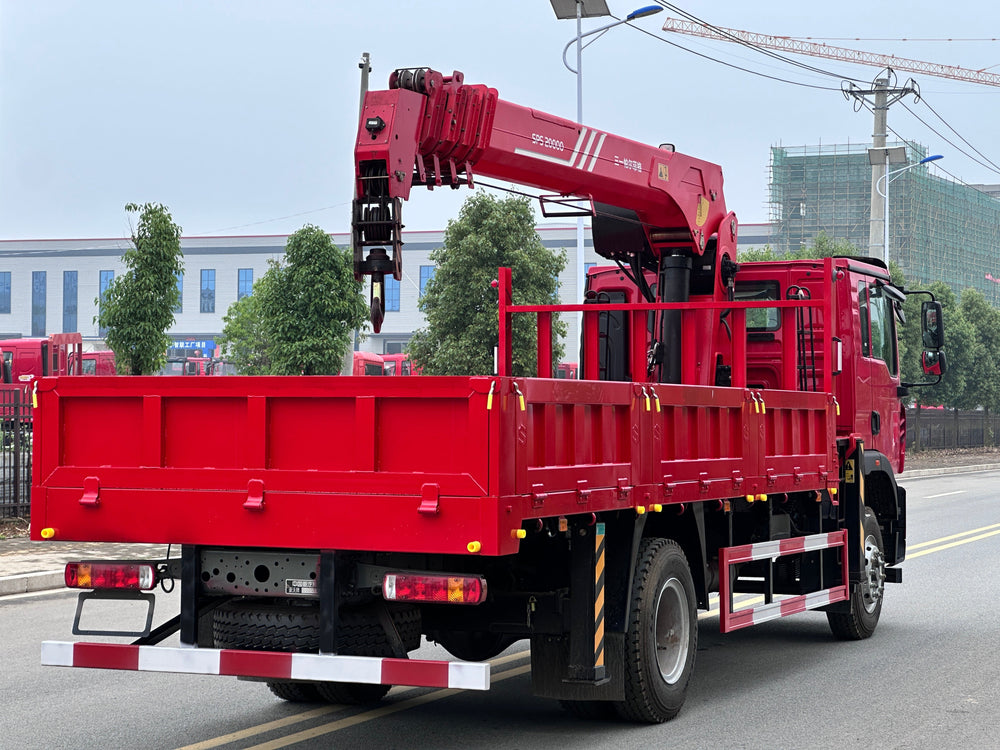

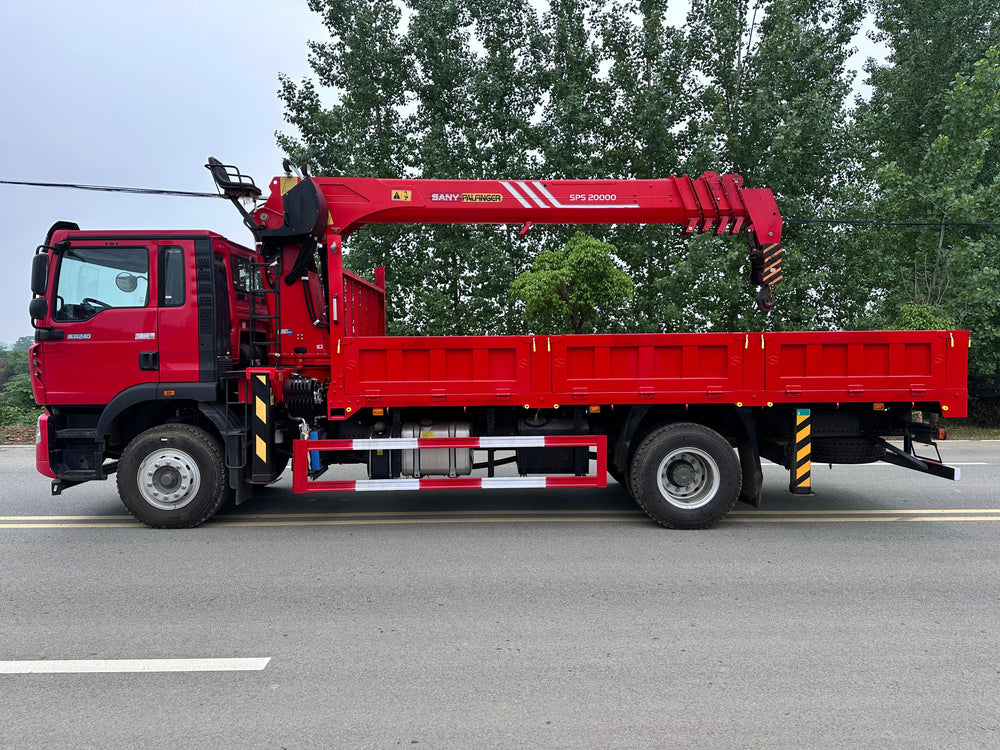

HOWO SANY Palfinger8T 5Section Telescopic Boom Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Engine | Weichai WP4.6NQ240E62, 240HP, 4.58L displacement |
| Wheelbase | 5000mm |
| Final Drive Ratio | 5.29 (Optional:4.63) |
| Transmission & PTO | HW95508STC2 8-speed synchromesh gearbox + HW45ZC flange-type PTO |
| Front & Rear Axle | 7.5t front axle, 13t engineering rear axle |
| Frame | 3-layer reinforced frame (8+4+4/300) |
| Leaf Spring | 10 pieces front / 9+8 pieces rear |
| Tyre | 10.00R20, mixed tread, 18PR |

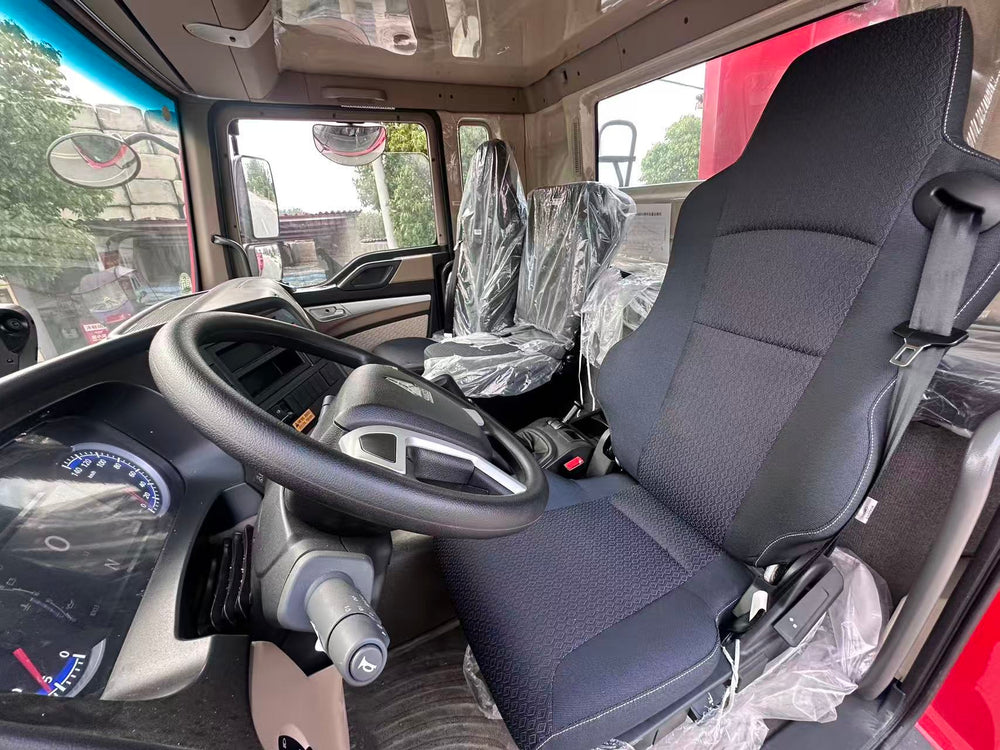

| Cab & Interior | HOWO TX-D short cab; multi-function steering wheel; electric adjustable & heated rearview mirror; 10.1" full HD MP5 screen with sunshade; main air suspension seat + auxiliary basic seat; middle cab seat |
| Chassis Equipments | Cab spring shock absorber; highway intake system; max speed 89km/h; ABS(4S/4M); full-metal middle bumper; 200L aluminum fuel tank; cable-type PTO; CNHTC Intelligent D Version; mechanical power switch; 120AH storage battery |
| Vehicle Advantages | Integrated engine-transmission-axle design; 4-point suspended collapsible MAN safety cab; multi-adjustable air seat with lumbar support; reinforced leaf springs & four U-bolts; high torsional resistance for rough roads |
| Crane Unit | Sany 8t 5-section crane, boom length 17.4m; top operation, synchronous extension, single slewing, single-stage outrigger, radiator & automatic hook retraction |
| Cargo Box | 5.9m edge-three-bottom-five cross-member engineering cargo compartment |
