1. Complete Vehicle Basic Parameters
| Parameter |
Value |
| Vehicle Type |
Snow Removal Truck |
| Complete Vehicle Model |
CL5181TCX6AHL |
| Gross Vehicle Weight |
18000 kg |
| Rated Load Capacity |
5870 / 5805 / 6670 / 6605 kg |
| Curb Weight |
12000 kg / 11220 kg |
| Number of Axles |
3 |
| Cab Seating Capacity |
2 persons / 3 persons |
| Fuel Type |
Diesel |
| Maximum Speed |
89 km/h / 101 km/h |
| Chassis Model |
ZZ1187K501GF1 |
2. Dimension & Wheel Parameters
| Parameter |
Value |
| Overall Dimension (L×W×H) |
9600 × 2500 × 3100 mm |
| Wheelbase |
5000 mm |
| Front Overhang / Rear Overhang |
1550 mm / 3050 mm |
| Approach Angle / Departure Angle |
18° / 7° |
| Front Track Width |
1950 / 2035 / 1910 / 1930 / 2060 mm |
| Rear Track Width |
1848 / 1860 / 1880 mm |
| Tire Specification Options |
10.00R20 18PR; 295/80R22.5 18PR; 275/80R22.5 18PR |
| Number of Tires |
6 |
3. Powertrain System
| Parameter |
Value |
| Engine Model |
MC07.25-61 |
| Engine Power |
Sinotruk Howo 258 HP |
4. Deicing Agent Spreader System
| Parameter |
Value |
| Hopper Material |
Q235 Carbon Steel |
| Spreader Material |
4mm Carbon Steel |
| Spreader Hopper Volume |
8 m³ |
| Power Take-off Mode |
Chassis PTO-driven |
| Hydraulic Working Pressure |
≥ 16 MPa |
| Material Conveying Type |
Scraper Chain Conveyor |
| Spreading Width |
2 – 15 m (adjustable) |
| Spreader Disc Material |
Stainless Steel |
| Spreader Disc Diameter |
550 mm |
| Deicing Agent Application Rate |
20 – 300 g/m² (adjustable) |
| Working Speed |
5 – 30 km/h |
| Control Mode |
Wired Remote Control |
| Standard Accessories |
Arrow warning light, tarpaulin, filter screen, aluminum alloy rear climbing ladder, aluminum alloy side protection |
5. Front 3.5m Snow Plow (Optional)
| Parameter |
Value |
| Product Model |
HL-XC-3500 |
| Weight |
600 kg |
| Lifting Height |
200 – 400 mm |
| Operation Mode |
Electro-Hydraulic Linkage Control |
| Left-Right Deflection Angle |
≥ 30° |
| Snow Removal Efficiency |
90 % |
| Working Width |
3300 mm |
| Maximum Snow Removal Thickness |
150 mm |
| Working Speed |
5 – 30 km/h |
| Maximum Obstacle Clearance Height |
150 mm |
| Blade Height |
700 mm |
| Blade Material |
High Wear-Resistant Steel |
| Blade Thickness |
4 mm |
| Cutting Edge Thickness |
16 mm |
6. 5000L Hot Melt Water Tank System
| Parameter |
Value |
| Tank Dimension (L×W×H) |
1500 × 2350 × 1600 mm |
| Tank Material |
Carbon Steel |
| Heating Form |
Fuel Burner |
| Heating Temperature Range |
0 – 100 °C |
| Liquid Deicing Agent Production Capacity |
5000 kg/h |
| Pump Type |
Special Salt Water Gear Pump (Motor-Driven) |
| Pump Displacement |
75 L/min |
| Deicing Agent / Salt Water Ratio (Preset) |
7 / 3 |
| Functions |
Heating + Stirring |
| Stirrer Type |
Built-in Blade Stirrer |
| Insulation Method |
Insulation cotton, heating, stainless steel combustion channel |
| Spray Rod Material |
Stainless Steel Spray Rod |
| Standard Accessories |
Low water level alarm, water temperature sensor, burner, generator, stirring motor, salt water pump |
| System Description |
Installed behind cab; insulated carbon steel tank with fuel heating and built-in circulation stirring; dissolves solid granular deicing agent into liquid via heating & stirring for pre-wetting or direct spraying |

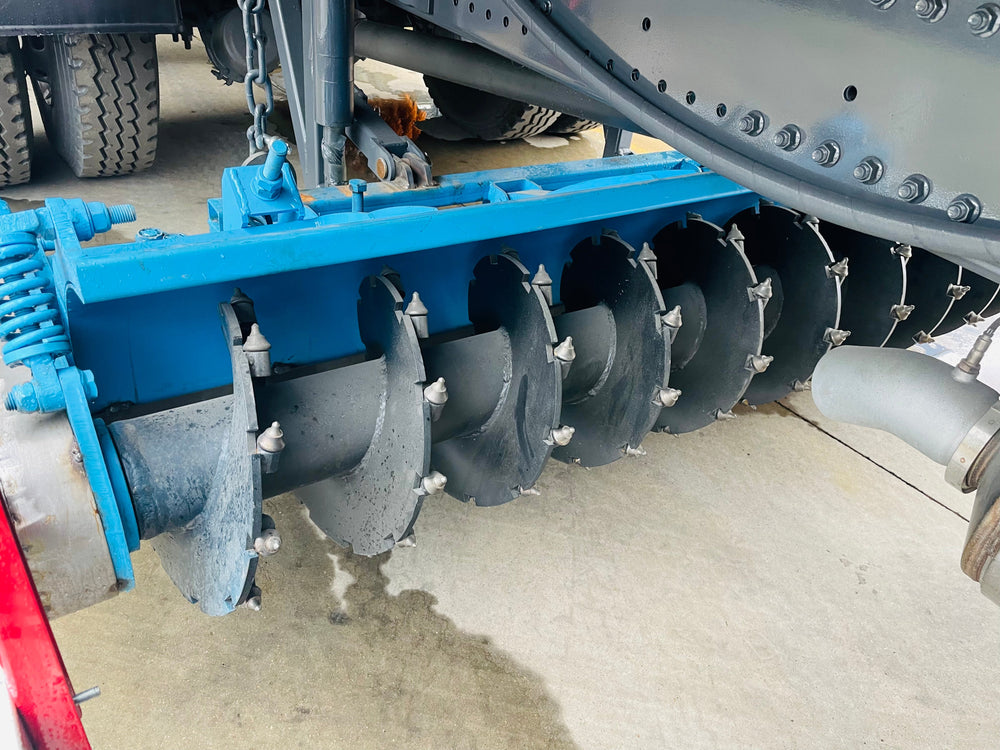

7. Ice Breaker (Optional)
| Parameter |
Value |
| Ice Breaker Model |
HL-PB-600 |
| Effective Ice Breaking Width |
2500 mm |
| Ice Breaking Thickness |
50 mm (solid ice) / 30 mm (compacted ice) |
| Ice Breaking Working Speed |
4 – 15 km/h (solid ice) / 2 – 4 km/h (compacted ice) |
| Drive Form |
Hydraulic Motor Drive |
| Primary Application |
Compacted snow removal, deicing agent application, compacted snow & ice removal |
| Ice Breaking Blade Angle |
Right 30° |
| Obstacle Clearance Height |
150 mm |

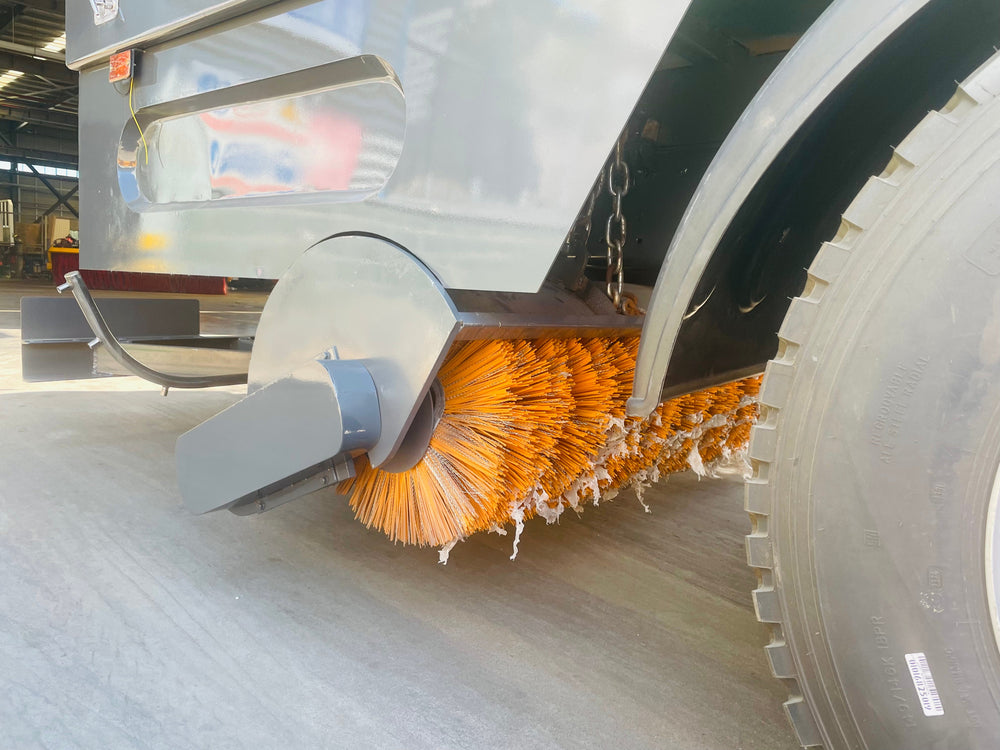

8. Rear Snow Roller Brush (Optional)
| Parameter |
Value |
| Working Speed |
40 km/h |
| Left-Right Deflection Angle |
≥ 30° |
| Sweeping Roller Diameter |
650 mm |
| Power Take-Off |
Vehicle transmission PTO (or transfer case) |
9. Chassis Standard Configuration
| Parameter |
Value |
| Cab Type |
Howo TX5 TX-K Cab, Basic Model, Sanitation Spec |
| Rearview Mirror |
Manual Rearview Mirror |
| Seat Configuration |
Main Mechanical Seat + Auxiliary Simple Seat |
| Transmission |
HW95508STC Gearbox + HW45ZC French PTO |
| Front Axle |
1094 Self-Adjusting Arm Front Axle (Drum Brake) |
| Rear Axle |
MCJ09BGY Self-Adjusting Arm Single Rear Axle (Drum Brake) |
| Final Drive Ratio |
5.29 |
| Frame Specification |
Double-Layer Frame (6+4 / 250mm) |
| Suspension |
Front & Rear Reinforced Multi-Leaf Springs (7 / 7+6) |
| Steering Gear |
Domestic Steering Gear |
| Exhaust System |
Cylindrical Muffler |
| Brake System |
ABS (4S/4M) |
| Bumper |
Mid-Position All-Metal Bumper |
| Wheels |
Standard Steel Wheels |
| Tires |
10.00R20 Mixed Pattern 18PR |
| Cab Lift |
Electro-Hydraulic Integrated Electric Lift |
| Fuel Tank |
200L Fuel Tank |
| PTO |
Rotary PTO |
| Telematics |
Sinotruk Zhinengtong D Version (Special Operation Vehicle) |
