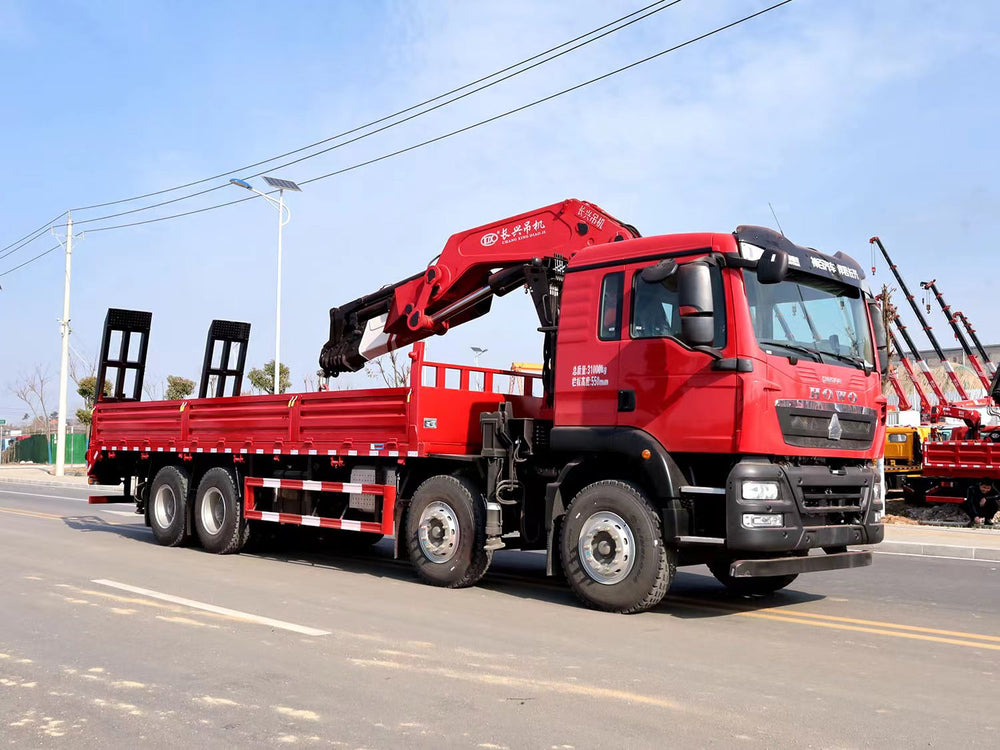

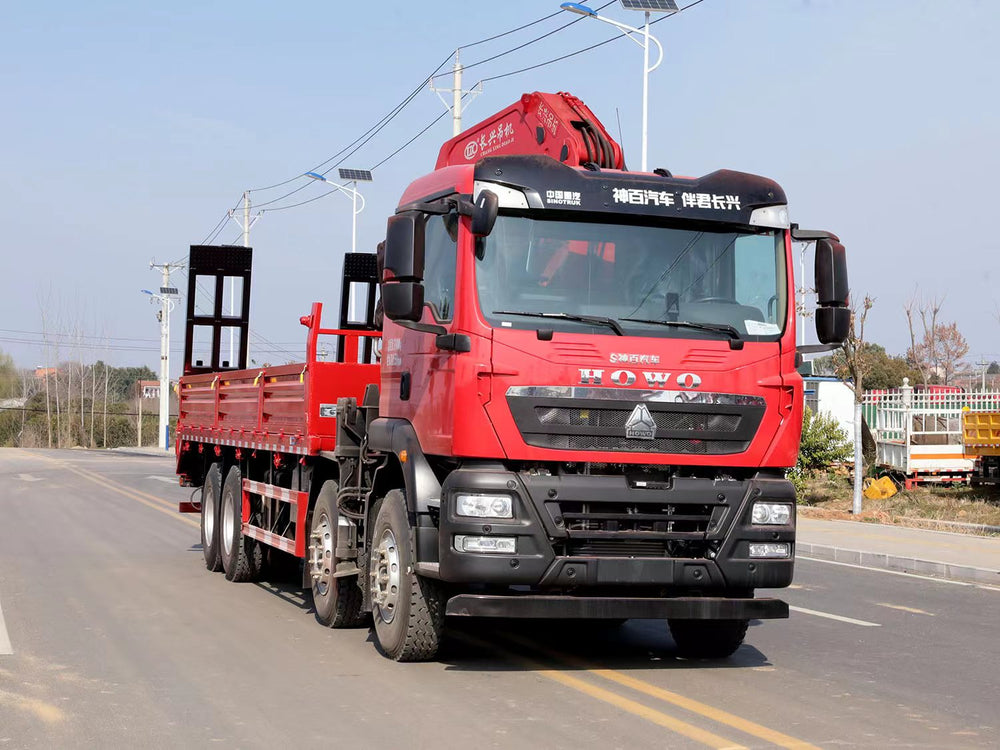

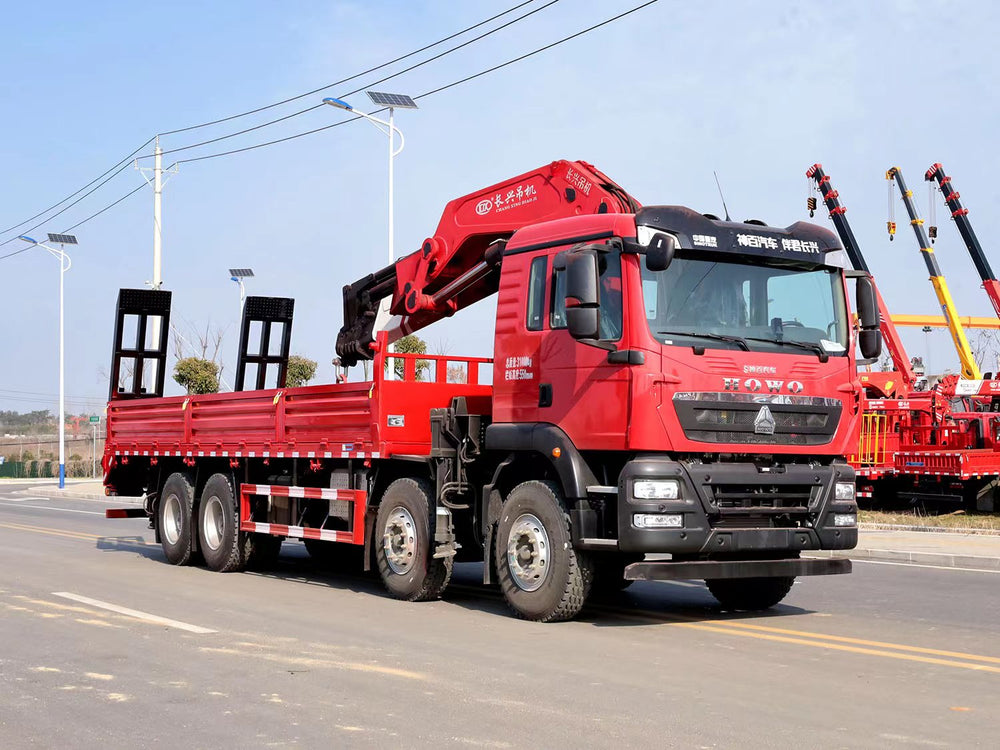

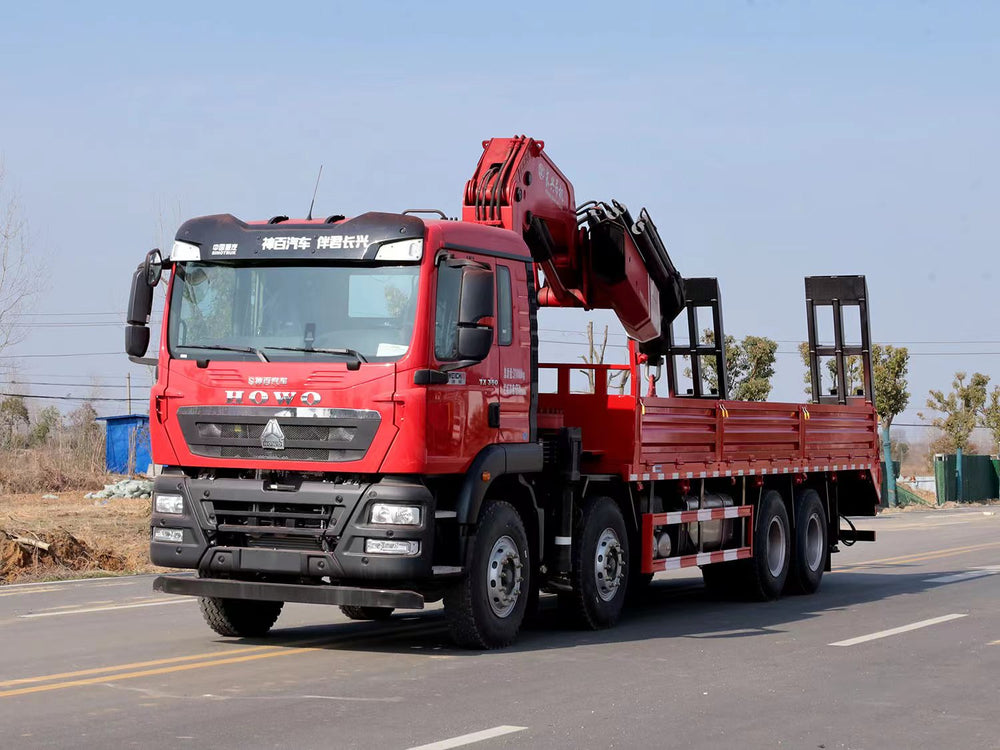

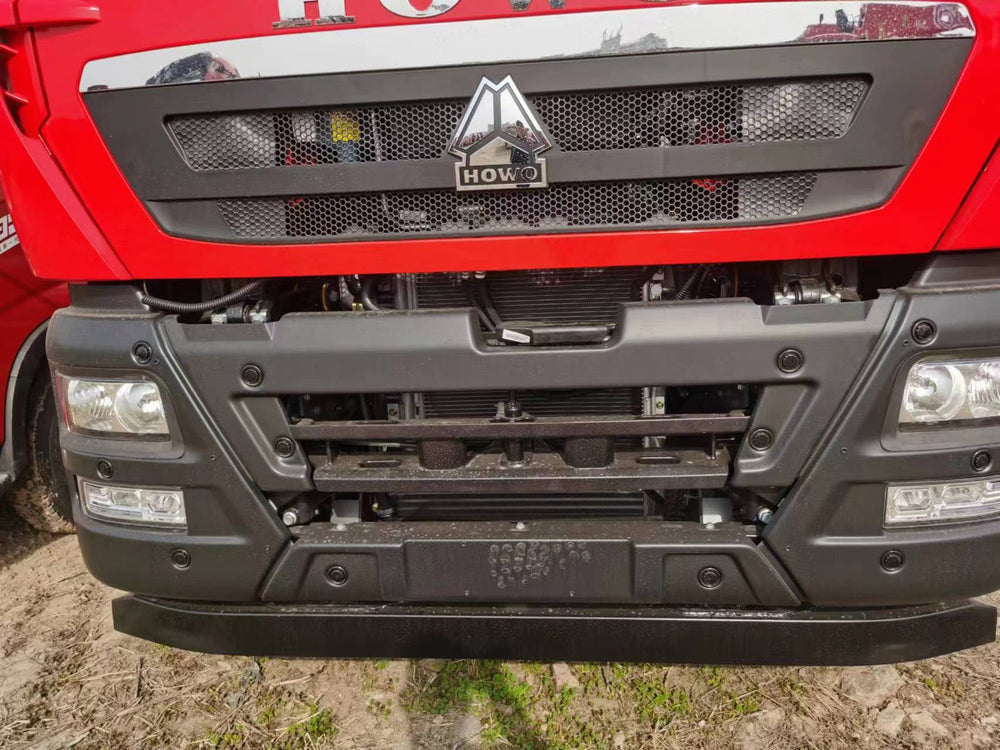

HOWO 8×4 25T Knuckle Boom Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Chassis & Powertrain | |
| Engine | Weichai 350HP, 8.0L Displacement |
| Wheelbase | 2100+4300+1350mm |
| Transmission & PTO | HW25712XSTL Transmission + HW70 Flange PTO |
| Front & Rear Axle | VGD75 Self-adjusting Arm Front Axle (Drum Brake); MAT16ZG Self-adjusting Arm Dual Rear Axles (Drum Brake), SINOTRUK Self-developed 16T Wheel Reduction Axle |
| Final Drive Ratio | 4.42 |
| Chassis Frame | 3-layer Through Frame (8+5+8/300) |
| Leaf Spring Quantity | 11/11/12 |
| Tyre Spec | 11.00R20, Mixed Pattern, 18PR |
| Cab & On-board Configuration | |
| Cab & Core Fittings | TX-K Cab (Genuine MAN Germany Body), Electric Heated Rearview Mirrors, Main Air Suspension Seat + Auxiliary Simple Seat |
| Auxiliary Configuration | Standard Exhaust System, High-position Full-metal Bumper, 400L Fuel Tank, Cable PTO, SINOTRUK Intelligent Connect D Version, Mechanical Power Switch |
| Core Performance Advantages | |
| Powertrain Adaptability | Integrated matching of Weichai 350HP engine, Howo 12-speed transmission, and axle for optimal whole-vehicle adaptability |

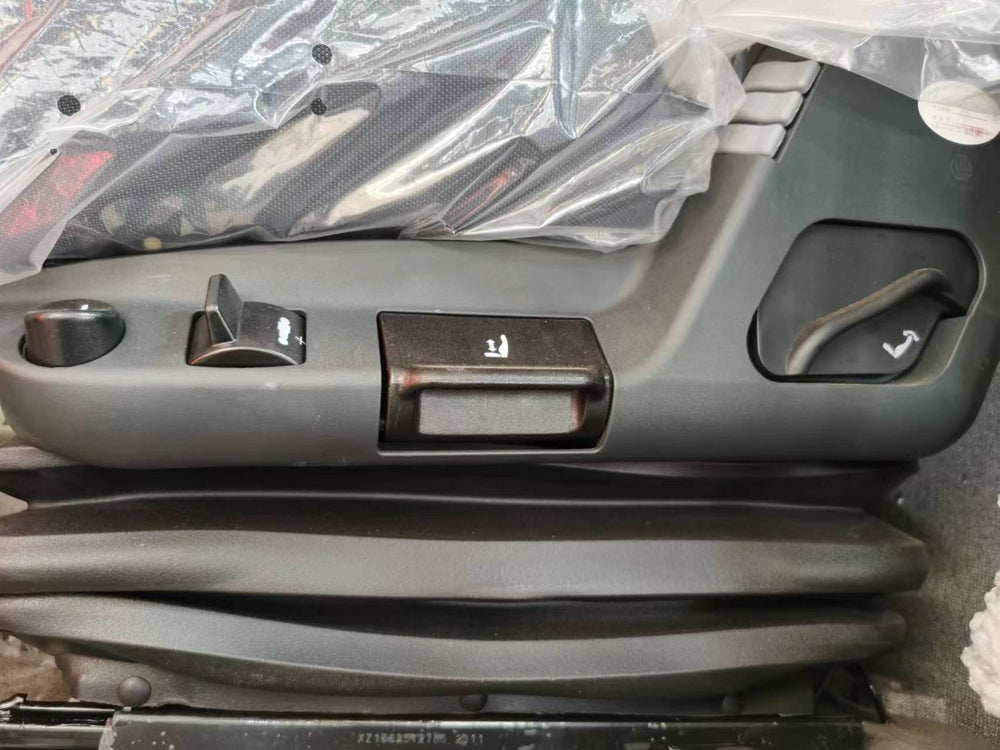

| Cab Safety & Comfort | 4-point suspended cab with leading anti-collapse technology for occupant safety; multi-adjustable main driver air seat with lumbar support, ergonomic safety belt for premium driving comfort |

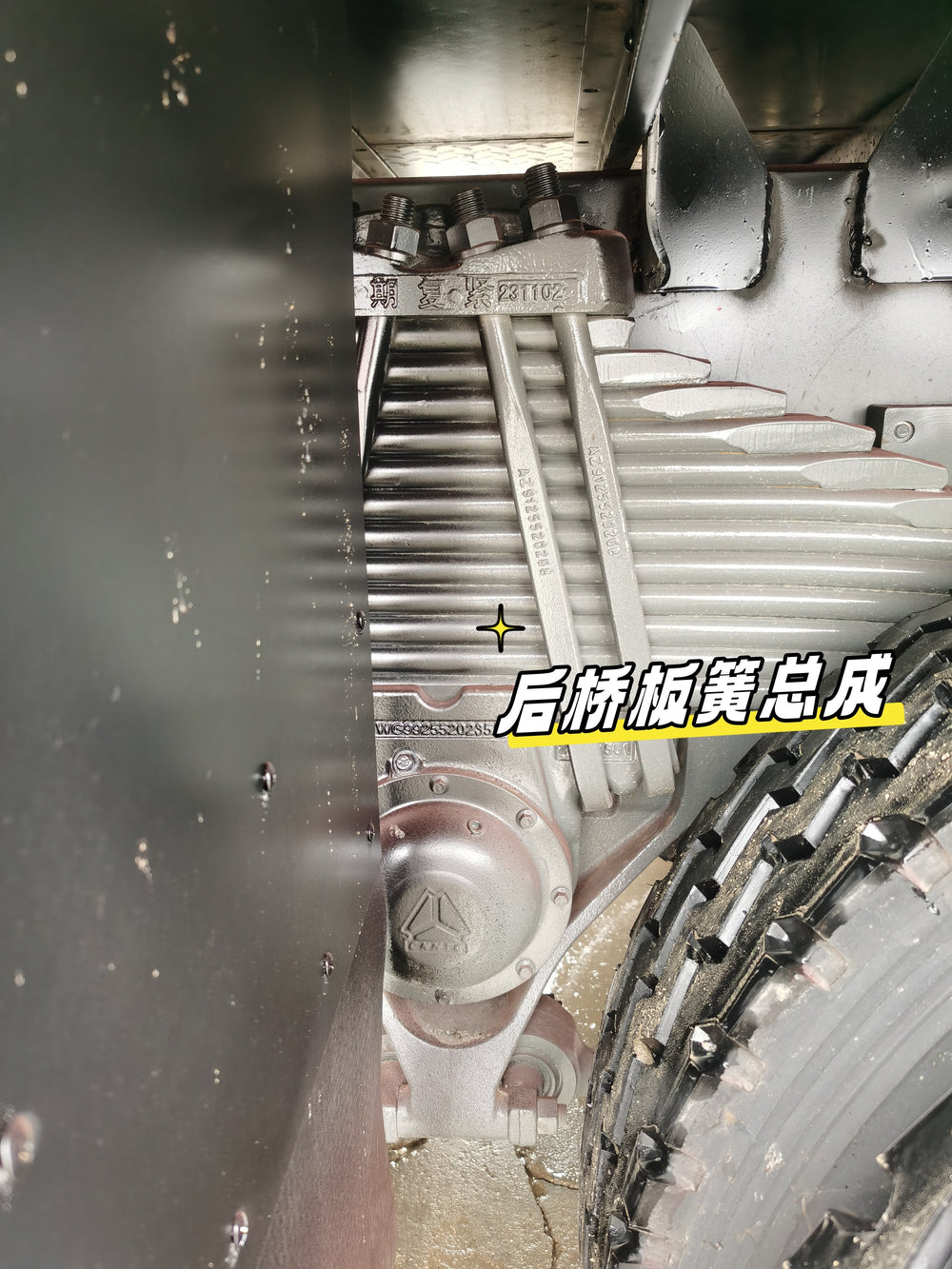

| Frame & Load Stability | 3-layer through frame reinforced by engineering leaf springs and 4-horsepower bolts, best-in-class torsion resistance on complex roads; V-type thrust rod for maximum body stability under heavy load |

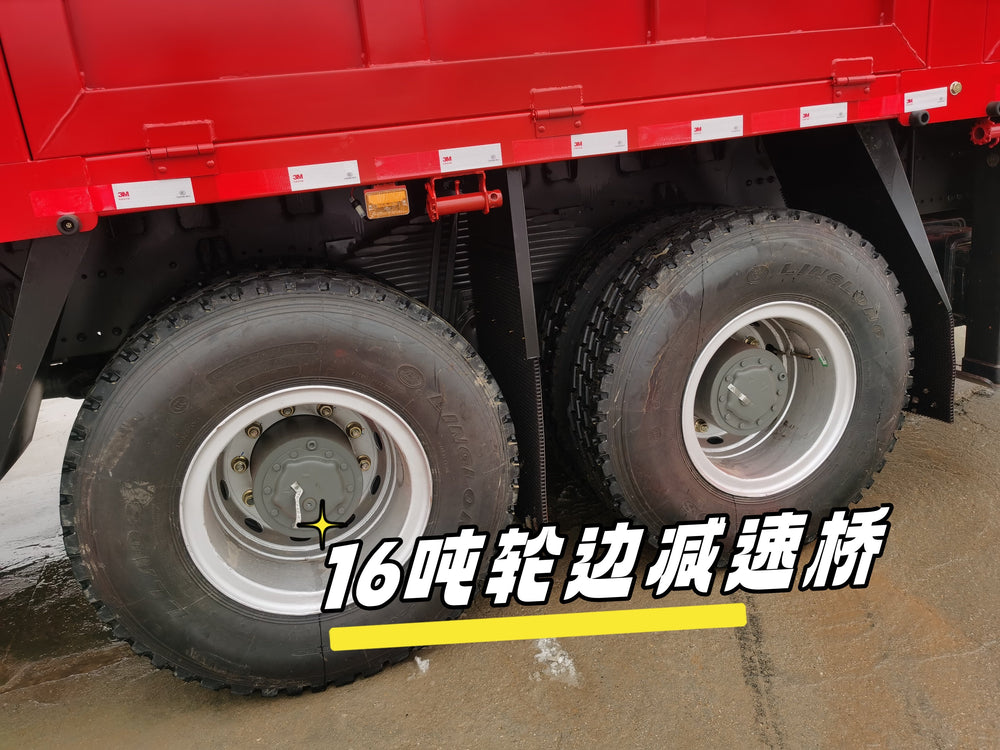

| Off-road & Towing Capacity | SINOTRUK self-developed dual 16T wheel reduction rear axles with 3 differential locks, delivering enhanced torque to handle all complex road conditions |
| Superstructure Equipment | |

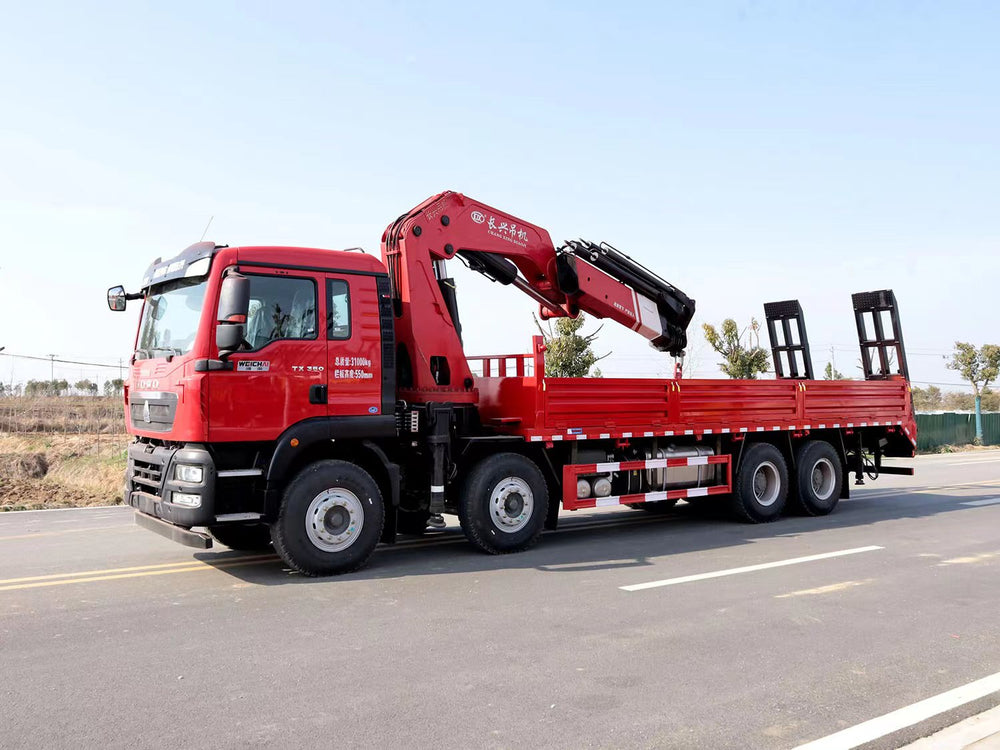

| Crane Spec | Changxing 25T 7-section Knuckle Boom Crane, 18m Lifting Height, 15.8m Working Radius |
| Cargo Box Spec | 7.6m Flatbed Cargo Box with 3-side & 8-bottom Plate, Ladder, and Through Subframe; suitable for transporting excavators and other heavy machinery |
