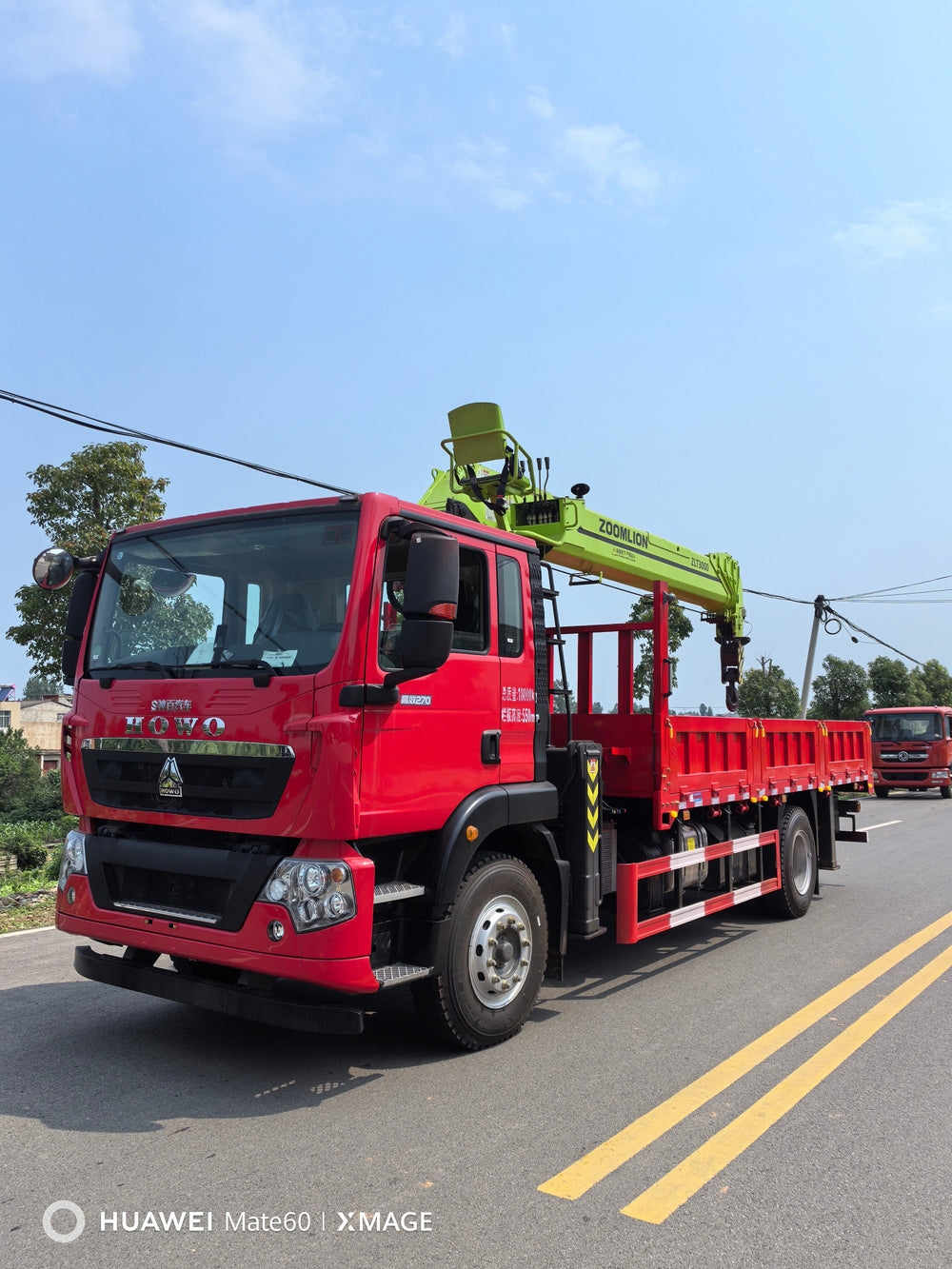

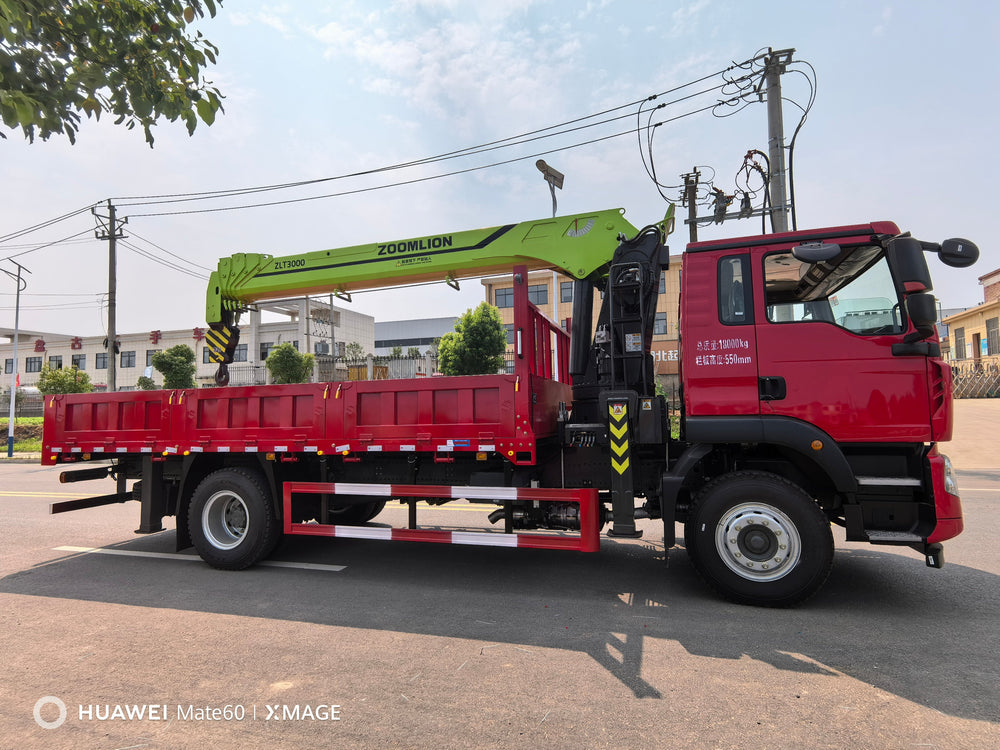

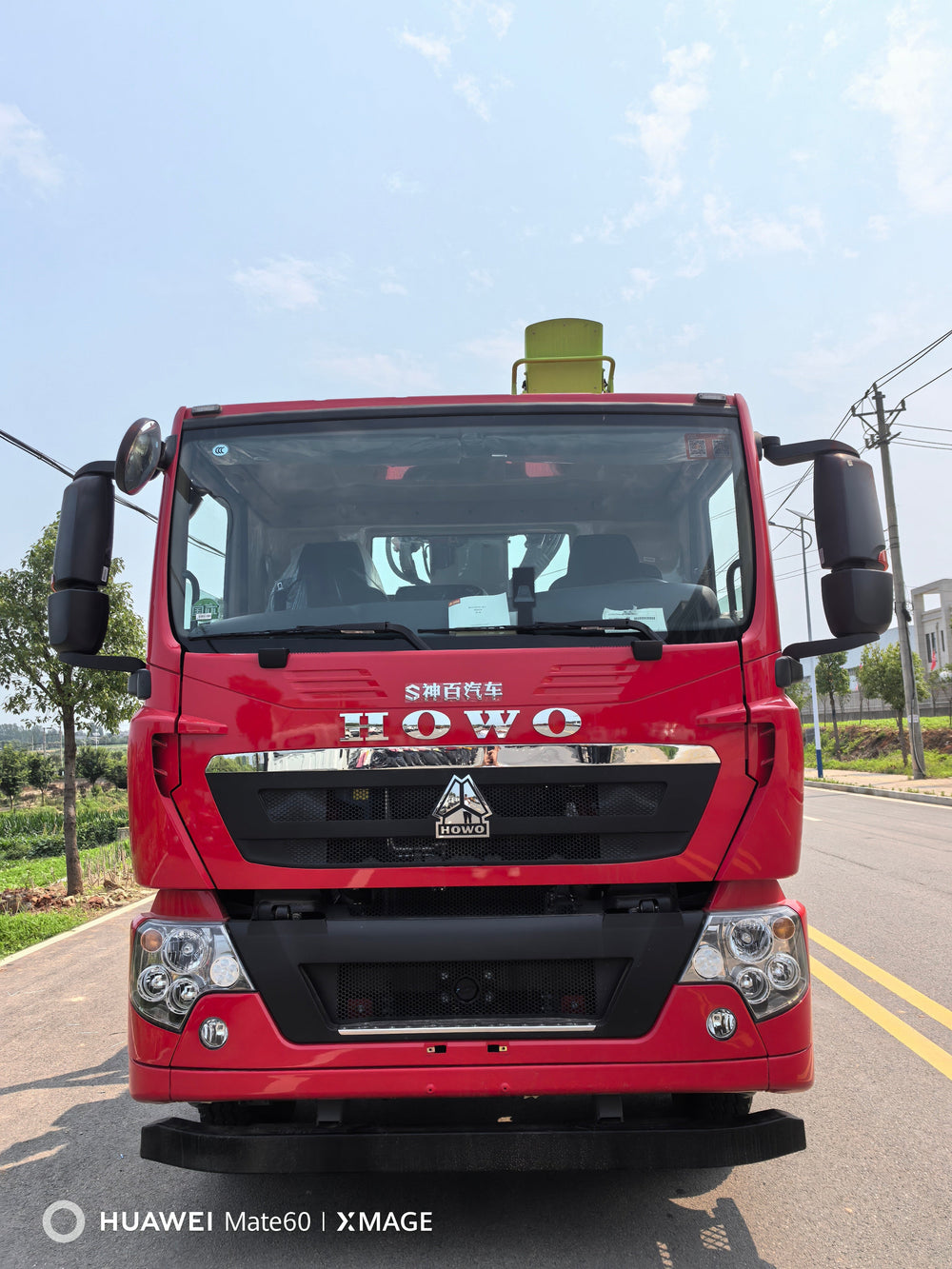

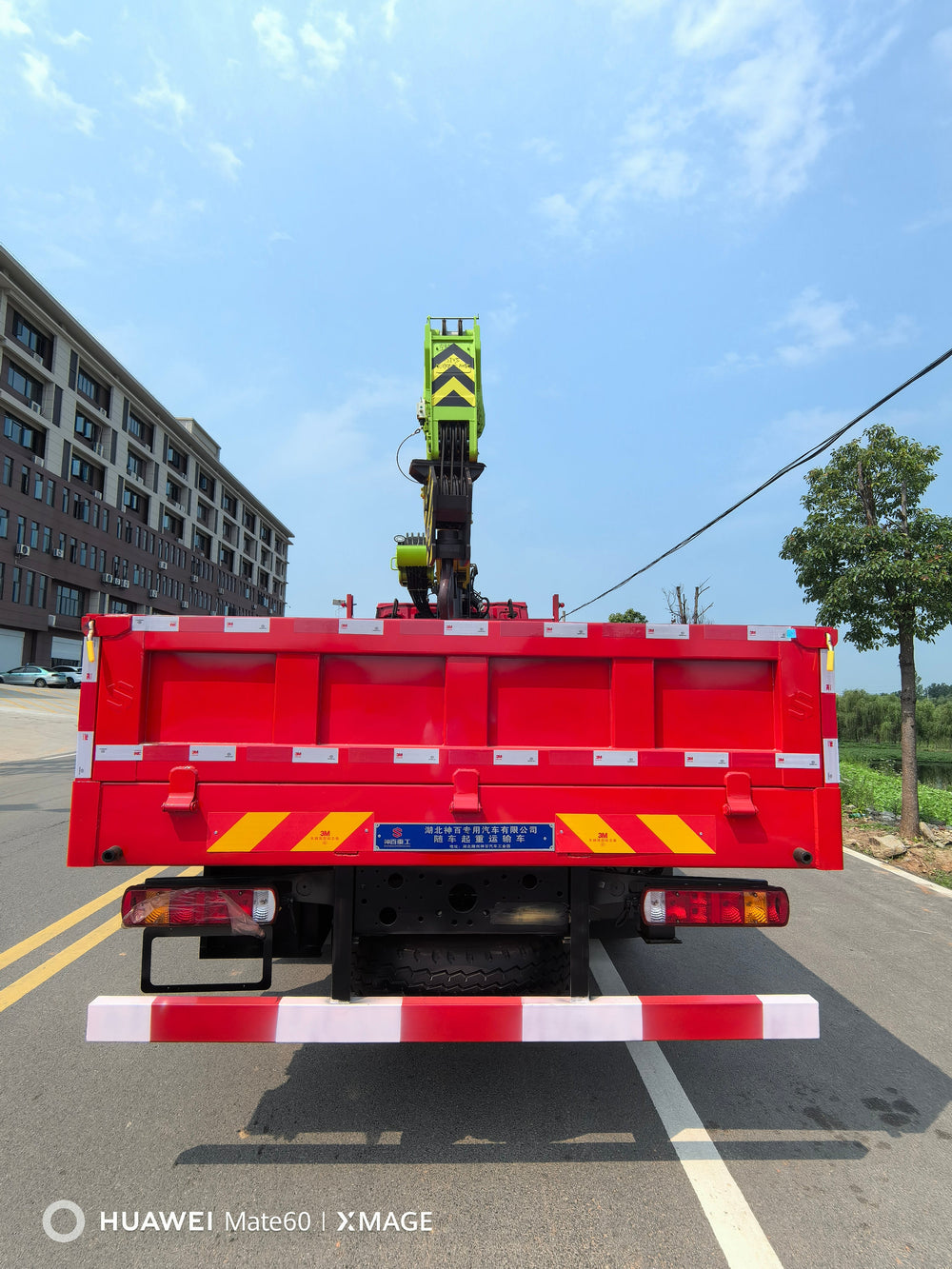

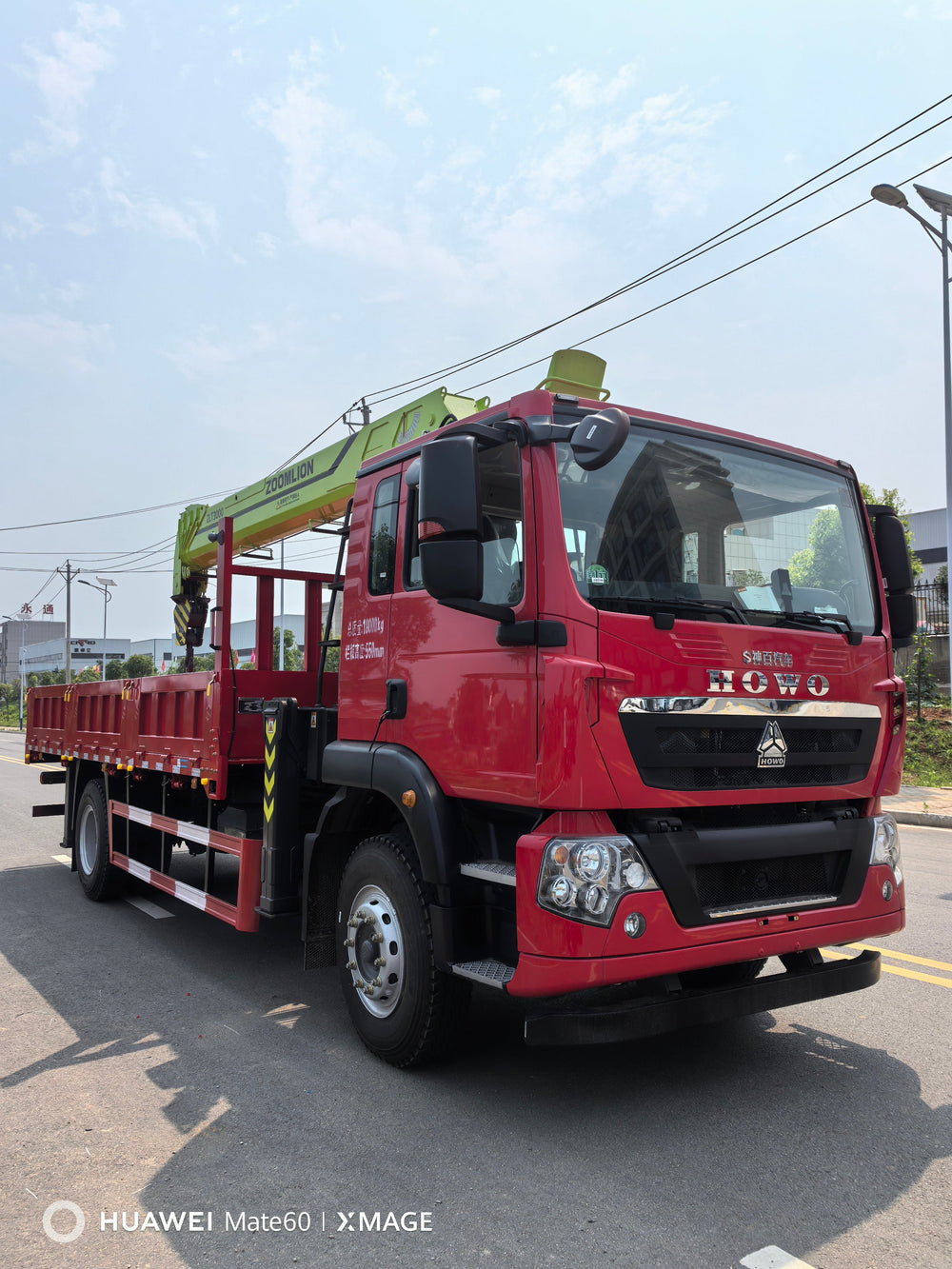

HOWO 4×2 ZOOMLION 8T Telescopic Boom Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Engine | Weichai WP4.6NQ240E62, 240HP, 4.58L displacement |
| Wheelbase | 5000mm |
| Final Drive Ratio | 5.29 (Optional:4.63) |

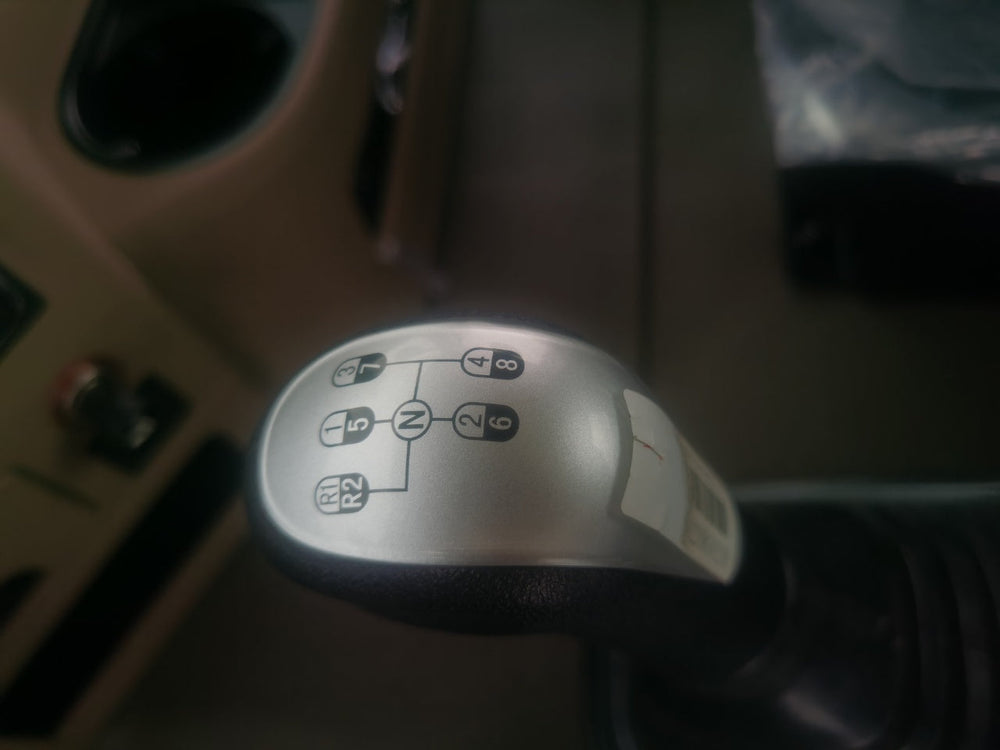

| Transmission & PTO | HW95508STC2 8-speed synchromesh gearbox + HW45ZC flange-type PTO |

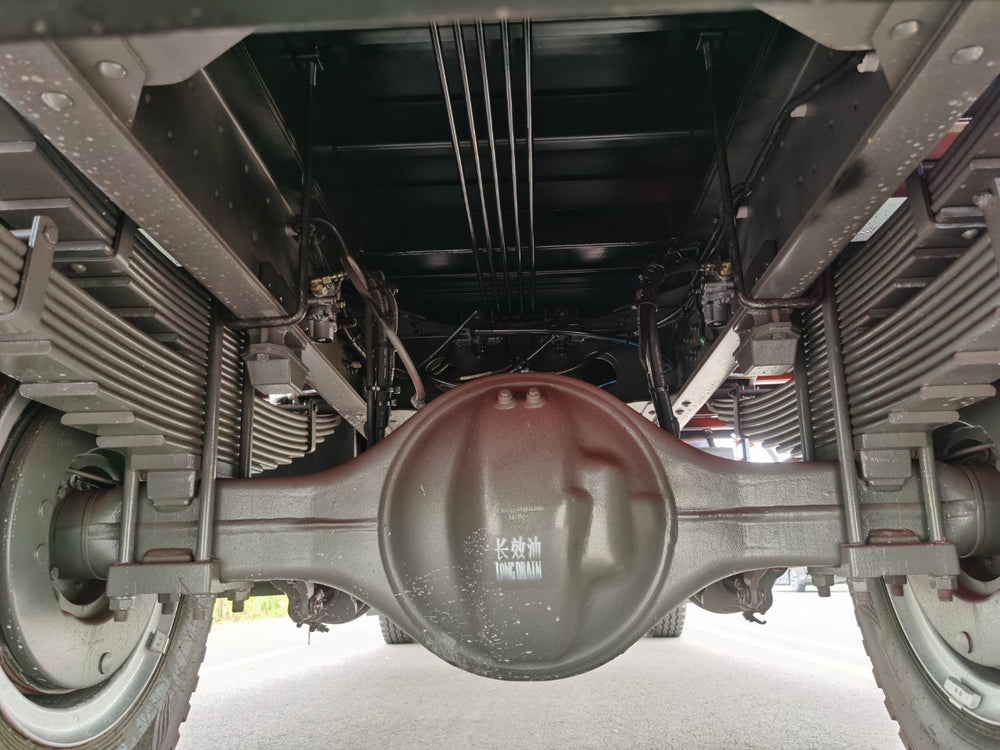

| Front & Rear Axle | 7.5t front axle, 13t engineering rear axle |

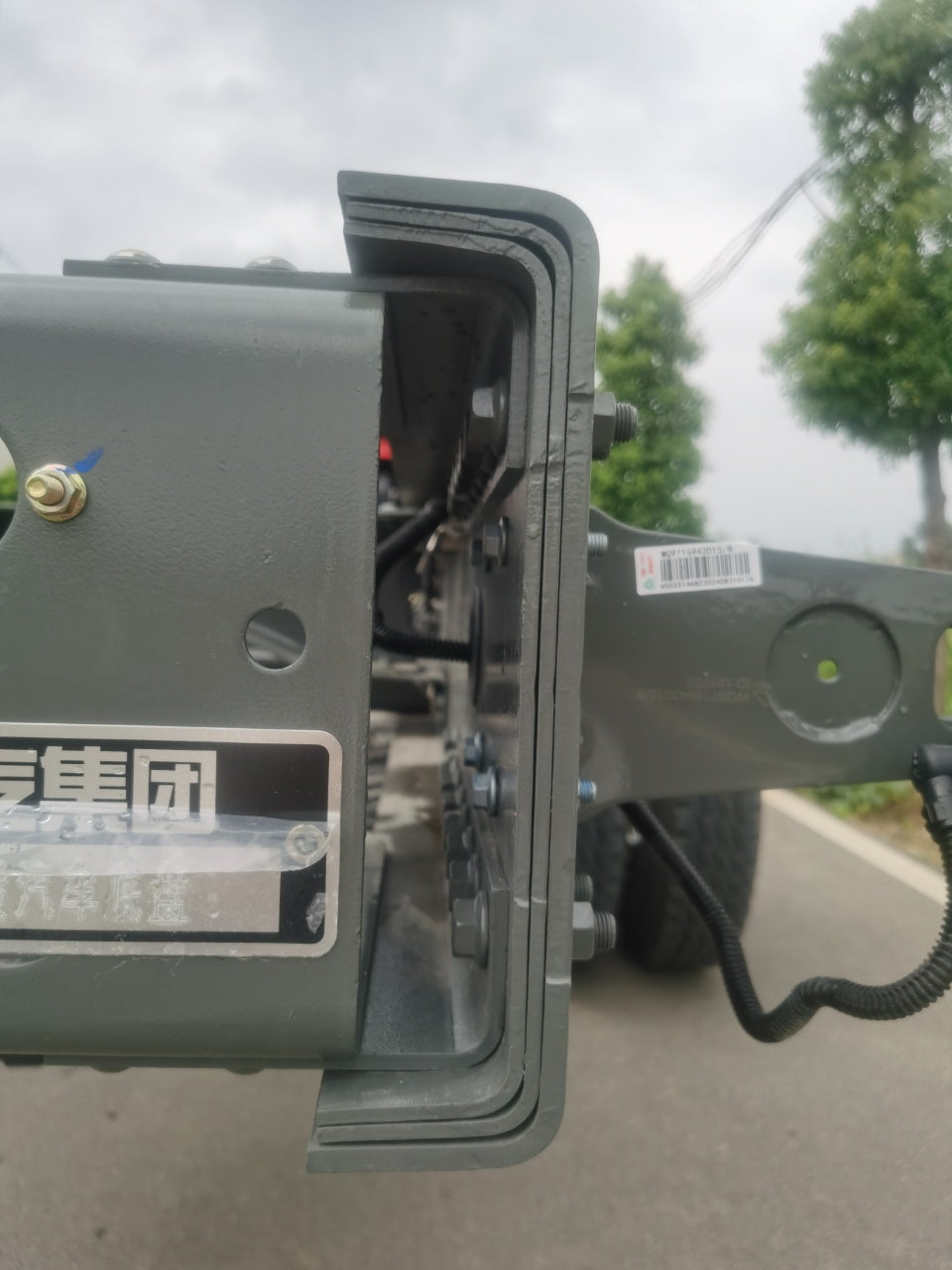

| Frame | 3-layer reinforced frame (8+5+5/300) |
| Leaf Spring | 10 pieces (front),9+8 pieces (rear) |
| Tire | 10.00R20, mixed tread,18PR |

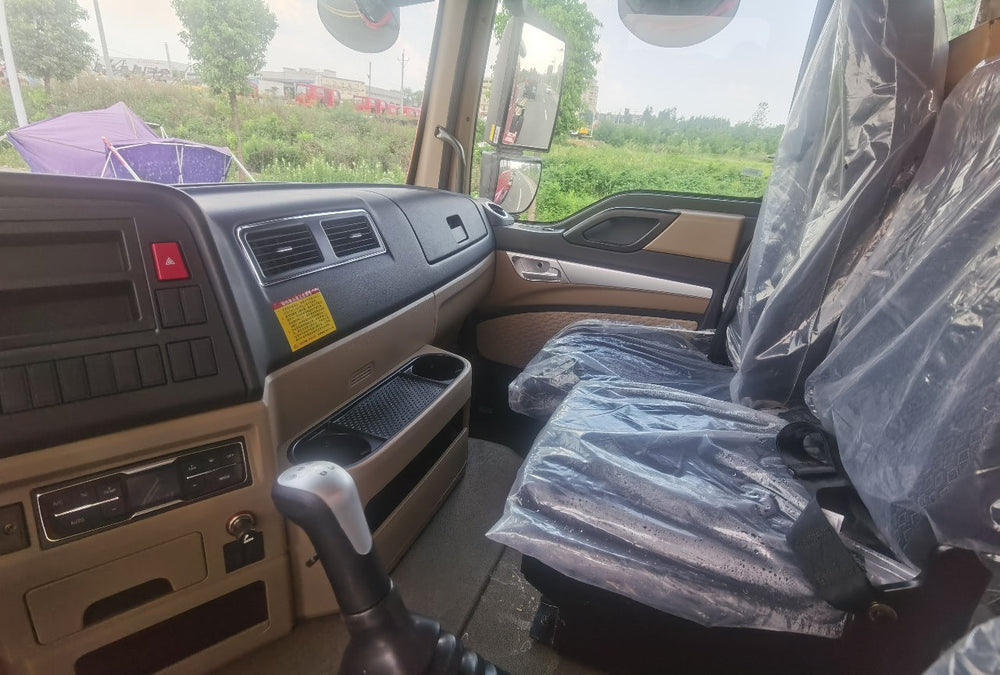

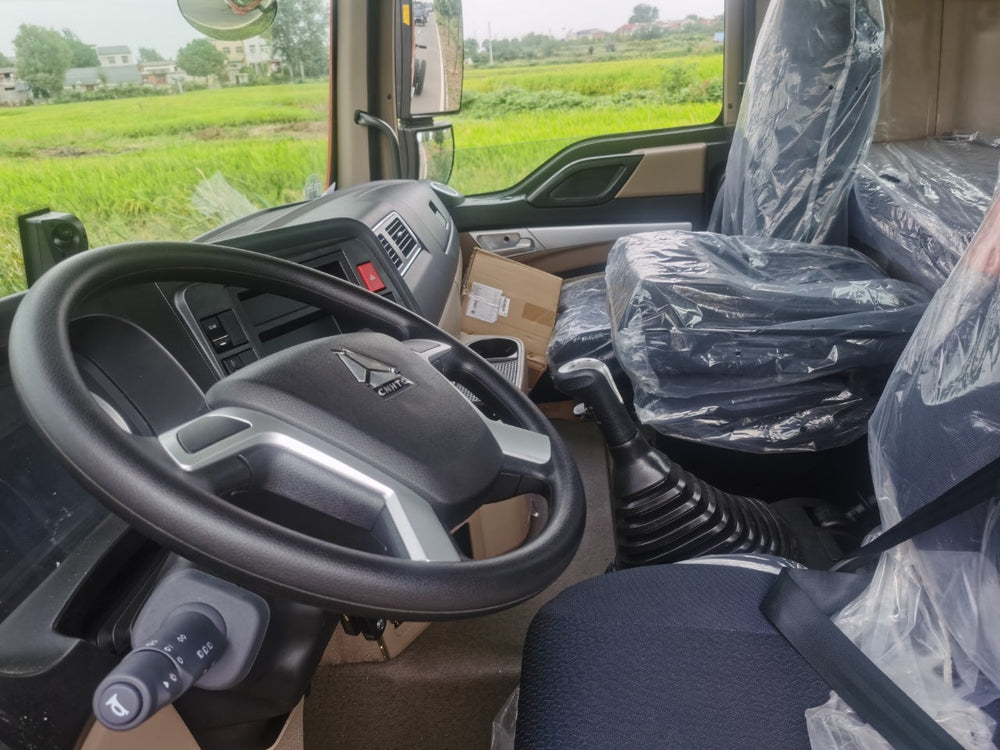

| Cab & Interior | HOWO TX-D short cab(Woying Edition); multi-function steering wheel; manual rearview mirror; main air-suspension seat + auxiliary standard seat; middle cab seat;7-inch full HD MP5 touch screen |
| Chassis Accessories | Cab spring shock absorber; highway air intake system; max speed 89km/h; ABS(4S/4M); full-metal middle bumper;200L fuel tank; cable-type PTO; CNHTC Intelligent D Version; mechanical power switch;120AH storage battery |

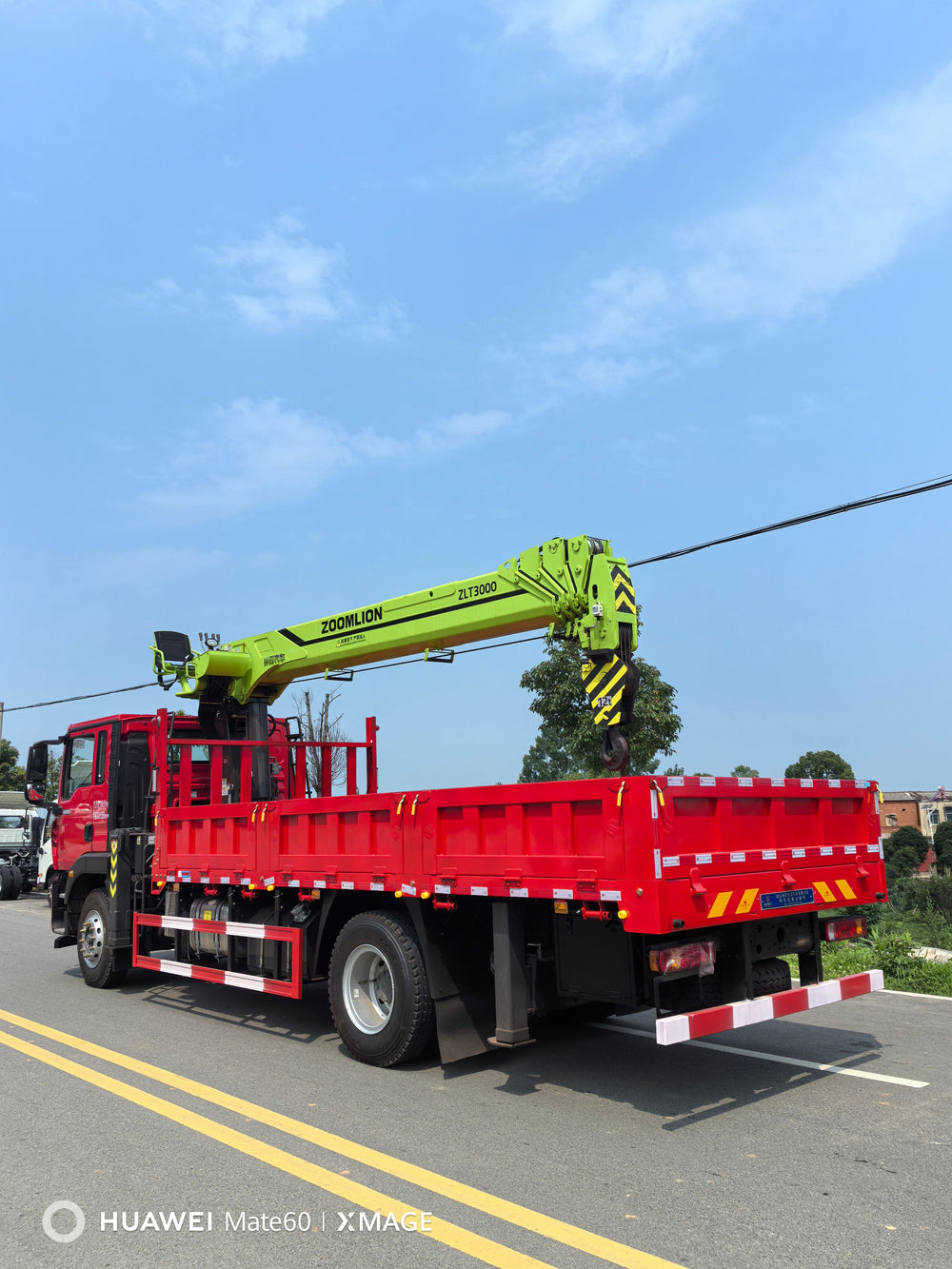

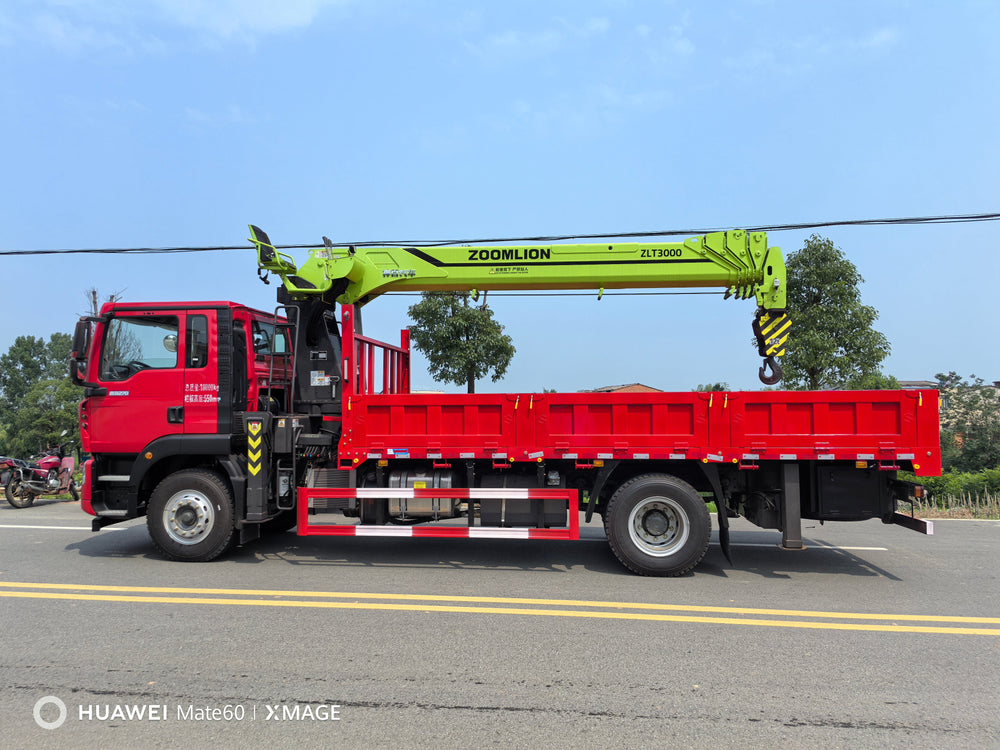

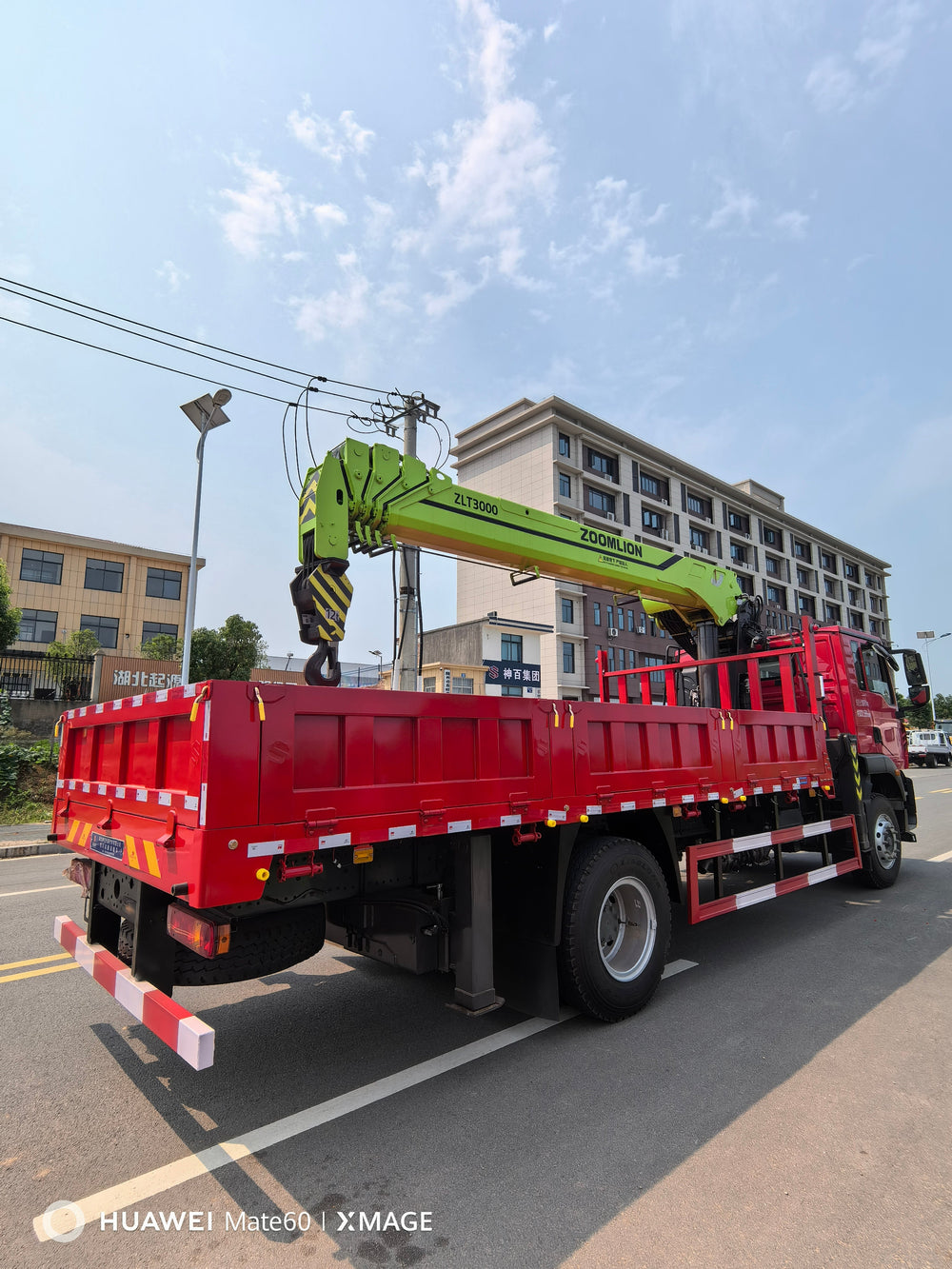

| Crane Superstructure | Zoomlion 8t 5-section crane, boom length 18.8m, lifting height 20.5m;7.5m span double front outriggers, integrated auxiliary beam & radiator, factory single rear outriggers |
| Cargo Box | Edge-three-bottom-five cross-member engineering cargo compartment |
