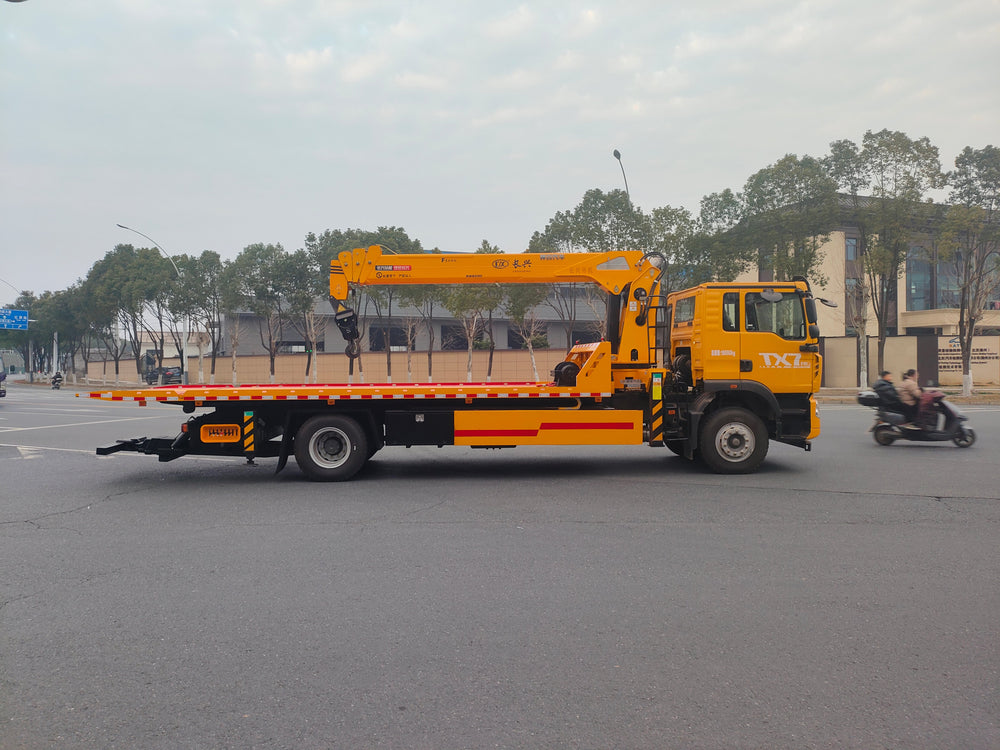

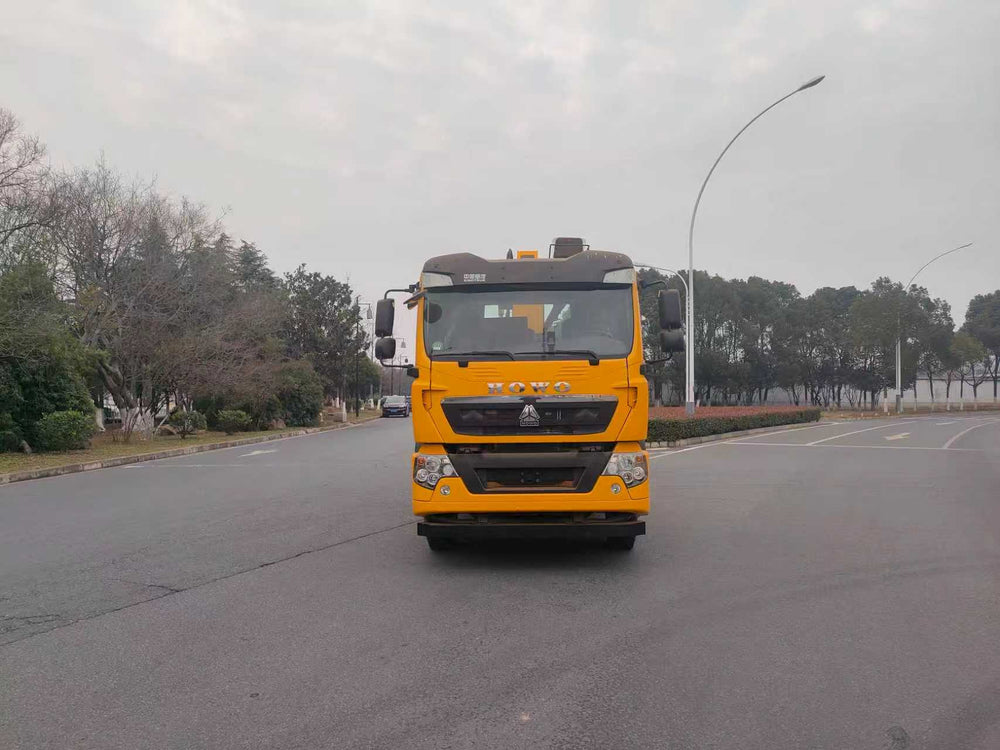

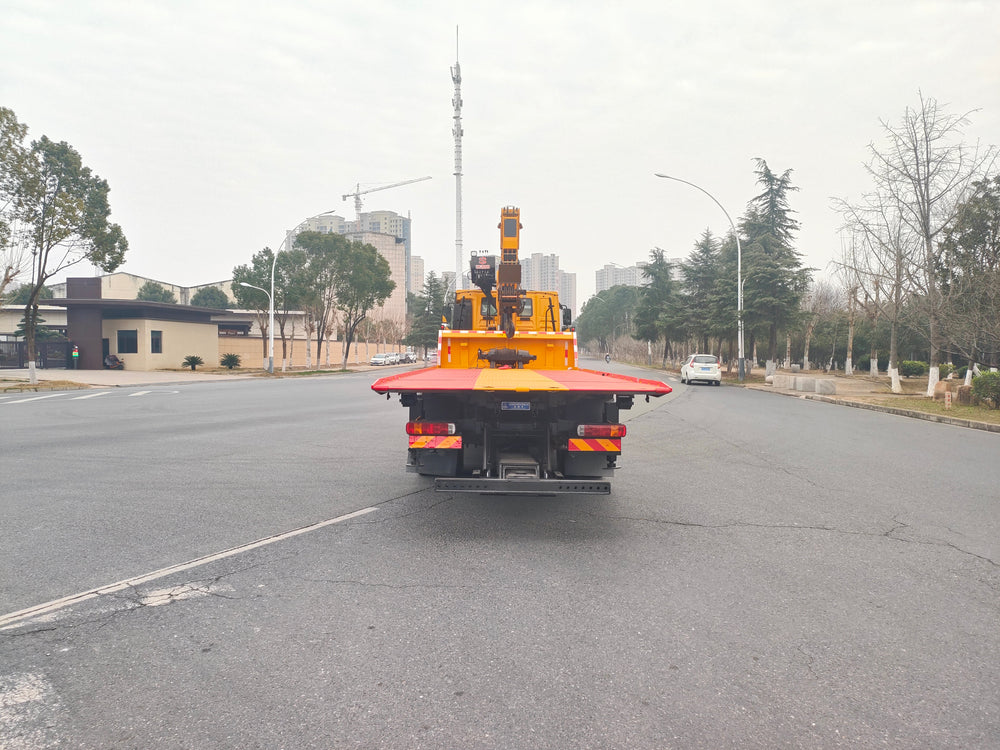

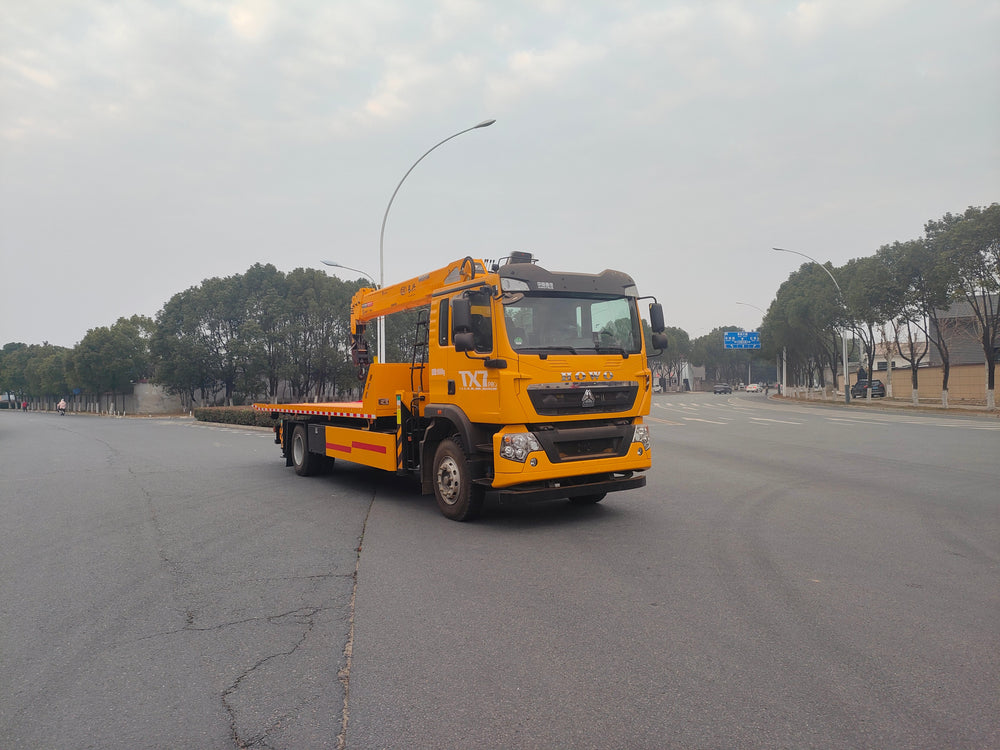

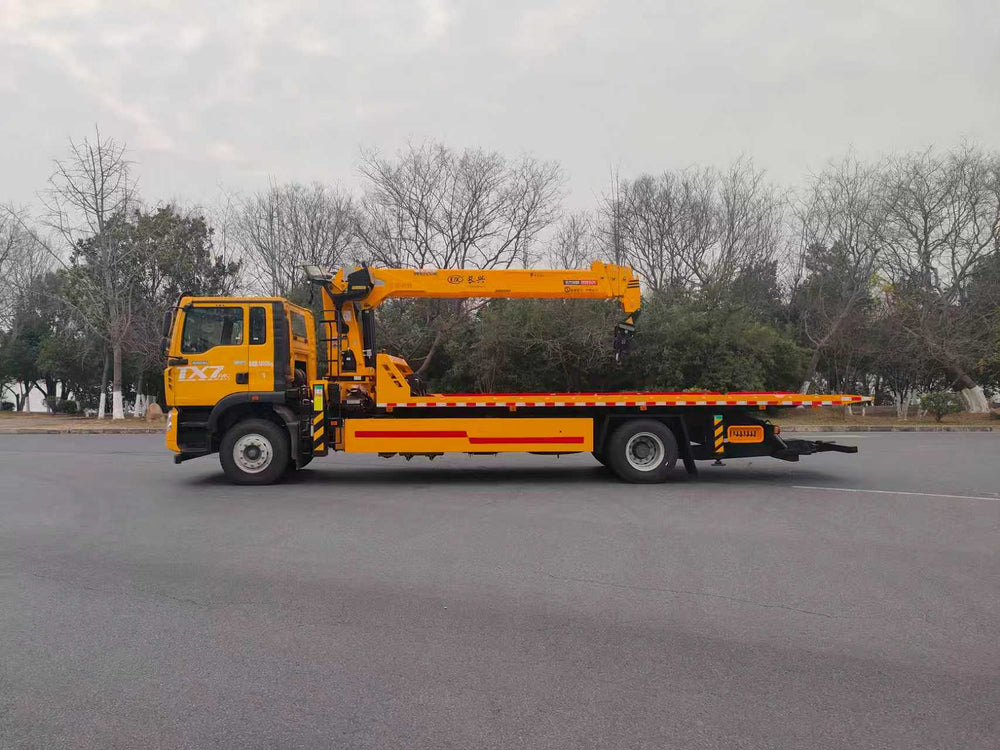

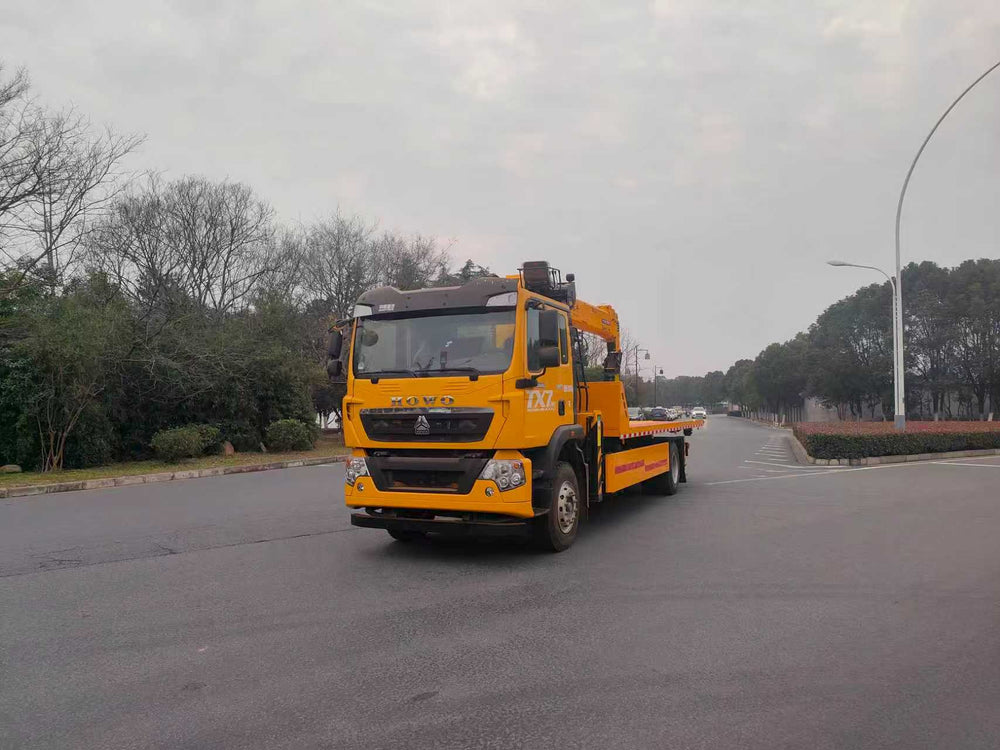

HOWO 10T Wrecker Truck & 8T Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Engine Power | Weichai 240 HP |
| Wheelbase | 4700 / 5200 / 5600 / 6000 mm |
| Overall Length | 9500 / 10000 / 10430 / 10930 mm |
| Overall Width | 2500 / 2550 mm |
| Overall Height | 3550 / 3650 / 3700 / 3800 / 3900 mm |
| Chassis Configuration | |
| Cab | Howo TX5 / TX-D Woying Version, multifunctional steering wheel, main airbag + auxiliary basic seat, middle cab seat |
| Powertrain | WP4.6NQ240E62 Engine; HW95508STC2 Transmission + HW45ZC Flange-type PTO, cable-operated PTO |
| Axle | 1094 self-adjusting front drum axle; MCJ09BGY single rear drum axle, final drive ratio 5.29 |
| Frame & Suspension | 3-layer reinforced frame(8+5+5/300); standard multi-leaf spring(10/9+8), front & rear cab spring shock absorber |
| Standard Fittings | Sun visor, max speed 89km/h, cylindrical muffler exhaust, ABS(4S/4M), 10.1-inch HD MP5 touch screen, full-metal middle bumper |
| Tire & Fuel Tank | 10.00R20 mixed tread tires, 18PR; 200L fuel tank |
| Electrical Parts | 120AH battery, mechanical power switch, primary fuel filter, Sinotruk Smart D version |
| Crane Superstructure | |
| Crane Model | Changxing 8-ton 4-section boom, top control |
| Hydraulic System | Single gear pump + dual control single pump, 360° full rotation, single outrigger |
| Auxiliary Devices | Winch with rope arrangement motor, automatic rope retraction, remote start-stop, radiator |
| Flatbed Wrecker Body | |
| Flatbed Rating | 10-ton rollback flatbed (1-car towing) |
| Flatbed Size | Total length 7.6m (including 1m tailgate), width 2.55m, sunk design for low gravity |
| Deck Structure | 6mm high-strength wear-resistant checkered plate; 16mm perforated solid steel narrow border |
| Underframe | 60×80mm horizontal square tube, dense triangle & grid bracing; double-layer manganese steel thickened slide rail |
| Rear Accessories | Through-shaft hinged tailgate, 10-ton mid-mounted winch, 10-ton 3-section rear lifting arm mounted on main beam, 1 pair external air pipe |
| Hydraulic Parts | Imported Italy HCD multi-way valve; 130mm HIDRA telescopic cylinder |
