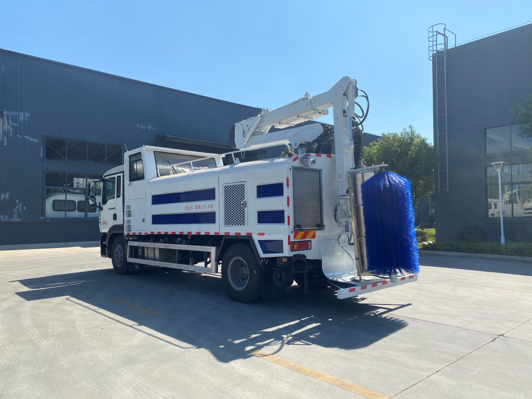

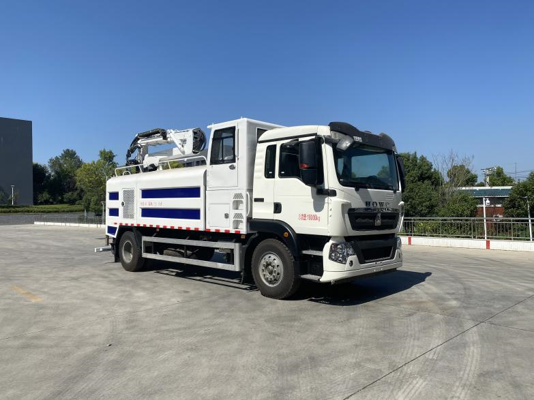

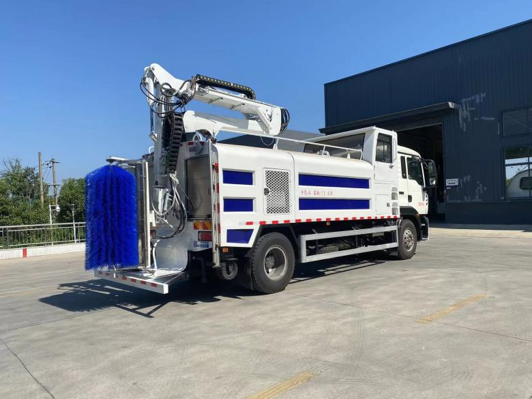

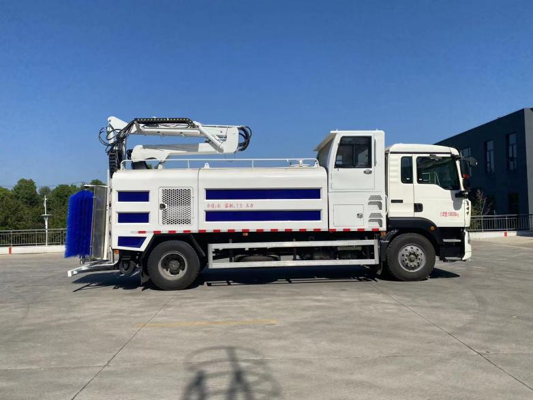

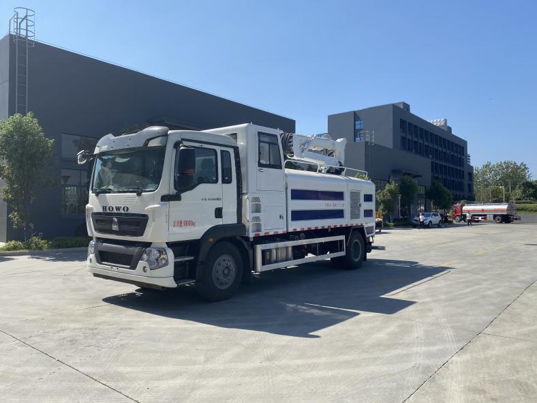

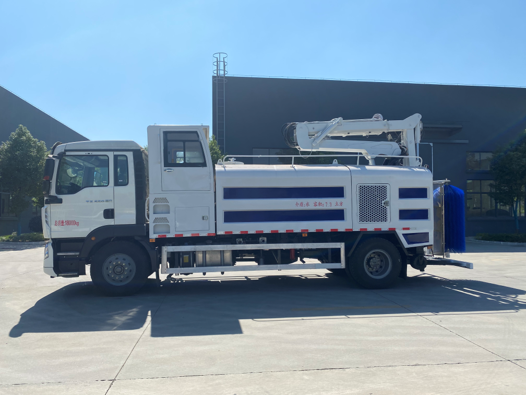

HOWO 10m³ Wall Cleaning Truck
Request a Quote Now
1. Complete Vehicle Basic Parameters
| Parameter | Value |
|---|---|
| Vehicle Type | Wall Cleaning Truck |
| Complete Vehicle Model | CL5187TXQ6HL |
| Gross Vehicle Weight | 18000 kg |
| Rated Load Capacity | 7070 kg / 7005 kg |
| Curb Weight | 10800 kg |
| Number of Axles | 2 |
| Drive Mode | 4×2 (Single Rear Axle) |
| Axle Load Distribution | 6500 kg / 11500 kg |
| Cab Seating Capacity | 2 persons / 3 persons |
| Fuel Type | Diesel |
| Maximum Speed | 89 km/h |
| Maximum Climbing Gradient (Working) | 20 % |
| Chassis Model | ZZ1187K501GF1 |
2. Dimension & Wheel Parameters
| Parameter | Value |
|---|---|
| Overall Dimension (L×W×H) | 9000 × 2520 × 3980 mm |
| Wheelbase | 5000 mm |
| Front Overhang / Rear Overhang | 1430 mm / 2570 mm |
| Approach Angle / Departure Angle | 19° / 9° |
| Front Track Width | 1950 / 2035 / 1910 / 1930 mm |
| Rear Track Width | 1848 / 1860 mm |
| Tire Specification | 10.00R20 18PR |
| Number of Tires | 6 |
3. Powertrain System
| Parameter | Value |
|---|---|
| Engine Model | WP4.6NQ220E61 |
| Engine Power | Weichai 220 HP (4-cylinder) |
| Transmission | HW95508STC Howo Synchronizer 8-speed Gearbox |
4. Water Tank System
| Parameter | Value |
|---|---|
| Tank Volume | 10 m³ |
| Tank Material | Q235 Carbon Steel |
| Tank Wall Thickness | 4 mm |
| Splash Guard Thickness | 3 mm |
5. Wall Cleaning Performance Parameters
| Parameter | Value |
|---|---|
| Roller Brush Width | 1500 mm |

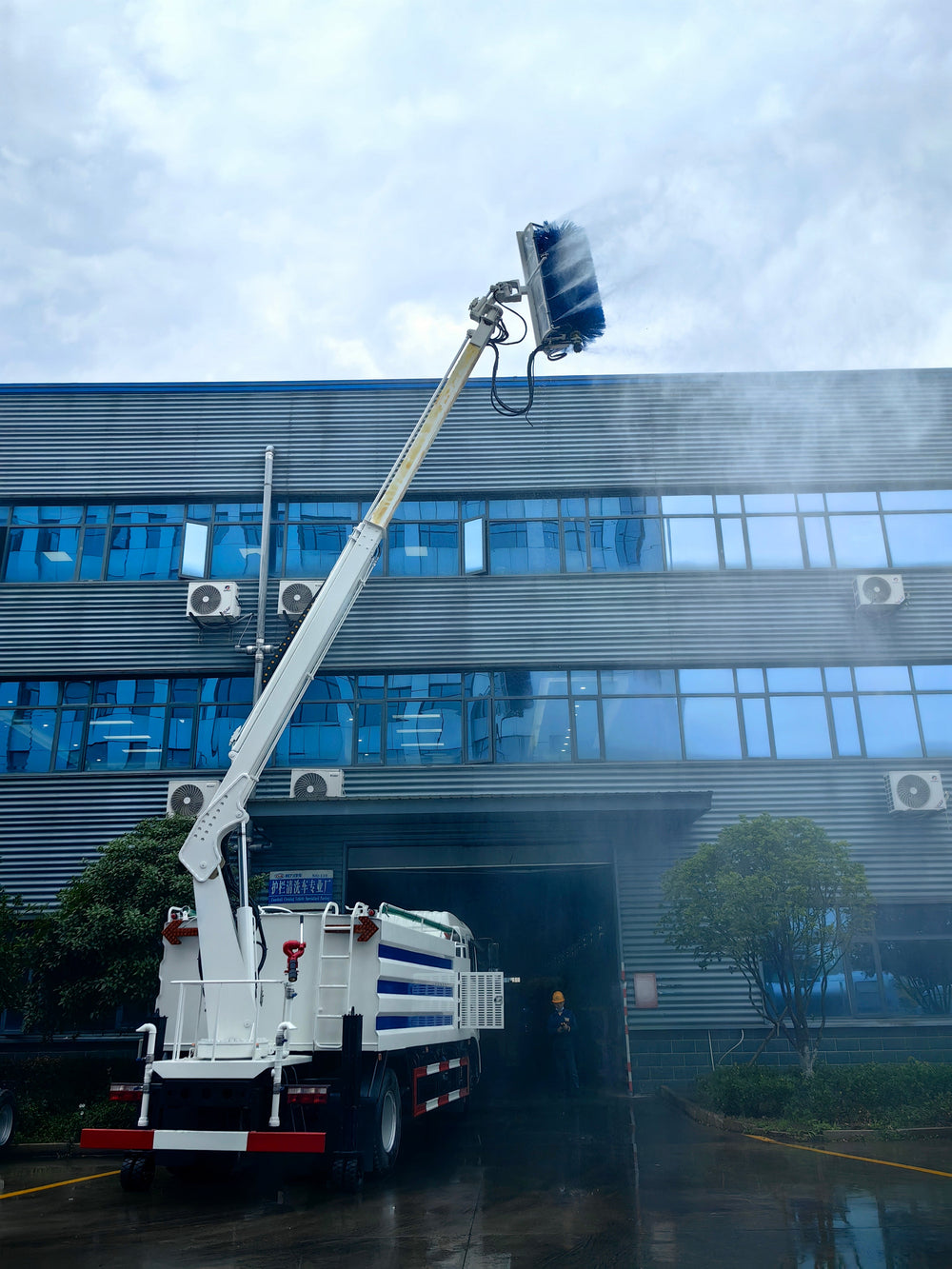

| Maximum Top Cleaning Height | 10 m |
| Inner Side Wall Cleaning Height Range | 0.15 – 8 m |
| Outer Side Wall Cleaning Height Range | 1.5 – 6 m |
| Working Cleaning Speed | 2 – 5 km/h |
| Cleaning Capacity | 7000 m²/h |
| Control Mode | In-cab operation |
6. Core Working Systems
| System | Description |
|---|---|

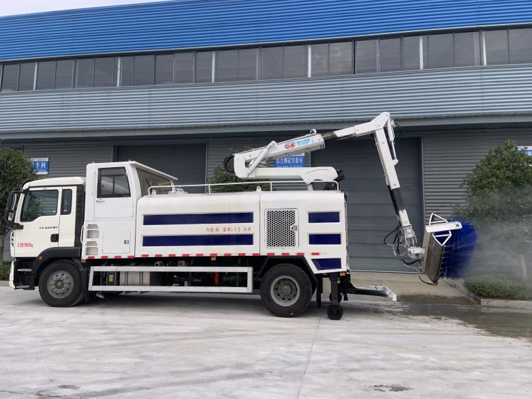

| Cleaning Device | Consists of brush bracket assembly, brush head unit, swing motor and high-pressure water pipelines. Water jets spray onto wall and roller to wet and pre-wash; hydraulic motor drives roller via chain to scrub and remove dirt; detergent mixes with water via dedicated nozzles to enhance cleaning performance |
| Water Circuit System | Dual-circuit design: Clean water circuit (pump, filter, 3-way ball valve, rotary joint, nozzles & pipelines) for wall flushing and roller cleaning; Detergent water circuit (pump, filter, nozzles & pipelines) to mix with clean water and boost roller cleaning power |
| Boom System | Slewing platform + multi-section boom assembly mounted on subframe; roller head installed at boom tip; boom performs rotation, lifting, telescoping and folding motions to position roller against wall at any angle |
| Hydraulic System | Auxiliary engine drives hydraulic pump; one multi-way valve supplies oil to front roller folding/tilting cylinders and boom lift cylinders, as well as roller rotation & translation motors; two additional multi-way valves control boom lifting, telescoping, slewing and support wheel lifting with speed regulation |
| Electrical System | Includes controller, industrial remote control, operation panel, lighting system, sensors and wiring harness |
| Operation Control | Controller + industrial remote control + HMI management via CAN bus; integrates automatic control & monitoring, equipment management, fault alarm and self-diagnosis |
7. Chassis Standard Configuration
| Parameter | Value |
|---|---|
| Cab Type | Howo TX Cab |
| Cab Interior | High-end luxurious interior, comfortable ride |
| Standard Cab Accessories | Automatic air conditioner, power take-off, central door locking, electric windows, remote key, double-layer frame, Zhinengtong telematics, electro-hydraulic integrated cab lift |
| Fuel Tank | 200 L Fuel Tank |
| Front Axle | 1094 Self-Adjusting Arm Front Axle (4.3 Tons Rated Load) |
| Rear Axle | MCJ09BG Single-Stage Reduction Self-Adjusting Arm Drive Axle (9 Tons Rated Load) |
