FOTON Aumark R Series 240HP 9.85m Box Cargo Truck (China VI, Single Axle)

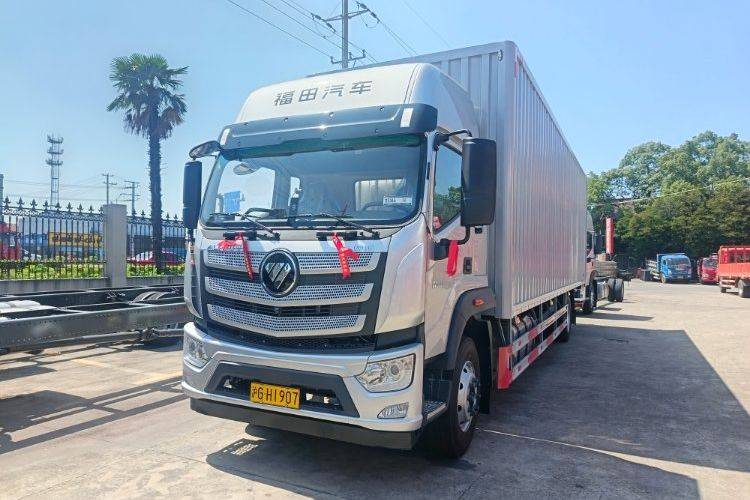

Foton Aumark S5 Box Truck - Front Quarter View (Silver)

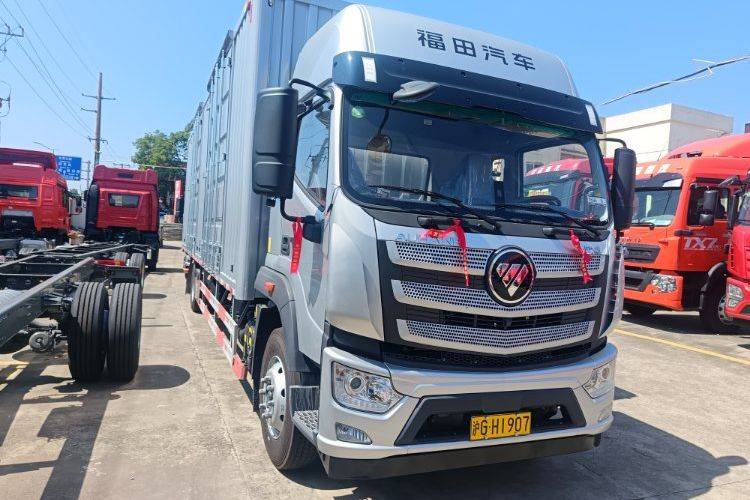

Foton Aumark S5 Box Truck - Front Side View (Silver)

1 / 3

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Category	Item	Specification	Remarks
Basic Vehicle Information	Brand & Model	FOTON Aumark R Series 9.85m Box Cargo Truck	FOTON's flagship medium-duty long-haul logistics truck
	Drive Form	4×2 (1 front steering axle, 1 rear drive axle)	Single axle configuration, compliant with national 18-ton total mass limit
	Overall Outer Dimensions	12000×2550×3980mm	Length×Width×Height
	Cargo Box Inner Dimensions	9850×2450×2500mm	Standard 9.85m long cargo compartment
	Wheelbase	5700mm	Optimized for 9.85m cargo box layout, stable high-speed driving
	Gross Vehicle Weight	18000kg	Legal maximum total mass for 4×2 medium-duty trucks
	Curb Weight	7600kg	Lightweight chassis design, maximized payload capacity
	Rated Payload	10200kg	Ideal for long-haul FTL, LTL logistics and express delivery
	Seating Capacity	2-3 persons	High-roof double sleeper cab, optional 3-seat configuration
	Emission Standard	China VI (Euro VI equivalent)	Fully compliant with national latest heavy-duty truck emission regulations
	Vehicle Type	Fully enclosed box-type cargo truck	For urban and intercity general cargo, industrial goods, cold chain (optional) transportation
Engine Parameters	Engine Model	FOTON Cummins ISD6.7NS6B240	Inline 6-cylinder diesel engine, dedicated for medium-duty logistics trucks
	Displacement	6.7L	Large displacement, reliable power output
	Maximum Power Output	177kW / 240HP	Peak power at 2500rpm
	Maximum Torque	900N·m	Peak torque at 1200-1800rpm, excellent low-speed torque performance
	Intake Form	Turbocharged intercooled, high-pressure common rail electronic fuel injection	Fuel-saving, stable combustion, low emission
	Emission Control System	SCR+DOC+DPF+ASC	China VI after-treatment system, stable operation without AdBlue fault
	Rated Speed	2500rpm	Standard rated speed for heavy-duty diesel engines
Transmission System	Transmission Model	Fast 8JS105TA 8-speed manual synchronized transmission	8 forward gears, 2 reverse gears, wide gear ratio coverage
	Shift Mechanism	Manual shift, full synchronizer	Smooth shifting, easy operation for long-haul driving
	Clutch	Diaphragm spring dry clutch, 430mm diameter	Durable for frequent start-stop operation
Chassis Configuration	Chassis Brand	FOTON Original Medium-duty Truck Chassis	Factory original matching, reliable quality
	Front Axle	4.5-ton rated load capacity, forged steel axle	Lightweight, high strength, long service life
	Rear Axle	10-ton rated load capacity, single reduction axle	Final drive ratio 4.33, optional 3.91 for high-speed fuel saving
	Tire Specification	11R22.5 18-ply steel radial tires, total 6 units	Wear-resistant, puncture-resistant, suitable for long-distance high-speed driving
	Fuel Tank Capacity	600L aluminum alloy fuel tank	Large capacity, supports over 2000km continuous driving
	Steering System	Hydraulic power steering	Light operation, precise control under full load
	Suspension System	Front leaf spring independent suspension, rear leaf spring non-independent suspension	3/4+1 leaf spring configuration, balance of riding comfort and load capacity
	Brake System	Full drum brake, dual-circuit pneumatic brake	Standard with ABS, EBS, exhaust brake
Cab Configuration	Cab Type	FOTON Aumark R Series High-roof Double Sleeper Cab	Four-point air suspension, hydraulic flip structure
	Cab Interior	Large windshield, wide field of view, double sleeper design	Spacious space for long-haul driver rest
	Standard Comfort Configuration	Factory installed automatic air conditioning, power windows, central door lock, multifunctional steering wheel	Standard factory configuration
	Seats	Air suspension driver seat, adjustable co-driver seat	Effectively reduce driving fatigue during long-distance operation
Cargo Box Superstructure	Box Material	High-quality corrugated steel plate, galvanized anti-rust treatment	Anti-impact, anti-rust, long service life
	Box Structure	Fully enclosed sealed cargo compartment, rear double swing doors, optional left/right side sliding doors	Dustproof, rainproof, fully protect goods from damage
	Cargo Volume	Approximately 60.5m³	Large space for bulk cargo loading
	Safety Fittings	Full perimeter red-white reflective warning strips, rear anti-collision buffer beam, top wind deflector	Comply with GB 7258 road transport safety standards, reduce wind resistance and fuel consumption
	Optional Customization	Stainless steel box, insulated cold storage box, hydraulic tailgate, multi-side door design	For cold chain, fragile goods, special cargo transportation
Standard Safety Configuration	Active Safety	ABS anti-lock braking system, EBS electronic brake force distribution, ESC electronic stability control, tire pressure monitoring system (TPMS)	Prevent wheel lock, skidding, greatly improve driving safety
	Passive Safety	Front crash buffer structure, 3-point safety belts for all occupants, anti-intrusion door beam	Reduce injury risk in collision accidents
	Lighting System	Full LED composite headlights, side marker lights, rear brake & warning lights, clearance lamps	Meet international road lighting requirements
Optional Upgrades & Export Customization	Comfort Upgrade	Reversing camera + 10-inch multimedia display, GPS navigation, cruise control, leather seats	Eliminate rear blind spots, improve long-haul driving comfort
	Safety Upgrade	Lane Departure Warning System (LDWS), Forward Collision Warning (FCWS), Blind Spot Monitoring System	Meet national heavy-duty truck safety regulations
	Export Customization	Right-hand drive (RHD) modification, overseas emission standard calibration, custom cargo box size, full set of export inspection documents	For global long-haul logistics, cross-border transportation projects, supports customization for different countries' regulations
