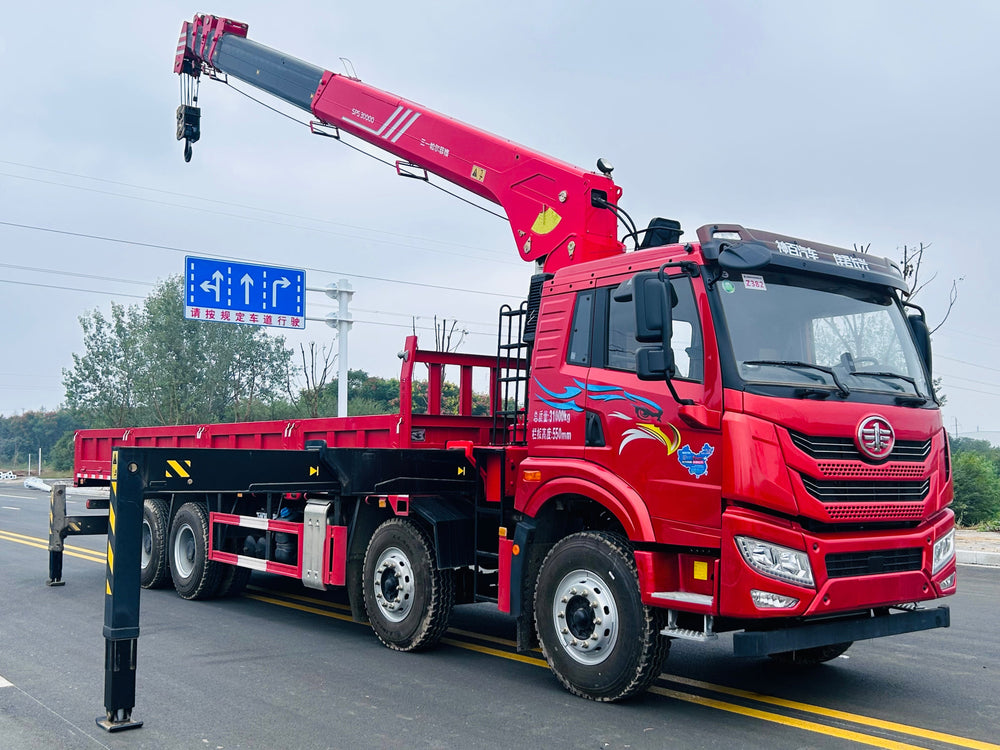

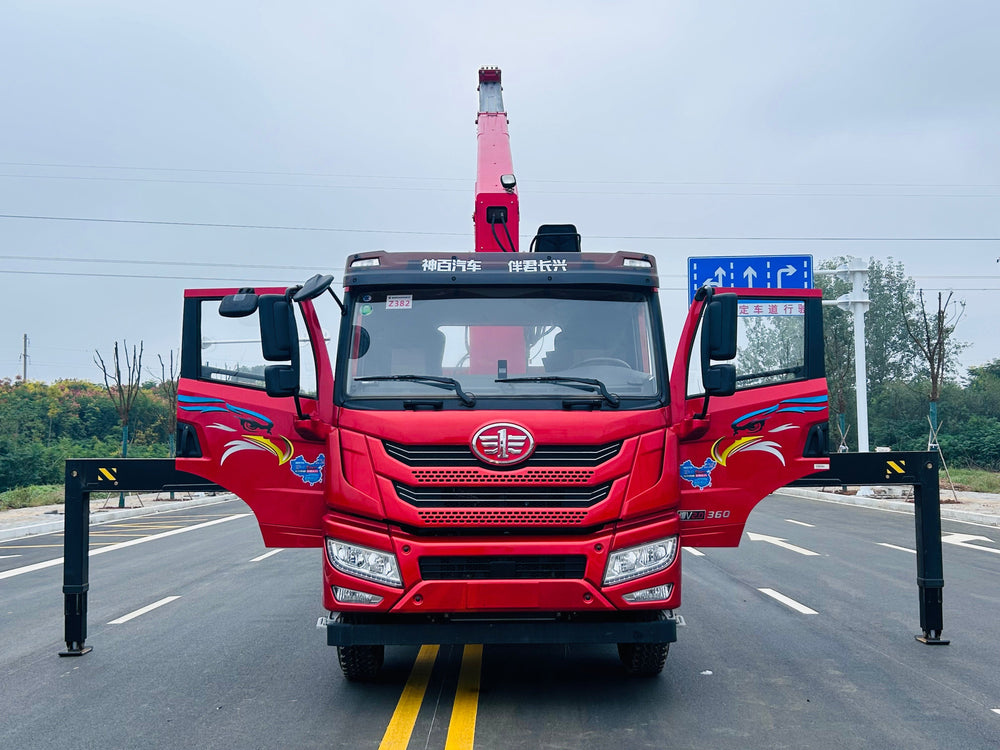

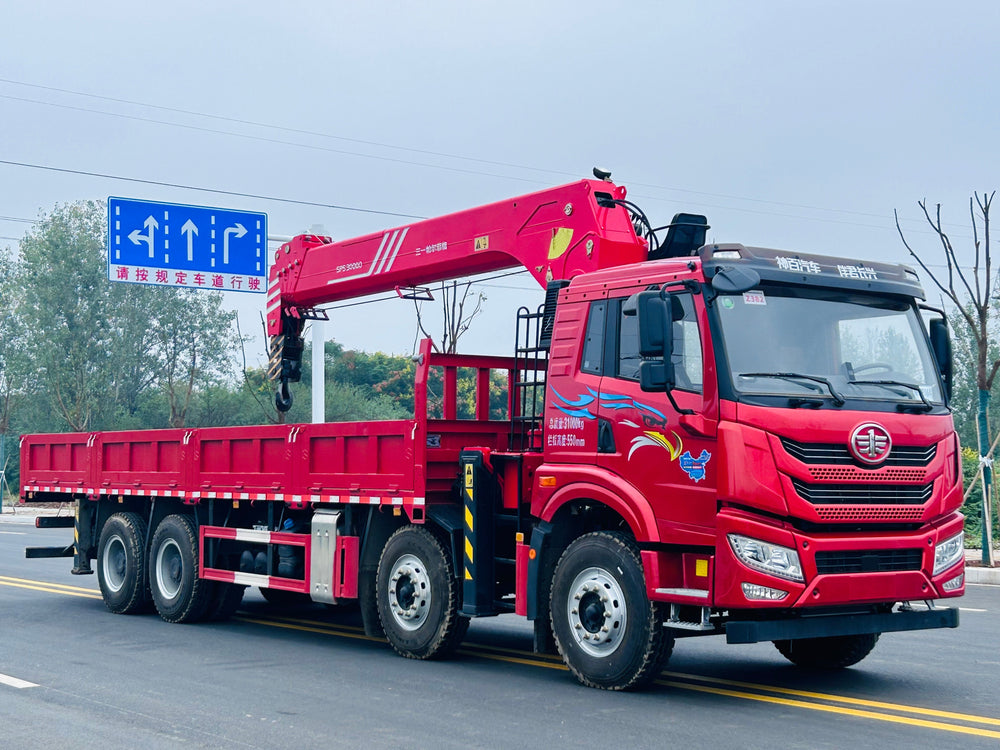

FAW 8×4 360HP Telescopic Boom Crane

1 / 9

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Part 1 – Selling Points

Item No.	Product Advantage Description
1	Plateau Edition, 9L displacement Cummins 360HP engine + 16-ton wheel reduction axle, powerful power, ideal model for high-altitude operation; max torque 1500N·m, quick start & strong climbing performance
2	Standard HAN V2.0 flat-roof full-floating cab: air conditioner, electric cab tilting, electric windows, video recorder, air spring seat, engine coolant preheating device
3	Core configuration customized for heavy-load working conditions, long-distance transportation and high-end special vehicle market
4	Four-point air suspension for shock absorption & anti-vibration, more stable operation; matched with hydraulic shock absorbers to greatly improve driving & operation safety factor; noise reduction creates quiet cab environment to relieve fatigue during long-time driving
5	High-pressure fuel system + modular aftertreatment for more sufficient combustion, lower fuel consumption & maintenance cost; reinforced cylinder block & crankshaft design for high attendance rate, compression resistance & durability, suitable for long-term heavy-duty intensive operation
6	12-speed gearbox covering full working conditions, fuel-efficient at high speed & powerful at low speed with high transmission efficiency; all-metal gearbox housing for impact resistance & heavy-load resistance, fits frequent start-stop & heavy-load operation of truck-mounted crane, low maintenance cost

Part 2 – Chassis Basic Technical Parameters

Parameter	Value
Official Announcement Model	ABC5316JSQC6
Chassis Model	CA1310P1K2L7T4BE6A81
Engine Model & Power	Cummins 360HP, 9-liter displacement

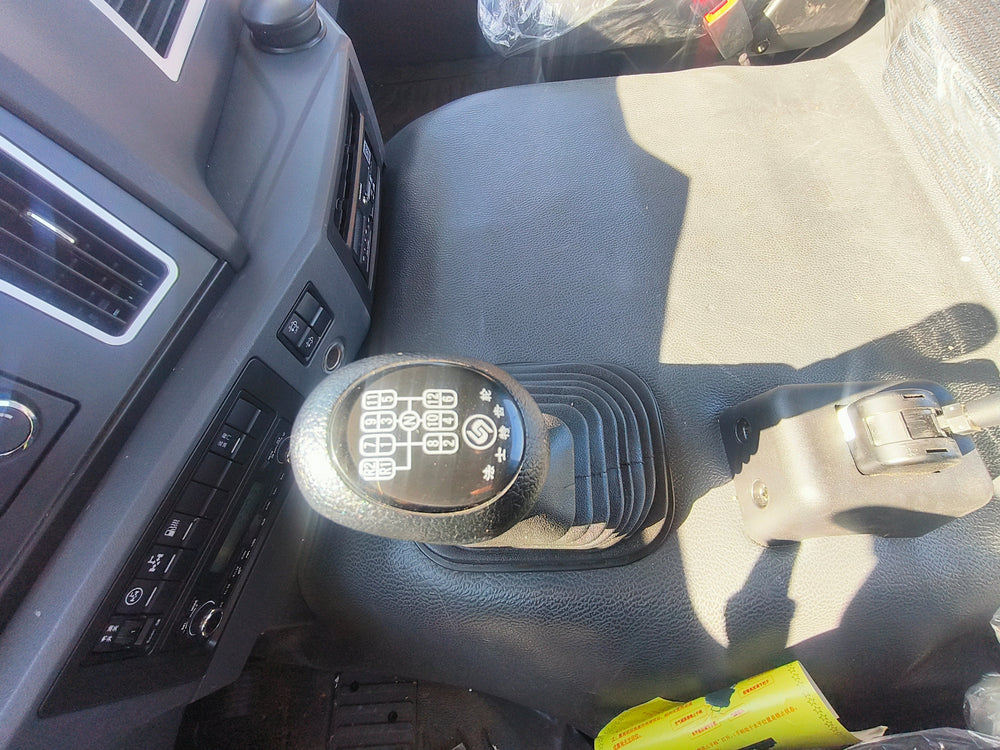

Transmission	Shaanxi Fast 12-speed gearbox
Rear Axle Configuration	13T / 16T wheel reduction axle with 3 differential locks, final drive ratio 4.805, drum brake
Tire Specification	11.00R20, 18PR
Wheelbase Combination	2300+4200+1350 mm
Main Frame Dimension	300×80mm (8+5+8 layered structure)
Final Drive Ratio	4.805
Overall External Dimension Options	12000×2550×3700mm, 3780mm, 3880mm, 3980mm
Cargo Box Dimension Options	8500/8400/8300/8200/8100/8000/7900/7800/7700/7600/7500 × 2450 × 550/600 mm
Optional Curb Weight	21700KG, 20700KG, 19800KG
Gross Vehicle Weight	31000KG

Part 3 – Complete Chassis Auxiliary Configuration

Parameter	Value

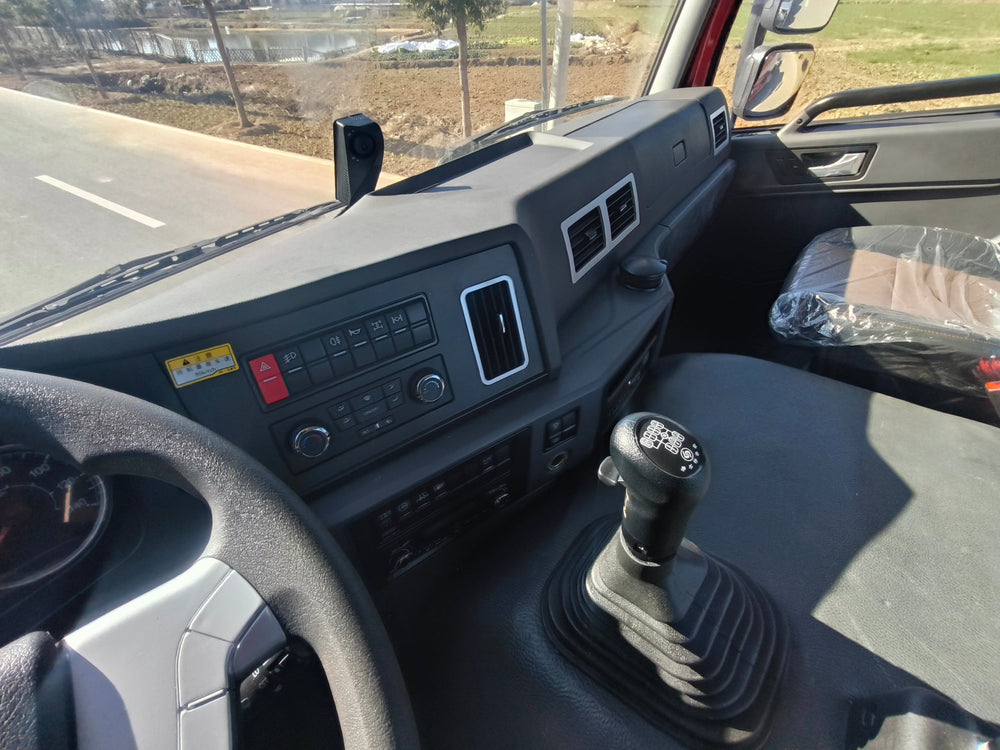

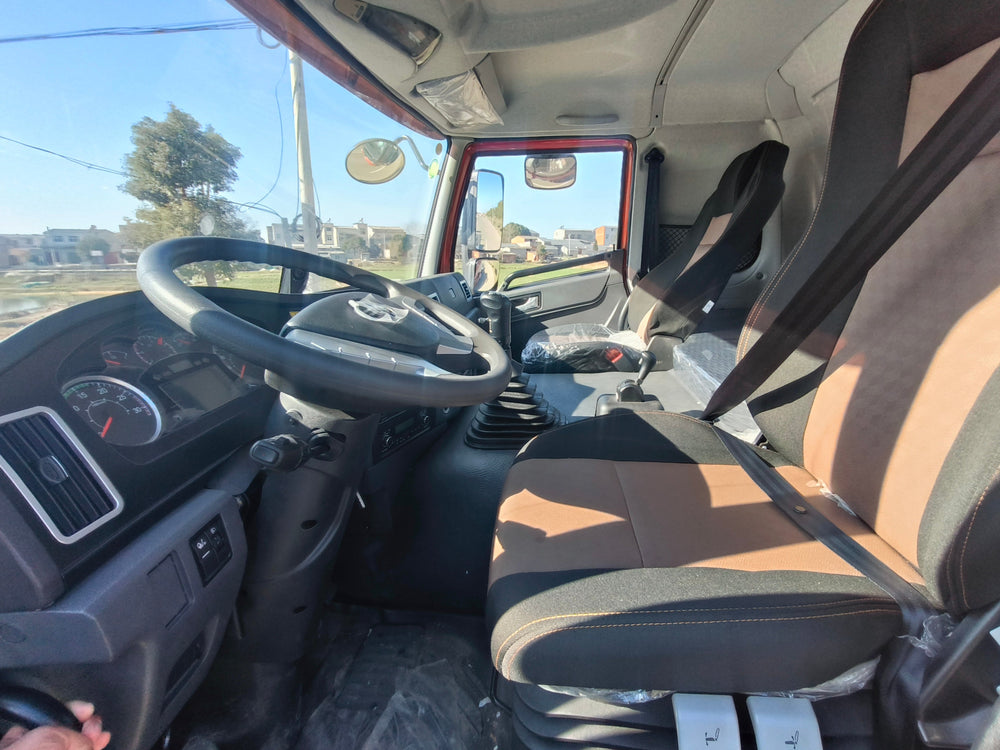

Cab Type	HAN V2.0 flat-roof full-floating cab with four-point air suspension
Standard Cab Accessories	Air conditioner, electric tilting system, electric windows, video recorder, air spring seat, 220V power socket, central locking, hand throttle, PTO control switch, small front bumper
Clutch & Steering Parts	WABCO clutch booster, steering emergency assist function
Suspension	10/10/10 leaf spring
Fuel Tank	400L steel fuel tank
Exhaust Aftertreatment	U-type aftertreatment device
Cooling System	Electronically controlled silicone oil fan clutch, engine coolant preheating device
Electrical System	150Ah storage battery, full-power power take-off & control mechanism, auxiliary start & flameout function
Maintenance Interval	Engine, gearbox & axle oil change cycle: 30000 / 60000 / 60000 km
Speed Limit	Max speed limited to 89 KM/H
Brake System	Equipped with ABS
Vehicle Application	Special chassis dedicated for truck-mounted crane

Part 4 – Upper Crane Assembly Optional Models

Crane Serial No.	Crane Model & Technical Parameters
1	Changxing 12 Ton, 4-section boom F-series crane Boom length: 15.4m, Lifting height: 17.2m, single gear pump, dual-operation single pump valve, single-section outriggers, winch/orbit motor with half-length subframe, radiator & integrated control panel
2	Changxing 12 Ton, 5-section synchronous telescopic C-series crane Boom length: 19.9m, Lifting height: 21.3m, dual gear pump confluence, single slewing & double-section outriggers, winch (orbit motor) with full-length through subframe
3	Changxing 12 Ton, 5-section synchronous telescopic C-series crane Boom length: 19.9m, Lifting height: 21.3m, dual gear pump confluence, single slewing & double-section outriggers, winch (orbit motor) with full-length through subframe, integrated control panel

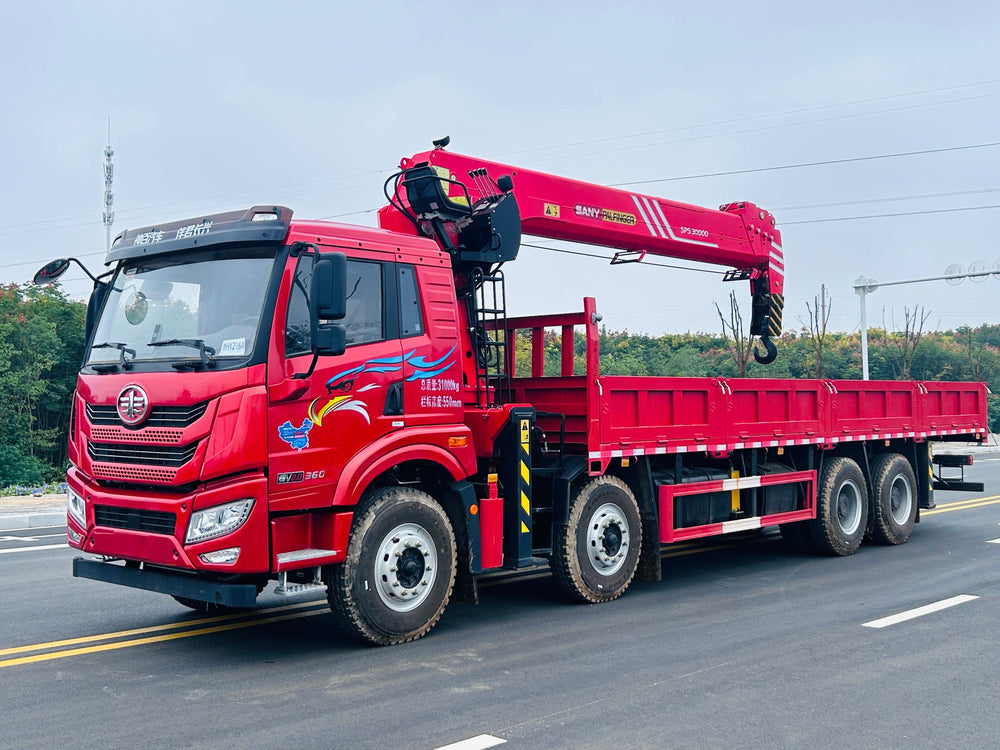

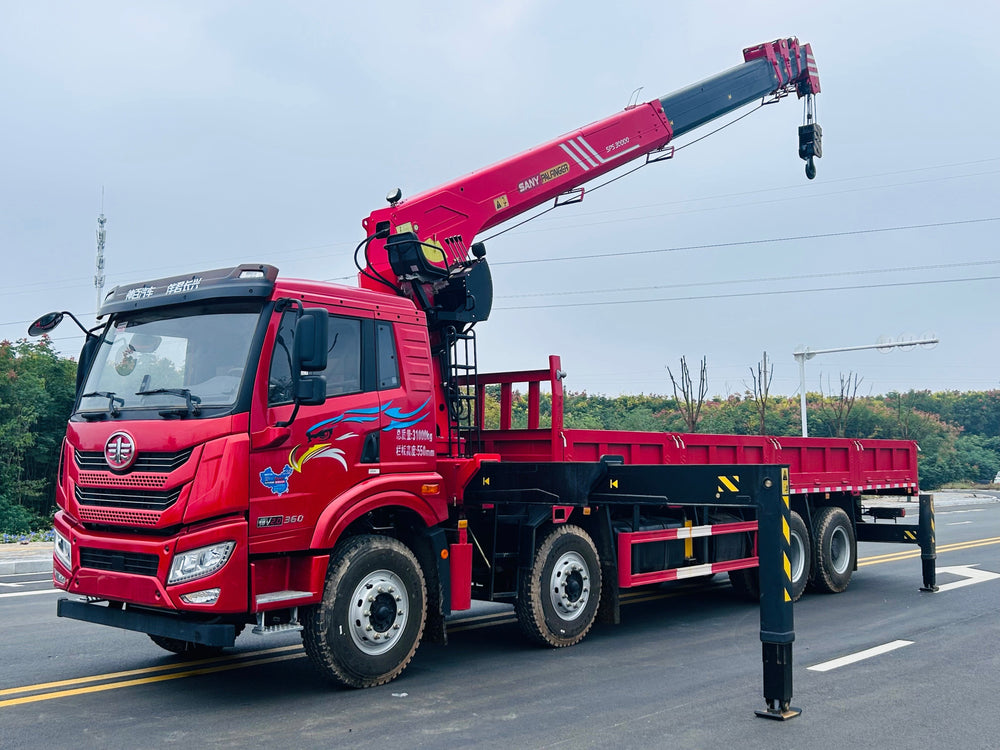

4	Sany 12 Ton, 4-section boom crane Boom length: 14.8m, Lifting height: 16.8m, outrigger span: 6m, crane self-weight: 4T, plunger pump, planetary slewing (plunger motor), winch (plunger motor)
5	Sany 12 Ton, 5-section boom crane Boom length: 18.5m, Lifting height: 20.5m, outrigger span: 6m, crane self-weight: 5T, independent extension of second boom section, plunger pump, planetary slewing (plunger motor), winch (plunger motor)
6	Sany 14 Ton, 5-section boom crane Boom length: 18.5m, Lifting height: 20.5m, outrigger span: 7.25m, crane self-weight: 5T, independent extension of second boom section, double-cylinder double-section front outriggers, plunger pump, planetary slewing (plunger motor), winch (plunger motor)
7	Sany 16 Ton, 5-section boom crane Boom length: 19m, Lifting height: 21m, outrigger span: 7.25m, crane self-weight: 5T, independent extension of second boom section, double-cylinder double-section front outriggers, original radiator, plunger pump, planetary slewing (plunger motor), winch (plunger motor)
8	TaiZhong 14 Ton, 5-section boom crane Independent extension of second boom section, boom length: 18.8m, dual slewing reducer, plunger pump, temperature-controlled radiator, double-section composite outriggers, outrigger span: 7.6m
9	TaiZhong 16 Ton, 5-section boom crane Boom length: 19.8m, independent extension of second boom section, top operation, dual slewing, double-section composite outriggers, outrigger span: 8.2m, temperature-controlled radiator, proportional valve, inclined shaft winch, large-flow plunger pump, 26MPa low-pressure system, one-key start-stop, work lamp, horn, automatic hook retraction, original double-chamber h
