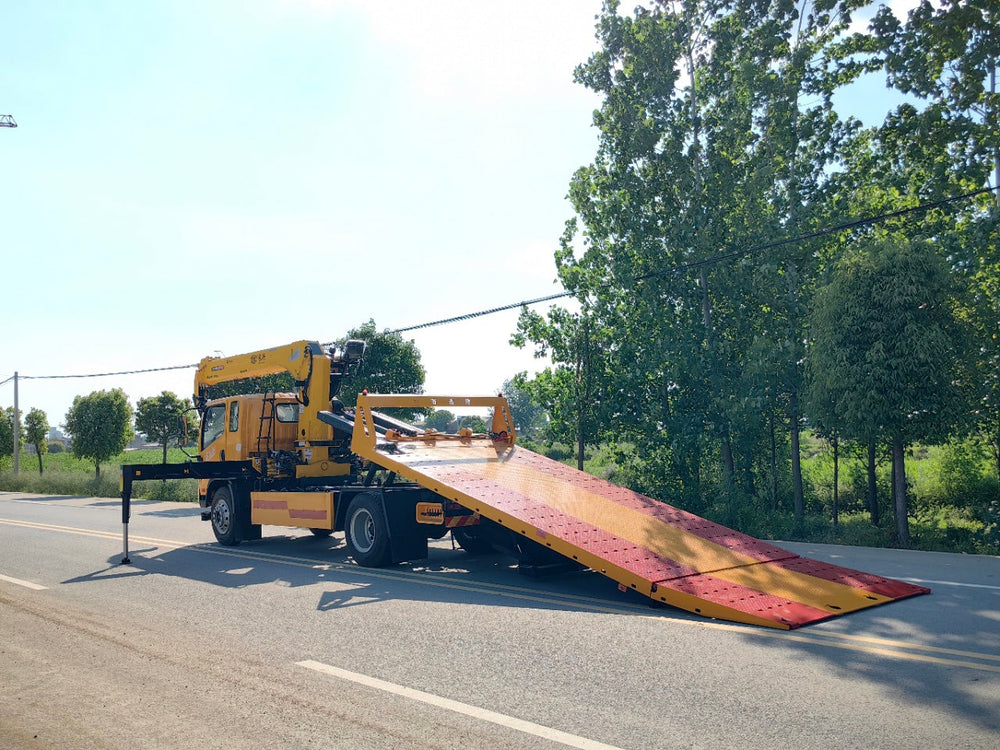

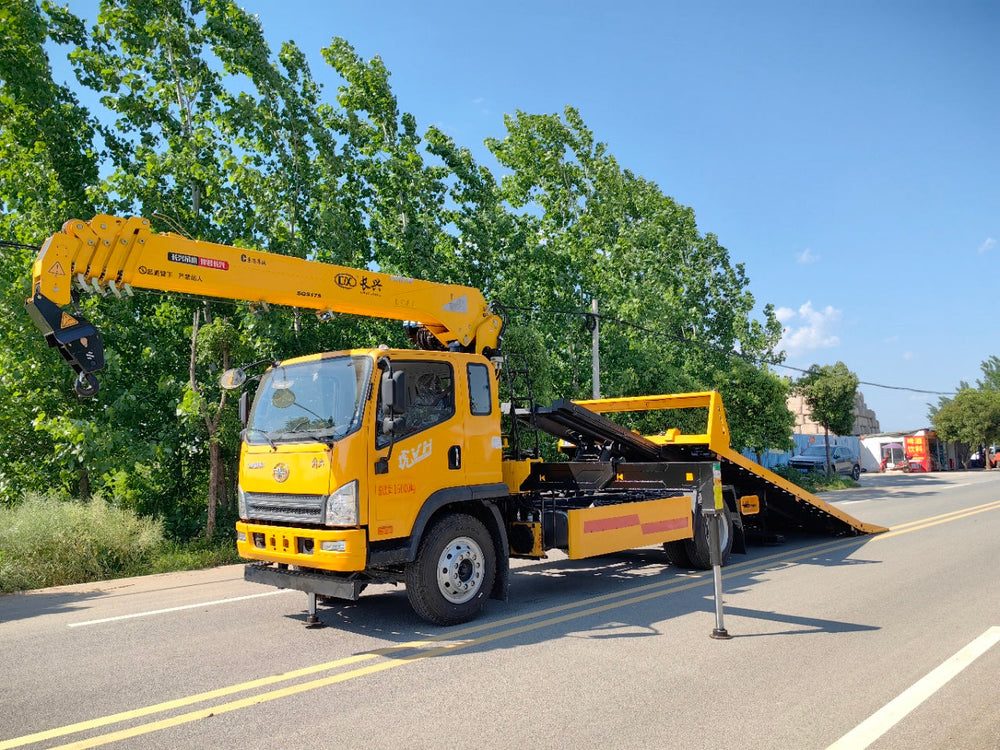

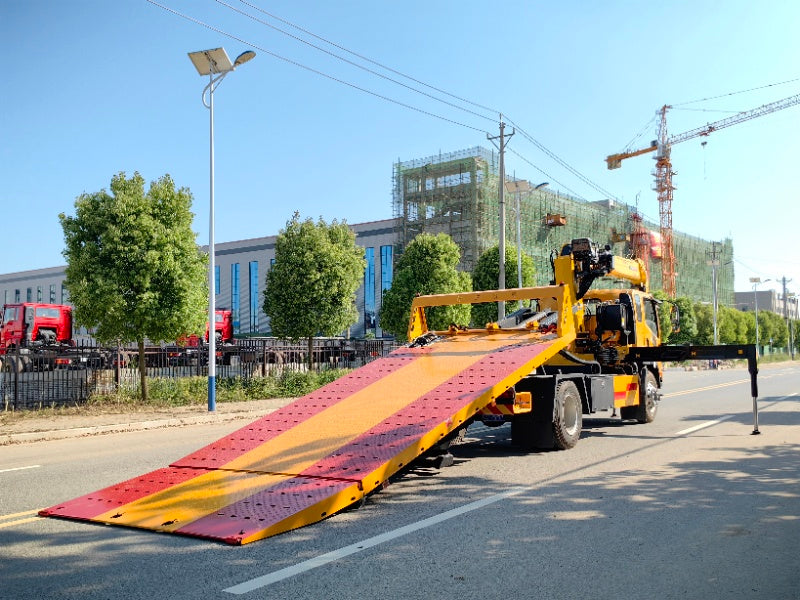

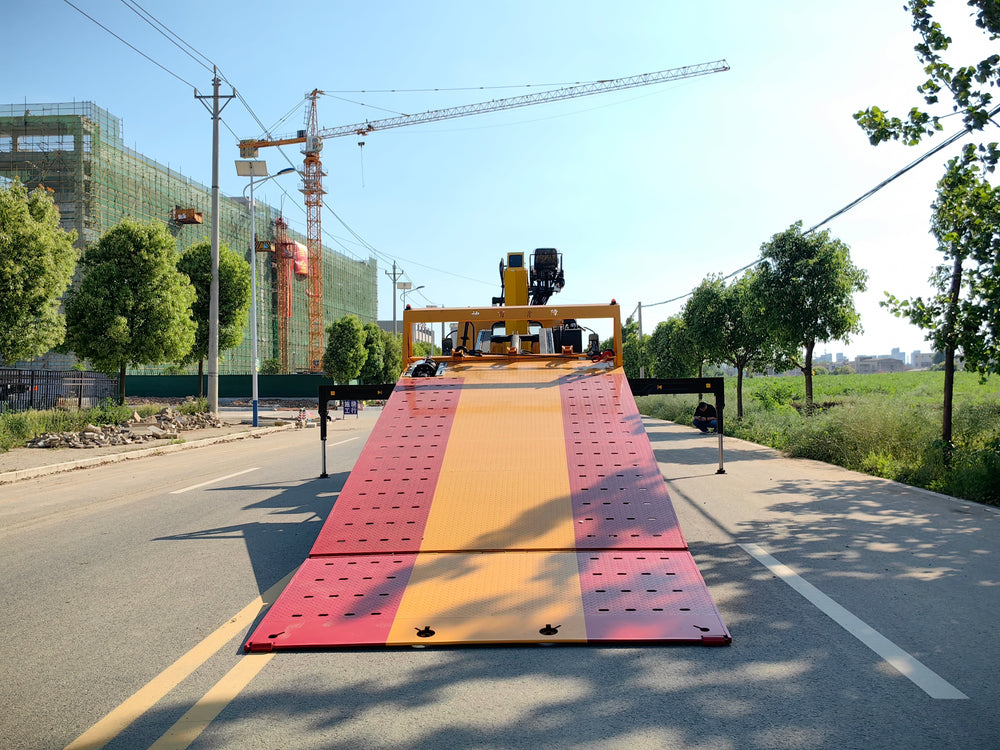

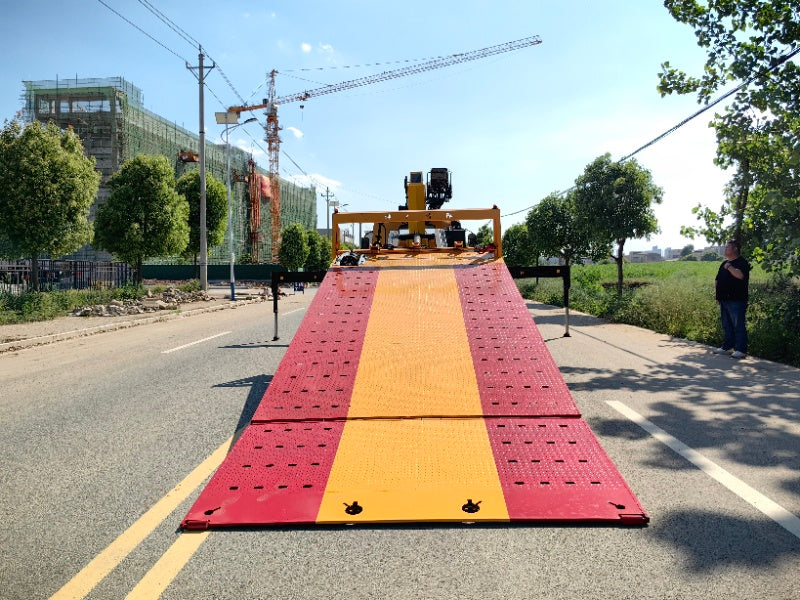

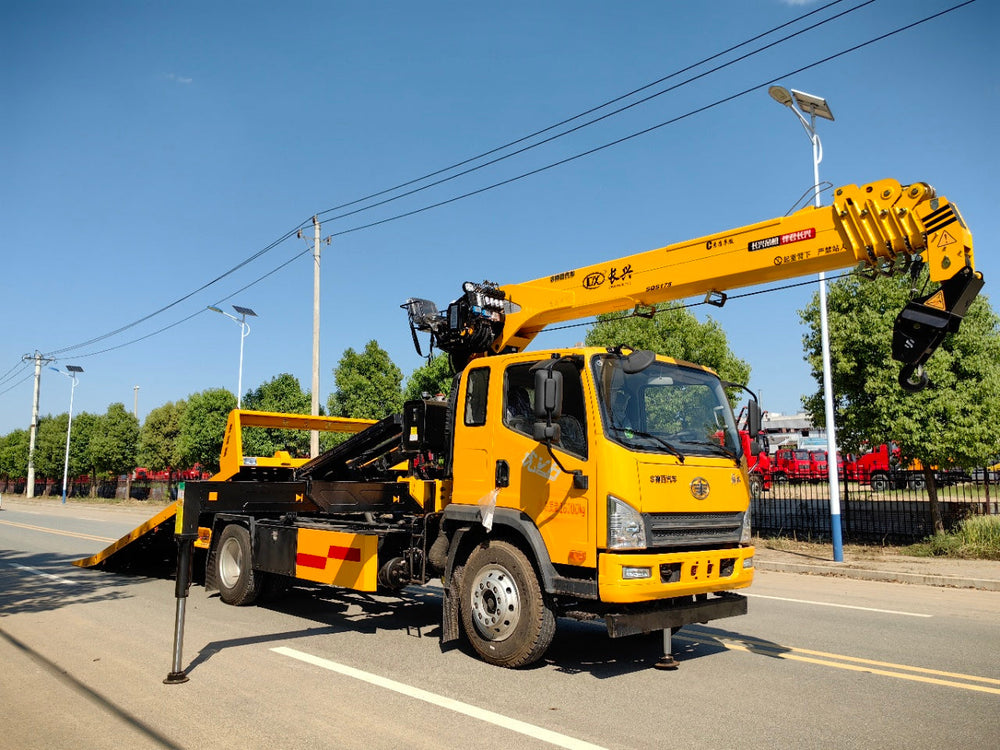

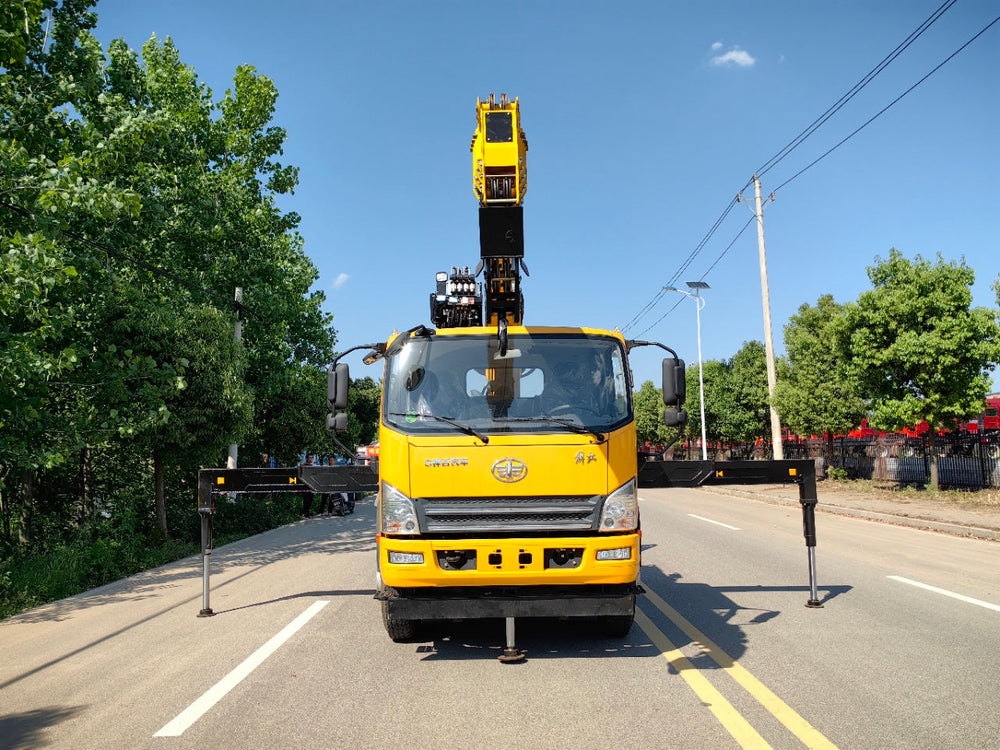

FAW 6T Wrecker Truck with Crane
Request a Quote Now
| Configuration Item | Detailed Parameters |
|---|---|
| Vehicle Model | ABC5165TQZCA6 Wrecker Truck |
| ▌Chassis Configuration | |
| Cab | FAW Tiger VH sleeper cab |
| Engine | Yuchai 180HP diesel engine |
| Wheelbase | 4500 mm |
| Transmission | Fast 8-speed 8JS85C gearbox with overdrive |
| Rear Axle | 8-ton capacity, 5.833 final drive ratio |
| Chassis Frame | 237 double-layer frame with full reinforcement |
| Tires | 900R20 steel wire tires |
| Standard Features | Airbag seat, power windows, central locking, cruise control |
| Fuel Tank | 150L aluminum alloy fuel tank |
| ▌Body Configuration | |
| Body Type | 6-ton 1+2 wrecker truck, drop-down low-center-of-gravity design |
| Flatbed Dimensions | 6.2m (Length, including hydraulic flip) × 2.55m (Width) |
| Deck Material | 5mm anti-skid checkered steel plate |
| Border | 16mm solid steel plate border with cutouts |
| Tail Hinge | Hydraulic flip tail hinge |
| Reinforcement | Dense under-bed cross members + dense triangular diagonal bracing |
| Winch | 6-ton capacity winch |
| Rear Underlift | 6-ton rear underlift arm |
| ▌Crane Configuration | |
| Crane Type | Changxing 7-ton 5-section boom crane (upper operation) |
| Outriggers | Double-section composite front outriggers |
| Boom Length | 14.8 m |
| Lifting Height | 15.8 m |
| ▌Included Accessories | |
| 4 tie-down straps | |
| 1 vehicle crowbar | |
| 1 pair of triangular wheel chocks | |
| 1 pair of J-hooks | |
| 1 pair of square spare tire brackets |
