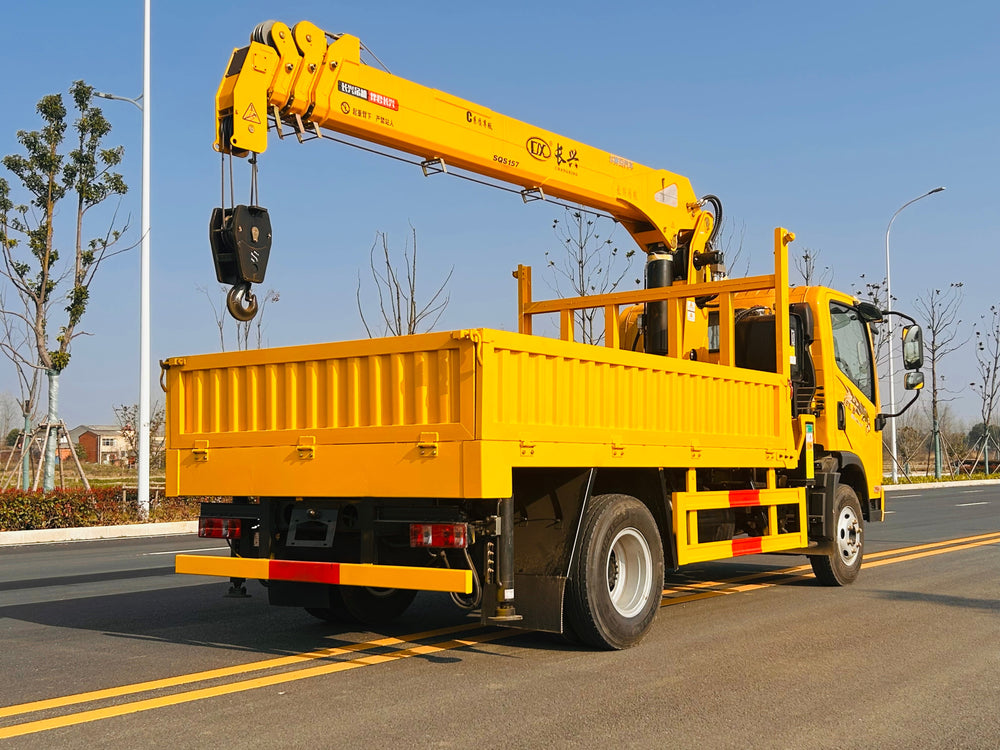

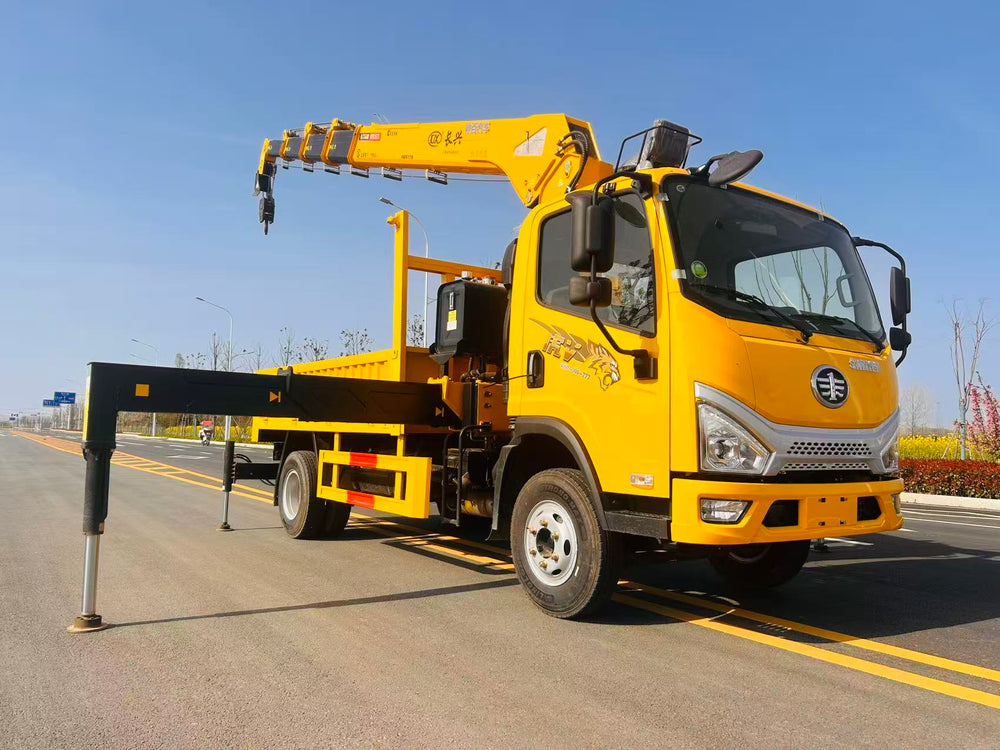

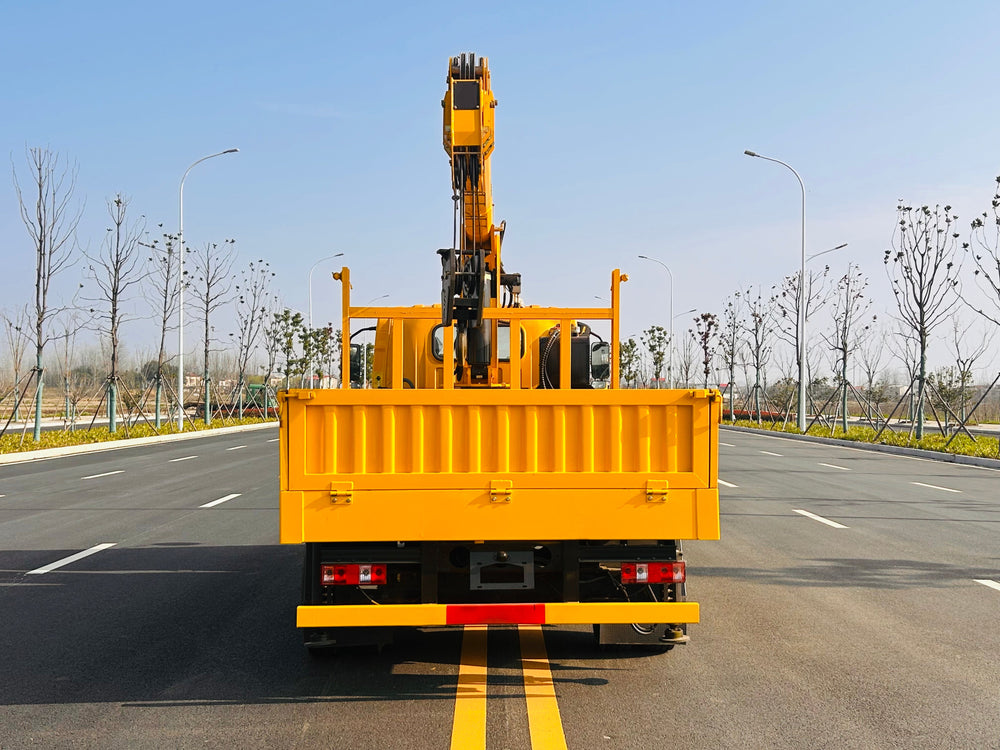

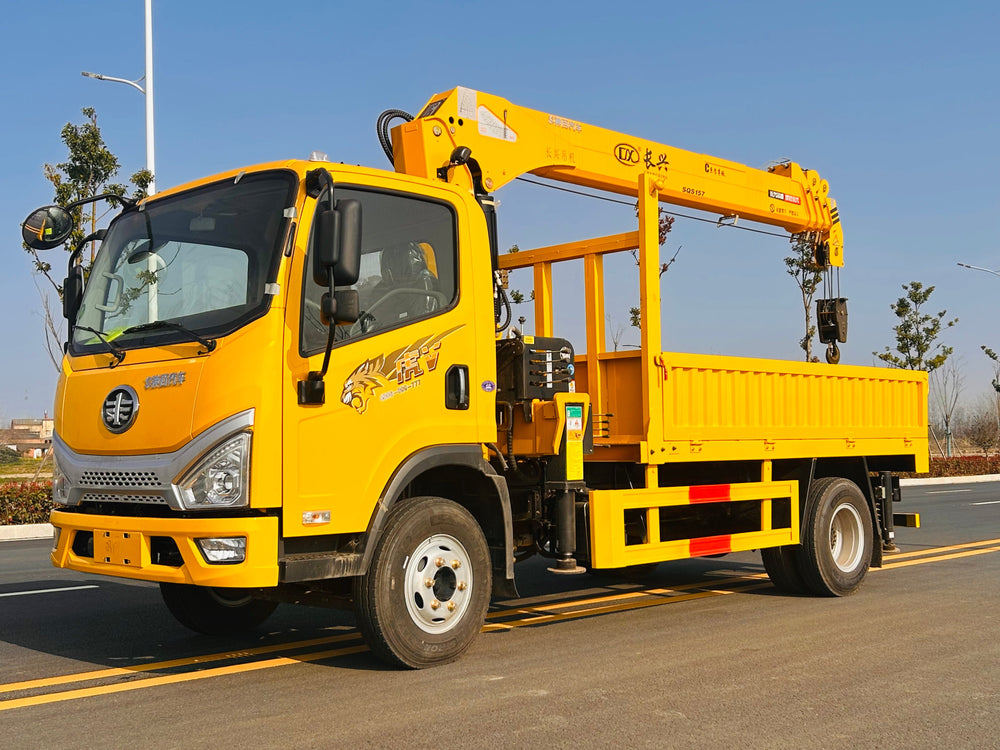

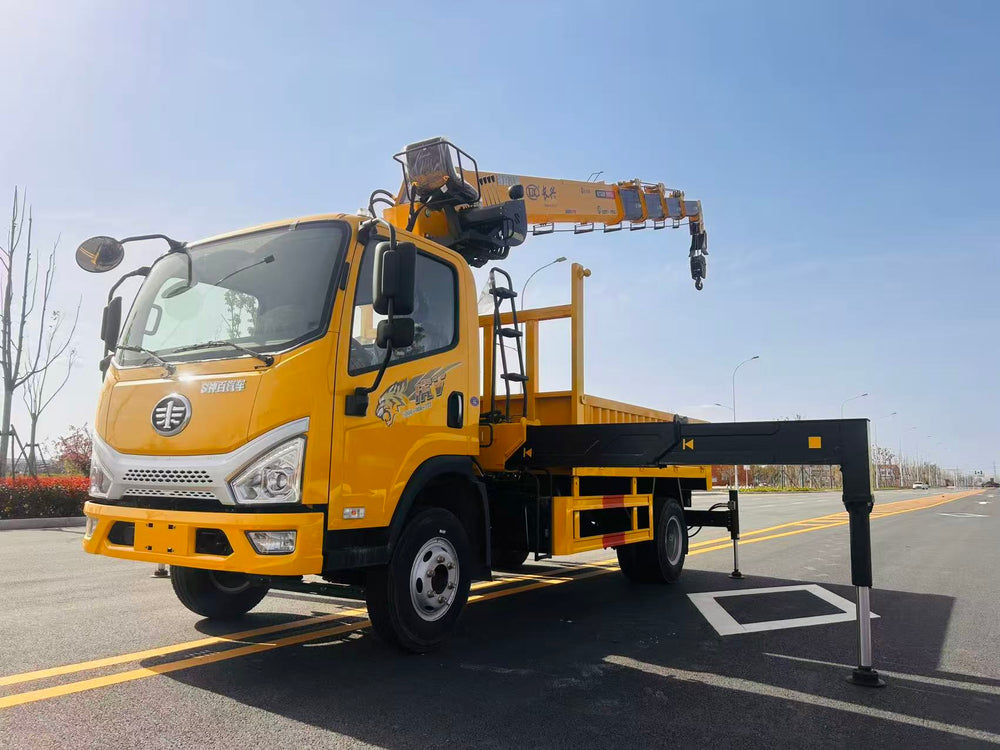

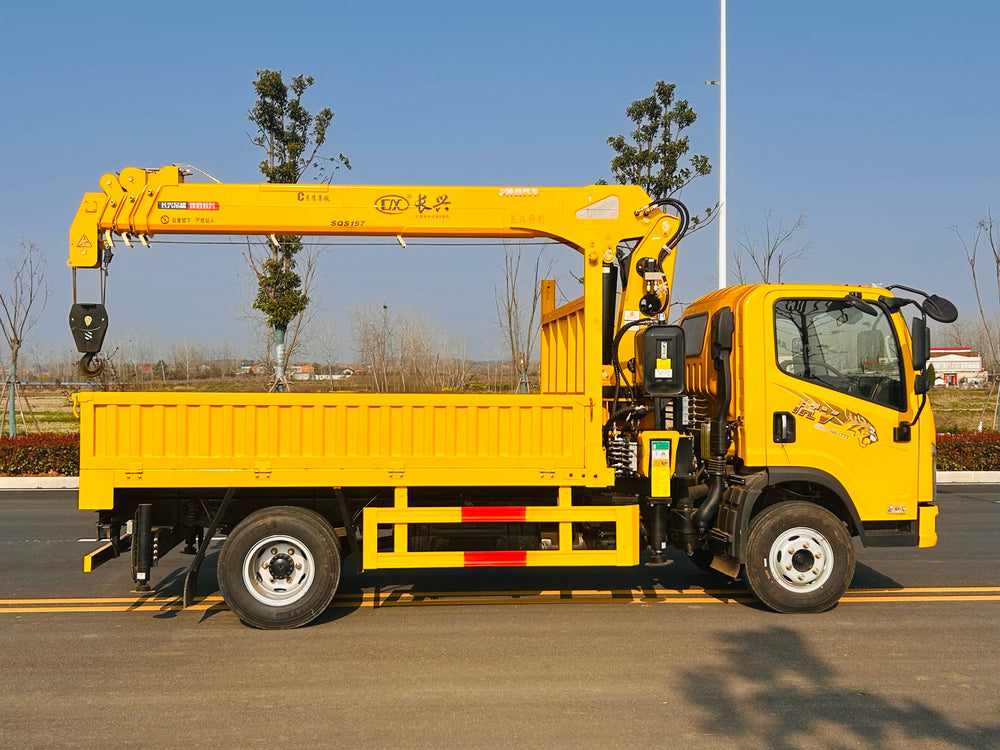

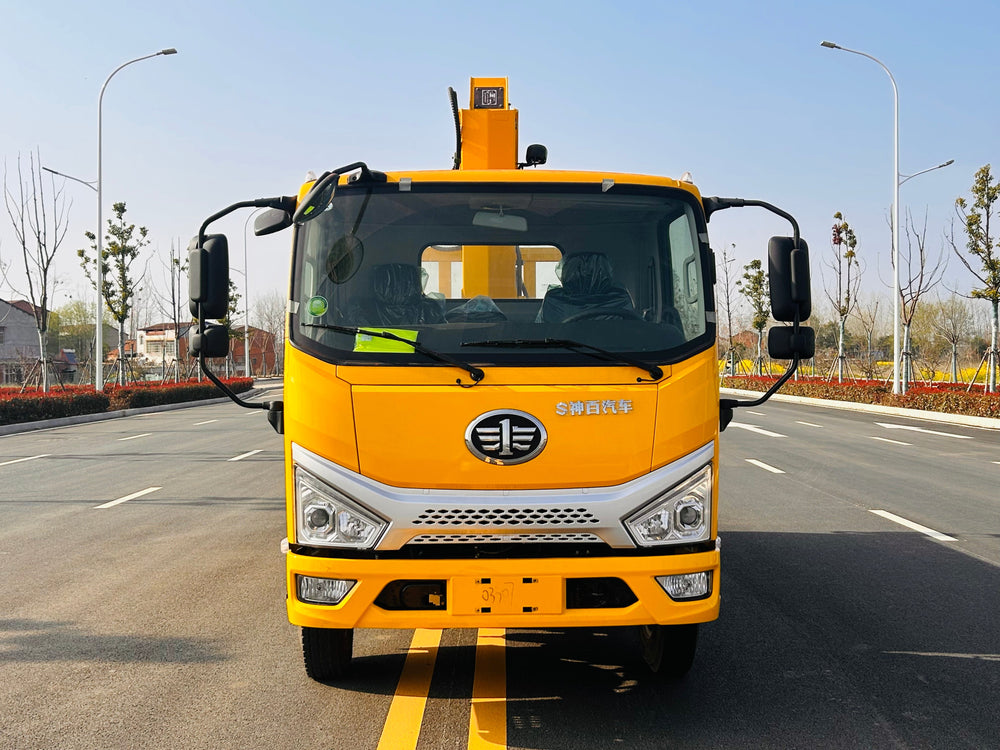

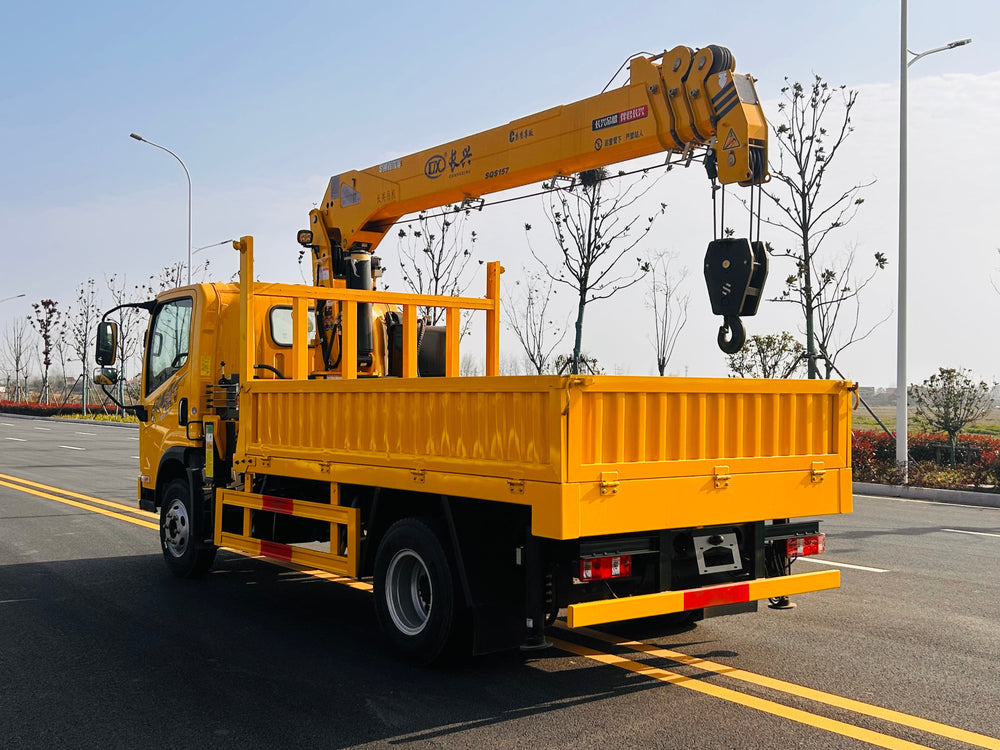

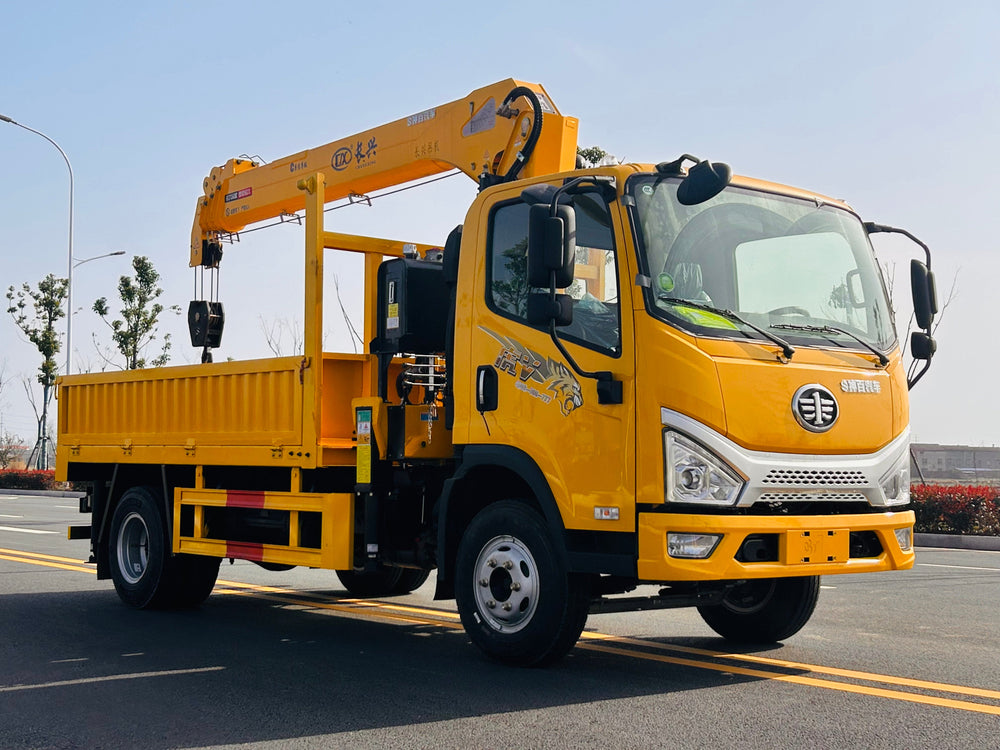

Name: FAW 190HP Telescopic Boom Crane
Brand: Shenbai
SKU: faw-190hp-telescopic-boom-crane
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

1 / 10

Request a Quote Now

Parameter	Value
Cab Type	New Tiger V Wide-body Single-row Cab
Wheelbase	3600 mm
Overall External Dimension	5995mm × 2200mm × (2750~3200)mm
Cargo Box Length	3m ~ 3.4m (customized according to crane model)

Parameter	Value
Engine Model & Power	Weichai WP2.5NQ190E62, 190 Horsepower
Transmission	Shaanxi Gearbox, 8-speed / 10-speed optional
Main Frame Specification	200mm / 220mm main beam optional

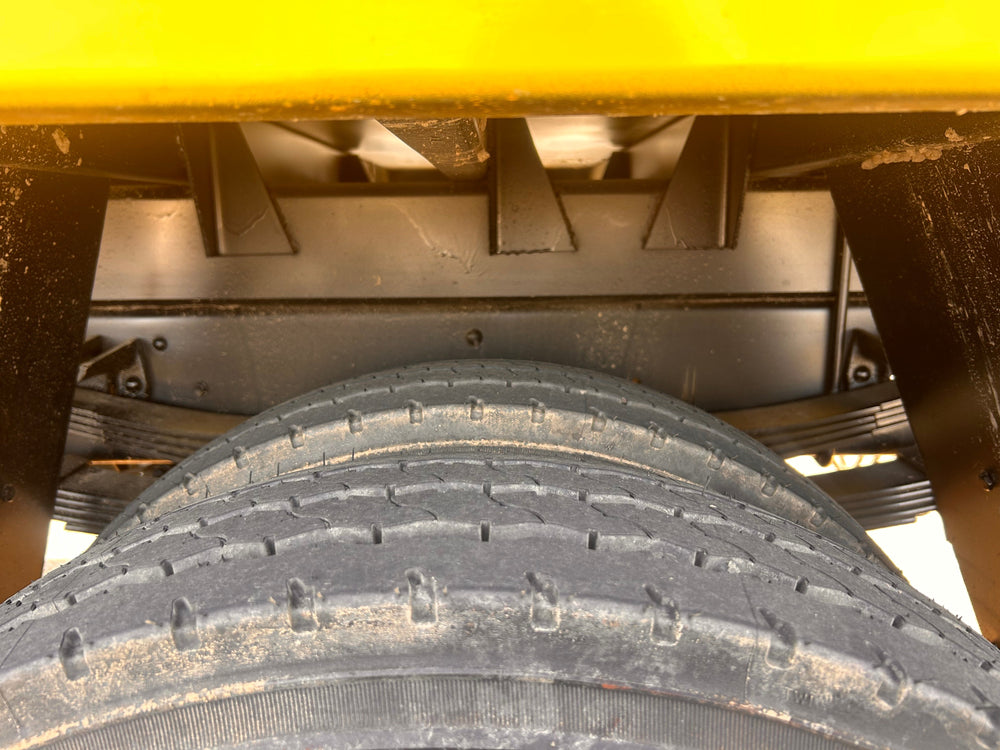

Tire Specification	825R16, 16 Ply Rating
Rear Axle	Original FAW 8 Ton / 9 Ton optional rear axle

Parameter	Value
Vehicle Application	Special engineering chassis dedicated for truck-mounted crane
Brake System	Equipped with ABS, exhaust brake
Fuel Tank	200L aluminum alloy fuel tank
Interior & Electrical Accessories	Air conditioner, electric windows, central locking, multifunctional steering wheel, air horn, electrically heated rearview mirror, automatic headlights

Crane Model	Performance & Structural Configuration
5 Ton, 4-section Boom Model SQS125-4	Lifting height: 11.6m, Boom length: 9.6m, Outrigger span: 4.6m, Single gear pump, dual-operation single pump valve, 360° full rotation single-section outriggers, winch & orbit motor with half-length subframe
6.3 Ton, 4-section Boom Model SQS157-4	Lifting height: 13.8m, Boom length: 12m, Outrigger span: 4.6m, Single gear pump, dual-operation single pump valve, 360° full rotation single-section outriggers, winch & orbit motor with half-length subframe
7 Ton, 4-section Boom Model SQS175-4	Lifting height: 14.3m, Boom length: 12.5m, Outrigger span: 5.3m, Single gear pump, dual-operation single pump valve, 360° full rotation single-section outriggers, winch & orbit motor with half-length subframe
7 Ton, 5-section Boom Model SQS175-5	Lifting height: 16.9m, Boom length: 14.8m, Outrigger span: 6.2m, Single gear pump, dual-operation single pump valve, double-section outriggers, winch & orbit motor, full-length through s
