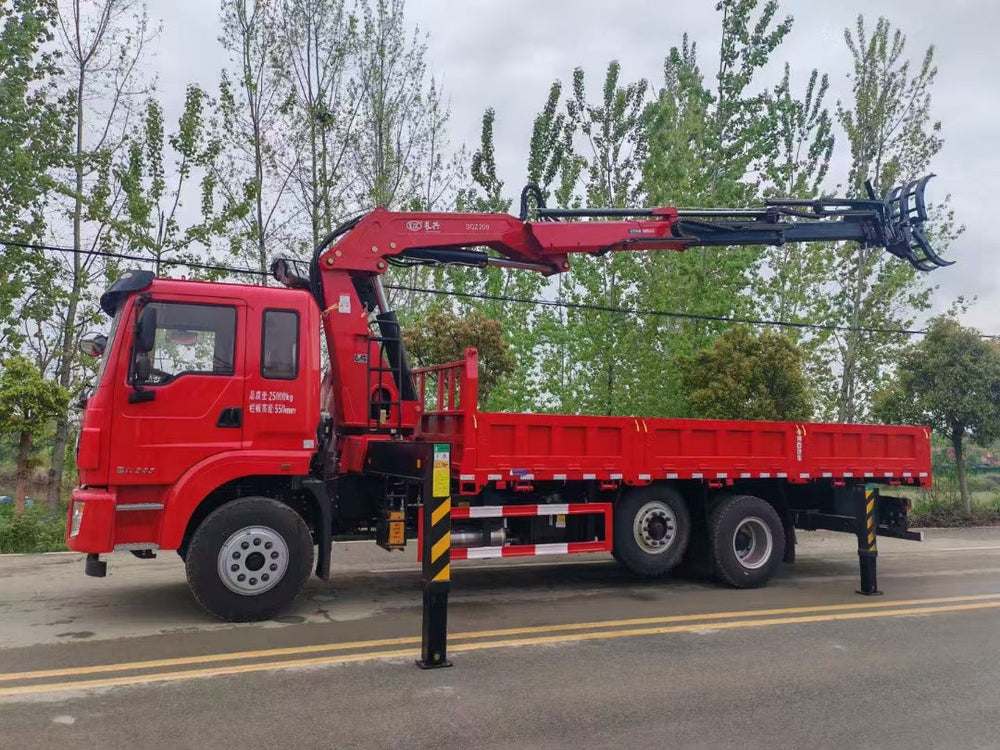

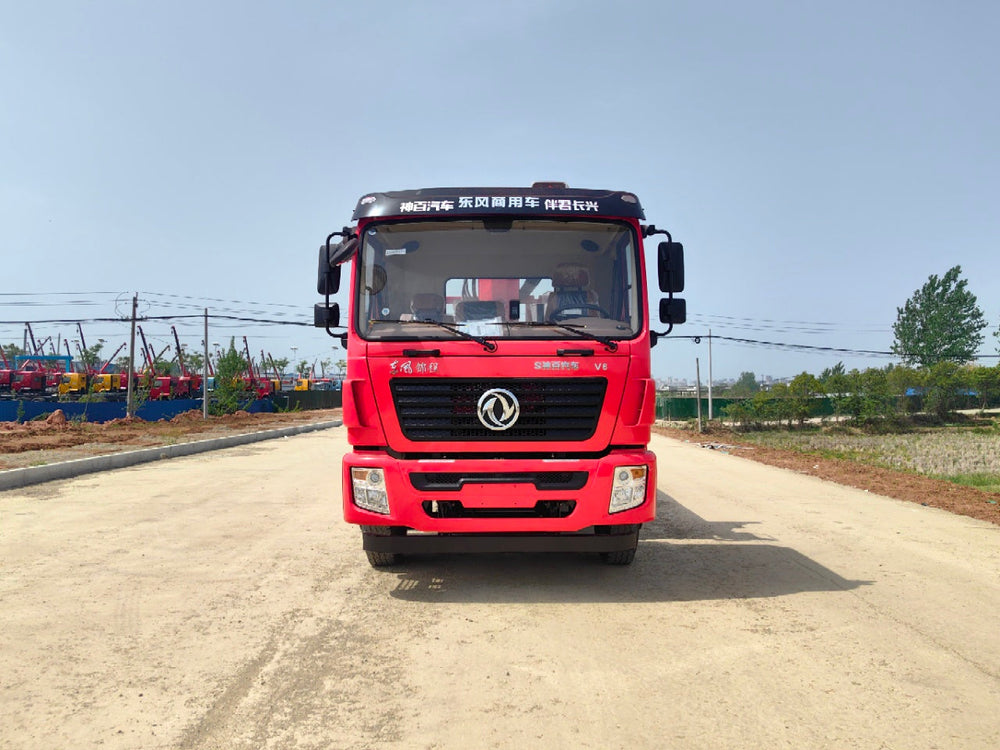

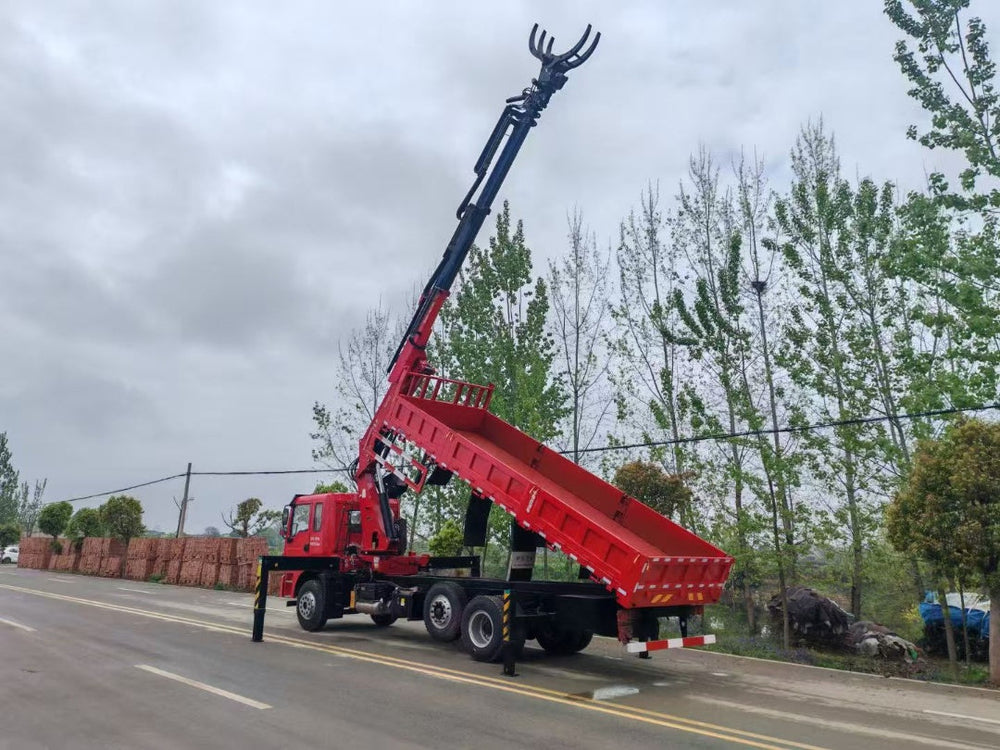

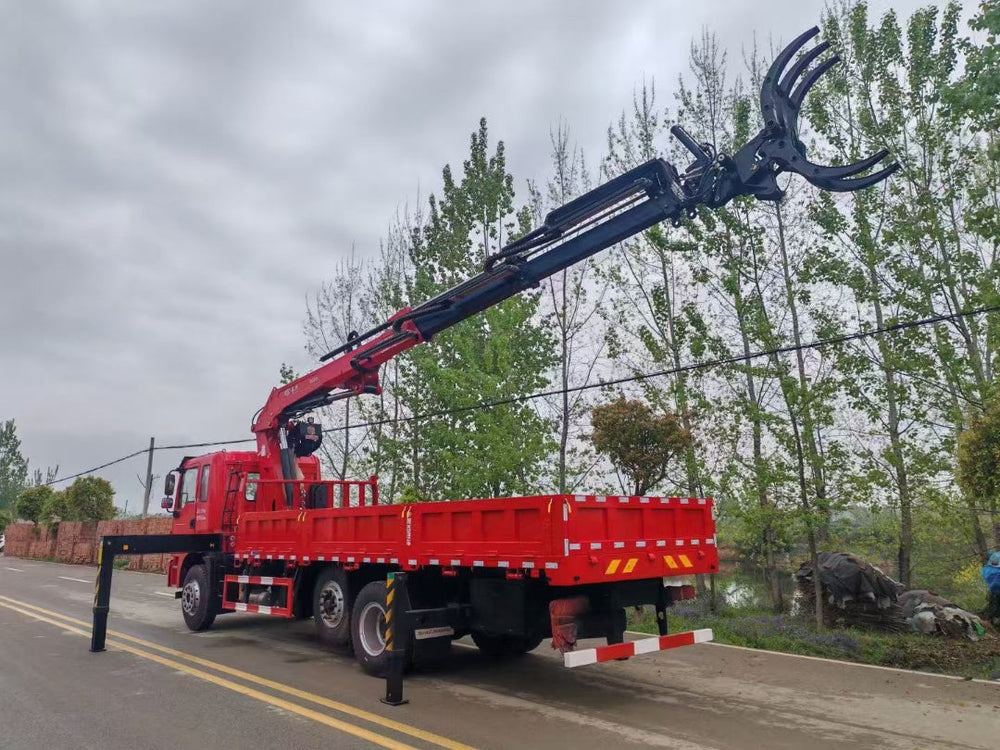

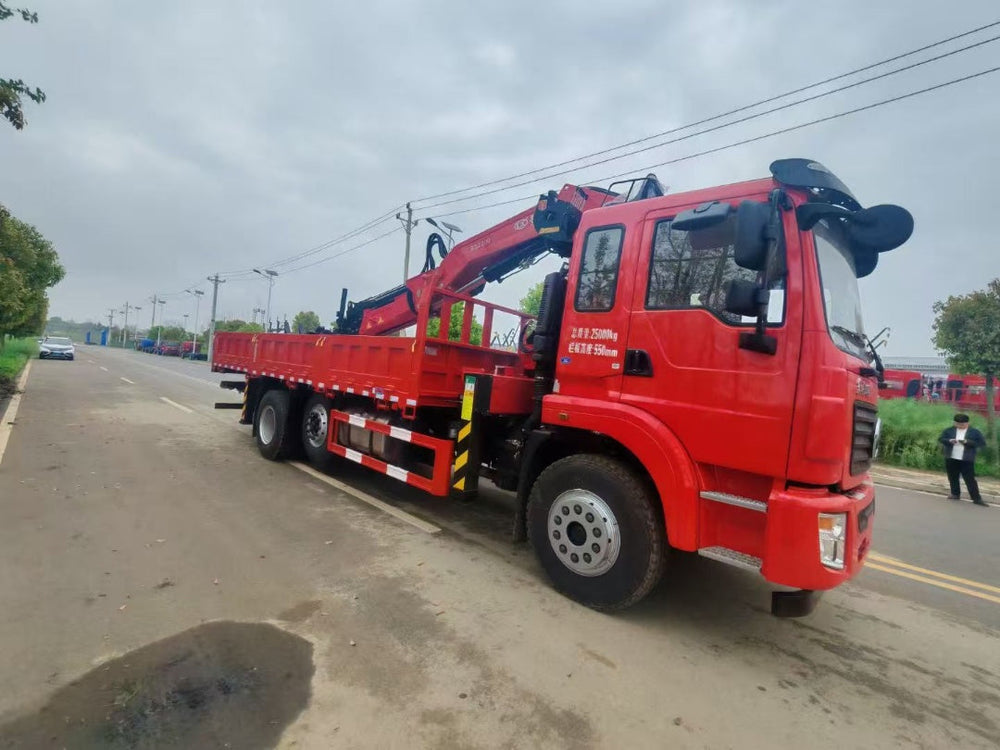

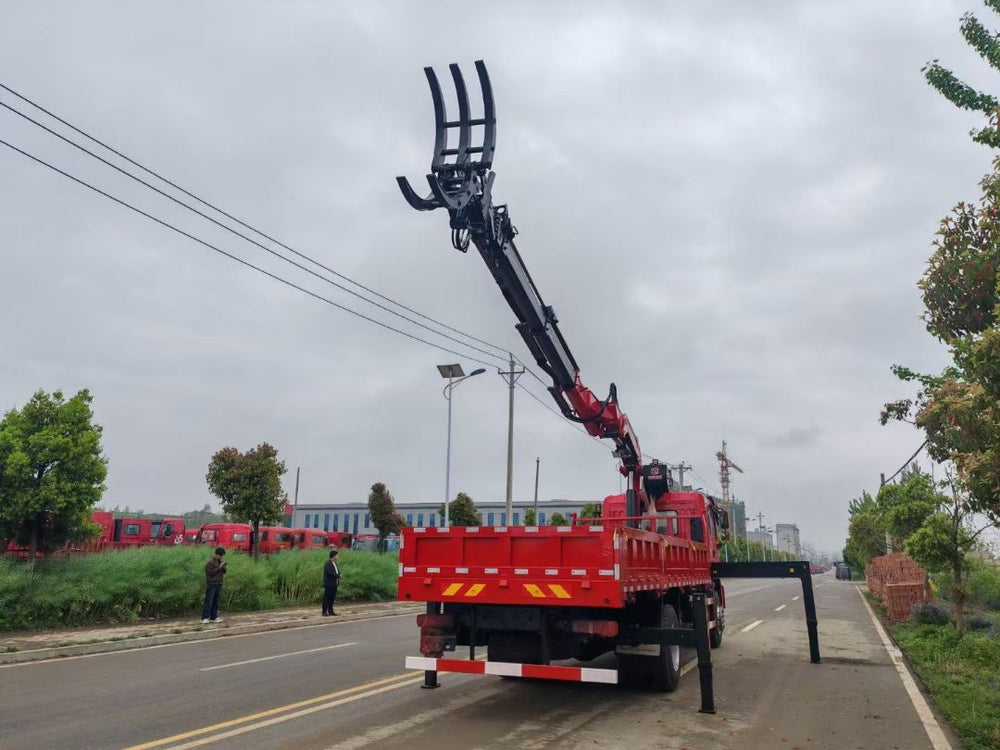

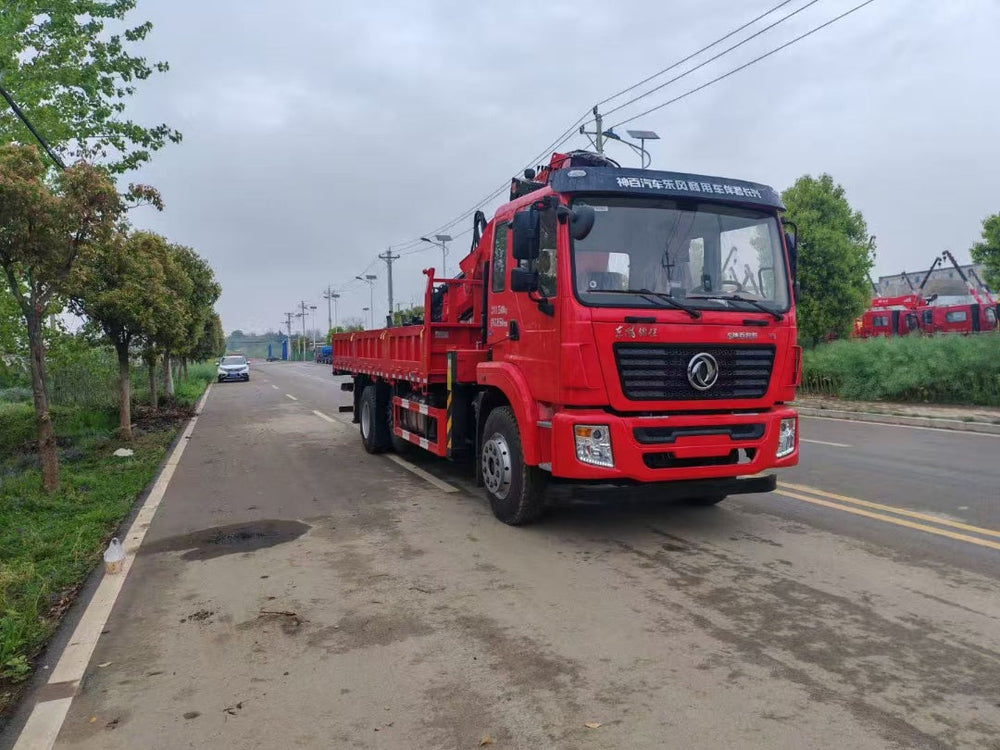

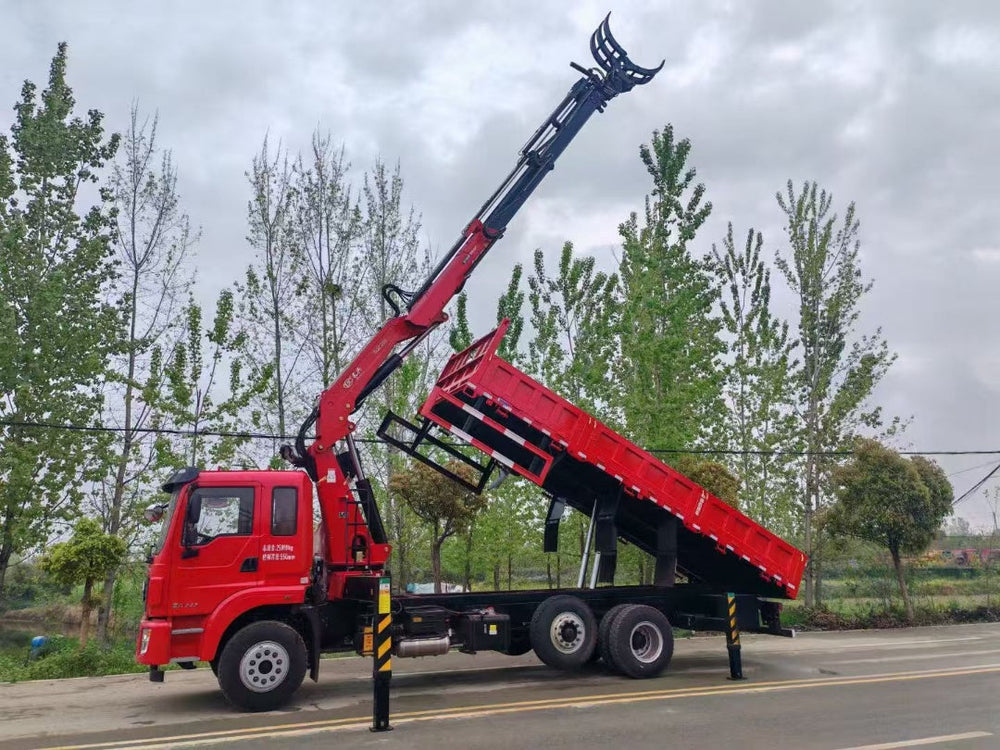

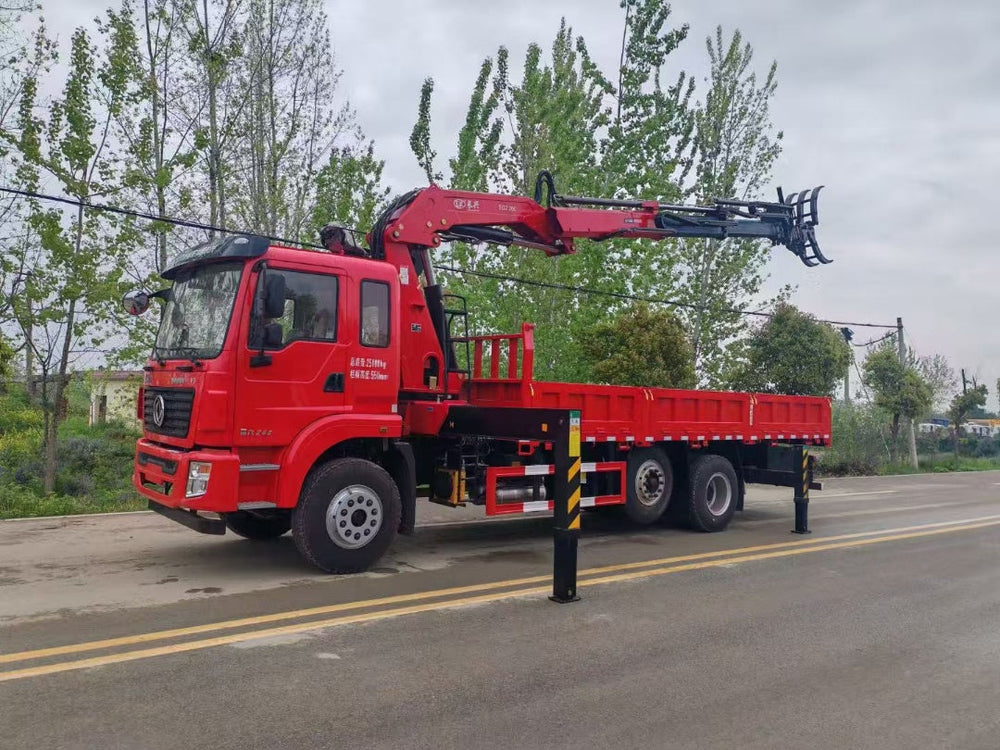

DongFeng Truck-mounted Grapple Crane with Tipper
Request a Quote Now
| Item | Specification |
|---|---|
| Basic Information | |
| Cab | Jincheng V6 Half-row Cab |
| Seating Capacity | 2/3 Persons |
| Powertrain System | |
| Engine | Yuchai YCS06245-60, 6-Cylinder |
| Transmission | Fast 8JS95E-C 8-speed Gearbox, High/Low Range, with Flange PTO |
| Chassis & Running Gear | |
| Wheelbase | 4700+1300mm, 4300+1300mm |
| Front & Rear Axle | Dongfeng Original Dana Axle, 5.5T Front / 10T Rear |
| Lift Axle | 2nd Axle 5T Convertible Lift |
| Chassis Frame | 300 3-layer Through Frame, Partial with Wing Plate |
| Leaf Spring | 8/7/10+8; Front 4 leaves full vehicle length, Rear main 3 leaves equal length |
| Tyre Spec | 11.00R20 18PR, with Spare Tyre |
| Dimension & Weight | |
| Overall Dimension | 10650/10150 × 2500/2550 × 3750/3850/3920mm |
| Cargo Box Dimension | 7200/7100(6100)/6700/6600(5600) × 2400/2450 × 550/600/800mm |
| Kerb Weight | 14565kg / 13565kg |
| Rated Payload | 10350kg / 10240kg / 11350kg / 11240kg |
| Auxiliary Configuration | |
| Fuel Tank | 280L Aluminum Alloy Fuel Tank |
| Comfort & Control | Original Air Conditioner, Integrated Door Lock, Remote Central Lock, Air Suspension Seat, Multi-function Steering Wheel |
| Safety & Functional | Driving Recorder, Sun Visor, LED Daytime Running Light |
