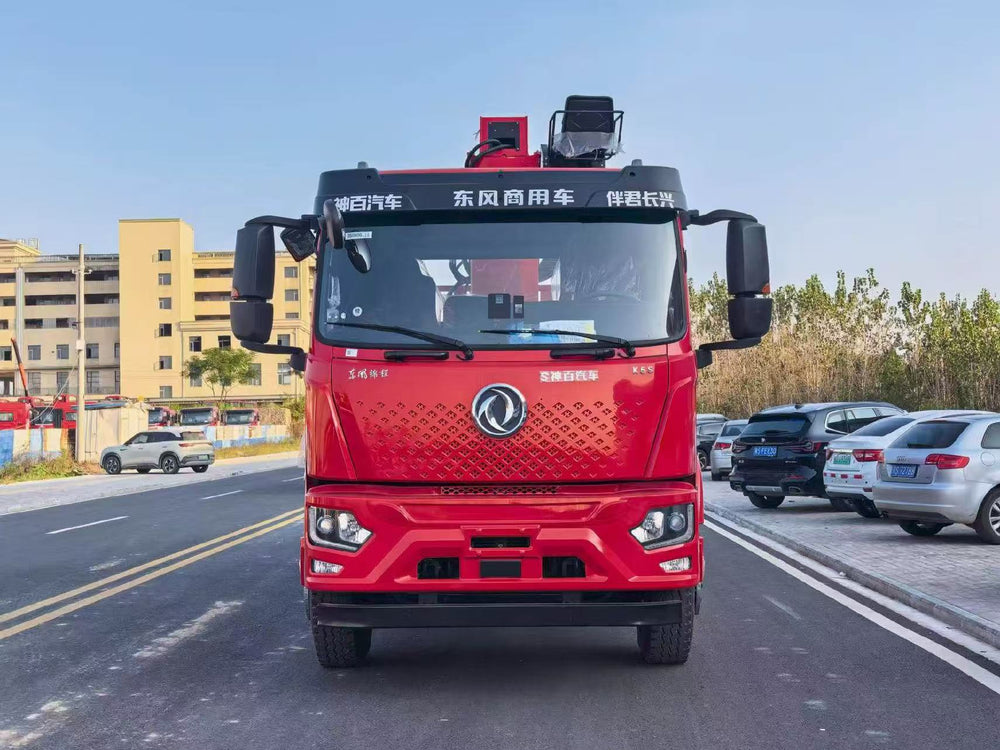

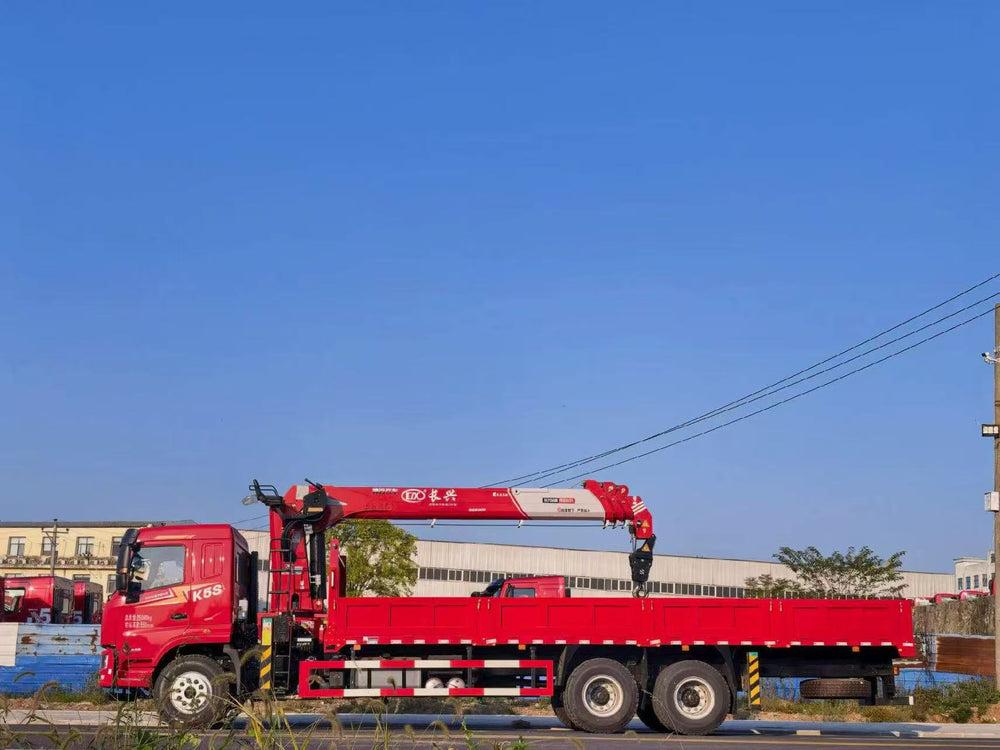

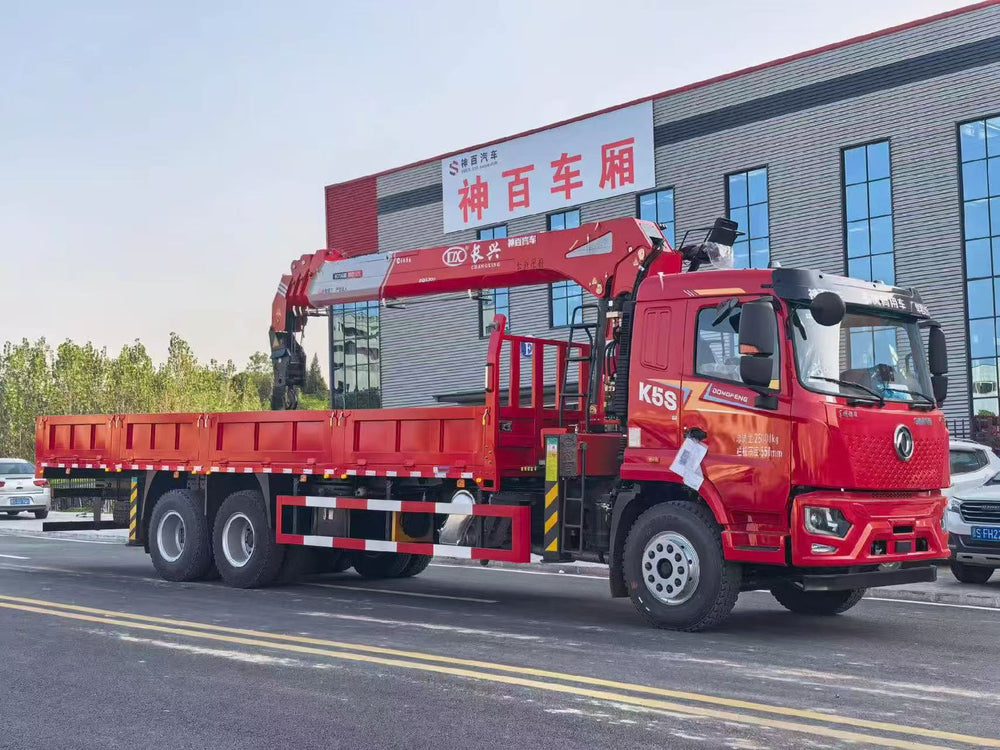

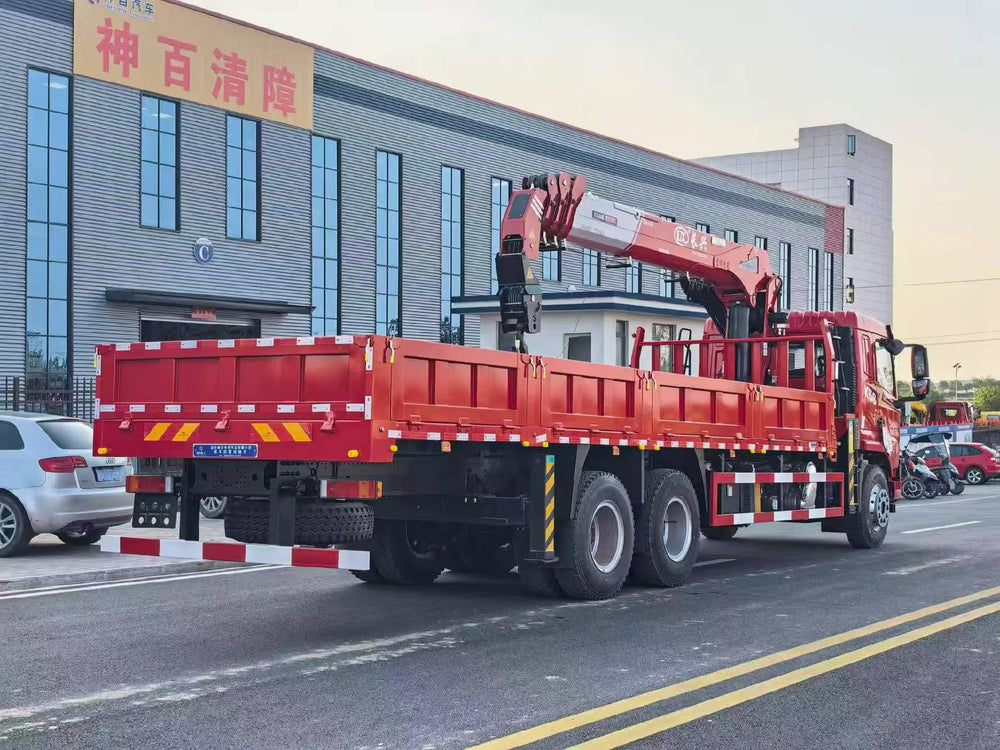

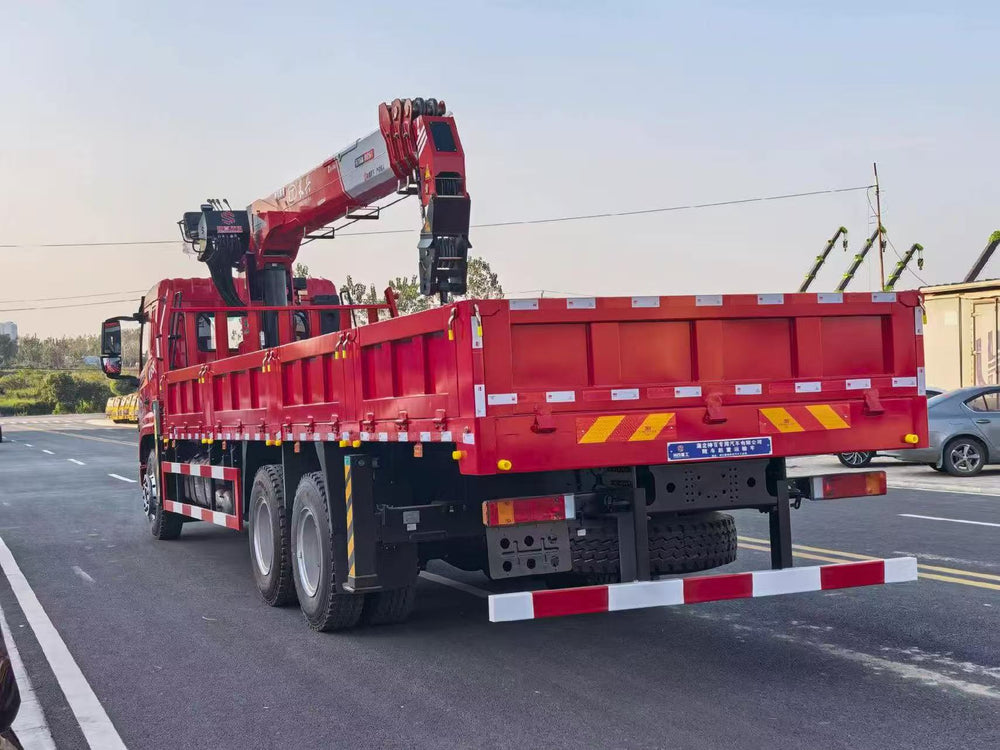

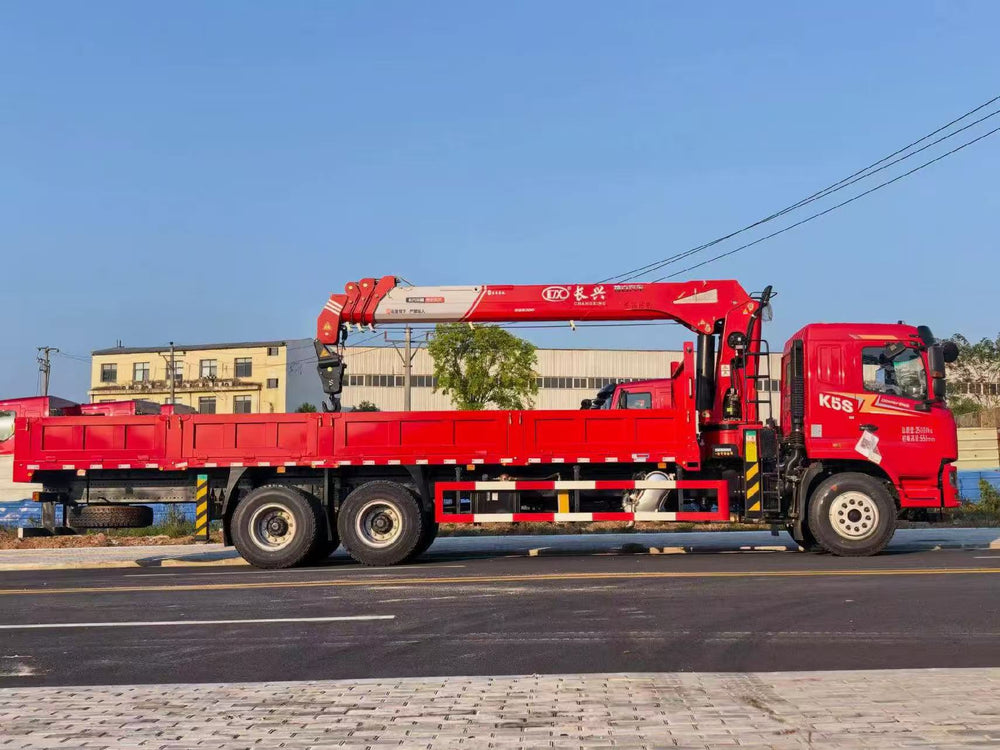

Dongfeng Jincheng K5S 8×4 Crane Truck – Changxing 12T 5-Section Synchronous Telescopic Crane
Request a Quote Now
| Category | Item | Specification |
|---|---|---|
| Whole Vehicle | Truck Model | ABC5259JSQEQ6 |
| Chassis Model | DFV1253GSZ6D1 | |
| Overall Dimensions (L×W×H) | 12,000 × 2,550 × 3,990 mm | |
| Curb Weight | 17,650 kg | |
| Drive Layout | 8×4 (rear double axles) | |
| Chassis | Cab | Jincheng K5S Luxury Sleeper Cab |
| Engine | Yuchai, 300 HP | |
| Gearbox | FAST 9-speed with synchronizer | |
| Frame (Rail) | 300 mm, (8+5+6) reinforced at crane mounting area | |
| Front Axle | Dana 5.5 T | |
| Rear Axle | Dana 11.5 T × 2 (twin rear axles), final drive ratio 5.571 | |
| Wheelbase Options | 5,900+1,350 mm / 4,750+1,350 mm / 4,350+1,350 mm | |
| Tires | 11.00R20 steel wire tires | |
| Fuel Tank | 280 L aluminum alloy | |
| Cab Configuration | Cab Type | Jincheng K5S extended (sleeper) cab, 3-person seat |
| Standard Features | Power windows, central door lock, air-suspension seat, driving recorder, original A/C, sun visor, front bumper, ABS | |
| Safety Systems | China-VI compliant camera, factory-fitted AEBS + LDWS | |
| Auxiliary | Radio, dedicated PTO for crane, remote throttle | |
| Crane Superstructure | Crane Brand / Model | Changxing 12-ton, 5-section synchronous telescopic boom |
| Hydraulic System | Double pump | |
| Operation Type | Upper (ground/upper seat) operation | |
| Front Outriggers | Double-section composite front outriggers | |
| Rear Outriggers | Factory single-chamber rear outrigger | |
| Boom Length | 19.9 m | |
| Lifting Height | 22 m | |
| Functions | Remote start/stop control, automatic hook retraction, full sub-frame, factory oil cooler | |
| Cargo Body | Body Type | All-steel folded-edge engineering body, 3-bottom 5-side structure |
| Floor | Thickened checkered plate | |
| Side Panels / Posts | Folded side rails, thickened stanchions | |
| Sub-frame | 8 mm thick, 140 mm high straight-through sub-frame; two cross bracing sections at crane base | |
| Rear Hardware | Steyr-type hinges at tail | |
| Cross Members | All-steel folded cross members | |
| Cargo Body Dimensions (L×W×H) | 8,400 × 2,450 × 550 mm (side rail height 550/600 mm optional) |
