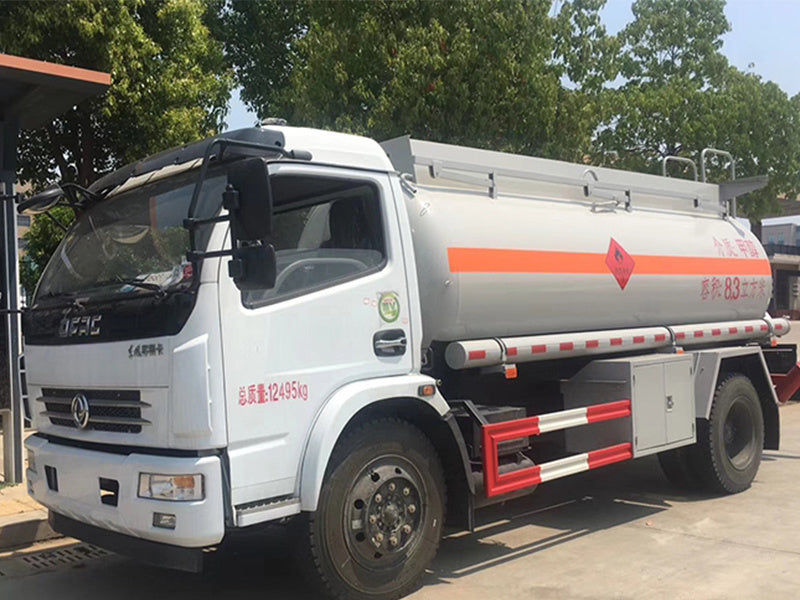

Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker

Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker
Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker
1 / 2
Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker
Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker

Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker – Key Specifications



Parameter Specification
Vehicle Type Flammable Liquid Tanker / Methanol Transport Vehicle
Chassis Series Dongfeng Dolika
Chassis Model EQ1127SJ8GDC
Drive Configuration 4×2
Emission Standard Euro V (China V)

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) 7,200 × 2,250 × 3,100 mm
Chassis Dimensions (L×W×H) 6,740 × 2,100 × 2,390 mm
Wheelbase 3,800 mm
GVWR (Total Mass) 12,495 kg
Curb Weight (Kerb Mass) 5,740 kg
Payload Capacity (Rated Load) 6,560 kg

Engine & Drivetrain



Parameter Specification
Engine Options CY4BK151 (Chaoyang / Chaochai) / YC4S150-50 / YC4FA130-50
Max Horsepower 143 HP (CY4BK151) / 150 HP (YC4S150-50)
Displacement 3,856 cc (CY4BK151)
Transmission Wanliyang 6-speed manual
Fuel Type Diesel

Chassis & Axles



Parameter Specification
Axles 2
Front Axle 3 tons
Rear Axle 7 tons
Front Track 1,740 mm
Rear Track 1,640 mm
Tire Specification 8.25R20 14PR (steel-belted radial)
Tire Count 6
Leaf Springs 8/10+7
Brake System Front disc brakes, ABS

Tank & Safety Equipment



Parameter Specification
Tank Volume 8.3 m³ (effective)
Tank Dimensions (L×Diameter) 5,000 × 1,500 mm
Tank Thickness 5 mm
Tank Material Carbon steel / Stainless steel (optional)
Transport Media Methanol, Ethanol, Acetone, Isopropanol, Alcohol (Density: 790 kg/m³)
Hazard Class Class 3 (Flammable Liquid)
Vehicle Classification FL-type
Safety Features Rupture disc safety valve, emergency shut-off valve, chemical pump (self-priming & self-draining), GPS tracking, speed limiter (80 km/h), front exhaust pipe

Cab & Performance



Parameter Specification
Cab Capacity 3 persons
Air Conditioning Standard (original factory)
Max Speed 80 km/h (governed)
Approach/Departure Angle 20°/14°
