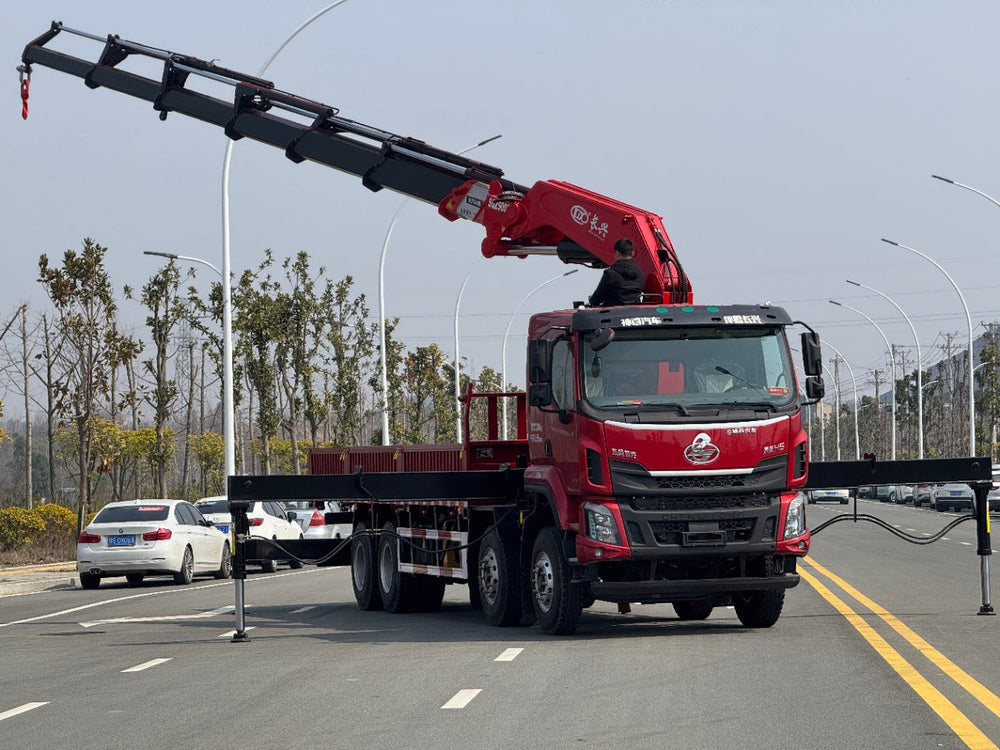

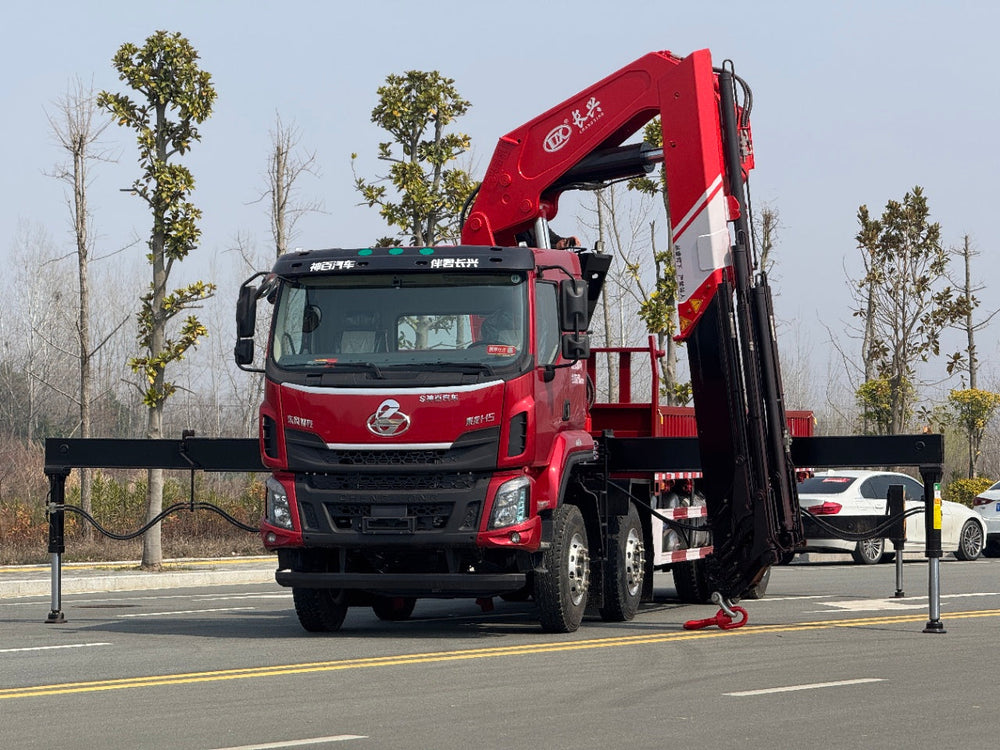

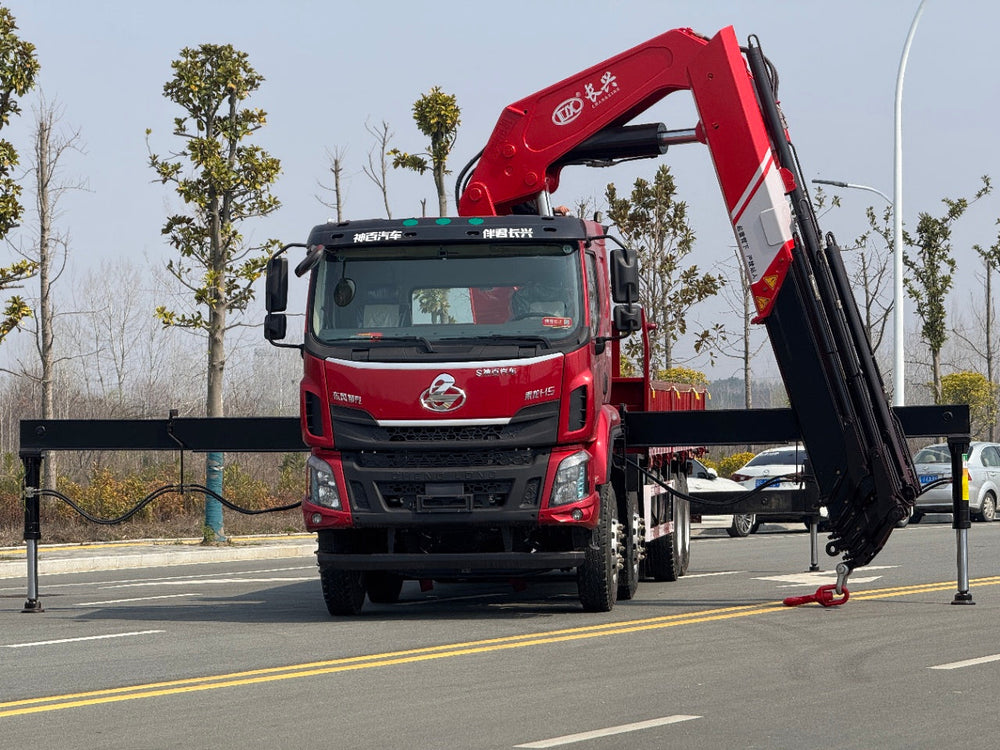

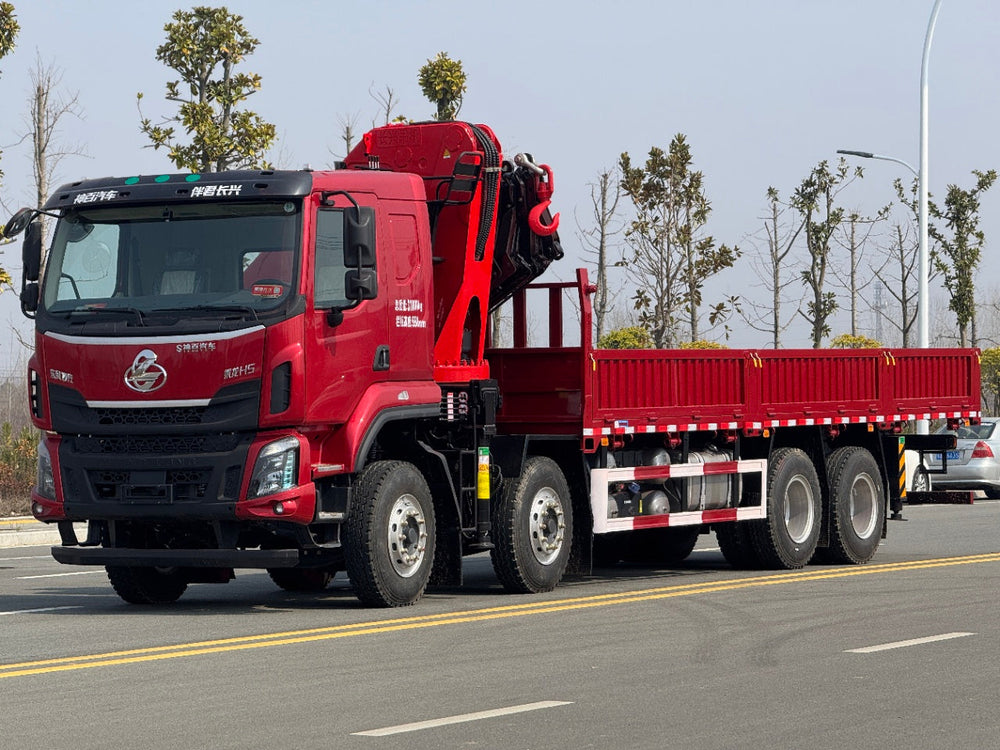

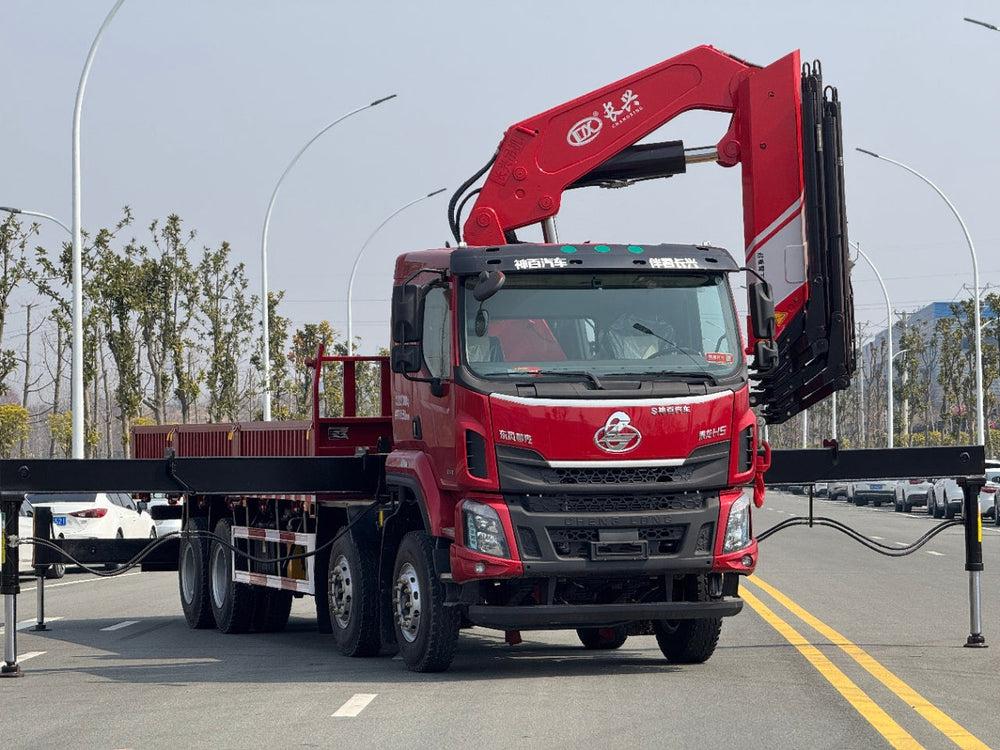

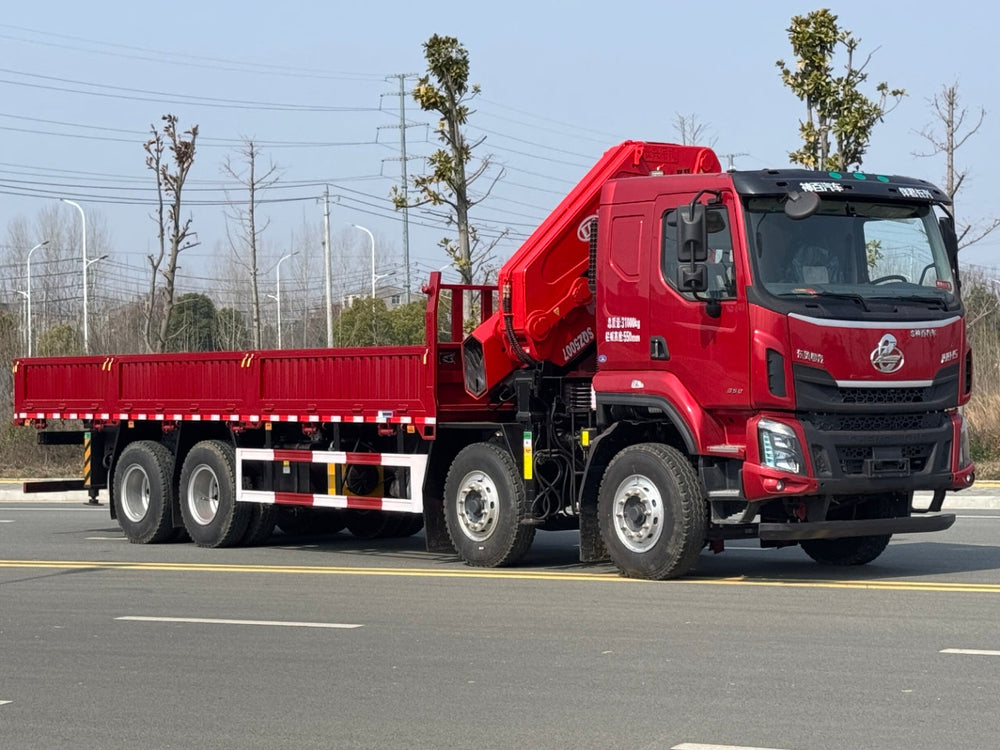

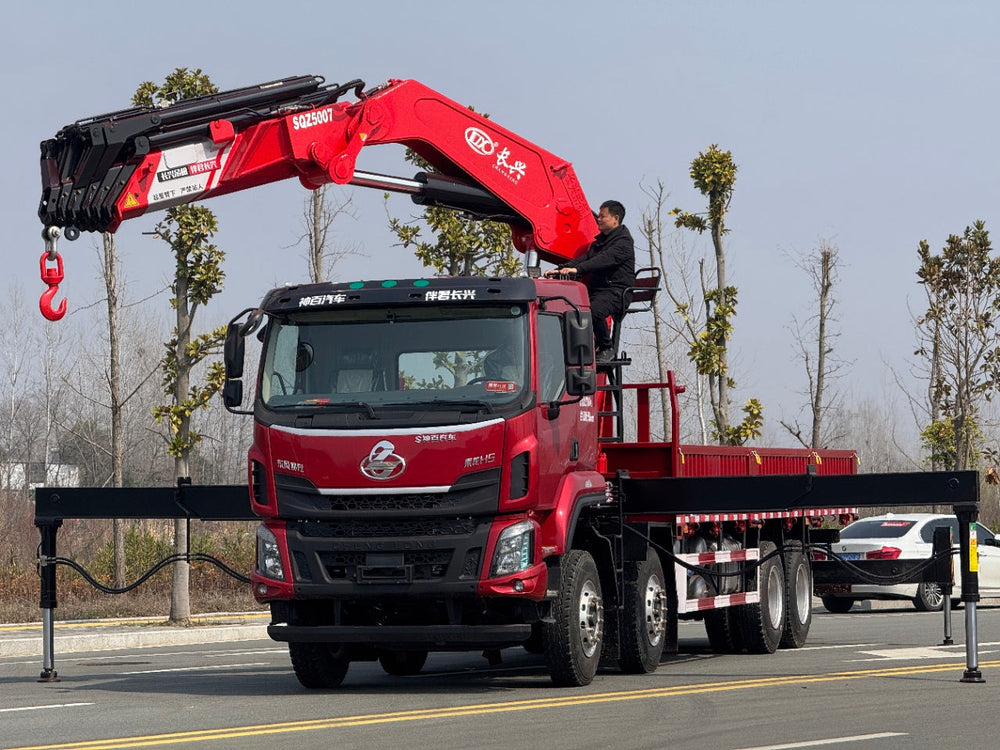

DongFeng 8T 350HP Knuckle Boom Crane
Request a Quote Now
| Item | Specification |
|---|---|
| Basic Information | |
| Chassis Model | LZ1315H5FCT |
| GVW | 31000KG |
| Kerb Weight | 17800KG/18500KG/19000KG/19500KG/21200KG/22200KG/20200KG; 14-20T announcement covers all domestic crane models, hassle-free registration |
| Wheelbase | 2050+4400+1350mm |
| Chassis Configuration | |
| Engine | Weichai WP8.350E62, 350HP, 8L Displacement |
| Transmission | Fast 12-speed Gearbox |
| Front & Rear Axle | 8T Front Axle; 20T Wheel Reduction Rear Axle with Differential Lock |
| Leaf Spring | 11/11/13 |
| Chassis Frame | 300(8+8+4) Baosteel 750 3-layer Through Beam (with small connecting plate) |
| Fuel Tank | 350L Aluminum Fuel Tank |
| Tyre Spec | 11.00R20 18PR |
| Cargo Box Dimension | 8200/8000/7800×2450×550mm |
| Cab Configuration | |
| Cab Body | Mechanical Full-floating Cab, Manual Hydraulic Tilt; Cab Lowered by 58mm |
| Driver Seat | Knitted Air Suspension Seat |
| Core Control Fittings | Leather Steering Wheel, Electric Window Lifter, Remote Central Lock, Multi-mode Switch, Rocker-type Self-return Remote Throttle, Under-vehicle Start/Stop Function |
| Comfort & Entertainment | Air Conditioner, MP3 Player, External Sun Visor |
| Safety & Auxiliary | Iron Air Reservoir, Left-mounted Ordinary Air Filter, ABS, Self-adjusting Arm, Maintenance-free Battery, Double U-bolts, Right Turn Reminder, Overspeed Alarm, Color-matched Bumper + Color-matched Fender (Foot Pedal Color-coded) |
| On-board Terminal | Driving Recorder with Beidou/GPS Compatibility |
