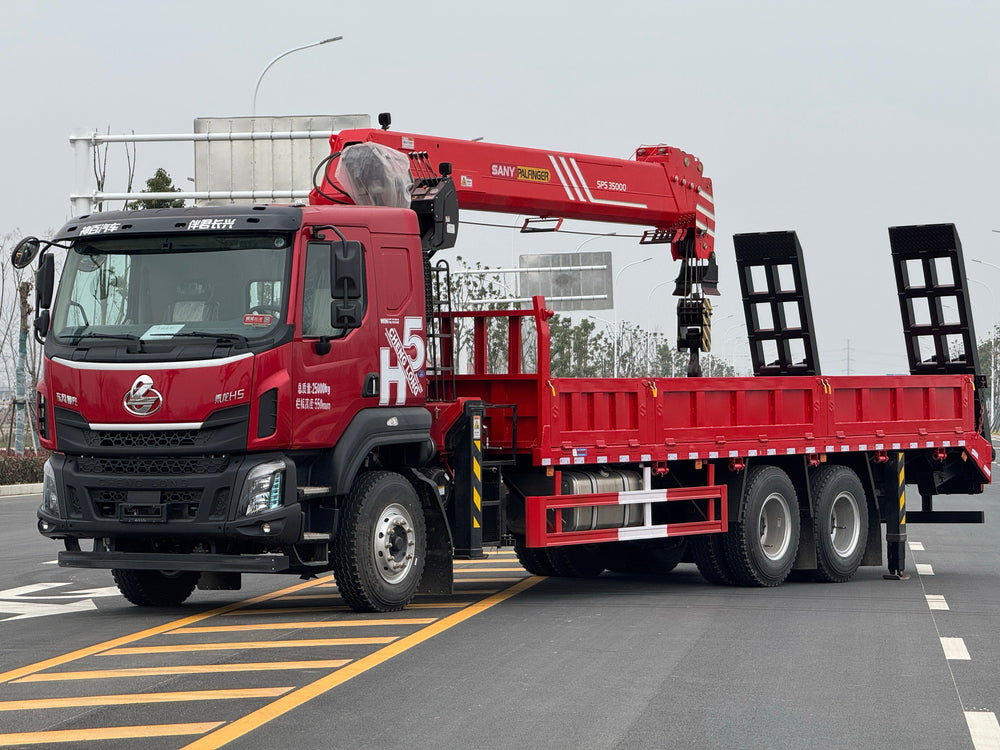

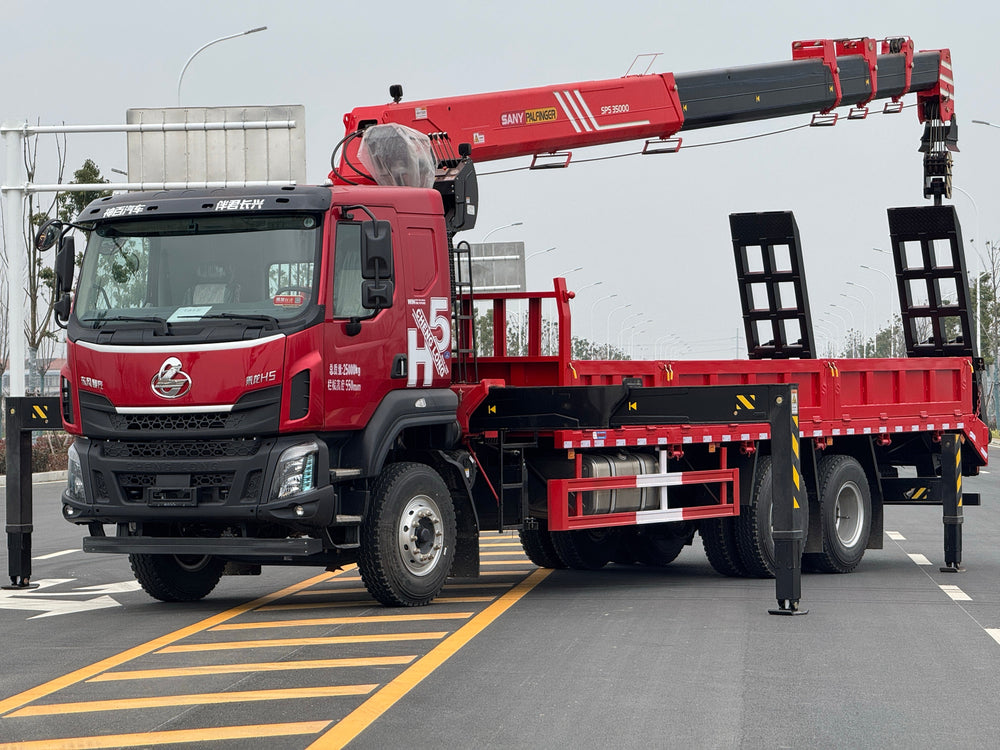

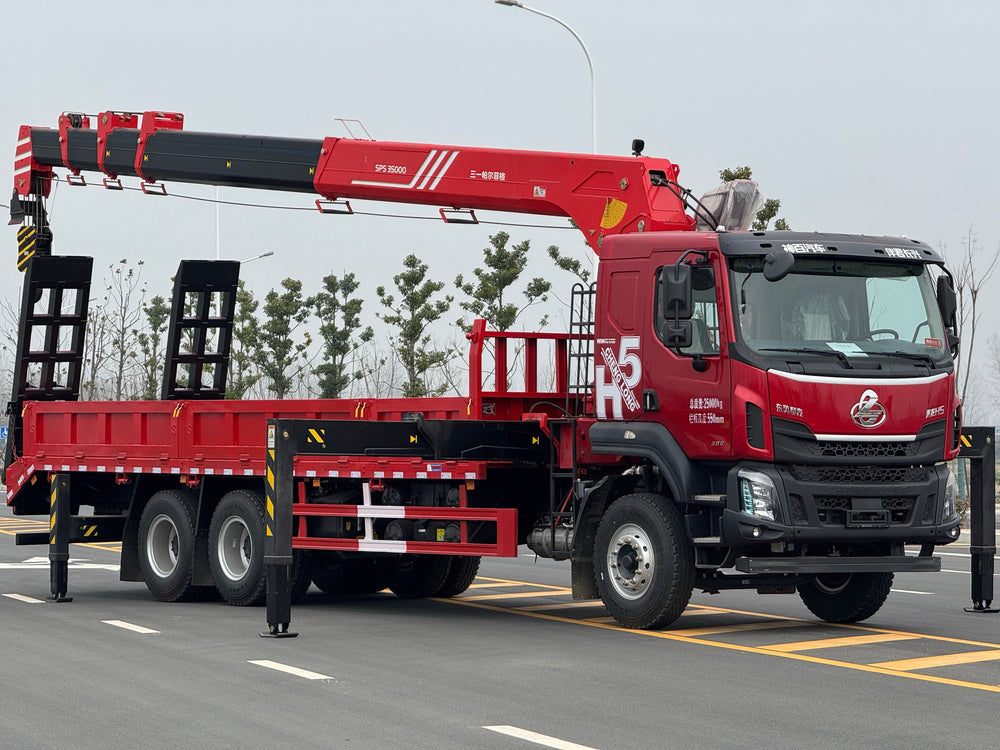

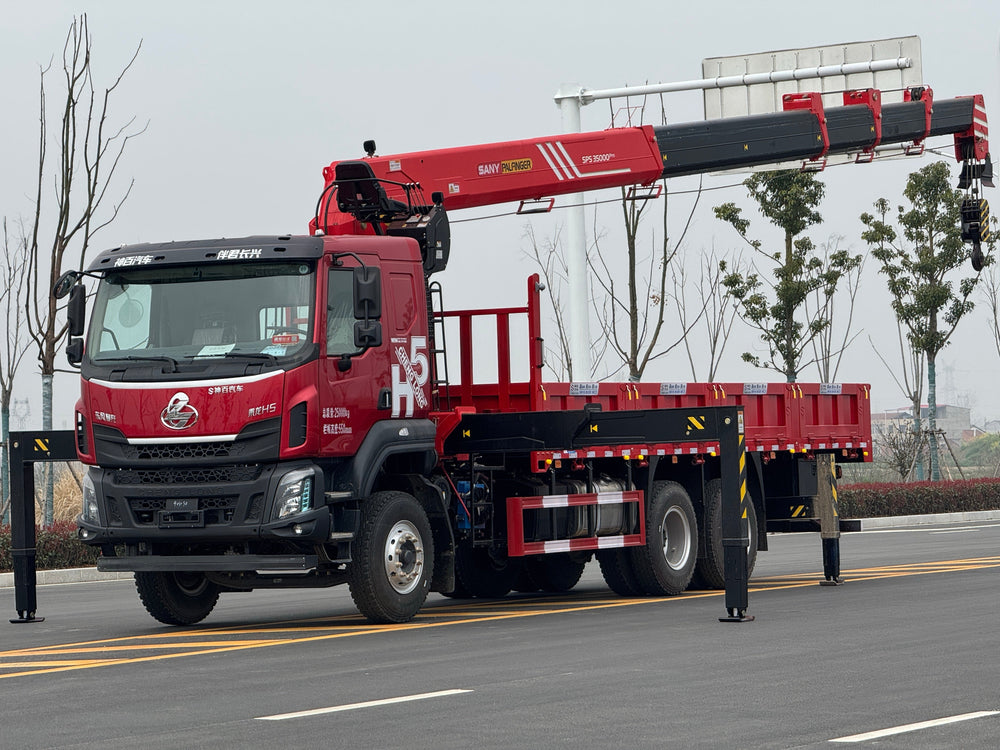

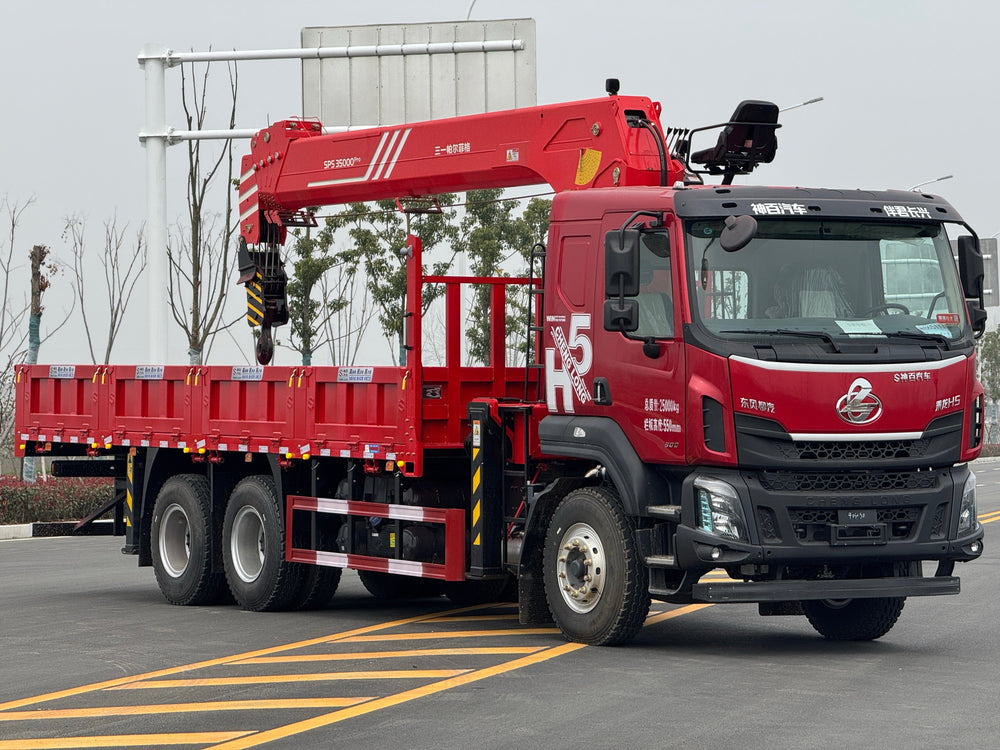

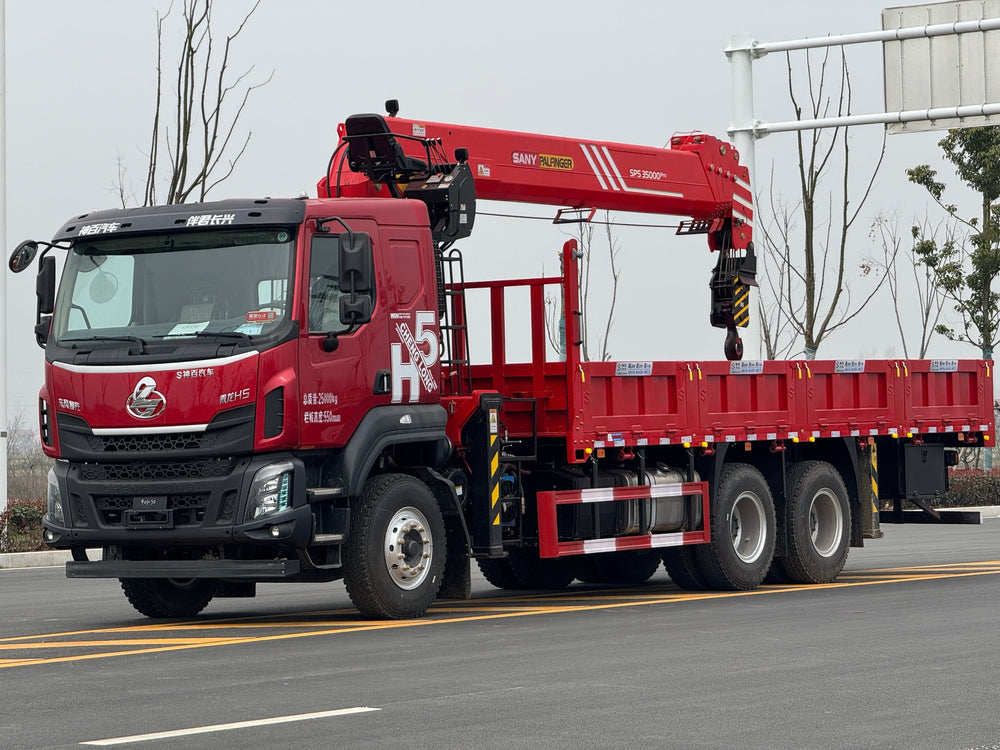

DongFeng 6×4 Palfinger Telescopic Boom Crane

1 / 8

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

1. Basic Chassis & Mass Parameters

Parameter	Value
Chassis Model	LZ1255H5DCT
Optional Curb Weight	19000KG / 18500KG / 18000KG / 17600KG / 16800KG / 16100KG / 15800KG
Crane Approval Scope	12–14 tons, complete official filing documents for all domestic truck-mounted cranes, trouble-free license registration
Optional Wheelbase Combinations	5850+1350mm / 4800+1350mm / 4350+1350mm / 3850+1350mm (long & short wheelbase options)
Overall Length Options	12000mm, 10900mm, 10300mm, 9580mm
Cargo Box Length Options	8400mm, 7200mm, 6600mm, 6000mm

2. Chassis & Powertrain Configuration

Parameter	Value
Engine Model & Displacement	YCS07L300-66 engine, 7L displacement
Transmission Model	Fast 9JS119T-B with QHG50 flange power take-off
Axle Rated Load	Front axle: 6.5T, Rear tandem axles: 2×13T, Final drive ratio: 5.143
Differential Lock	Inter-wheel differential lock + inter-axle differential lock, oil-lubricated wheel hub reduction
Clutch Specification	Φ430 pull-type clutch
Leaf Spring & Fastener	11/10-leaf spring with double saddle bolts
Main Frame	300(8+8+4) Baosteel 750 three-layer pressed through-type frame, with reinforcing subframe connecting plates & rear outrigger connecting plates; 4-stage plastic spraying, alkali cleaning & coating process
Fuel Tank	350L aluminum fuel tank
Tire Size	11.00R20 steel wire radial tire
Electrical System	150AH storage battery, 80A alternator, maintenance-free battery, double saddle bolts
Throttle Control	Rocker arm self-reset remote accelerator
Auxiliary Function	Under-chassis start & stop function
Exterior Bumper Parts	Color-matched bumper & fenders, high-position bumper, reinforced front leaf spring

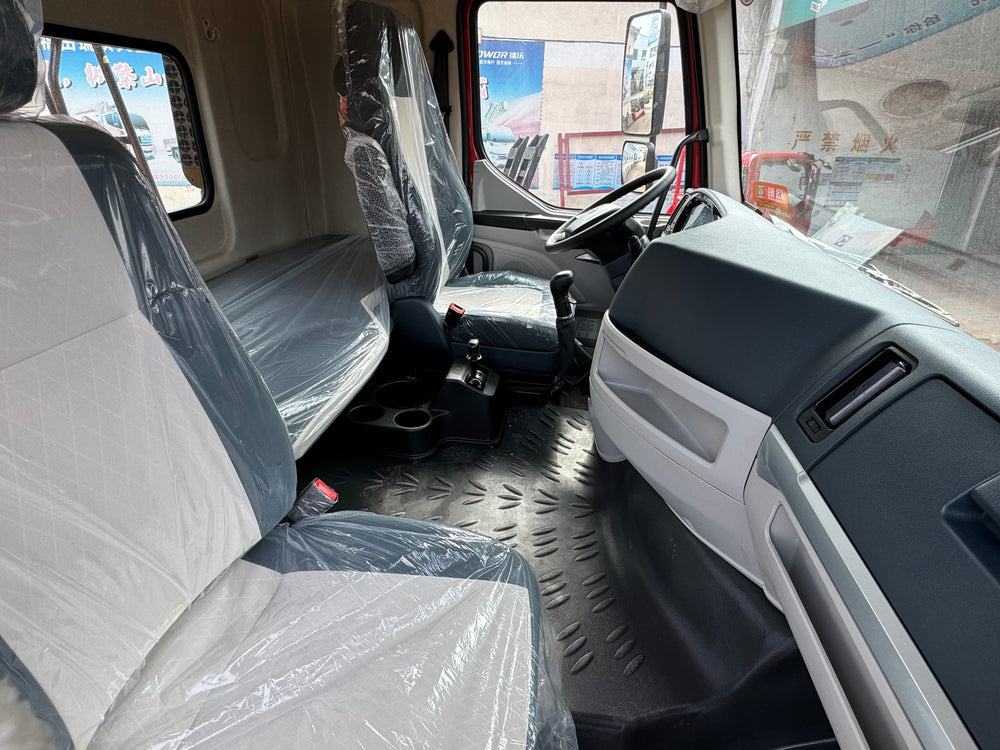

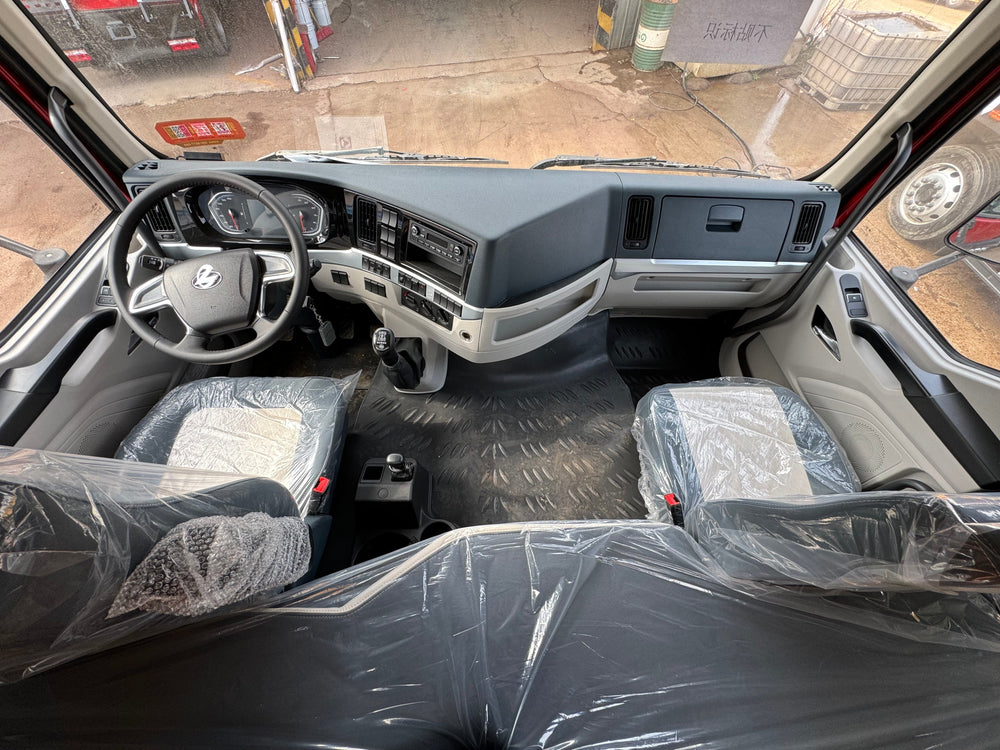

3. Cab Configuration

Parameter	Value
Cab Type & Height Adjustment	H51S height-adjustable cab with H5 sticker
Cab Suspension	Four-point precisely adjustable full-floating cab suspension (exclusive domestic technology)
Cab Tilting System	Manual hydraulic tilting structure
Seating System	Knitted air suspension driver seat, fixed knitted passenger seat
Steering Wheel	Leather steering wheel
Window Control	Electric window lifters
Central Lock	Remote control central locking
Air Conditioner	Manual air conditioner
On-board Terminal	Driving recorder, compatible with Beidou & GPS positioning, Chenglong V+ internet of vehicles system
External Accessory	External sun visor
Control & Safety Switches	Multi-state switch, right-turn reminder function, overspeed alarm function
Audio System	MP3 + Radio
Instrument Panel	5-inch black & white combination meter
Exterior Logo & Lighting	Standard brand logo, halogen headlamp
Brake System	Equipped with ABS

4. Upper Crane Assembly (Sany Brand)

Crane Model Specification	Technical Configuration & Performance Parameters
Sany 12 Ton, 4-Section Boom Crane	Boom length: 14.8m, Lifting height: 16.8m, Top operation, through subframe, radiator, original Sany single-chamber rear outriggers
Sany 12 Ton, 4-Section Pro Version Crane	Boom length: 16.2m, Lifting height: 18.2m, Top operation, through subframe, radiator, original Sany single-chamber rear outriggers, automatic hook retraction
Sany 12 Ton, 5-Section Boom Crane	Boom length: 18.3m, Lifting height: 20.3m, Top operation, through subframe, radiator, independent extension of second boom section, original Sany single-chamber rear outriggers
Sany 12 Ton, 5-Section Pro Version Crane	Boom length: 19.8m, Lifting height: 21.8m, Top operation, through subframe, radiator, independent extension of second boom section, double-section composite front outriggers, original Sany single-chamber rear outriggers, automatic hook retraction
Sany 14 Ton, 5-Section Boom Crane	Boom length: 18.5m, Lifting height: 20.5m, Top operation, through subframe, radiator, independent extension of second boom section, original Sany double-chamber rear outriggers
Sany 14 Ton, New 5-Section Boom Crane	Boom length: 19.8m, Lifting height: 21.8m, Top operation, through subframe, radiator, independent extension of second boom section, dual slewing, double-section composite fro
