The minimum order quantity is 1 unit. Volume discounts available for 5+ units.

Which emission standards do you support?

Euro II through Euro VI. We configure to match your country requirements.

What is the warranty period?

Standard 12-month or 30,000 km warranty covering upper structure. Extended packages available.

Can you customize for special requirements?

Yes. Full customization including chassis, LHD/RHD, paint colors, logos, and OEM/ODM.

What is the delivery time?

Standard: 15-25 working days. Custom: 30-45 working days. Popular models in stock.

Which shipping methods?

Sea freight, rail, road transport. FOB, CIF, CFR, DDP terms available.

Remote technical guidance, video troubleshooting, complete spare parts supply chain.

Compatible chassis brands?

Sinotruk HOWO, Shacman, Dongfeng, FAW, Foton, ISUZU, Mercedes-Benz.

How to get a quotation?

Contact via website form or email. Specify product type, configuration, chassis preference, destination country.

ISO 9001, CE, CCC, EAC certified. High-tech enterprise with invention patents.

GLOBAL SPECIAL VEHICLE LEADER

Professional Special Vehicle Exporter

Name: DongFeng 6×4 16T Knuckle Boom Crane
Brand: Shenbai
SKU: dongfeng-6-4-16t-knuckle-boom-crane
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

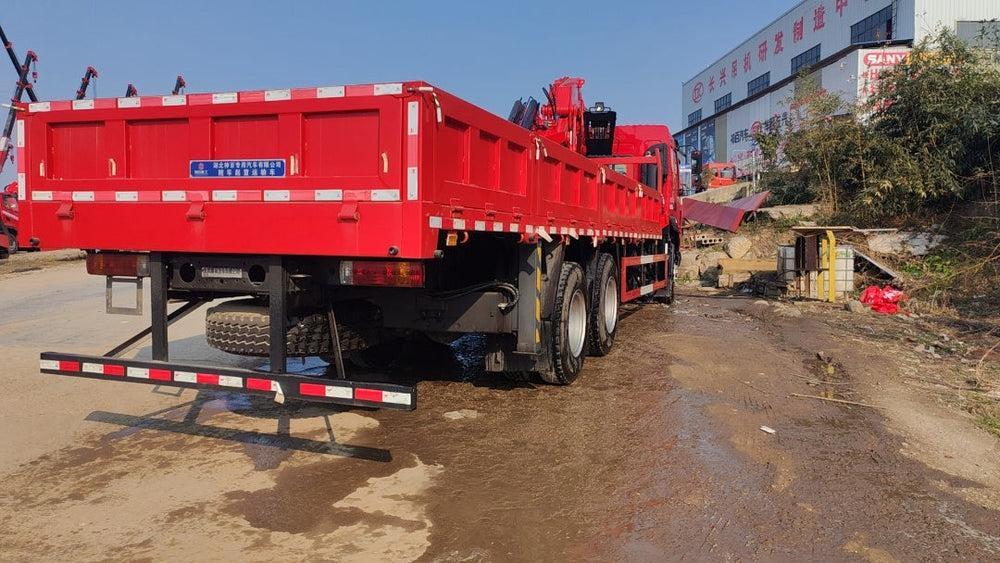

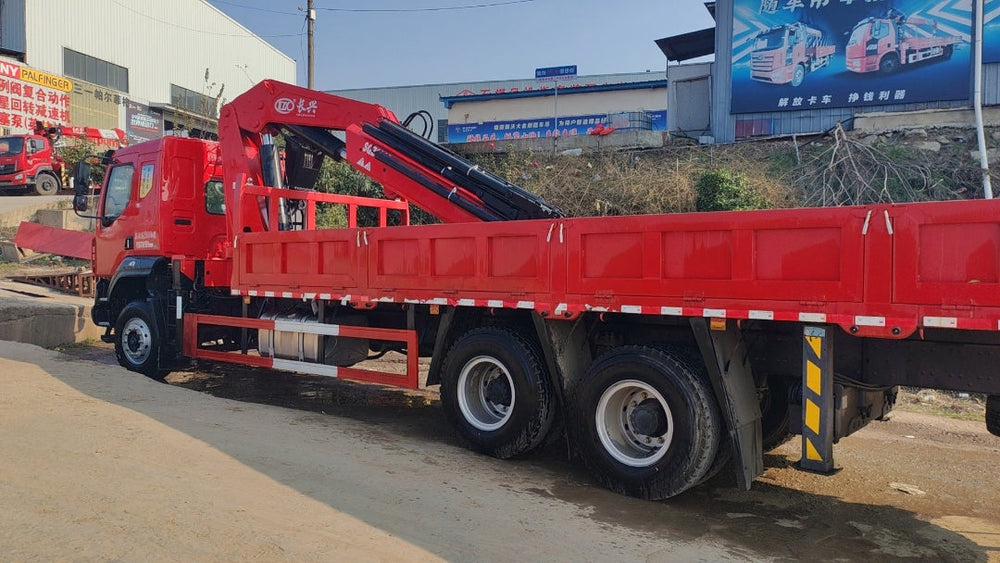

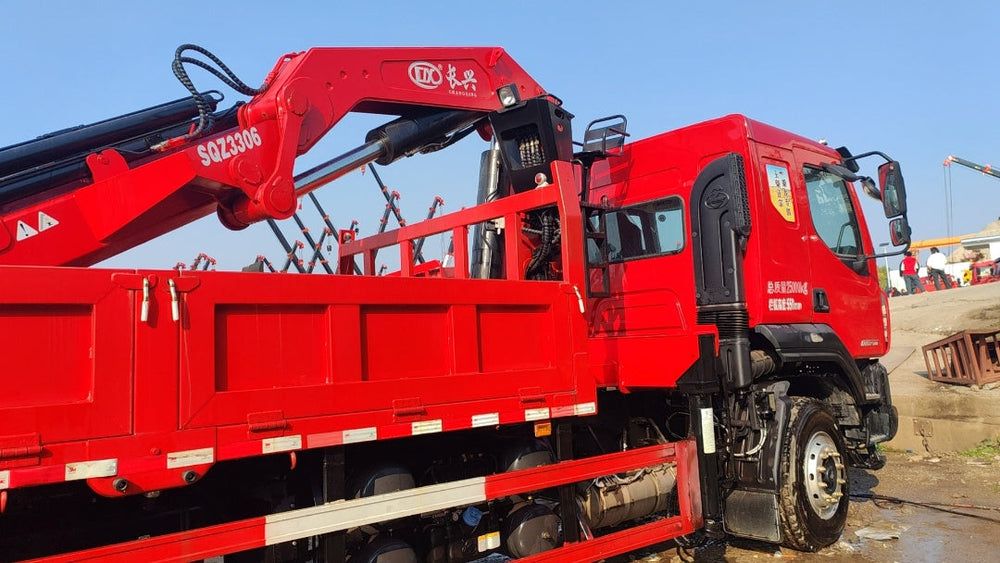

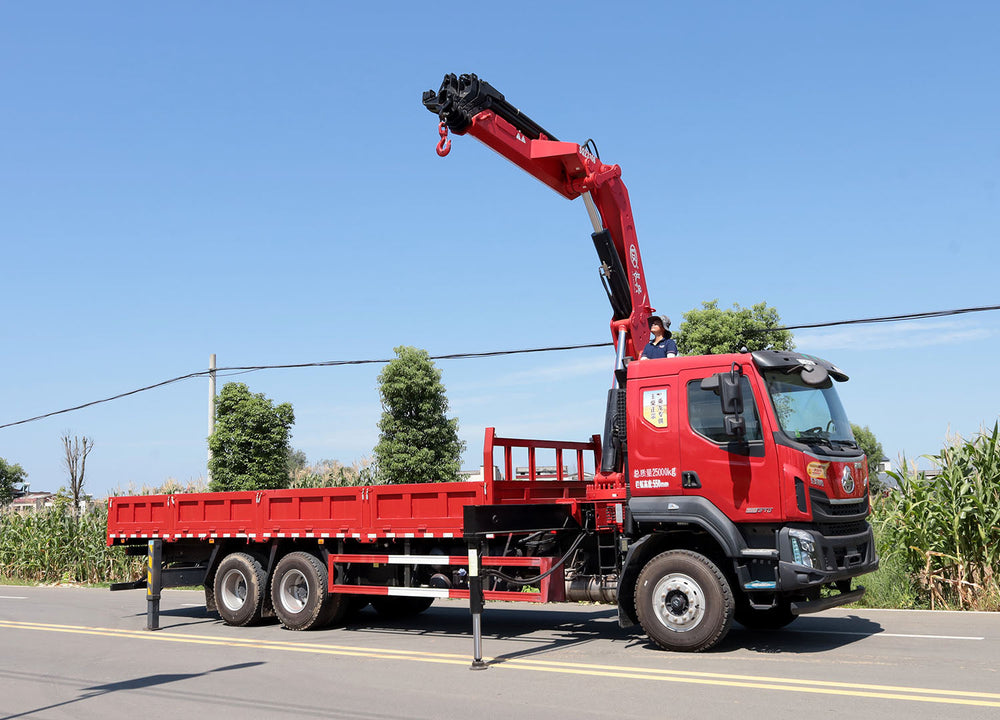

DongFeng 6×4 16T Knuckle Boom Crane

1 / 8

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Specification
Basic Vehicle Information
Kerb Weight	19000KG/18500KG/18000KG/17600KG/16800KG/16100KG; 12-14T announcement covers all domestic crane models for hassle-free registration
Wheelbase	Optional long/short wheelbase: 5850+1350/4800+1350/4350+1350/3850+1350mm
Overall Length	12000/10900/10300/9580mm
Cargo Box Length	8400/7200/6600/6000mm

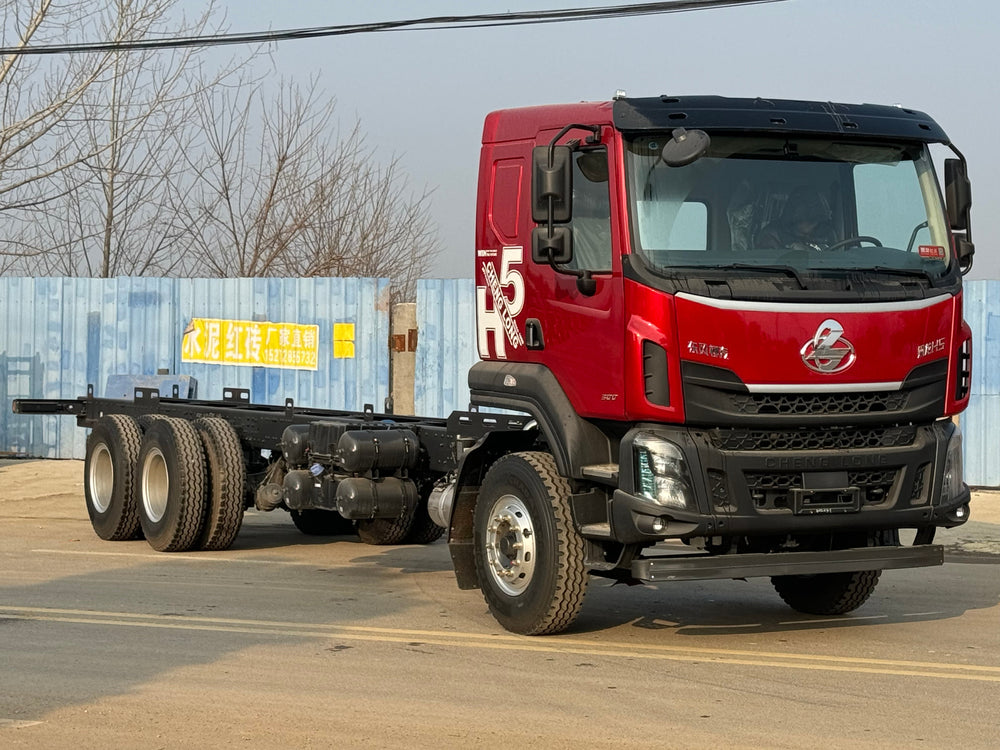

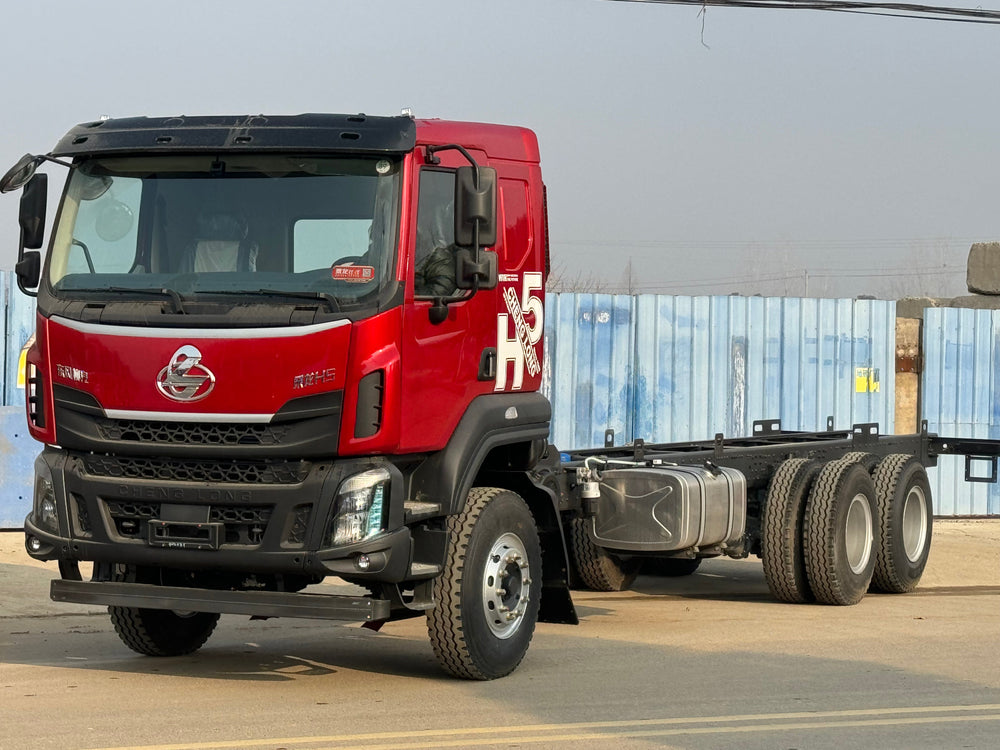

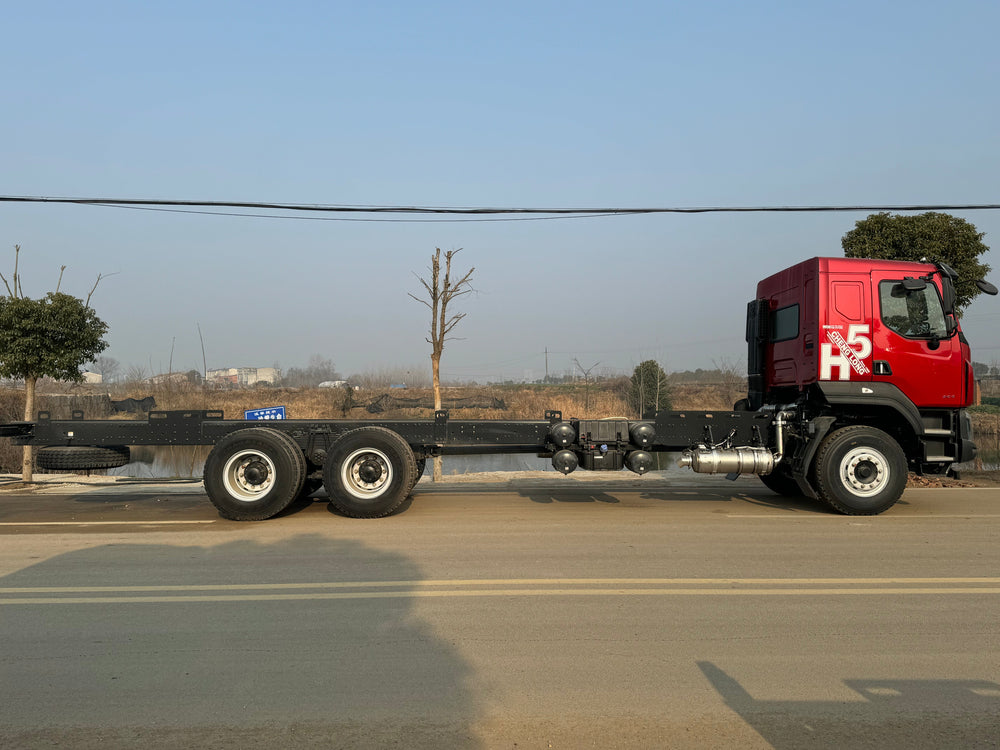

Chassis & Powertrain Configuration
Engine	Yuchai YCS07L300-66, 7.0L Displacement
Transmission	Fast 9JS119T-B Gearbox, with QHG50 Flange PTO
Front & Rear Axle	6.5T Front Axle / 2×13T Rear Axles; Final Drive Ratio 5.143; Inter-wheel & Inter-axle Differential Locks; Oil-lubricated Wheel Hub
Clutch	Φ430 Pull-type Heavy-duty Clutch
Leaf Spring	11/10 Leaf Springs with Double U-bolts; Reinforced Front Springs
Chassis Frame	300(8+8+4) Baosteel 750 3-layer Laminated Through Frame; with Reinforced Subframe & Rear Outrigger Connecting Plates; 14-step Plastic Spraying & Alkali Washing Coating Process
Fuel Tank	350L Aluminum Fuel Tank
Tyre Spec	11.00R20 Steel Wire Heavy-duty Tyre
Electrical System	150AH Battery, 80A Alternator, Maintenance-free Battery
Control Features	Rocker-type Self-return Remote Throttle; Under-vehicle Start/Stop Function
Exterior Fittings	Color-matched Bumper + Fender; High-position Reinforced Bumper
Cab & On-board Configuration
Cab Body	H51S Height-lowered Cab with H5 Decal; 4-point Fine-adjusted Full-floating Cab Suspension (Domestic Exclusive Technology); Manual Hydraulic Tilt
Seats	Knitted Air Suspension Driver Seat; Knitted Fixed Passenger Seat
Steering & Control	Leather Steering Wheel; Electric Window Lifter; Remote Central Lock; Multi-mode Switch
Climate Control	Manual Air Conditioner
On-board Terminal	Driving Recorder with Beidou/GPS Compatibility; Chenglong V+ Telematics System
Safety & Auxiliary	Right Turn Reminder; Overspeed Alarm; Anti-lock Braking System (ABS); External Sun Visor
Entertainment & Instrument	MP3 + Radio; 5-inch Black & White Combination Instrument
Lighting	Halogen Main Headlights
Exterior Marking	Standard Vehicle Trademark
