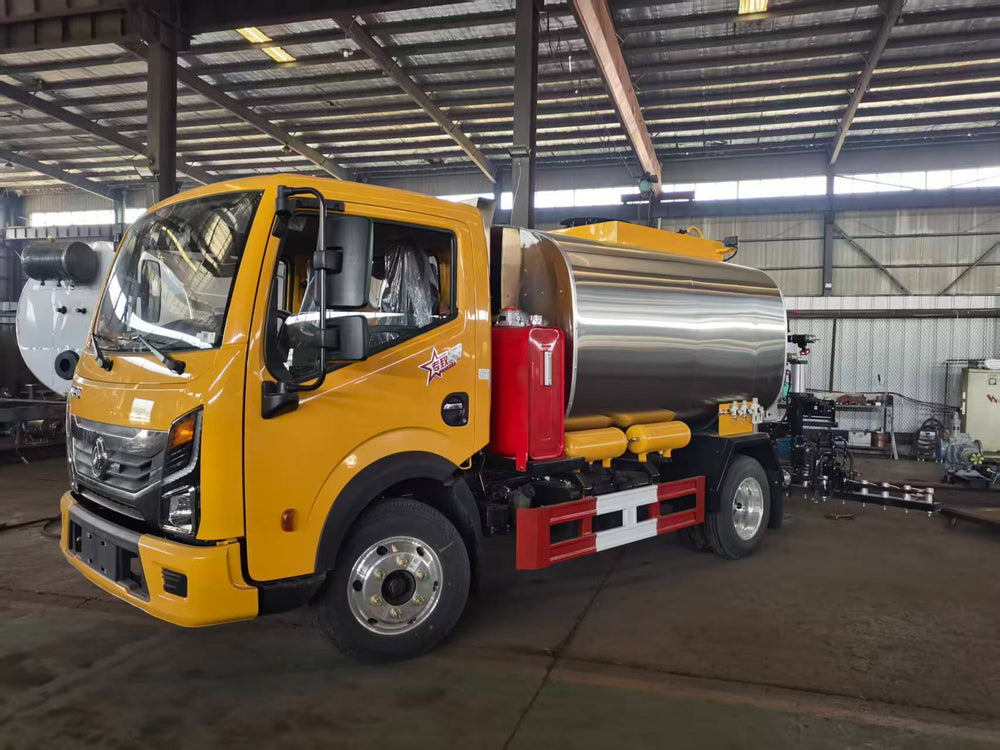

1. Chassis Configuration
| Parameter |
Value |
| Engine Model |
Q25A-150E60 |
| Engine Power |
150 HP |
| Engine Displacement |
2.5 L |
| Transmission |
Wanliyang 5-Speed (5G32) |
| Leaf Spring Configuration |
3 / 6+5 Thickened Leaf Springs |
| Rear Axle |
4-Ton Rear Axle, Final Drive Ratio 4.875 |
| Tire Specification |
6.50R16 |
| Wheelbase |
2950 mm |
| Fuel Tank Capacity |
80 L |
| Air Reservoir |
Aluminum Alloy Air Reservoir |
| Cab Interior |
Air Conditioner, Electric Windows |
| Lighting |
Daytime Running Lights |
| Brake System |
Exhaust Brake, Air-Over-Hydraulic Spring Brake, ABS |
| Steering Wheel |
Multifunctional Steering Wheel |
| Electrical System |
24V Power Supply |
| Remote Control |
Engine Remote Start & Remote Stop |

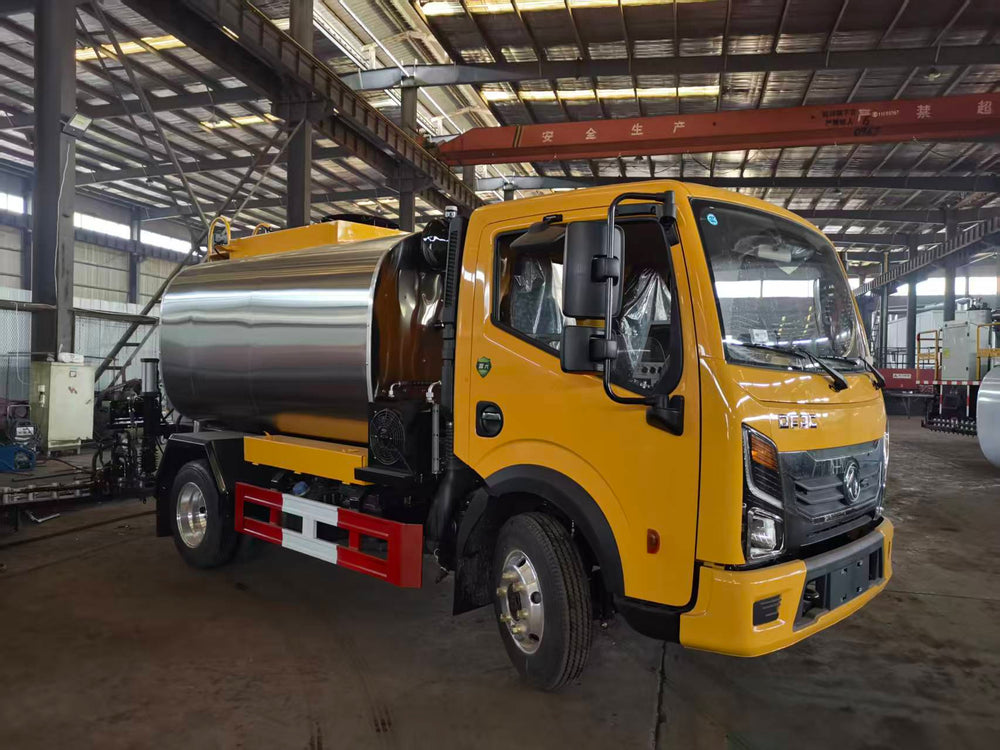

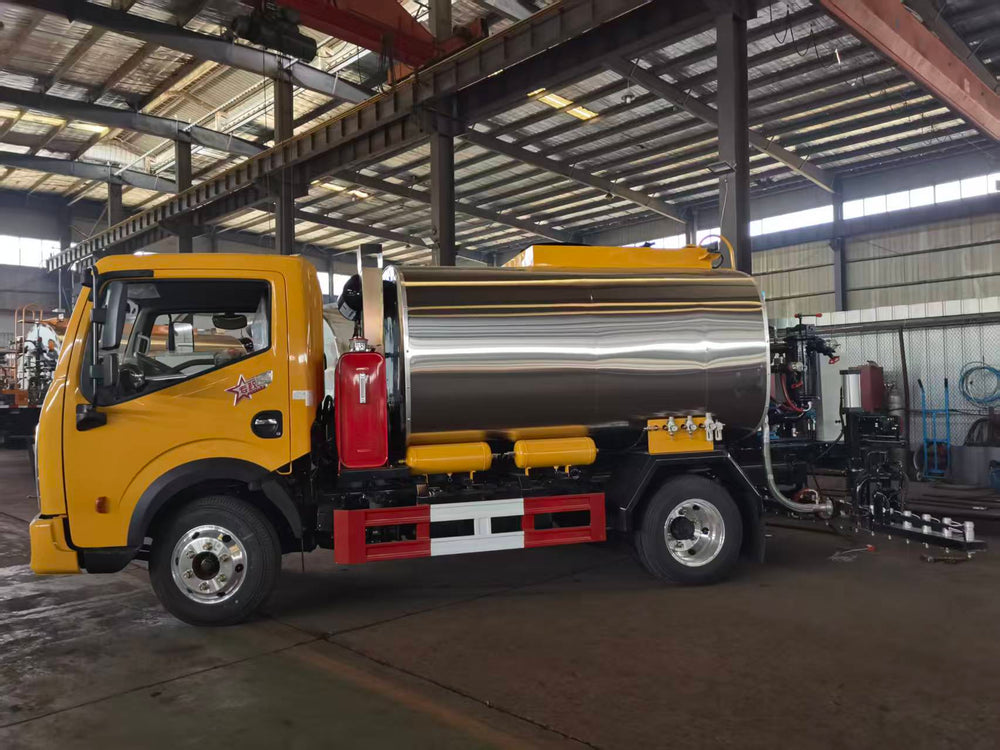

2. Tank Body & Insulation System
| Parameter |
Value |
| Tank Material |
Carbon Steel Plate |
| Tank Volume |
5 m³ |
| Insulation Structure |
Three-Layer Insulation |
| Outer Insulation Layer |
Stainless Steel Cladding |
| Internal Insulation Filling |
Flame-Retardant Rock Wool |
| Insulation Thickness |
30 mm |
3. Asphalt Pump & Hydraulic System
| Parameter |
Value |
| Asphalt Pump Type |
Insulated Asphalt Pump RCB18/0.6-65F-T |
| Asphalt Pump Capacity |
18 m³/h |
| Asphalt Pump Drive Motor |
Cycloidal Motor 2K-80 |
| Hydraulic Pump |
F563 Full Cast Iron Gear Pump |
| Hydraulic Flow Control |
Imported Electro-Hydraulic Proportional Flow Regulating Valve (USA) |
4. Heating & Temperature Control System
| Parameter |
Value |
| Burner Brand & Model |
Riyadh G10 (Imported from Italy) |
| Heating Method |
Full-Process Heat-Conducting Oil Heating (Tank & Pipelines) |
| Temperature Control Module |
Imported PLC Temperature Control Module (Taiwan) |
| Control Type |
Electromagnetic Control |
| Heat-Conducting Oil Pump Motor |
GM5-10-1FE13S-20 |
| Heat-Conducting Oil Pump |
BRY20-20-125 (Botou, Hebei) |
| Radiator |
AH1012-CD24-A |

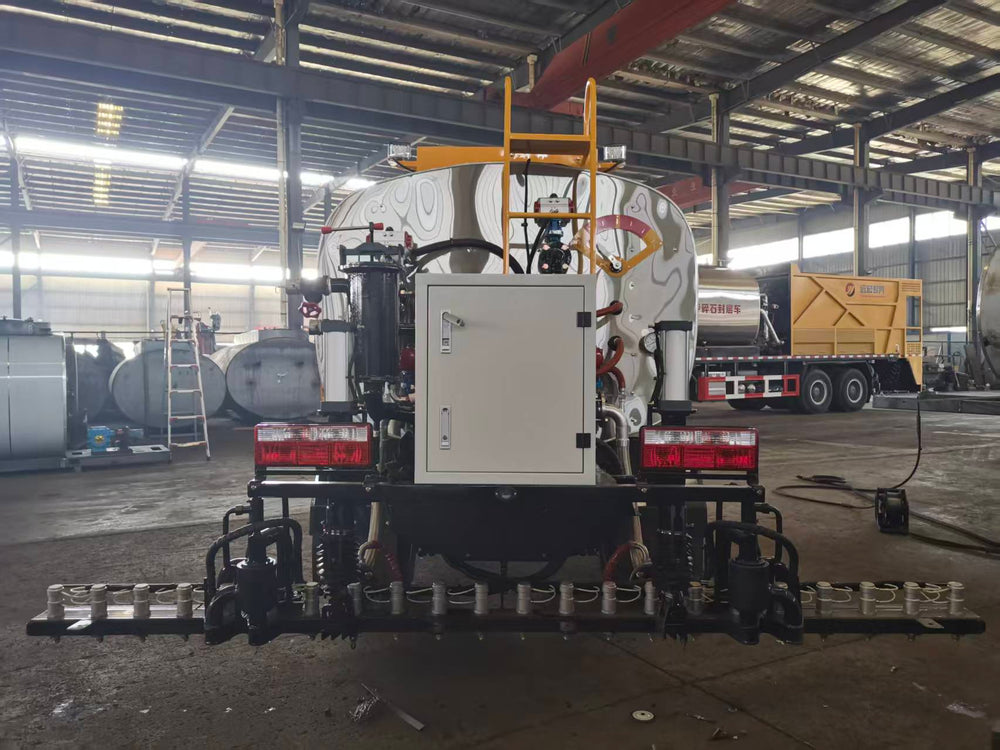

5. Spray Bar & Nozzle System
| Parameter |
Value |
| Spray Width Range |
0.2 m – 4 m (three-fold overlap) |
| Spray Volume Range |
0.2 – 2 kg/m² |
| Pneumatic Cylinders |
22 sets of stainless steel full-pneumatic cylinders |
| Nozzles |
Pure copper nozzles with imported seals (leak-proof) |
| Spray Bar Design |
Synchronized same-layer spray bar with through rotary joint heating; asphalt circulation on both sides; recyclable asphalt; no metal hoses |
6. Control System
| Parameter |
Value |
| Spray Volume Controller |
Intelligent Integrated Controller (IP67 protection grade) |
| Control Feature |
Spray volume automatically linked with vehicle speed |

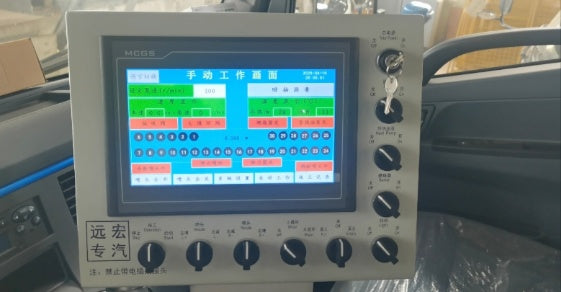

| In-Cab Display |
Kunlun Tongtai 10-inch Touch Screen Control System |
| Pressure Control |
Computer-automatic hydraulic pressure distribution |
| Pump Speed Control |
Adjustable asphalt pump speed |
| Temperature Controller |
Independent temperature controller |
| Air Pressure Display |
Equipped |
| Spray Cylinder Control |
One cylinder per valve (one-to-one control) |
7. Standard Features & Accessories
| Feature |
Description |
| Full Asphalt Circulation |
Full-vehicle asphalt circulation, one-key asphalt pump suction/discharge function |
| Automatic Cleaning |
One-key asphalt return, nozzle cleaning and hand-gun cleaning function via operation screen |
| Level Gauge |
Float-type level gauge installed inside tank |
| Tank Thermometer |
Bimetal thermometer installed outside tank body |
| Pump Thermometer |
External metal thermometer on asphalt pump |
| Fastener Standard |
All fasteners, seals, transmission parts, support parts, sealing parts and elastic parts comply with GB/T national standards |
8. Applicable Spray Media
| Medium Type |
Description |
| Emulsified Asphalt |
Suitable |
| Modified Emulsified Asphalt |
Suitable |
| Modified Asphalt |
Suitable |
| Hot Asphalt |
Suitable |
