The minimum order quantity is 1 unit. Volume discounts available for 5+ units.

Which emission standards do you support?

Euro II through Euro VI. We configure to match your country requirements.

What is the warranty period?

Standard 12-month or 30,000 km warranty covering upper structure. Extended packages available.

Can you customize for special requirements?

Yes. Full customization including chassis, LHD/RHD, paint colors, logos, and OEM/ODM.

What is the delivery time?

Standard: 15-25 working days. Custom: 30-45 working days. Popular models in stock.

Which shipping methods?

Sea freight, rail, road transport. FOB, CIF, CFR, DDP terms available.

Remote technical guidance, video troubleshooting, complete spare parts supply chain.

Compatible chassis brands?

Sinotruk HOWO, Shacman, Dongfeng, FAW, Foton, ISUZU, Mercedes-Benz.

How to get a quotation?

Contact via website form or email. Specify product type, configuration, chassis preference, destination country.

ISO 9001, CE, CCC, EAC certified. High-tech enterprise with invention patents.

GLOBAL SPECIAL VEHICLE LEADER

Professional Special Vehicle Exporter

Name: DongFeng 245HP Telescopic Boom Crane
Brand: Shenbai
SKU: dongfeng-245hp-knuckle-boom-crane
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

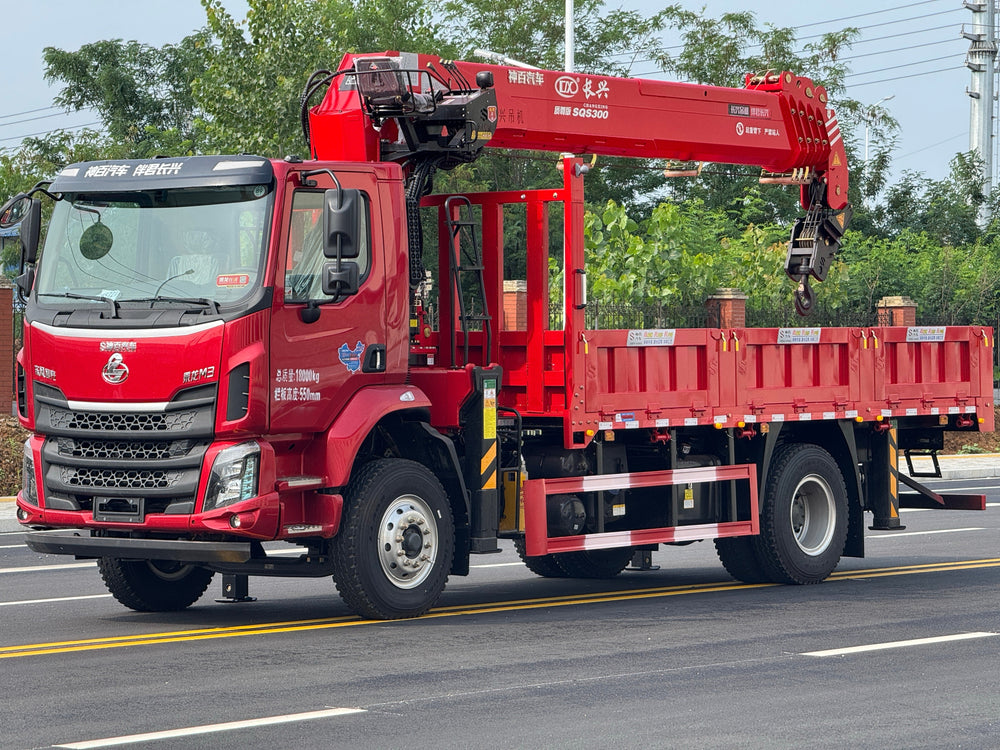

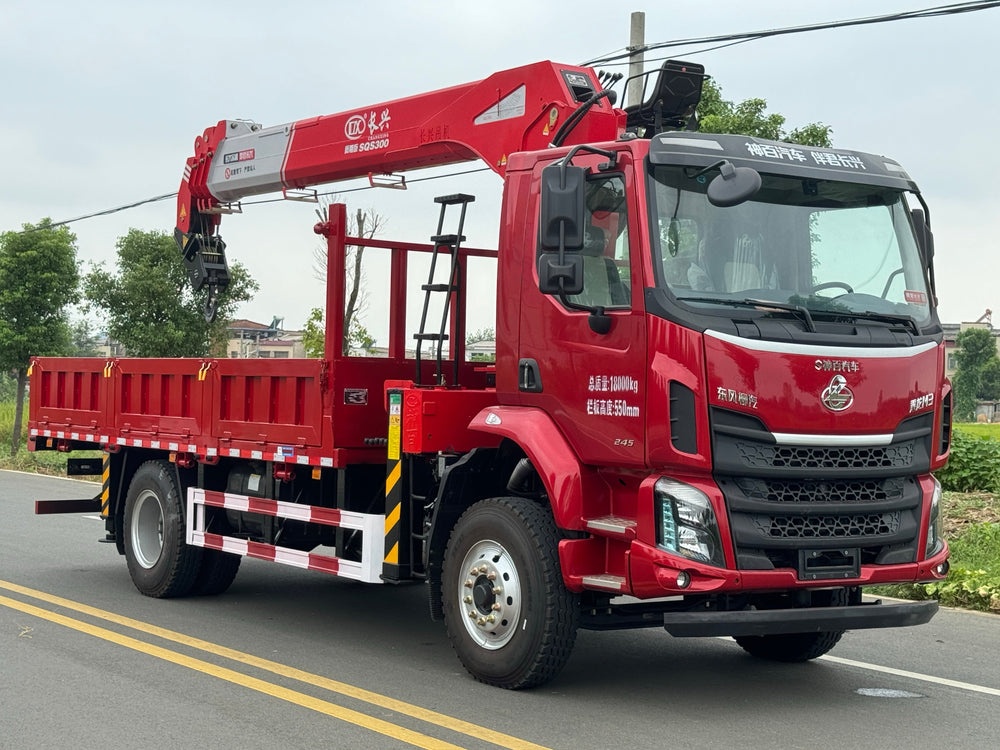

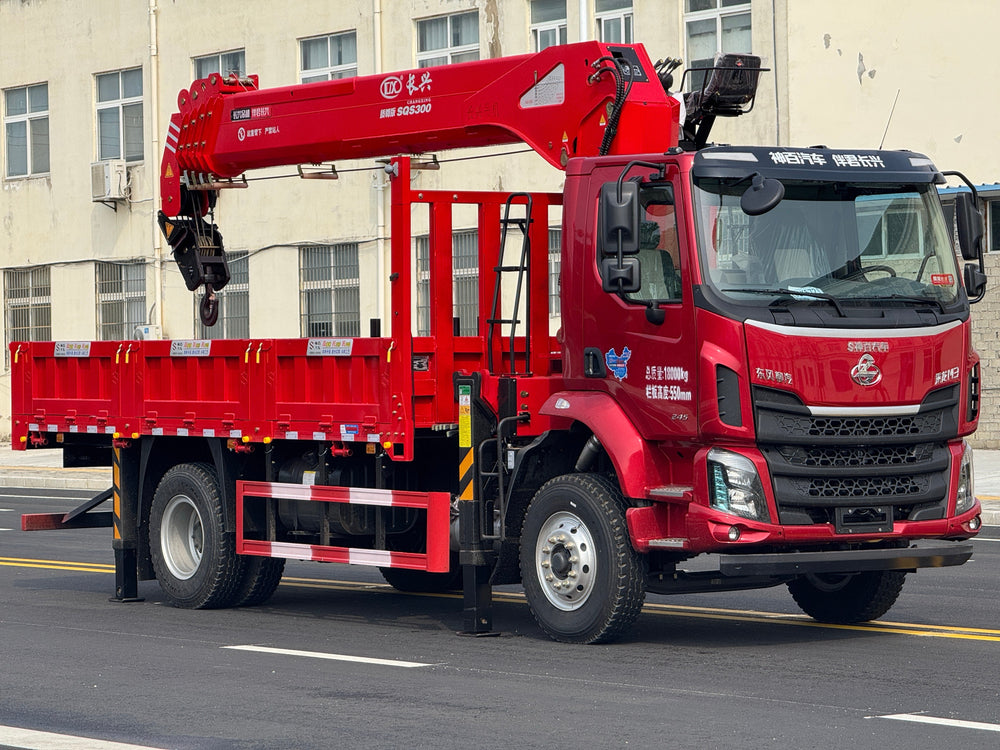

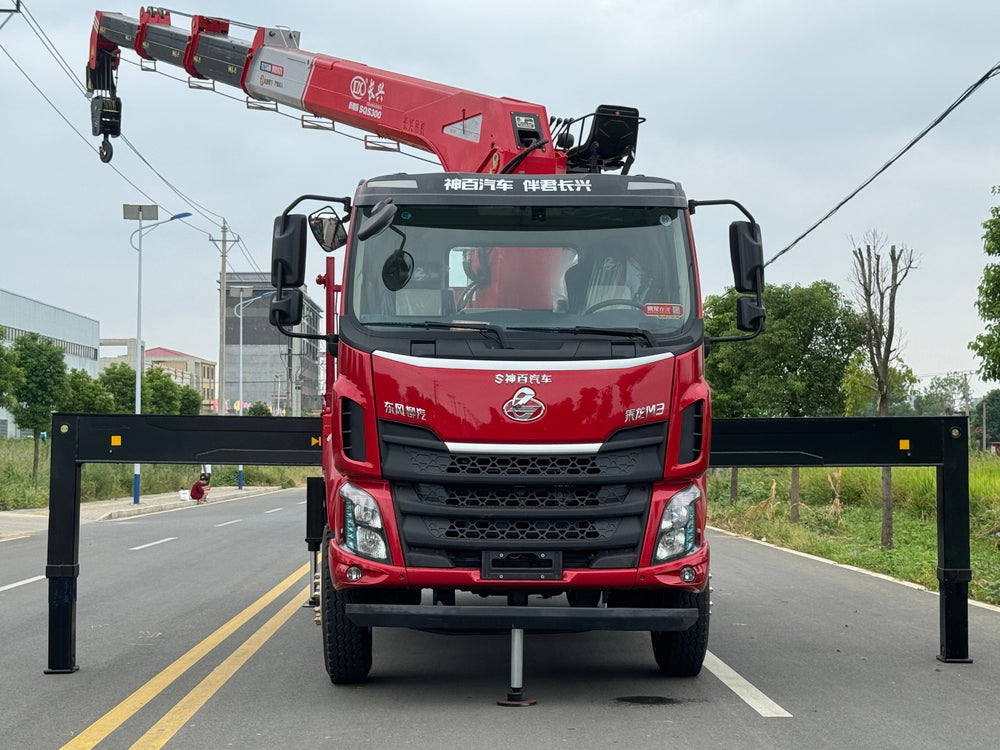

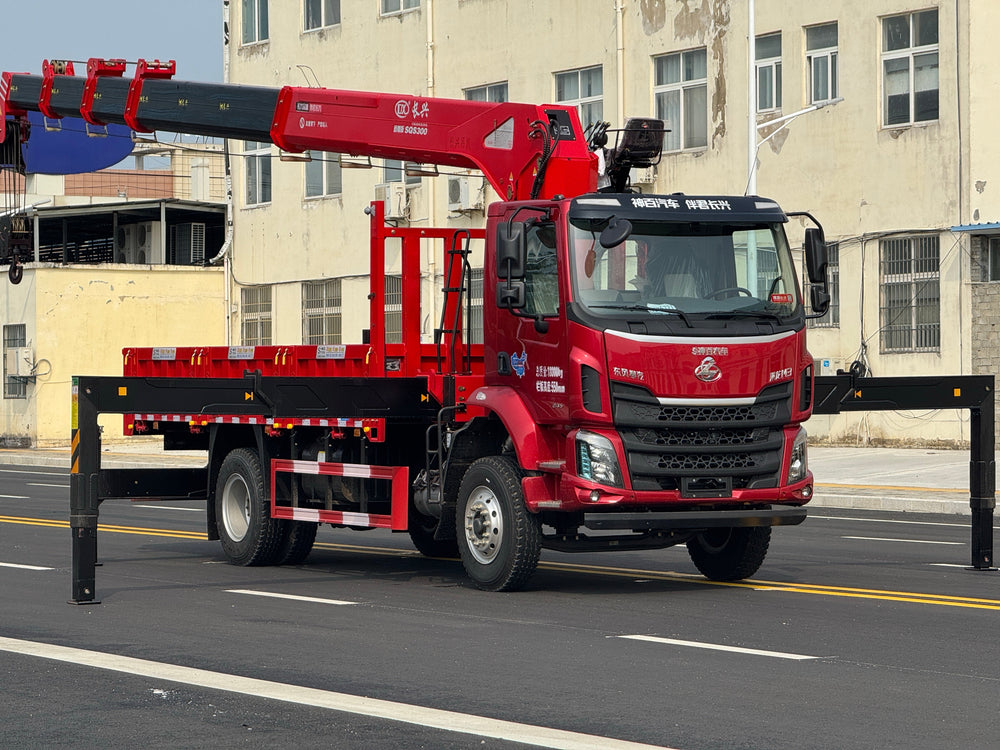

DongFeng 245HP Telescopic Boom Crane

1 / 8

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

1. Overall Mass Parameters

Parameter	Value
Gross Vehicle Weight	18000 KG
Optional Curb Weight	14000KG / 12900KG / 12000KG / 11500KG / 11000KG
Crane Mounting Approval Range	8–12 tons, complete official filing documents for all domestic truck-mounted cranes, easy license registration
Wheelbase Options	5100 mm, 4500 mm

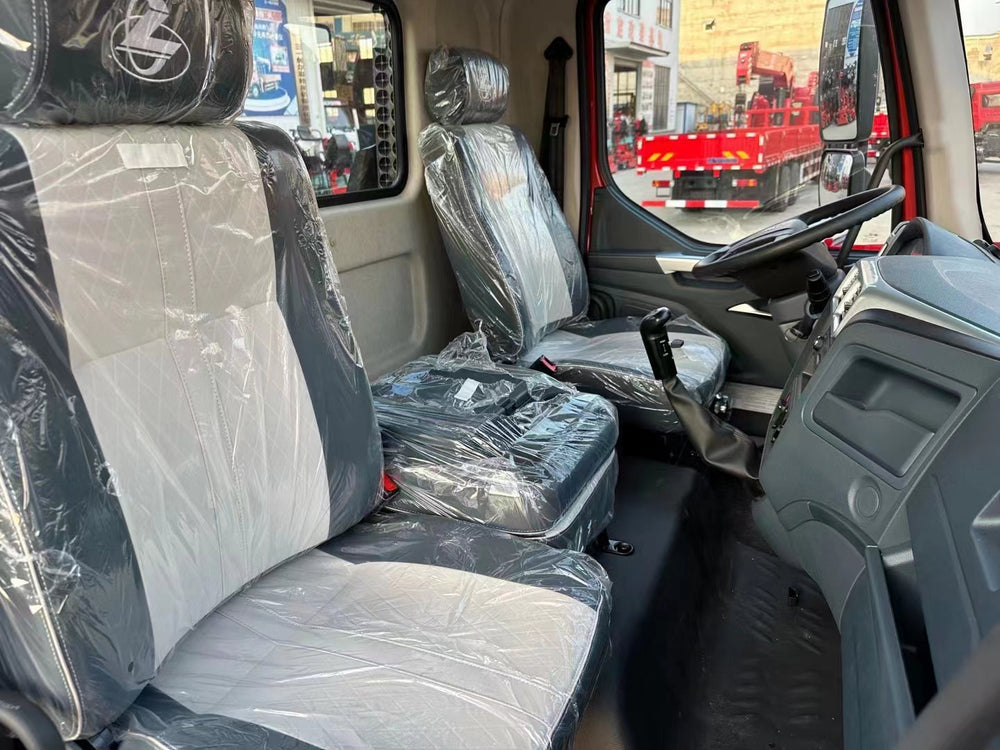

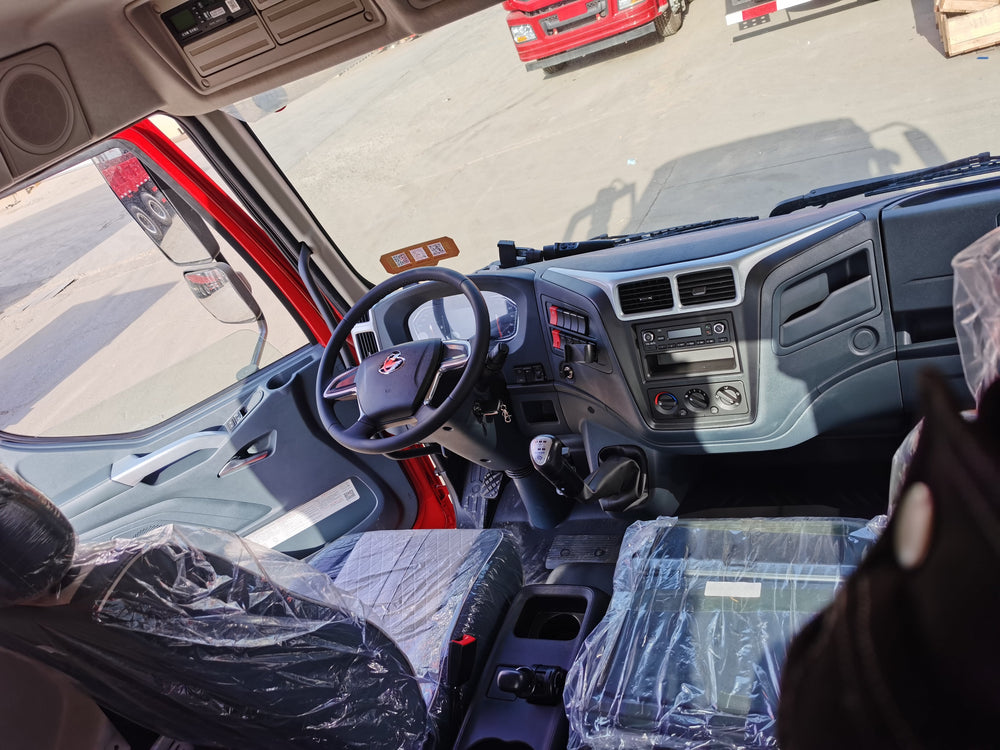

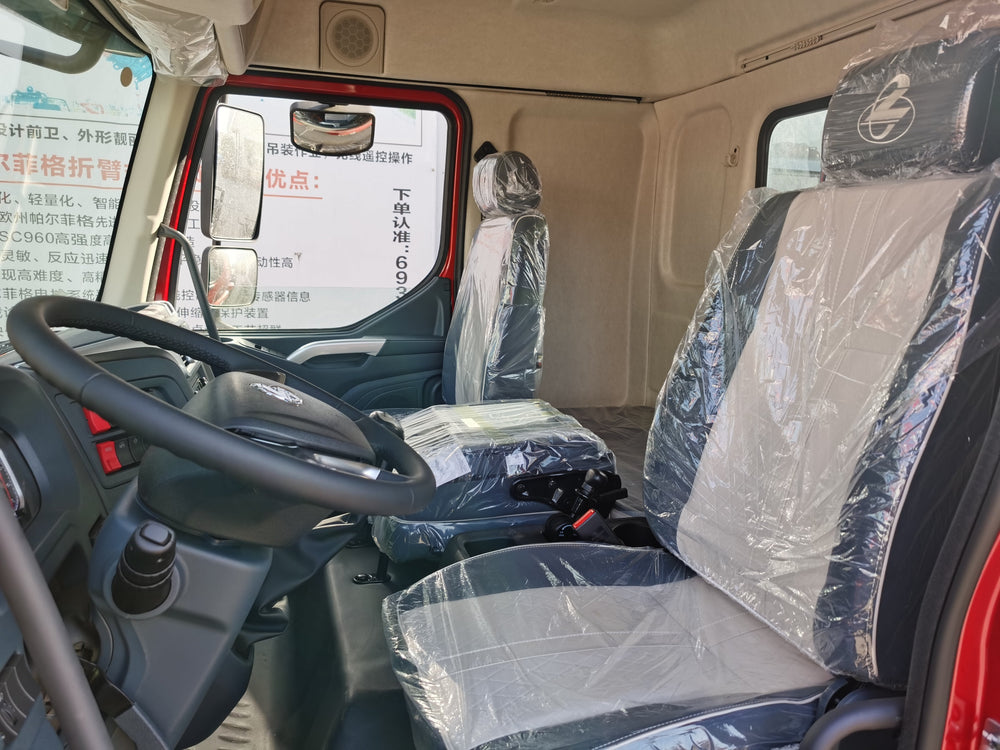

2. Cab Configuration

Parameter	Value
Cab Suspension	Semi-floating suspension structure
Cab Tilting Mode	Manual hydraulic tilting system
Driver Seat	New type knitted fabric seat
Window System	Electric window lifters
Lock System	Remote control central locking
Air Conditioning	Equipped with air conditioner
On-board Terminal	Driving recorder, compatible with Beidou & GPS positioning
External Accessory	External sun visor
Control Switch	Multi-state switch
Safety Function	Right turn reminder system
Fuel Tank Volume	160 L fuel tank
Power Take-off	Power take-off unit equipped
Throttle Control	Remote accelerator, knob-type remote accelerator
Brake System	ABS, automatic brake slack adjusters
Battery Type	Maintenance-free battery
Cooling Fan	Electronically controlled silicone oil fan
Auxiliary Function	Under-chassis start & stop function
Exterior Parts	Body-colored front bumper and fenders

3. Chassis & Powertrain Configuration

Parameter	Value
Engine Specification	Model YCS06, 245 horsepower, 6-cylinder diesel engine
Optional Cab Type	Single-row cab / Single-and-a-half row cab
Transmission Model	8JS95E-C gearbox with spline power take-off
Rated Front Axle Load	5.5 tons
Rated Rear Axle Load	10 tons
Main Frame	282mm integrated pressed frame, one-piece forming by 6300-ton hydraulic press, nicknamed "Dragon Spine Frame"
Tire Specification	10.00R20 steel wire radial tire

4. Overall & Cargo Body Dimensions

Parameter	Value
Overall Length (5100mm Wheelbase)	9000 mm
Cargo Box Length (5100mm WB, Single-row Cab)	6000 mm
Cargo Box Length (5100mm WB, Single-and-a-half Row Cab)	5600 mm
Overall Length (4500mm Wheelbase)	8420 mm
Cargo Box Length (4500mm WB, Single-row Cab)	5400 mm
Cargo Box Length (4500mm WB, Single-and-a-half Row Cab)	5000 mm

5. Upper Crane Assembly Options (Changxing Brand)

Model Specification	Technical Configuration & Performance Data
8 Ton, 4-section Ultimate Version Crane	Working radius: 13.5m, Lifting height: 15.5m, Top operation, radiator, single gear pump
8 Ton, 5-section Synchronous Telescopic Fortune Version Crane	Boom length: 18.1m, Lifting height: 19.6m, Top operation, radiator, single gear pump, double-section composite front outriggers
8 Ton, 5-section Synchronous Telescopic Ultimate Version Crane	Boom length: 18.1m, Lifting height: 19.6m, Top operation, through sub-frame, radiator, double gear pump, double-section composite front outriggers
8 Ton, 5-section Boom Crane	Working radius: 16.3m, Lifting height: 18.5m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section
8 Ton, 5-section Pro Version Crane	Working radius: 18.1m, Lifting height: 20.1m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section, dual slewing, double-section composite front outriggers
8 Ton, 6-section Boom Crane	Working radius: 20m, Lifting height: 22m, Top operation, through sub-frame, radiator, independent extension of 2nd & 3rd boom sections, dual slewing, double-section front outriggers
10 Ton, 5-section Boom Crane	Working radius: 16.3m, Lifting height: 18.5m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section
10 Ton, 6-section Boom Crane	Working radius: 22m, Lifting height: 24m, Top operation, through sub-frame, radiator, independent control for second boom, dual slewing, double-section front outriggers
12 Ton, 4-section Boom Crane	Working radius: 15.2m, Lifting height: 17.2m, Top operation, radiator, single gear pump
12 Ton, 5-section Boom Crane	Working radius: 19.9m, Lifting height: 21.3m, Top operation, radiator, double-section
