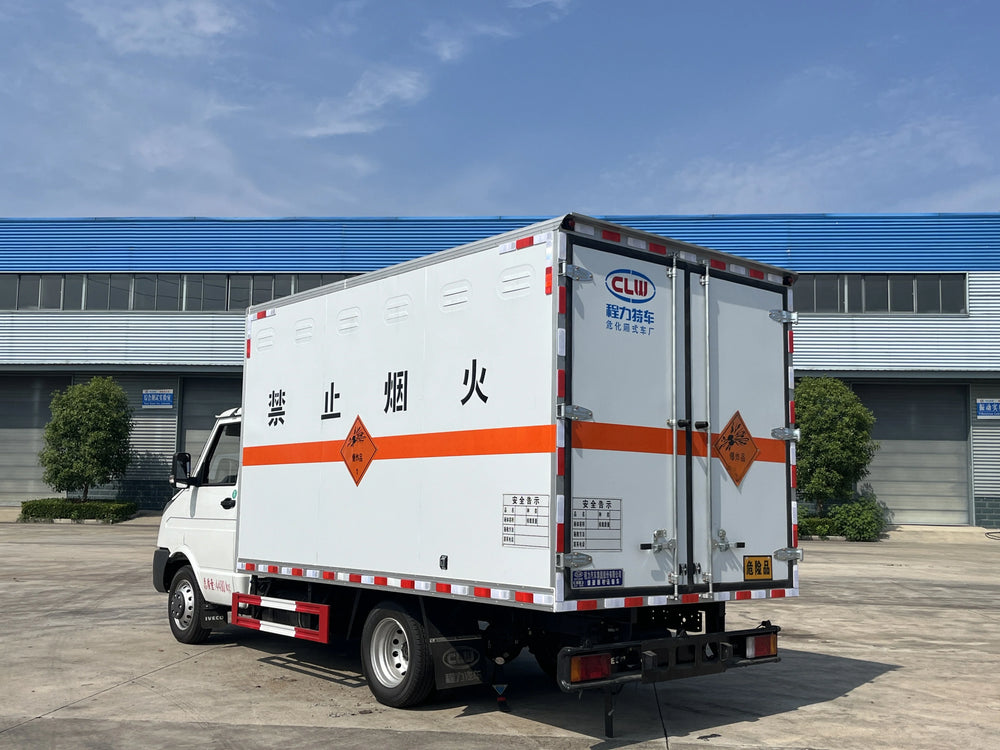

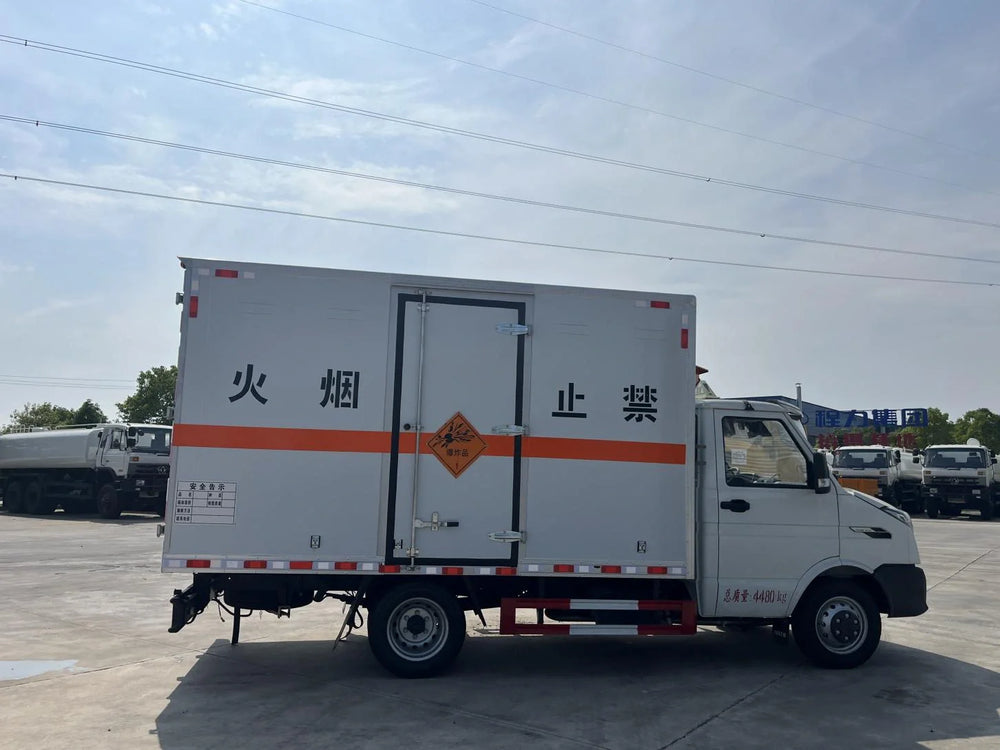

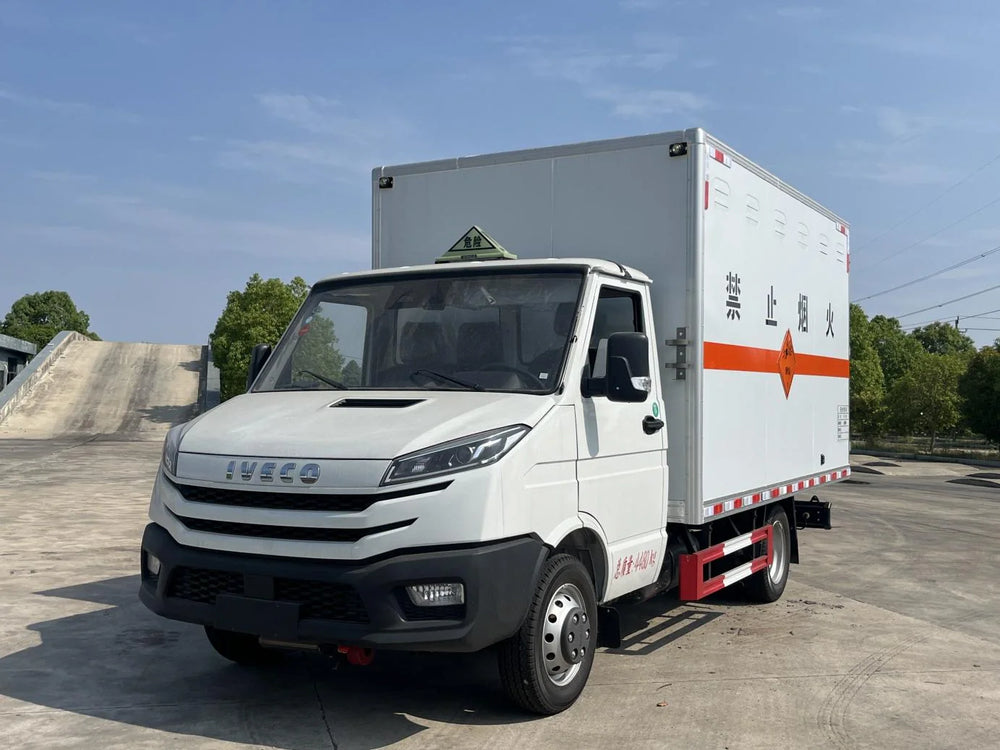

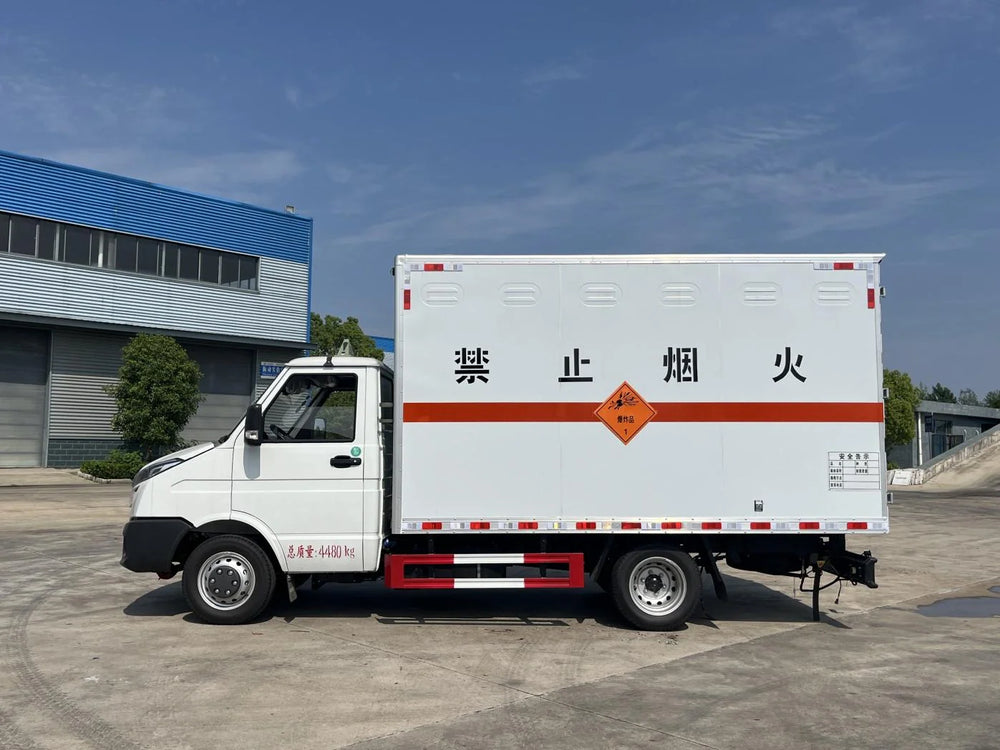

Blasting Equipment Transport Truck

Blasting Equipment Transport Truck
Blasting Equipment Transport Truck
Blasting Equipment Transport Truck
Blasting Equipment Transport Truck
1 / 4
Blasting Equipment Transport Truck
Blasting Equipment Transport Truck
Blasting Equipment Transport Truck
Blasting Equipment Transport Truck

Blasting Equipment Transport Truck – Key Specifications



Parameter Specification
Vehicle Type Blasting Equipment / Explosives Transport Van
Drive Configuration 4×2 (also available in 6×2 / 8×4)
Emission Standard Euro III / IV / V / China VI

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) 5,170 – 12,000 × 2,030 – 2,550 × 2,790 – 3,990 mm
Cargo Box Dimensions (L×W×H) 4,120 – 9,600 × 1,810 – 2,450 × 1,800 – 2,600 mm
Wheelbase 2,850 – 7,200 mm
GVWR (Total Mass) 4,495 – 22,500 kg
Curb Weight (Kerb Mass) 2,760 – 12,200 kg
Payload Capacity (Rated Load) 1,405 – 10,100 kg

Engine & Drivetrain



Parameter Specification
Engine Options WEICHAI, YUCHAI, CUMMINS, QUANCHAI
Displacement 2.3 – 6.2 L
Max Horsepower 84 – 270+ HP
Transmission 5-speed / 6-speed / 8-speed Manual
Fuel Type Diesel

Chassis & Axles



Parameter Specification
Axles 2
Front Track 1,770 – 1,903 mm
Rear Track 1,640 mm
Tire Specification 6.50R16LT / 7.00R16 / 8.25R20 / 10.00R20 / 275/80R22.5
Tire Count 6
Suspension Leaf springs (e.g., 8/10+7)
Brake System Front disc brakes, ABS

Cargo Box & Safety Equipment



Parameter Specification
Box Type Fully enclosed, top sealed and non-openable
Box Construction Double-layer metal framework; flame-retardant insulation; anti-static interior
Floor Anti-static conductive rubber mat
Safety Features Gas alarm, anti-theft alarm, fire extinguishers, static grounding strap, GPS tracking
Exterior Markings Reflective tape + explosive diamond hazard signs
Hazard Class 1.1B, 1.1C, 1.1D, 1.1G, 1.3C, 1.4G, etc.
Vehicle Classification EX/Ⅲ

Cab & Performance



Parameter Specification
Cab Capacity 2 – 3 persons
Air Conditioning Standard
Max Speed 80 km/h (governed)
