The minimum order quantity is 1 unit. Volume discounts available for 5+ units.

Which emission standards do you support?

Euro II through Euro VI. We configure to match your country requirements.

What is the warranty period?

Standard 12-month or 30,000 km warranty covering upper structure. Extended packages available.

Can you customize for special requirements?

Yes. Full customization including chassis, LHD/RHD, paint colors, logos, and OEM/ODM.

What is the delivery time?

Standard: 15-25 working days. Custom: 30-45 working days. Popular models in stock.

Which shipping methods?

Sea freight, rail, road transport. FOB, CIF, CFR, DDP terms available.

Remote technical guidance, video troubleshooting, complete spare parts supply chain.

Compatible chassis brands?

Sinotruk HOWO, Shacman, Dongfeng, FAW, Foton, ISUZU, Mercedes-Benz.

How to get a quotation?

Contact via website form or email. Specify product type, configuration, chassis preference, destination country.

ISO 9001, CE, CCC, EAC certified. High-tech enterprise with invention patents.

GLOBAL SPECIAL VEHICLE LEADER

Professional Special Vehicle Exporter

Name: 4.5T EV Compression Garbage Truck
Brand: Shenbai
SKU: 4-5t-ev-compression-garbage-truck
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

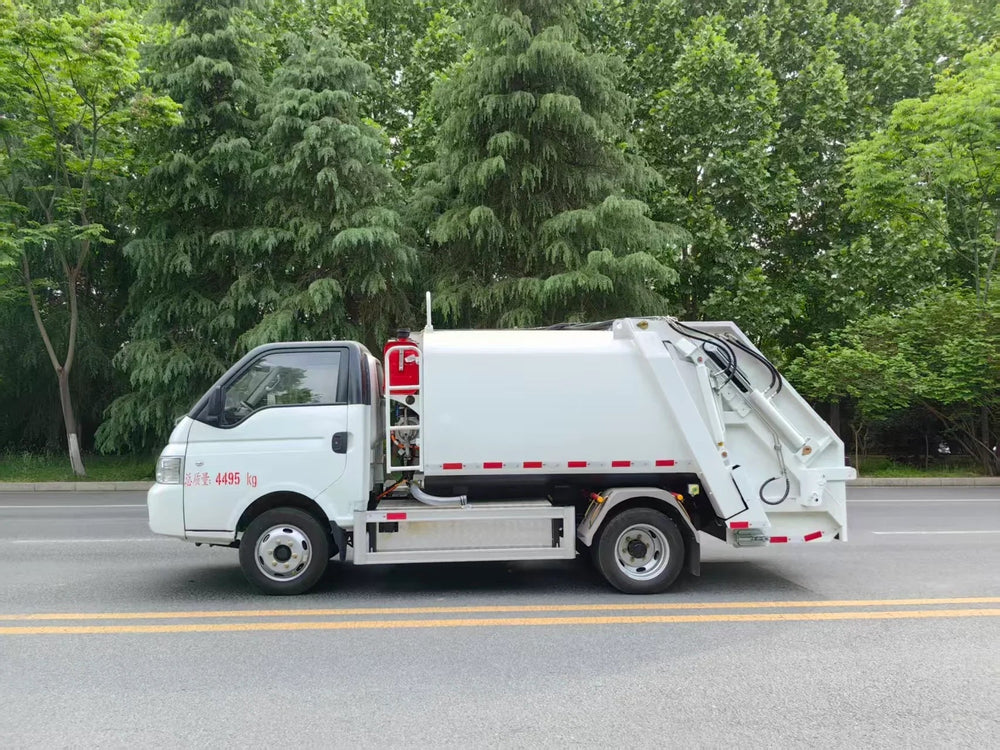

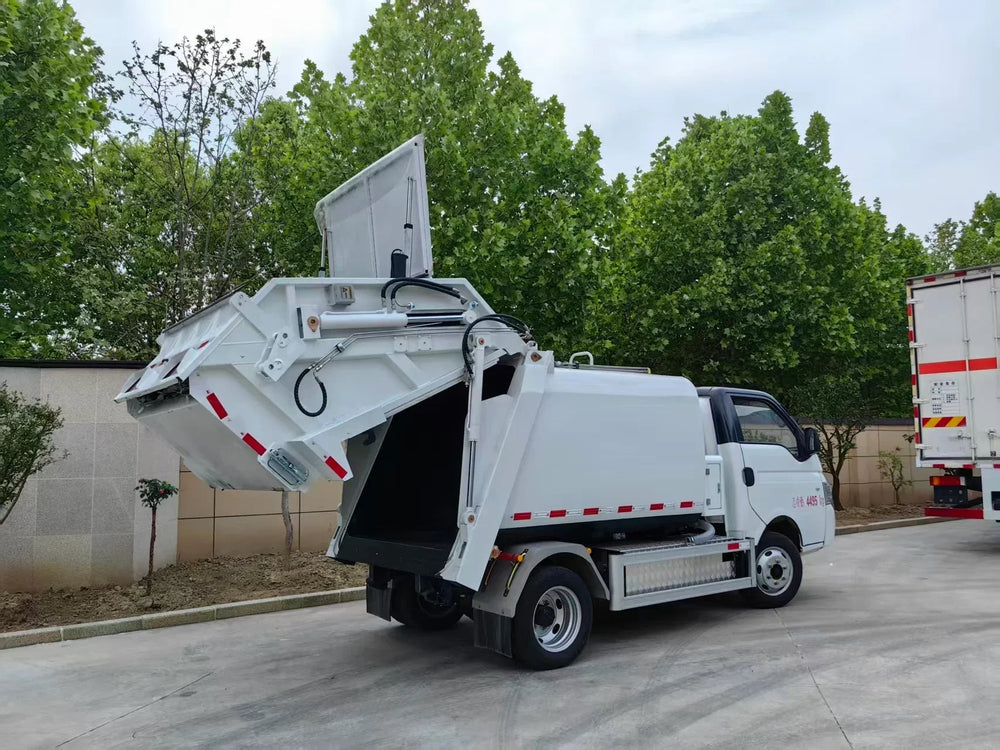

4.5T EV Compression Garbage Truck

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Parameter	Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model	CL5042ZYSBEV Battery Electric Compression Garbage Truck
Gross Vehicle Weight (GVW)	4495 kg
Curb Weight	3960 kg / 4050 kg
Payload Capacity	405 kg / 315 kg
Rated Passenger Capacity	2 persons
Cab Model	Kaima
Overall Dimensions (L×W×H)	5800×2020×2250mm (without armrest) / 5800×2020×2430mm (with armrest)
Wheelbase	2800 mm
Front / Rear Overhang	1210 / 1790 mm
Approach / Departure Angle	21° / 12°
Front / Rear Track Width	1430 / 1500 mm
Minimum Ground Clearance	185 mm
Minimum Turning Diameter	13 m
Tire Specification	195/75R16LT 10PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer	Shenbai Automobile Group Co., Ltd.
Chassis Model	CL1041JBEV
Drive Configuration	4×2
Battery Type	Lithium Iron Phosphate (LFP)
Battery Manufacturer	Gotion High-tech
Battery Capacity	57.6 kWh
Nominal Voltage / Capacity	384V / 150Ah
Battery System Energy Density	140.3 Wh/kg
Drive Motor Manufacturer	Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model	TZ210XSZ03
Rated / Peak Power	55 / 110 kW
Rated / Peak Torque	150 / 318 Nm
Rated / Peak Speed	3500 / 12000 rpm
Maximum Speed	90 km/h
Driving Range	265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded)	25%
Fast Charging Time (30%-80% SOC)	0.5h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Garbage Bin Maximum Volume	4.5 m³
Bin Lifting Capacity	300 kg
Actual Loading Capacity	3 t
Hydraulic System Maximum Pressure	18 MPa
Compatible Standard Garbage Bins	120L single bin / 120L double bins / 240L single bin / 240L double bins (660L bin lifting mechanism optional)
Compression Cycle Time	26±3 s
Loading Cycle Time	10±3 s
Unloading Cycle Time	45±2 s
