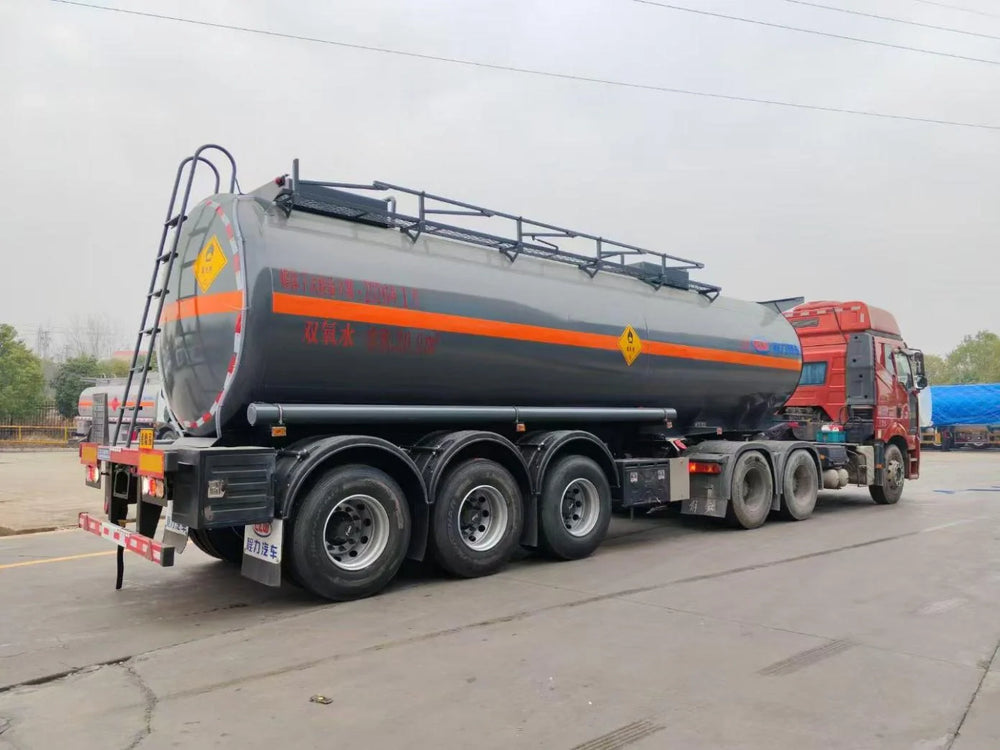

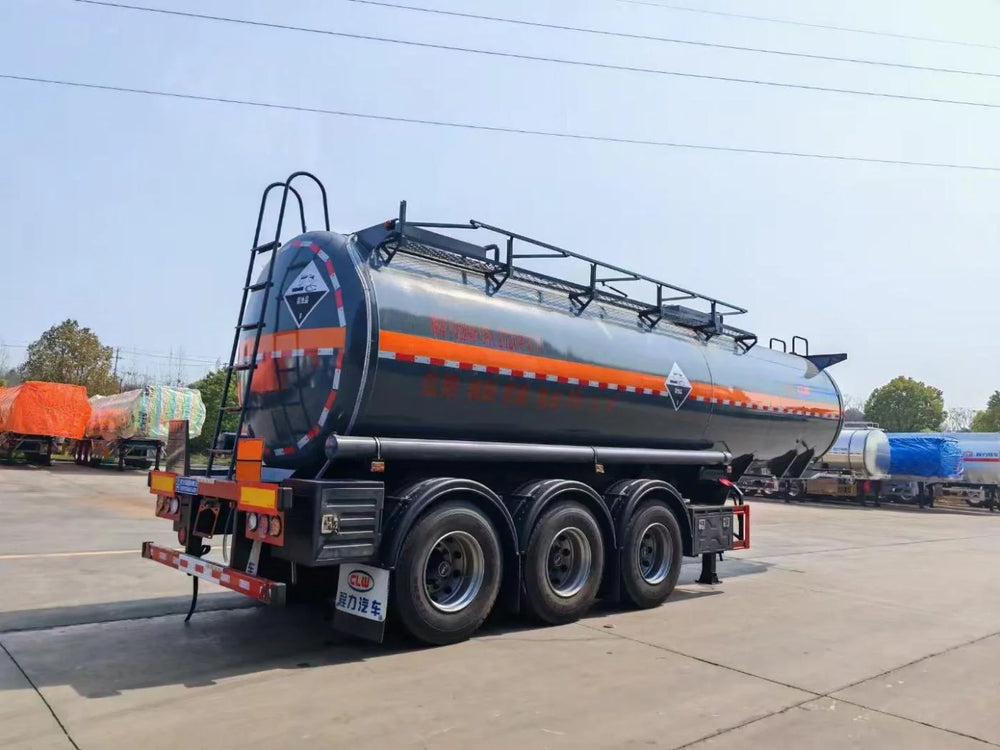

30-40 cubic chemical liquid transport truck

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Maximize your liquid transport efficiency with the Shenbai AUTO Aluminum Alloy Tanker Semi-Trailer, featuring an impressive 30-40 m³ capacity – the ideal solution for large-volume chemical and fuel transportation. This high-capacity semi-trailer combines exceptional payload capacity (34,000 kg) with lightweight aluminum construction, ensuring optimal fuel efficiency and reduced operating costs. Built with a robust 3-axle design and compliant with international standards, it delivers superior performance for long-haul operations. Discover how our tanker can enhance your logistics fleet – contact us today for a detailed quotation and technical specifications!

30–40 Cubic Meter Chemical Liquid Transport Truck – Key Specifications

Parameter	Specification
Vehicle Type	Chemical Liquid Tanker / Flammable Liquid Transport Vehicle
Chassis Options	SINOTRUK HOWO, SHACMAN X3000, Dongfeng Tianlong, FAW Jiefang
Drive Configuration	8×4 / 6×4

Dimensions & Weight

Parameter	Specification
Overall Dimensions (L×W×H)	10,500 – 12,500 × 2,500 × 3,550 – 3,980 mm
Wheelbase	4,600+1,350+1,350 mm / 1,800+4,575+1,400 mm (varies)
GVWR (Total Mass)	31,000 – 40,000 kg
Curb Weight (Kerb Mass)	8,300 – 12,000 kg
Payload Capacity (Rated Load)	16,800 – 28,000 kg

Engine & Drivetrain

Parameter	Specification
Engine Options	WEICHAI, CUMMINS, MAN
Max Horsepower	340 – 430 HP
Emission Standard	Euro II – VI (configurable)
Transmission	9-speed / 10-speed / 12-speed manual
Fuel Type	Diesel

Chassis & Axles

Parameter	Specification
Axles	3 – 4
Front Axle	7.5T HD
Rear Axle	13T – 16T
Tire Specification	12R22.5 / 13R22.5
Tire Count	12 + 1 spare
Suspension	Leaf spring / Air suspension (optional)
Brake System	Dual-line ABS / EBS, WABCO relay valve

Tank & Safety Equipment

Parameter	Specification
Effective Tank Volume	30 – 40 m³ (30,000 – 40,000L)
Tank Material	Carbon steel (Q235/Q345) / Stainless steel / Aluminum alloy
Tank Wall Thickness	4 – 8 mm
Compartments	1 – 5 compartments (customizable)
Transport Media	Chemicals, acids, alkalis, gasoline, diesel, methanol, ethanol
Hazard Class	Class 3 (Flammable Liquid) / FL-type
Safety Features	Speed limiter (80 km/h), GPS tracking, front exhaust pipe, anti-static grounding strap, emergency shut-off valve, anti-wave baffles, explosion-proof manhole covers
Exterior Markings	Reflective tape + hazard diamond signs
