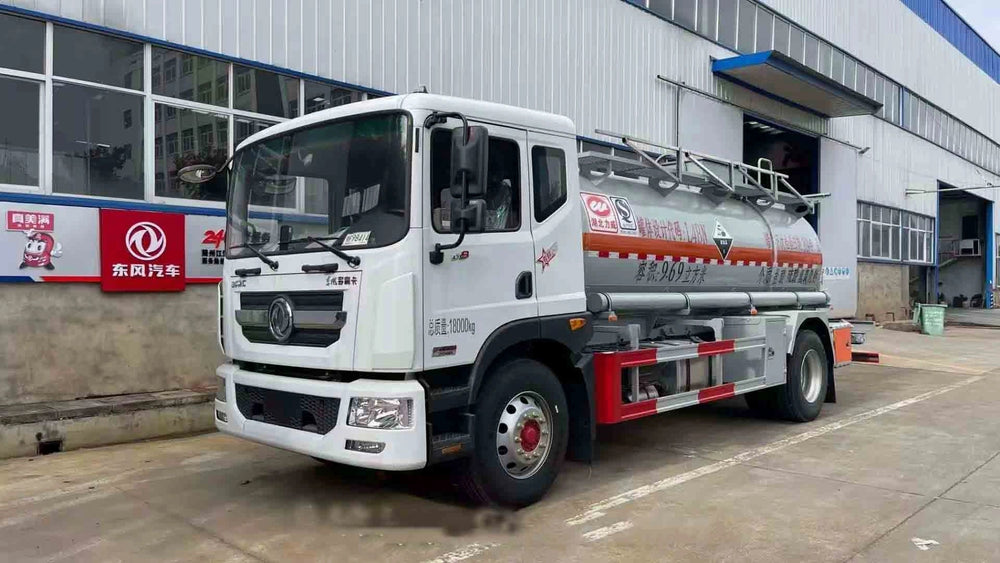

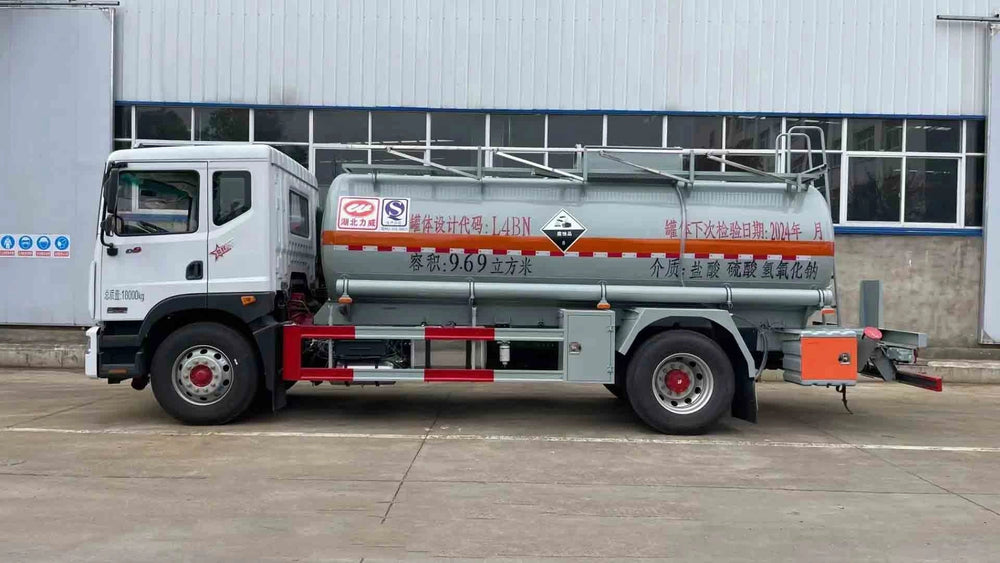

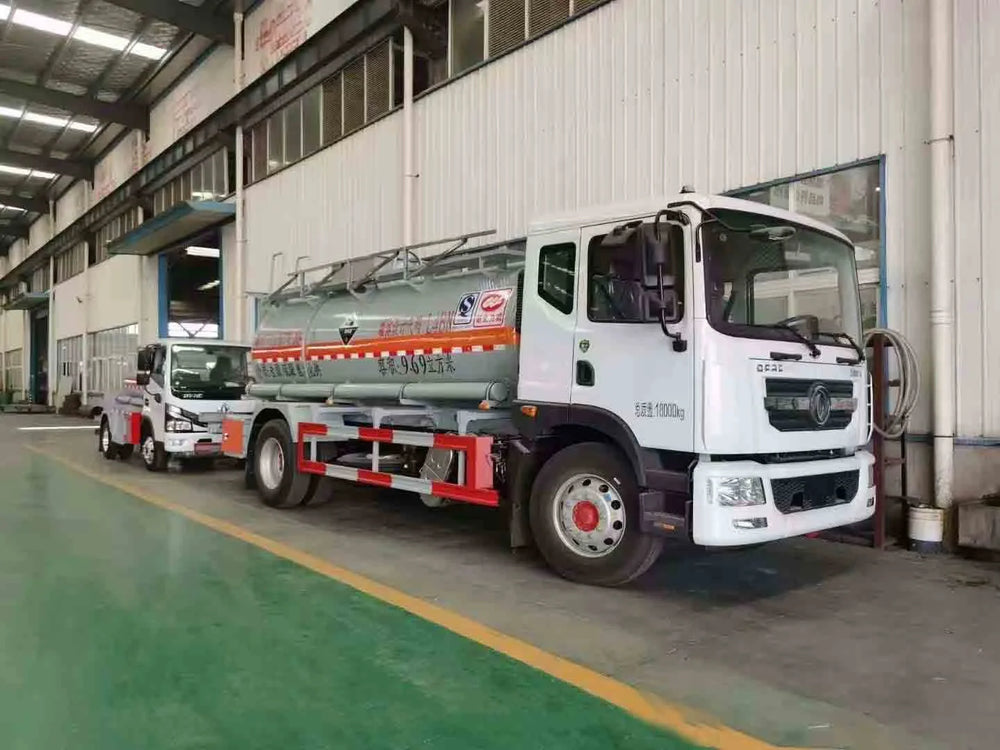

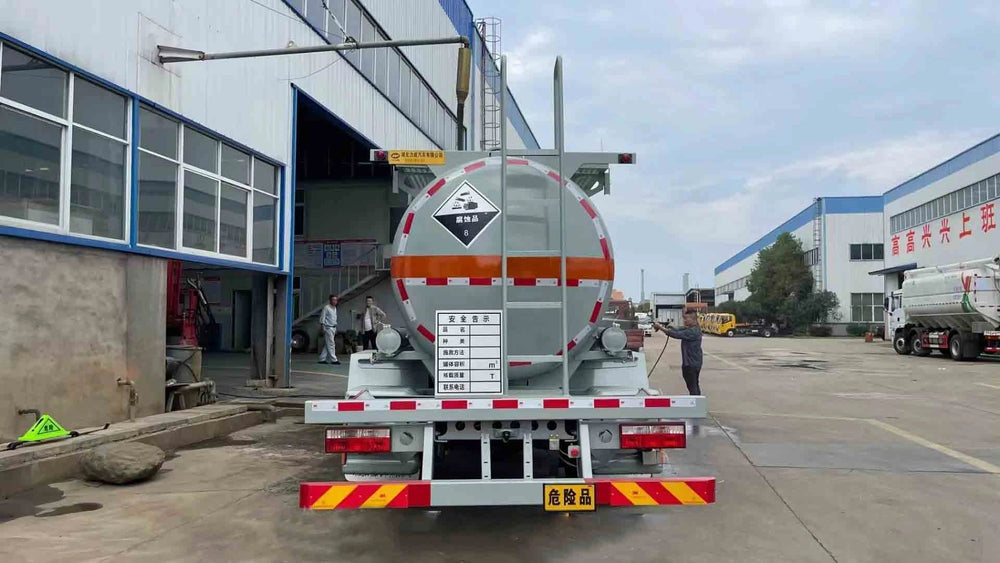

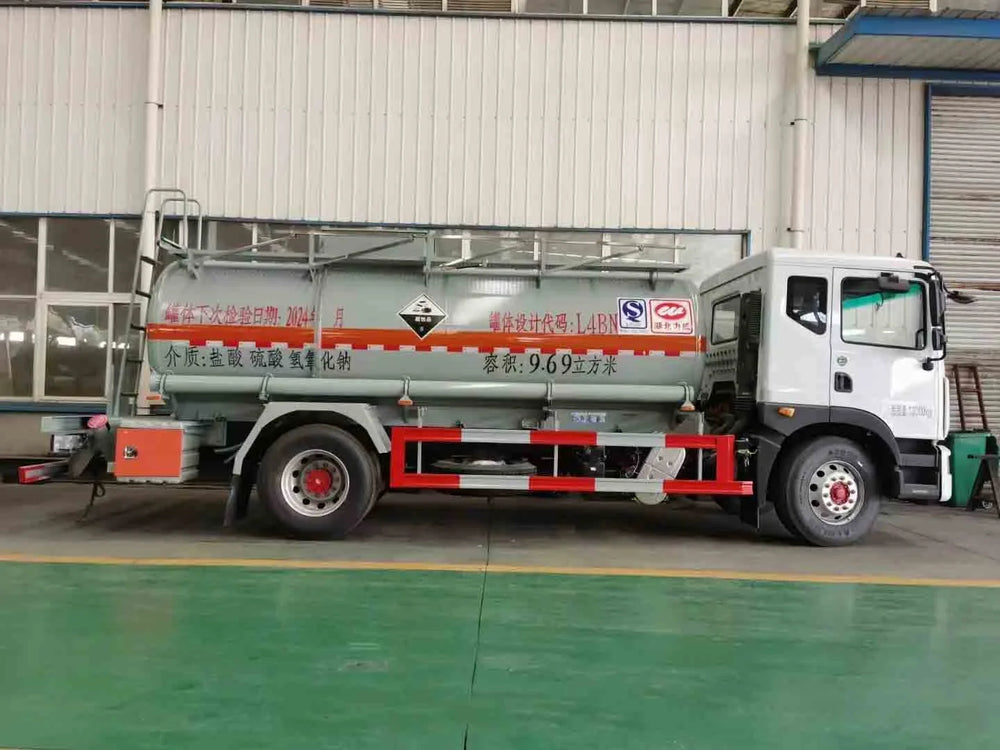

10 cubic chemical liquid transport truck

10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
1 / 5
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck
10 cubic chemical liquid transport truck

10 Cubic Meter Chemical Liquid Transport Truck – Key Specifications



Parameter Specification
Vehicle Type Chemical Liquid Tanker / Flammable Liquid Transport Vehicle
Chassis Options Dongfeng, FAW, SINOTRUK HOWO
Drive Configuration 4×2 / 6×2
Emission Standard Euro II – VI (varies by model)

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) 7,040 – 9,650 × 2,400 – 2,550 × 3,000 – 3,350 mm
Wheelbase 3,800 – 5,000 mm
GVWR (Total Mass) 11,990 – 25,000 kg
Curb Weight (Kerb Mass) 5,735 – 9,890 kg
Payload Capacity (Rated Load) 6,060 – 8,000 kg

Engine & Drivetrain



Parameter Specification
Engine Options Yuchai YCY30165-60 / FAW CA6DF3-22E3F
Max Horsepower 165 – 224 HP
Displacement 2.97 – 7.12 L
Transmission 7-speed / 8-speed manual
Fuel Type Diesel

Chassis & Axles



Parameter Specification
Axles 2 – 3
Front Track 1,600 – 1,940 mm
Rear Track 1,586 – 1,860 mm
Tire Specification 245/70R19.5 / 10.00R20
Tire Count 6 – 8
Brake System Front disc brakes, ABS
Suspension Leaf springs (8/10+7, etc.)

Tank & Safety Equipment



Parameter Specification
Effective Tank Volume 10 m³
Tank Dimensions (L×长轴×短轴) 4,700 × 2,050 × 1,450 mm
Tank Material Carbon steel (Q235) / Stainless steel
Transport Media Chemicals, sulfuric acid, diesel, gasoline, liquid paraffin
Safety Features Speed limiter (80 km/h), GPS tracking, front exhaust pipe, anti-static grounding strap, fire extinguishers, anti-overflow probe
Exterior Markings Reflective tape + hazard diamond signs

Cab & Performance



Parameter Specification
Cab Capacity 2 – 3 persons
Air Conditioning Optional / Standard
Max Speed 80 km/h (governed)
Approach/Departure Angle 15 – 22° / 17 – 20°
