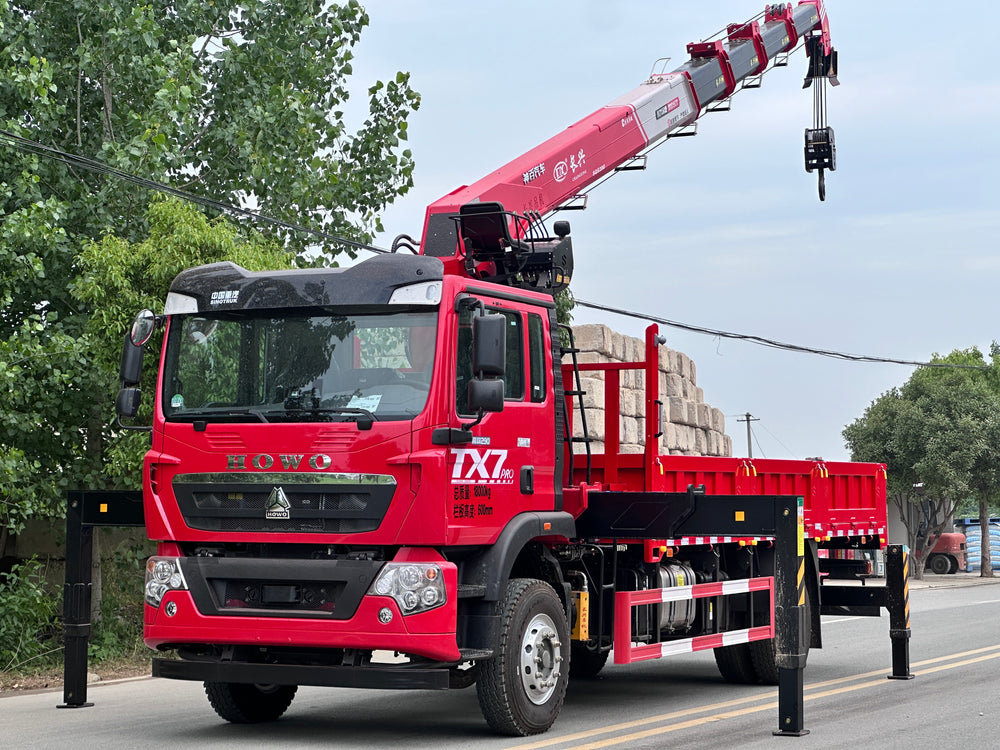

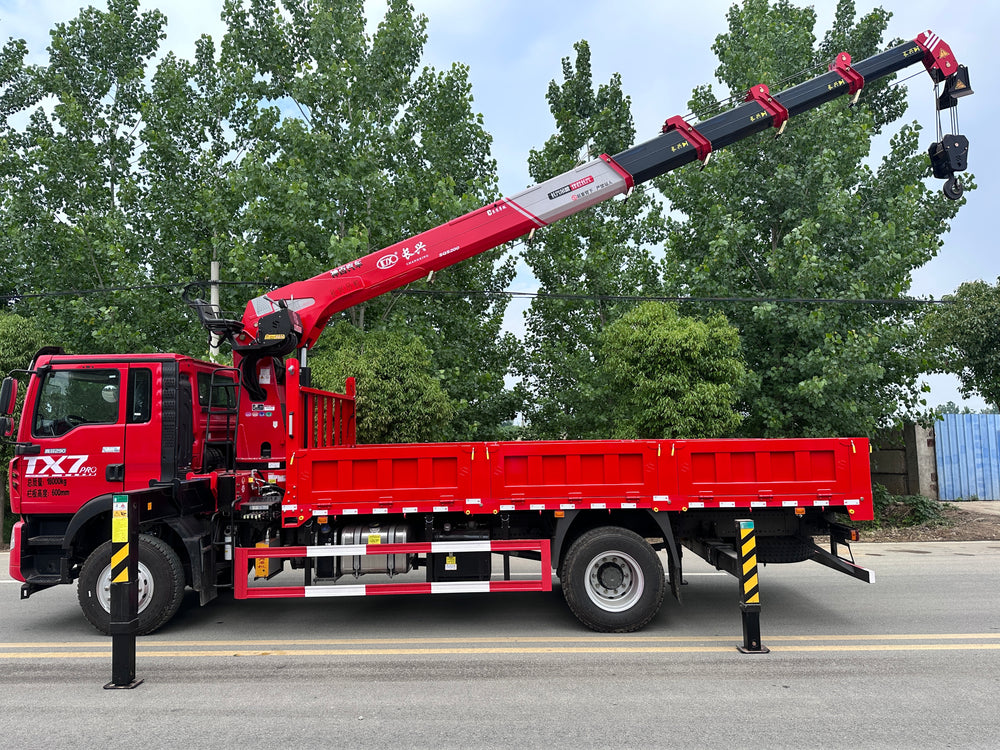

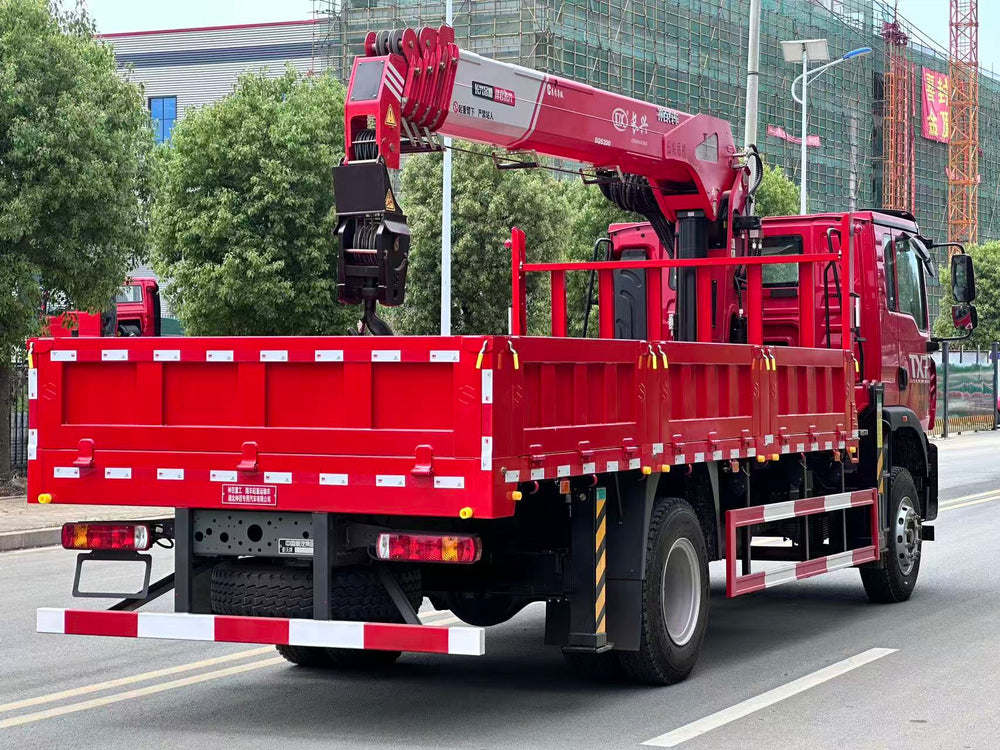

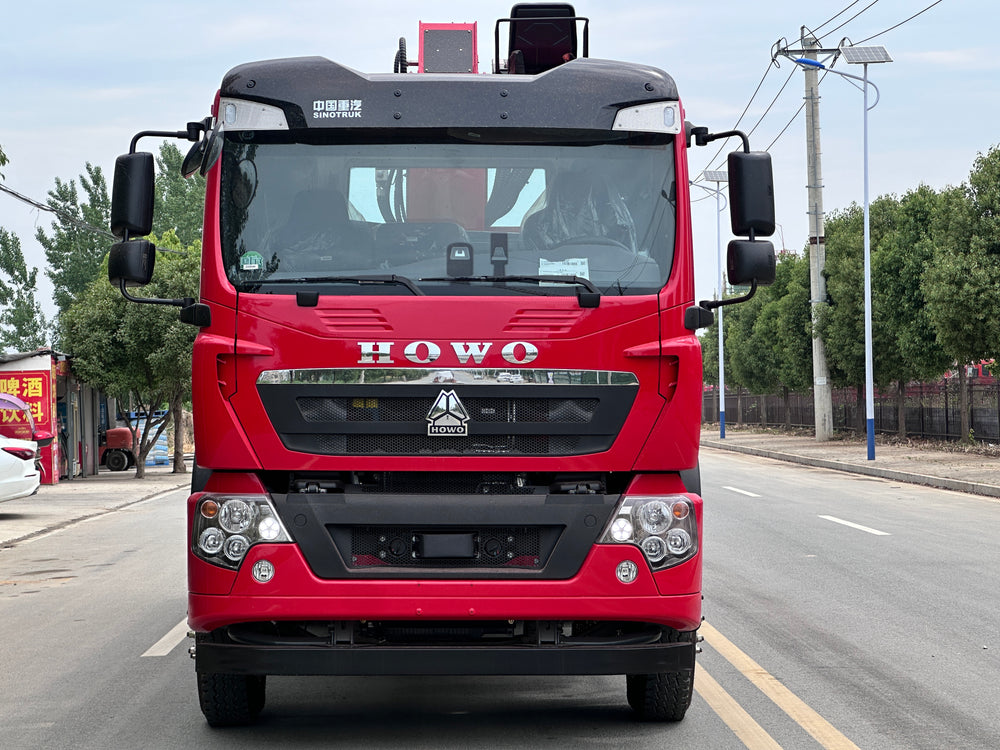

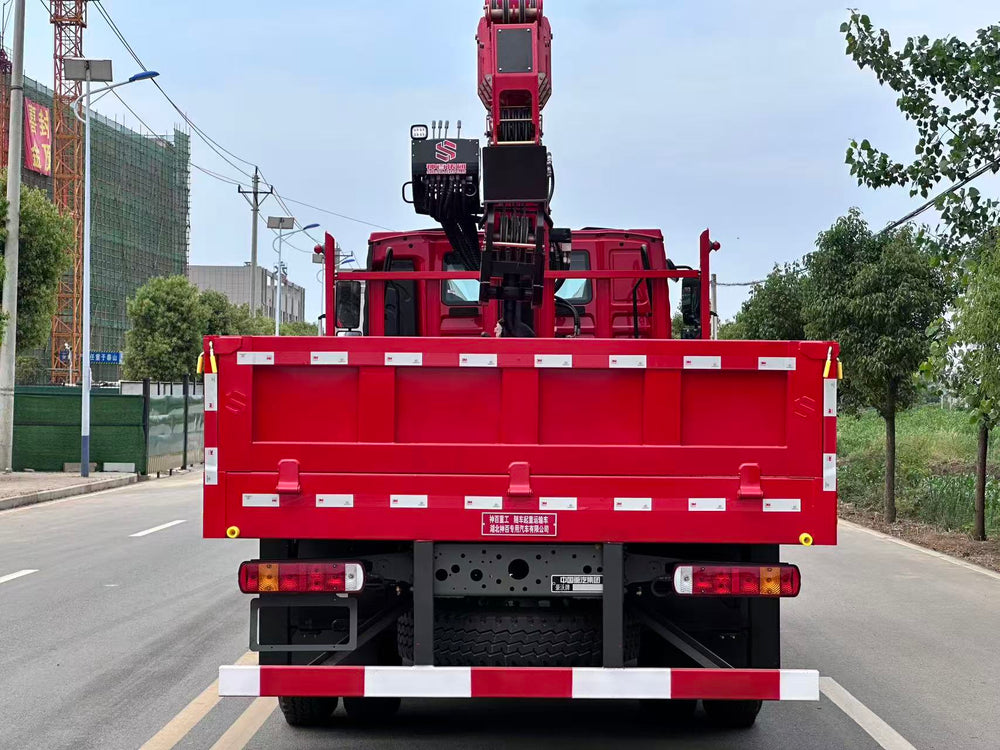

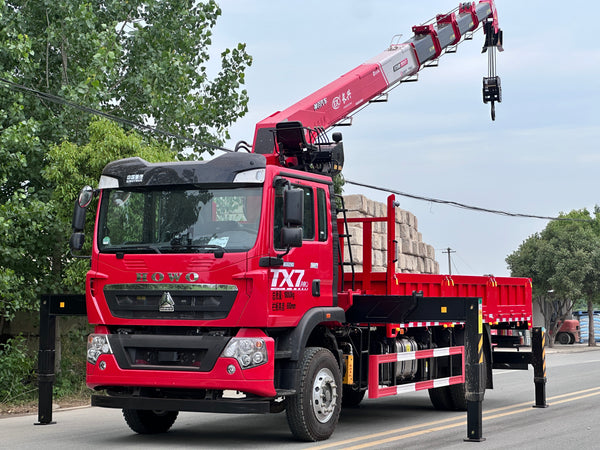

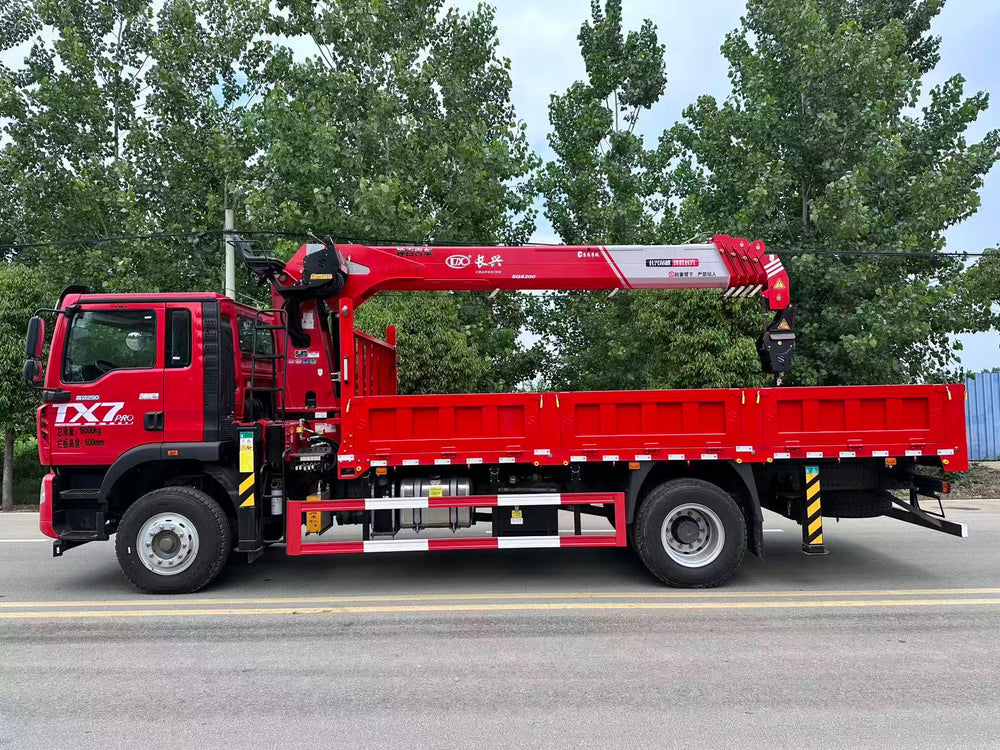

SINOTRUK HOWO 4x2 TX7 with Changxing 8-ton Truck-mounted Crane

1 / 6

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Parameters
Complete Vehicle Announcement No.	ABC5180JSQZZ6
Chassis Announcement No.	ZZ1187K501GF1
Chassis Model	SINOTRUK HOWO TX-D (Short Sleeper Cabin)
Engine Model & Parameter	MC07.29-61 MAN Engine, 290 HP, Displacement: 6.87 L
Wheelbase	5000 mm
Rear Axle Ratio	5.29
Transmission & PTO	HW12712STC 12-speed Transmission with synchronizer + HW45ZC Flange Type PTO Alternative: HW95508STC2 Transmission
Front & Rear Axle	Reinforced HOWO Engineering Axles (7t Front /13t Rear) with Differential Lock
Frame	Three-layer Integral Frame (8+4+4 mm), Frame Height: 300 mm
Leaf Spring	Front:11 pieces; Rear:9+8 pieces, Standard Multi-leaf Spring
Tyre	10.00R20 Mixed Pattern Tyre, 18PR
Max Speed	89 km/h
Intake System	Highway Version Air Intake System
Brake System	ABS (4S/4M)
Bumper	Full-metal Middle-position Bumper
Cabin Equipment	Original MAN Cabin, Four-point Suspension, Crash Energy Absorption Structure Spring Shock Absorber for Cabin Front & Rear Multi-function Steering Wheel Electric Adjustable & Heated Rearview Mirror Main Airbag Suspension Seat + Auxiliary Basic Seat, Middle Cabin Seat 10.1-inch Full HD LCD Central Control Screen (MP5) Mechanical Main Power Switch
Other Chassis Accessories	200L Aluminum Fuel Tank, Cable Control PTO SINOTRUK Intelligent Connect Version D 120AH Storage Battery
Crane Superstructure	Changxing 8-ton 5-section Boom Crane
Crane Parameters	Boom Length:17.9 m, Upper Control, Single Slew Telescopic Dual Outriggers, Integrated Subframe, Equipped with Hydraulic Radiator
Cargo Box	5.9 m Engineering Cargo Box, Side 3mm / Floor 5mm
Core Advantages	Integrated matching of engine, transmission and axle for excellent vehicle compatibility; Aviation-style air suspension driver seat with multi-direction adjustment and lumbar support; Engineering leaf spring & four U-bolts, outstanding torsion resistance under rough road conditions; 13-ton heavy-duty rear axle provides strong torque for tough working conditions
