JAC Kangling 3.8m Light-duty Box Van

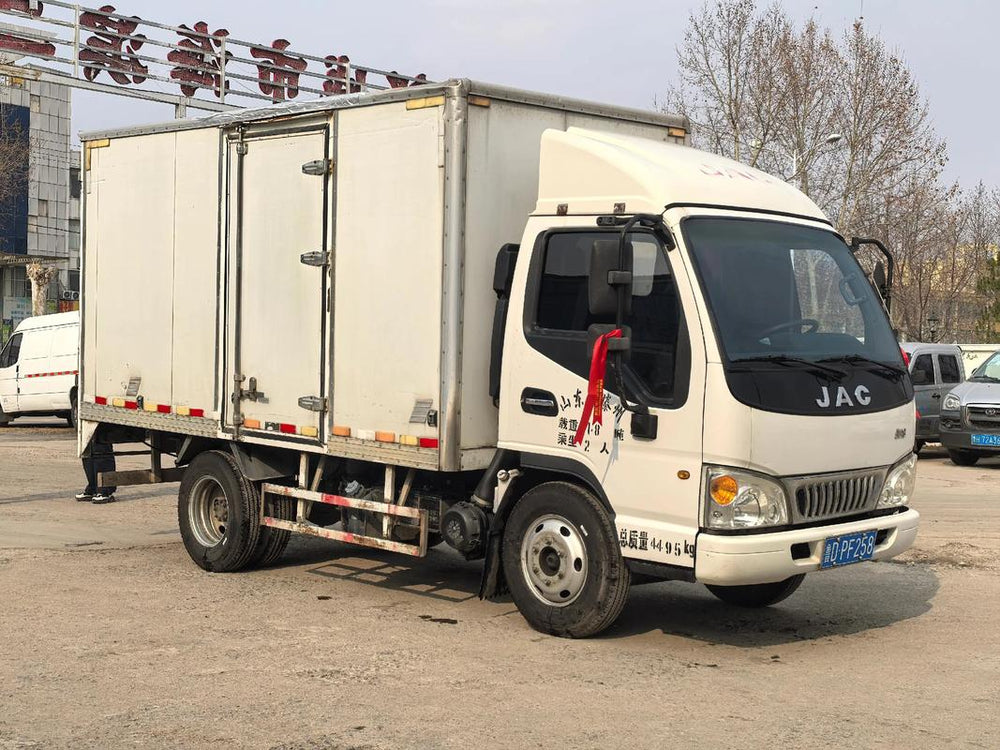

JAC Junling H Box Truck - Rear Side View

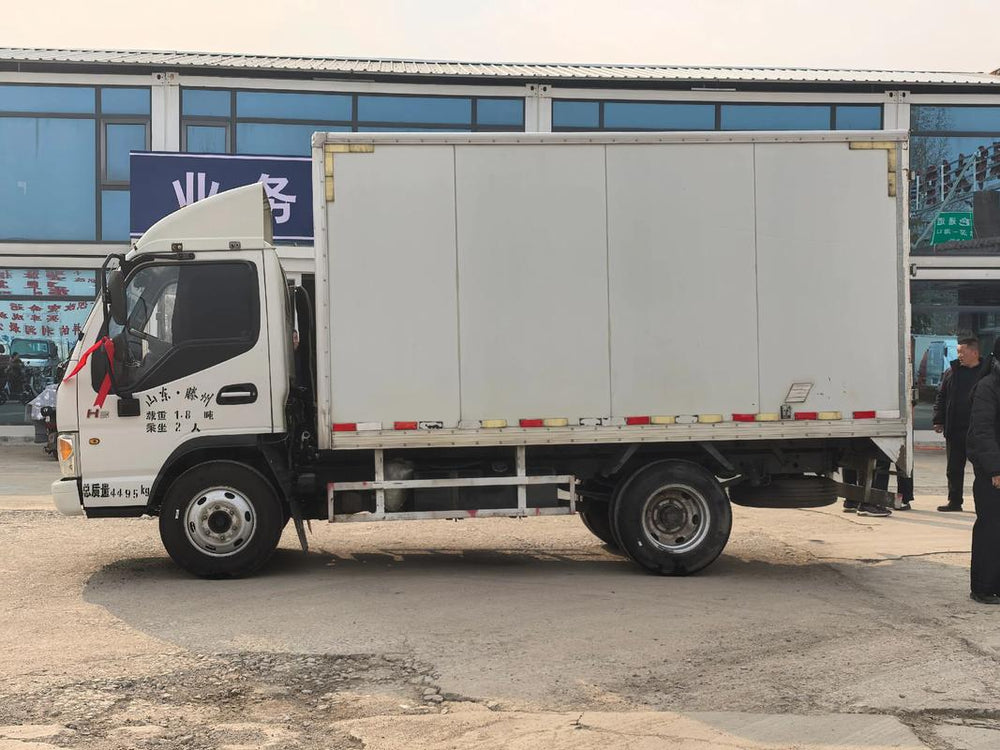

JAC Junling H Box Truck - Full Side View

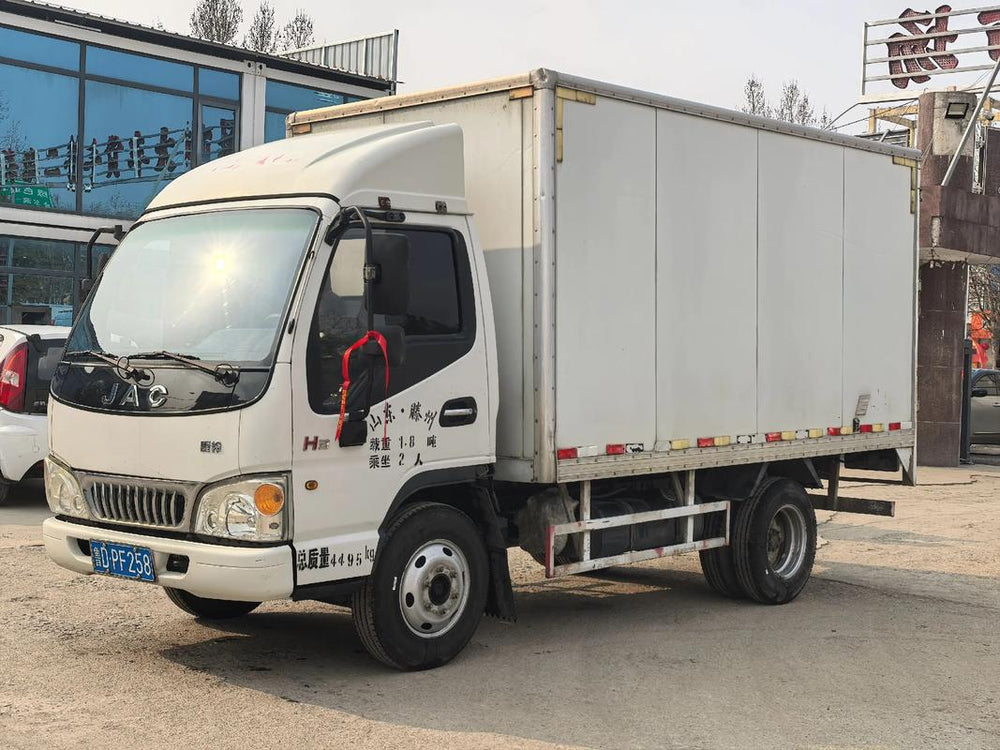

JAC Junling H Box Truck - Front Quarter View

1 / 4

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Category	Item	Specification	Remarks
Basic Vehicle Information	Brand & Model	JAC Kangling 3.8m Light-duty Box Van	JAC's classic light-duty delivery van
	Drive Form	4×2 (1 front steering axle, 1 rear drive axle)	Standard two-axle light truck configuration
	Overall Dimensions	5995×2000×2200mm	Length×Width×Height
	Cargo Box Inner Dimensions	3800×1900×1900mm	Standard 3.8m cargo compartment
	Wheelbase	3360mm	Matches 3.8m cargo box design
	Gross Vehicle Weight	4495kg	Legal blue light truck weight limit
	Rated Payload	1800kg	As marked on the vehicle body
	Seating Capacity	2 persons	Single row cab, 2 seats
	Vehicle Type	Fully enclosed box van	For urban logistics, express delivery, goods transportation
	Emission Standard	China V / China VI optional	Meets national emission regulations
Engine & Powertrain Parameters	Engine Model	JAC HFC4DB2-1D / Yunnei D20TCIF	Optional diesel engine
	Fuel Type	Diesel	Light-duty truck standard fuel
	Cylinder Number	4 cylinders, inline layout	Stable power output
	Maximum Output Power	95kW (130HP)	Matched for light load delivery
	Maximum Torque	320N·m	Low-speed torque for urban driving
	Displacement	2.0L	Fuel-efficient for daily operation
	Transmission	5-speed manual synchronized transmission	Smooth shifting, easy to operate
	Clutch	Diaphragm spring dry clutch	Durable for frequent start-stop driving
Chassis Configuration	Chassis Brand	JAC Light-duty Truck Special Chassis	Factory original chassis
	Front Axle	2-ton rated load capacity	Standard light-duty front axle
	Rear Axle	3.5-ton rated load capacity	Enhanced load capacity for full load transportation
	Tire Specification	7.00R16 steel radial tires, 6 units total	Wear-resistant, long service life
	Brake System	Dual-circuit hydraulic brake with ABS + EBD	Safe braking for full load
	Steering System	Hydraulic power steering	Light & flexible operation
	Fuel Tank Capacity	80L	Large capacity for long-distance continuous operation
	Suspension System	Front leaf spring independent suspension, rear leaf spring non-independent suspension	Comfortable ride, stable load bearing
Cargo Box Superstructure	Box Material	High-quality galvanized steel plate	Anti-rust, impact-resistant, long service life
	Box Structure	Fully enclosed sealed cargo compartment, rear double swing doors	Dustproof, rainproof, protect goods from damage
	Box Volume	Approximately 13.7m³	Large space for cargo loading
	Auxiliary Fittings	Red-white reflective strips around the box, side anti-collision guardrails, top wind deflector	Meet road traffic safety standards, reduce wind resistance
	Optional Customization	Left/right side sliding door or swing door	For easy side loading and unloading
Standard Cab Interior & Safety Configuration	Cab Type	Single row cab, 2 seats	Large space, wide vision
	Standard Interior	Factory installed air conditioning, power windows, central door lock, adjustable seats	Factory standard configuration
	Steering Wheel	Multifunctional steering wheel with horn control	Easy to operate
	Lighting System	Composite halogen headlamps, side marker lamps, rear brake & warning lights	Meet road lighting requirements
	Safety Configuration	ABS anti-lock braking system, EBD electronic brakeforce distribution, 3-point seat belts for all occupants	Standard safety configuration
Optional Upgrade & Customization Items	Cargo Box Upgrade	Stainless steel box, refrigerated insulated box, customized side door design	For cold chain, fragile goods, special cargo delivery
	Safety Upgrade	Reversing camera, tire pressure monitoring system, lane departure warning	Reduce driving blind spots, improve driving safety
	Comfort Upgrade	Leather seats, multimedia player with reverse image, cruise control	Improve long-distance driving comfort
	Export Customization	Right-hand drive (RHD) modification, overseas emission standard calibration, full set of export inspection documents	For cross-border logistics, overseas urban distribution business
