The minimum order quantity is 1 unit. Volume discounts available for 5+ units.

Which emission standards do you support?

Euro II through Euro VI. We configure to match your country requirements.

What is the warranty period?

Standard 12-month or 30,000 km warranty covering upper structure. Extended packages available.

Can you customize for special requirements?

Yes. Full customization including chassis, LHD/RHD, paint colors, logos, and OEM/ODM.

What is the delivery time?

Standard: 15-25 working days. Custom: 30-45 working days. Popular models in stock.

Which shipping methods?

Sea freight, rail, road transport. FOB, CIF, CFR, DDP terms available.

Remote technical guidance, video troubleshooting, complete spare parts supply chain.

Compatible chassis brands?

Sinotruk HOWO, Shacman, Dongfeng, FAW, Foton, ISUZU, Mercedes-Benz.

How to get a quotation?

Contact via website form or email. Specify product type, configuration, chassis preference, destination country.

ISO 9001, CE, CCC, EAC certified. High-tech enterprise with invention patents.

GLOBAL SPECIAL VEHICLE LEADER

Professional Special Vehicle Exporter

Name: HOWO 8×4, Weichai 380HP, XCMG 14-ton Truck-mounted Crane
Brand: Shenbai
SKU: howo-8-4-weichai-380hp-xcmg-14-ton-truck-mounted-crane
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

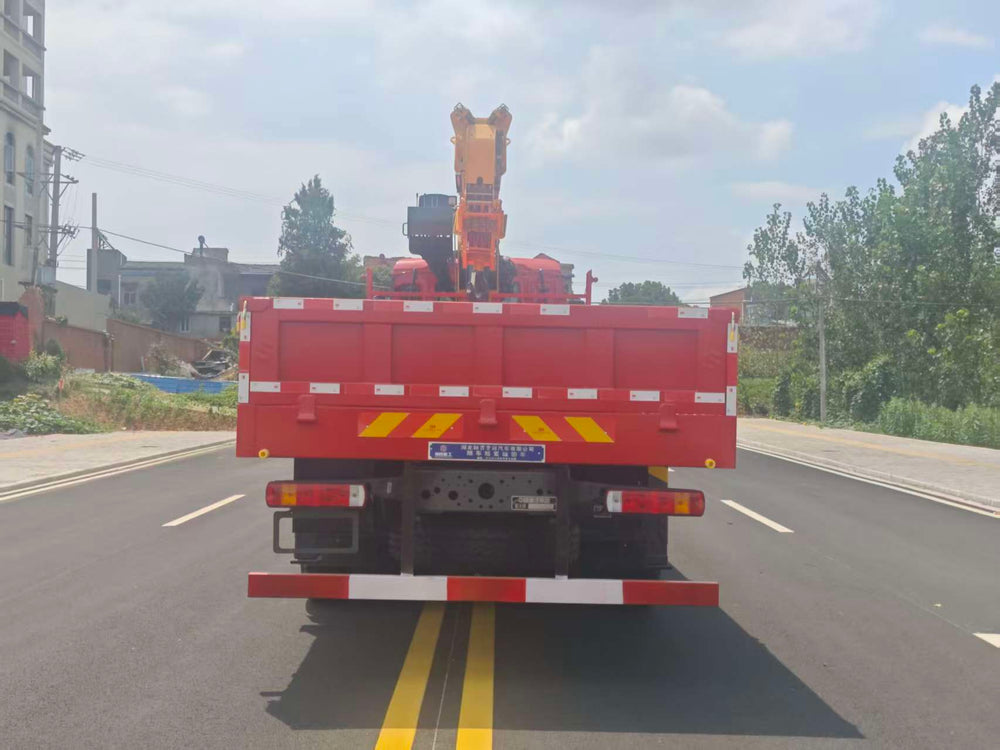

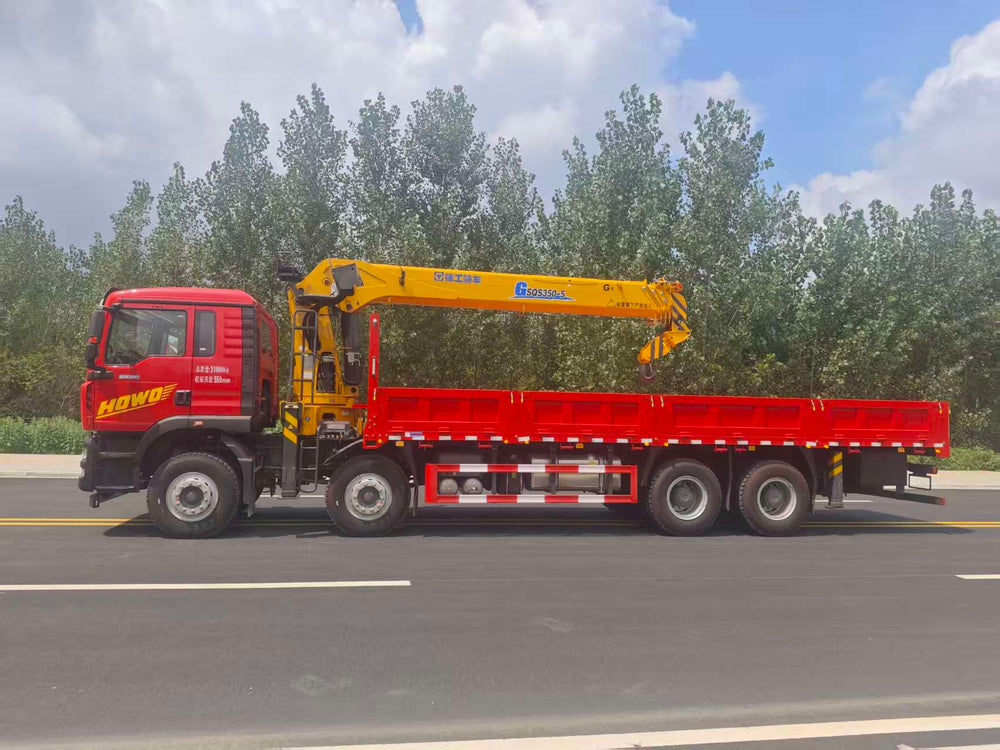

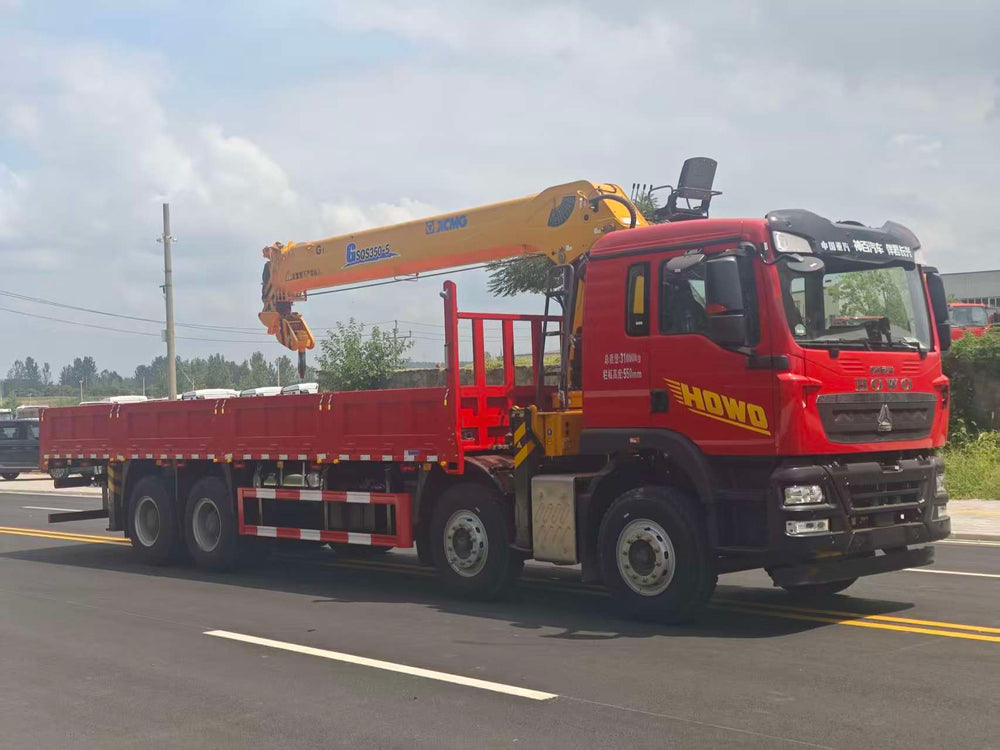

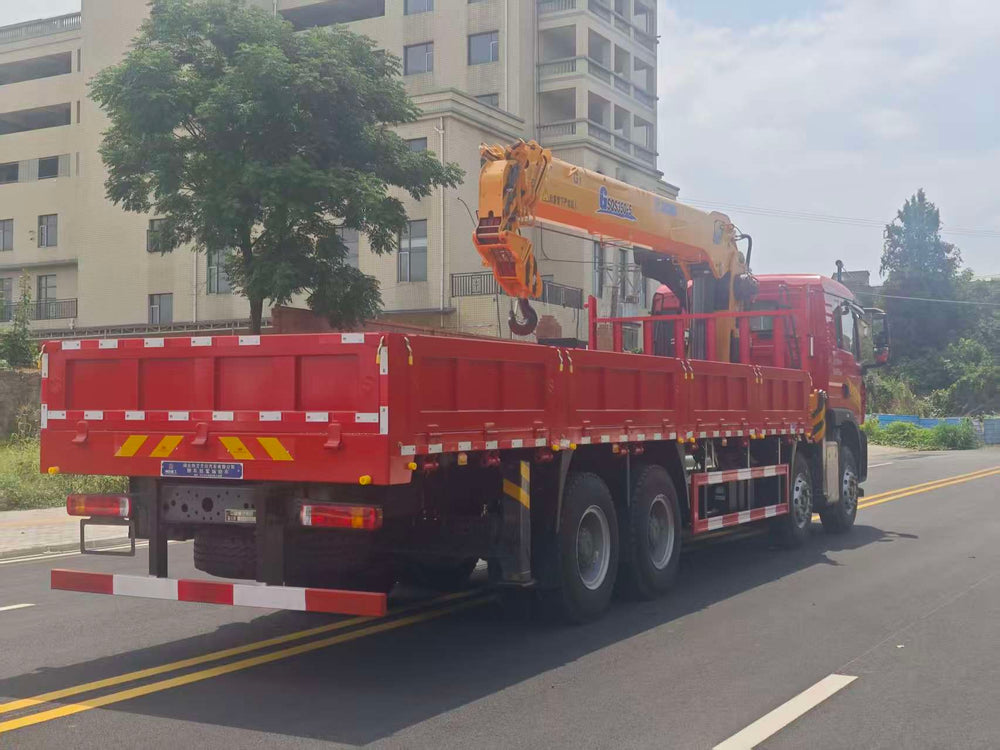

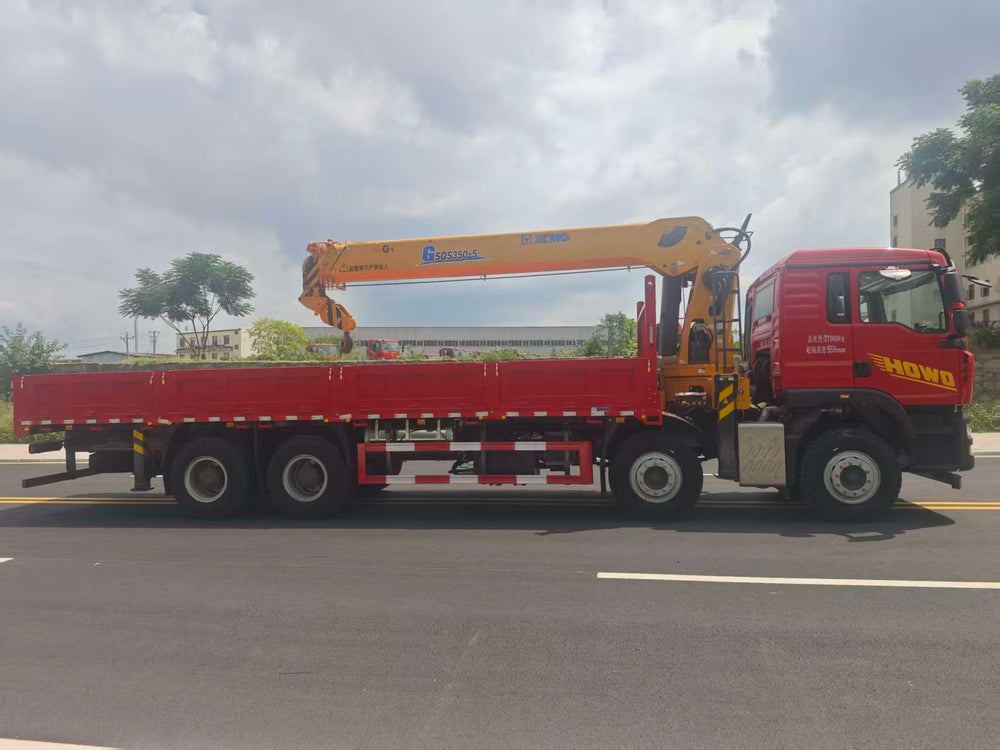

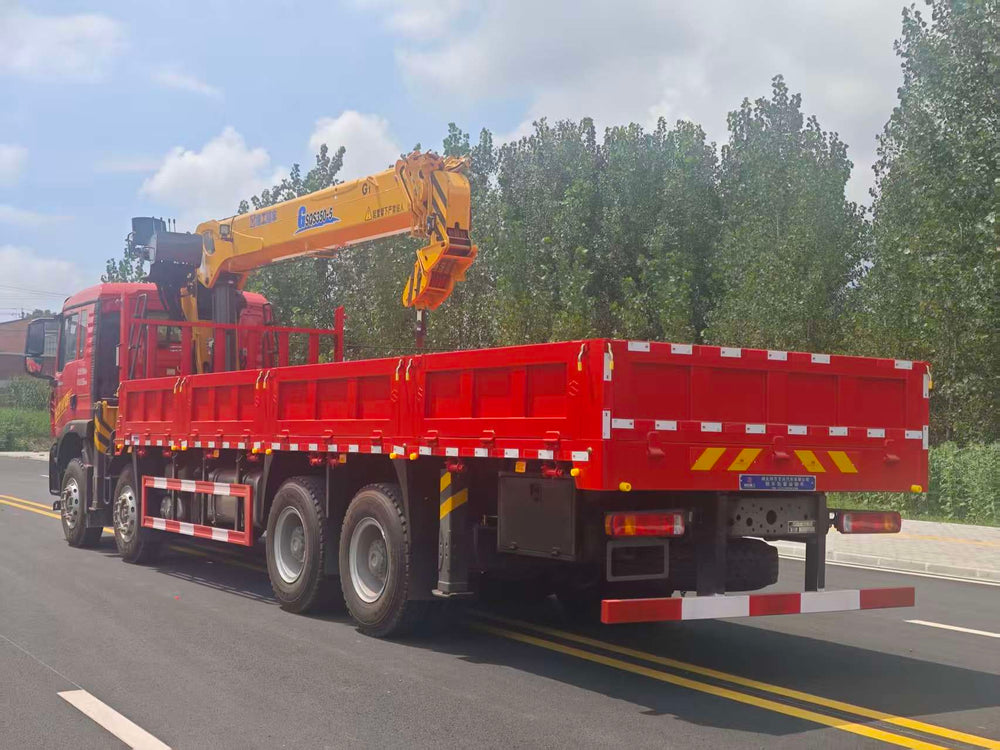

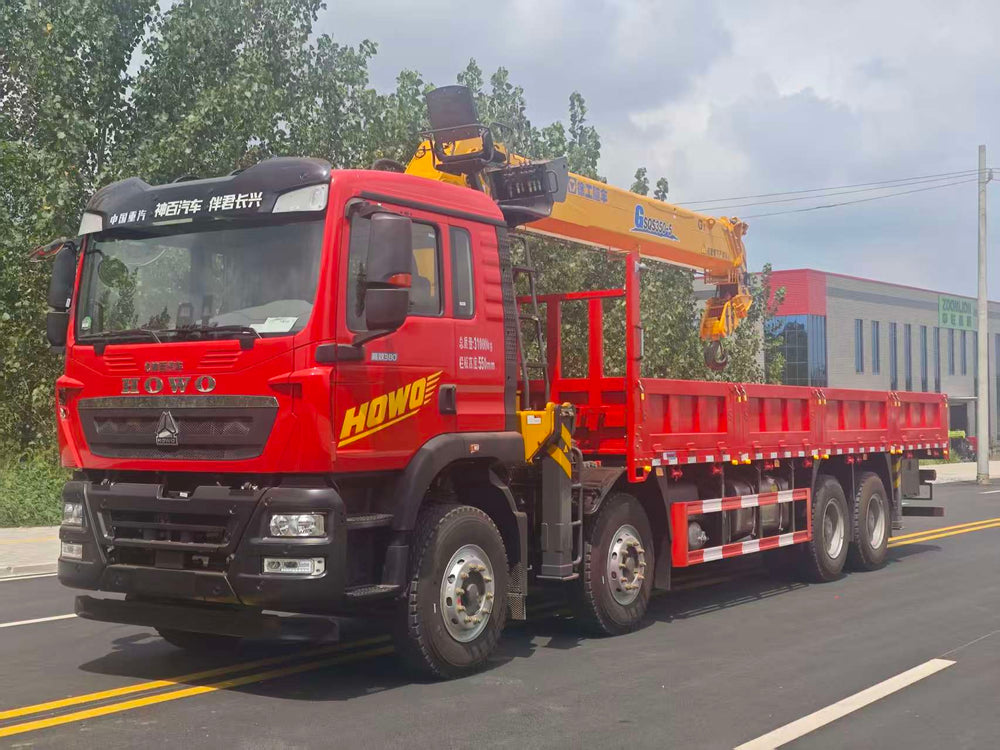

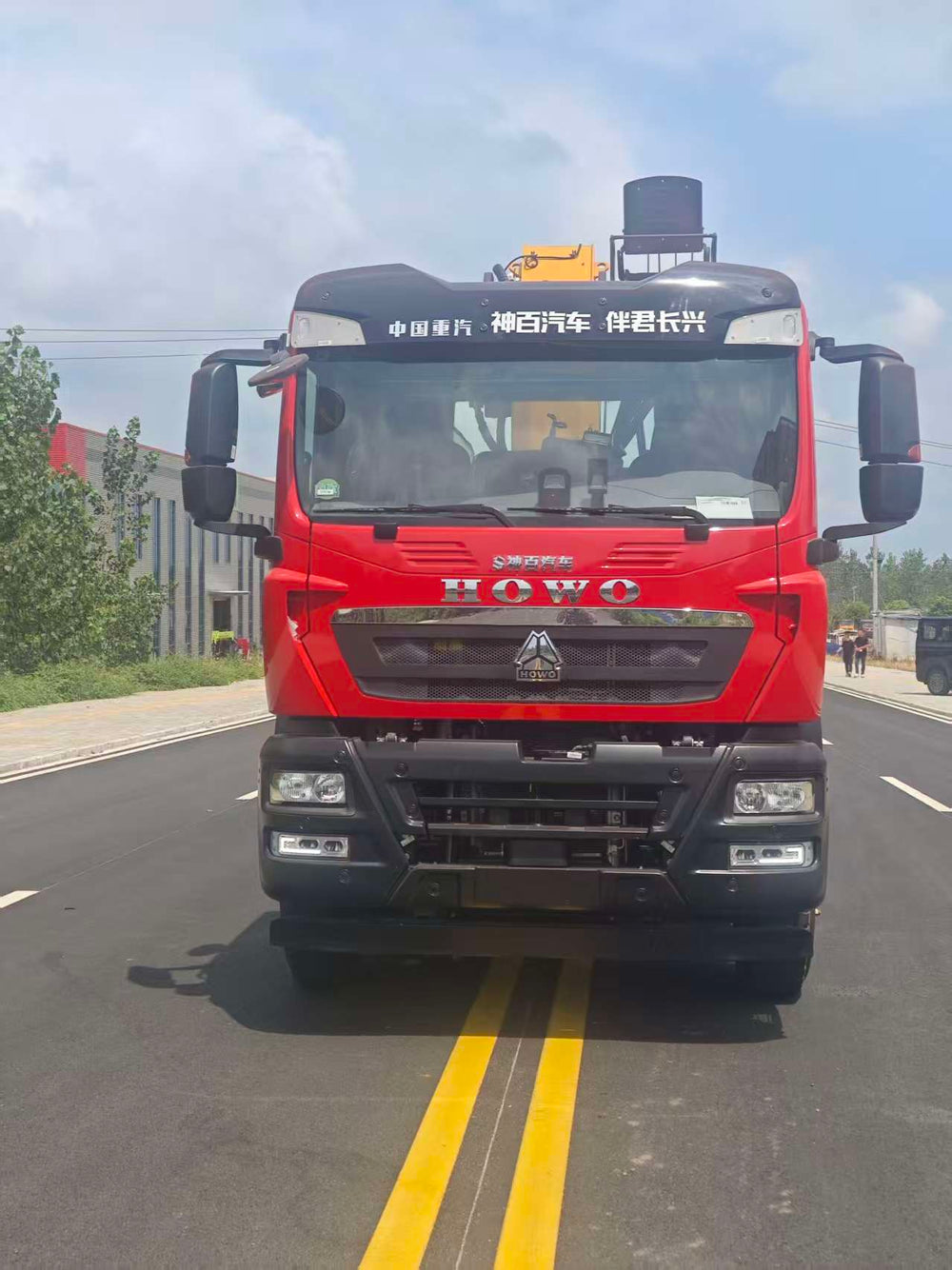

HOWO 8×4, Weichai 380HP, XCMG 14-ton Truck-mounted Crane

1 / 8

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Parameters
Complete Vehicle Announcement No.	ABC5312JSQZZ6
Chassis Announcement No.	ZZ1317N436GF1
Chassis Model	SINOTRUK HOWO TX-K (Short Sleeper Cabin, Woying Version)
Engine	WP8T380E62 Weichai Engine, 380 HP, Displacement: 8.2 L
Wheelbase	To be confirmed
Rear Axle Ratio	4.803
Transmission & PTO	HW25712XSTL 12-speed Transmission + HW70 Flange Type PTO
Front Axle	VGD75 Self-adjusting Arm Front Axle (Drum Brake)
Rear Axle	Dual MCX16ZG Self-adjusting Arm Rear Axles (Drum Brake), 16-ton Wheel Reducer Axles with 3 Differential Locks
Main Frame	Integral Three-layer Frame (8+5+8 mm), Frame Height: 318 mm
Leaf Spring	Front:11 pcs; Middle:11 pcs; Rear:12 pcs, Standard Multi-leaf Spring
Tyre	11.00R20 Mixed Pattern Tyre, 18PR
Safety System	AEBS + ABS(4S/4M) + ESC
Cabin Equipment	Original MAN Cabin with Four-point Suspension & Crash Energy Absorption Structure Multi-function Steering Wheel Electric & Heated Rearview Mirror Main Air Suspension Seat + Auxiliary Basic Seat, Middle Cabin Seat 10.1-inch Full HD LCD MP5 Screen Manual Cabin Lifting System Three-section Full-metal High-position Bumper Optional: Under-chassis Start-Stop Switch
Other Chassis Parts	400L Fuel Tank, V-type Thrust Rod, 4 U-bolts
Crane Superstructure	Sany 16-ton 5-section Boom Crane
Crane Technical Data	Boom Length: 19 m, Upper Control, 2nd Section Single Extension Dual Front Outriggers (Dual Cylinder) Original Hydraulic Radiator, Piston Pump Planetary Slew with Piston Motor, Hoist with Piston Motor
Core Advantages	Integrated matching of Weichai engine, HOWO 12-speed transmission and heavy-duty axles for outstanding vehicle compatibility; Aviation-style air suspension driver seat with multi-direction adjustment and lumbar support; Heavy-duty three-layer frame and engineering leaf springs provide excellent torsion resistance on rough terrain; Dual 16-ton wheel reduction rear axles deliver powerful torque for heavy-load and complex working conditions
