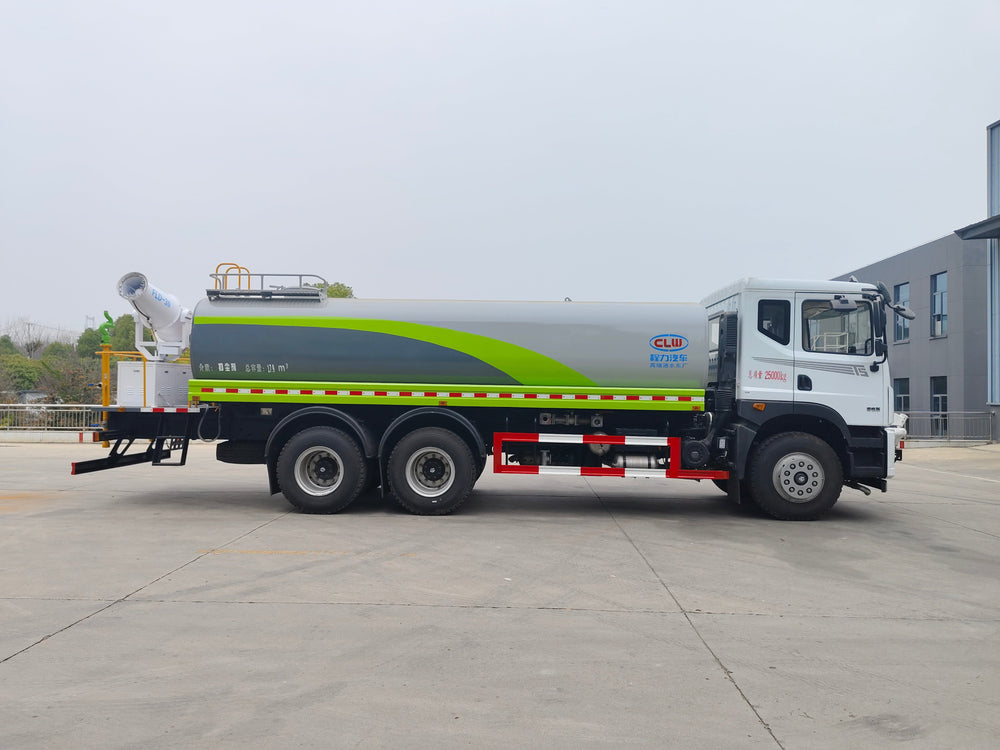

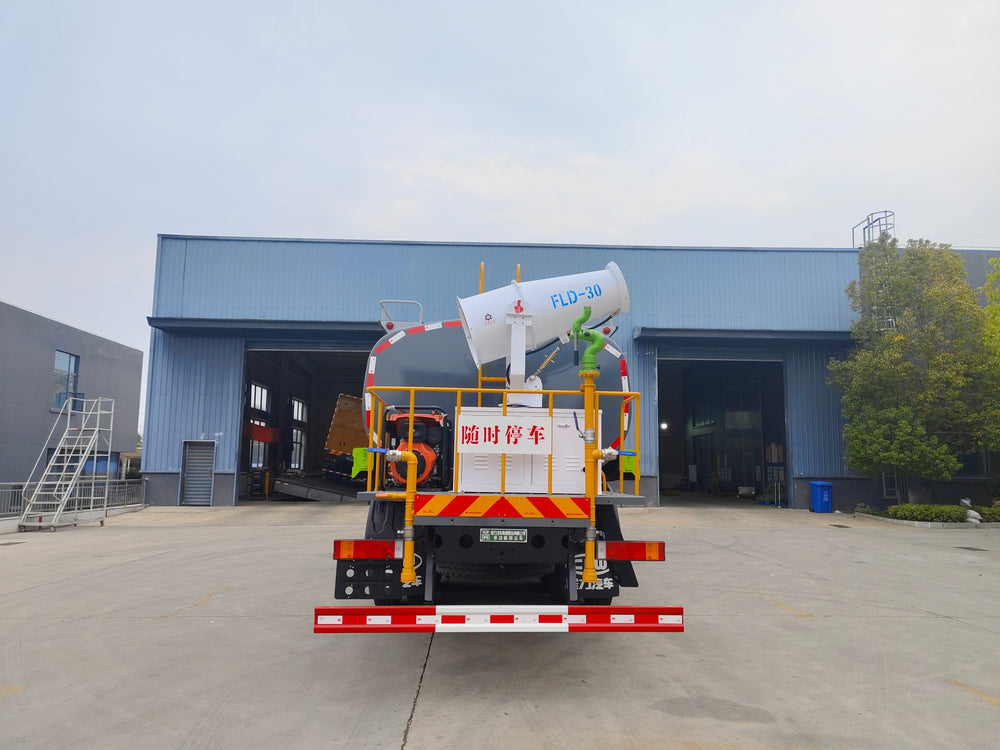

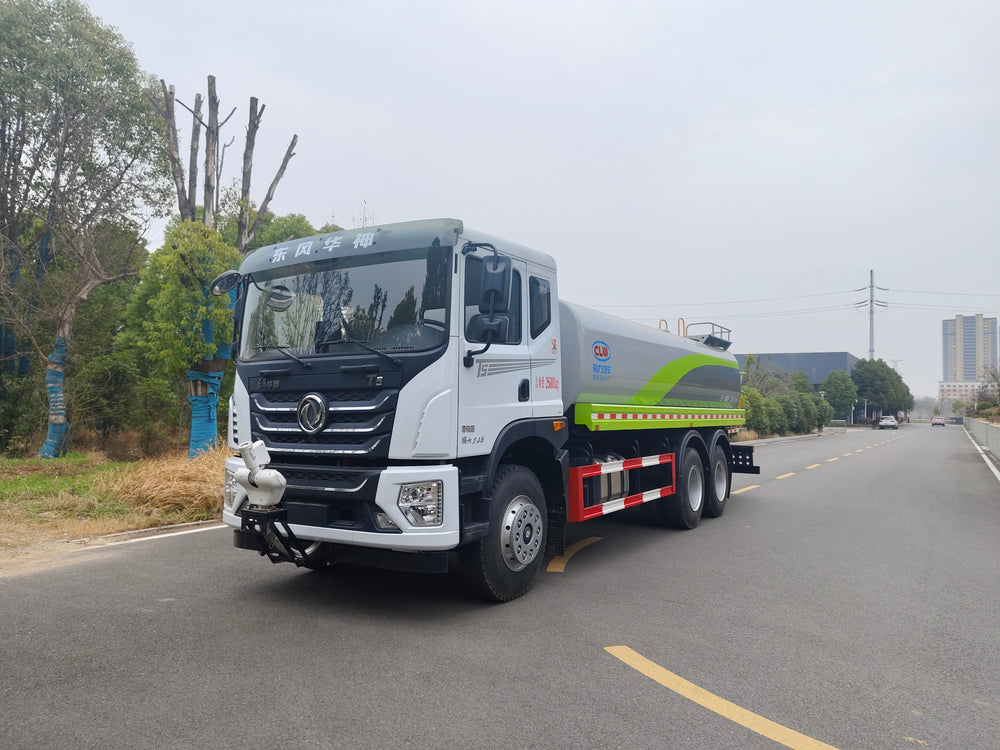

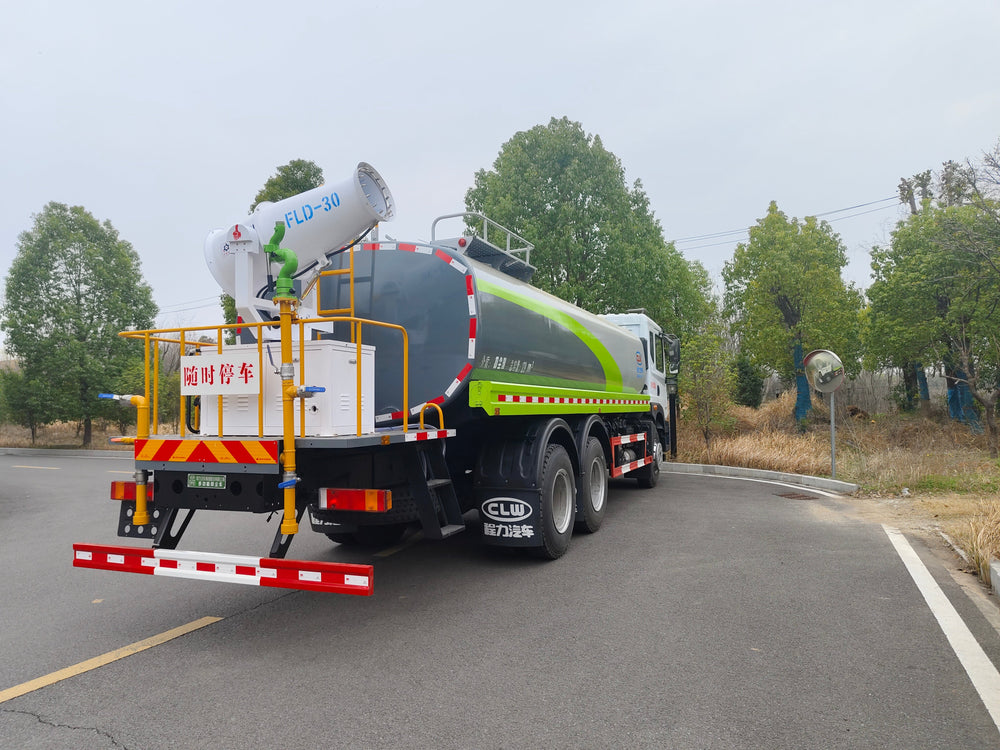

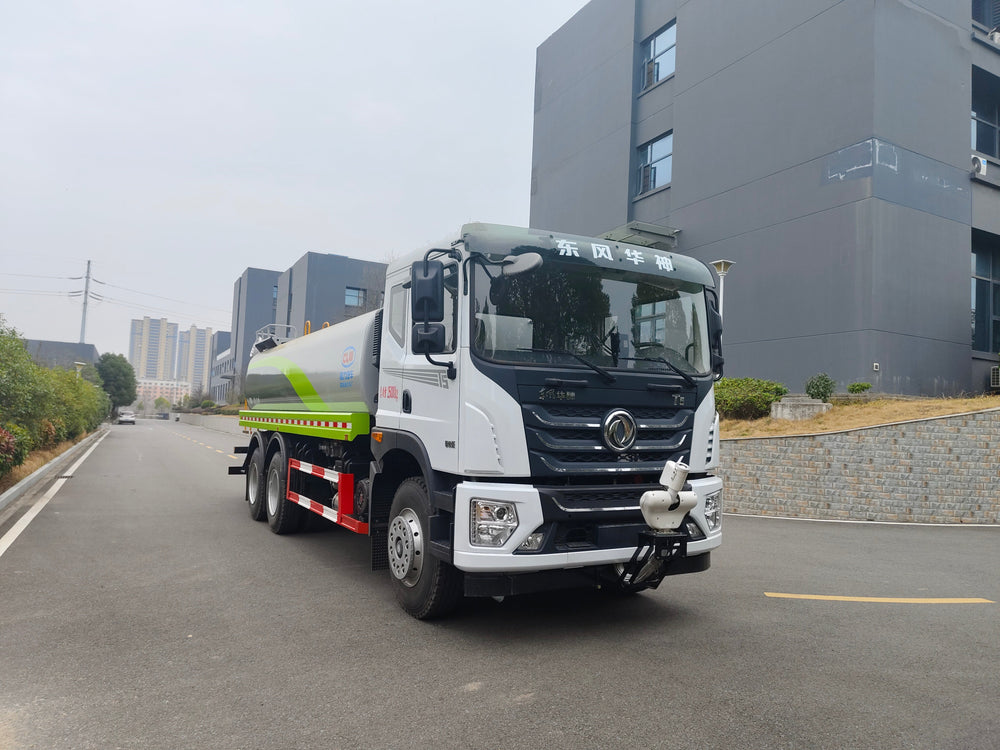

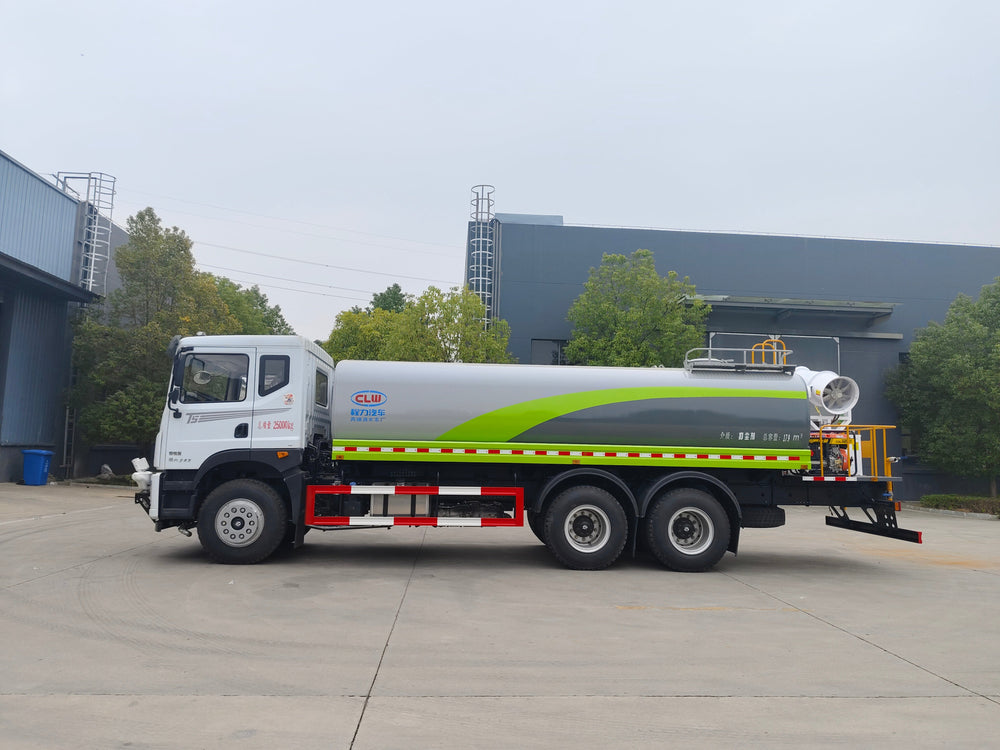

DongFeng 22m³ Multi-functional Dust Suppression Truck
Request a Quote Now
1. Chassis Basic Parameters
| Parameter | Value |
|---|---|
| Wheelbase Combination | 4350+1350 mm |
| Engine Power Options | Yuchai 245 HP, optional Yuchai 270 HP |
| Transmission | Fast 8-speed gearbox with power take-off |
| Tire Specification | 11.00R20, 18PR |
| Fuel Tank | 200L steel fuel tank |
| Cab Type | New Huashen T5 single-and-a-half row cab |
2. Chassis Auxiliary Configuration
| Parameter | Value |
|---|---|
| Window & Lock System | Electric windows, remote central locking |
| Air Conditioning | Original factory air conditioner |
| Seat | Air suspension seat |
| On-board Equipment | Driving recorder |
| Front Axle Load Rating | 5 Ton front axle |
| Rear Axle Load Rating | Dual 10 Ton rear axles |
3. Water Tank Superstructure Main Specs
| Parameter | Value |
|---|---|
| Tank Effective Volume | 22 cubic meters |
| Tank Material Grade | Q235 carbon steel |
| Baffle Plate Thickness | 3 mm |
| Tank Wall Thickness | 5 mm |
| Tank Head Plate Thickness | 5 mm |
| Main Valve Fitting | Large-bore straight ball valve, optional aluminum alloy three-way valve |
| Main Pipeline Size | Thickened DN76 main pipeline |
4. Cast Aluminum Pipe Fittings
| Parameter | Value |
|---|---|
| Available Fitting Types | Cast iron elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet four-way connector, aluminum alloy pump inlet straight connector |
| Manufacturing Technology | One-time die casting molding, seamless structure to prevent water leakage |
| Structural Advantages | Standardized design, good interchangeability, convenient maintenance and spare part replacement |
| Material Feature | Lightweight aluminum alloy, attractive & practical appearance, improved product grade |
5. Other Sprinkler Accessories
| Value | |
|---|---|
| Spraying Components | Cast iron rear spray nozzle, stainless steel ball valve, new S-type high-pressure water cannon |
