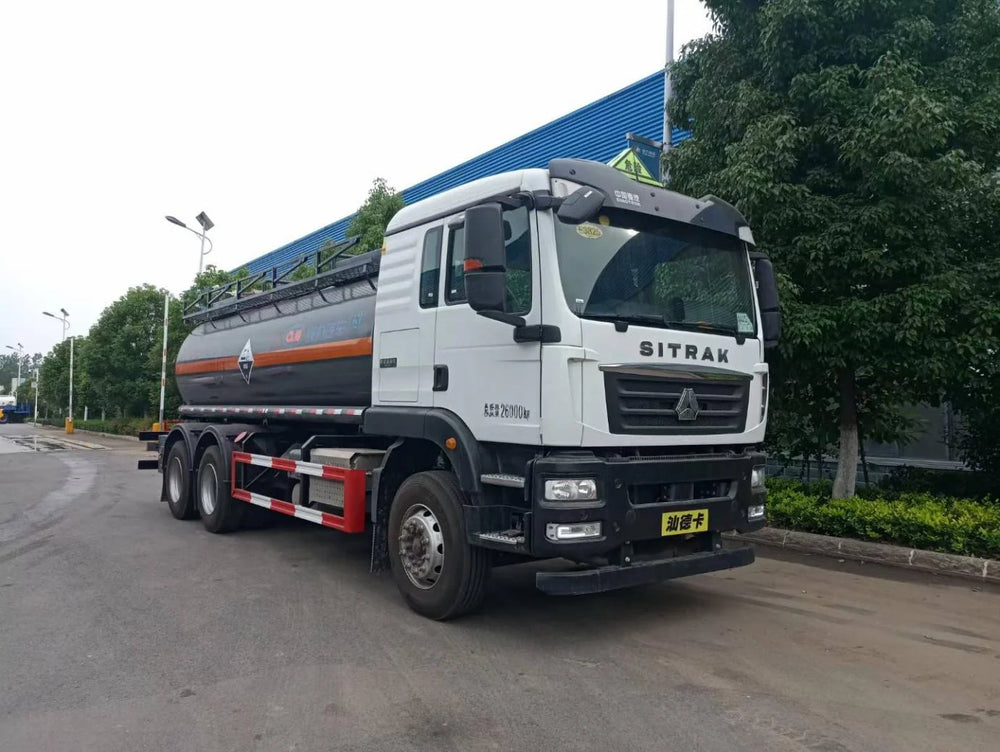

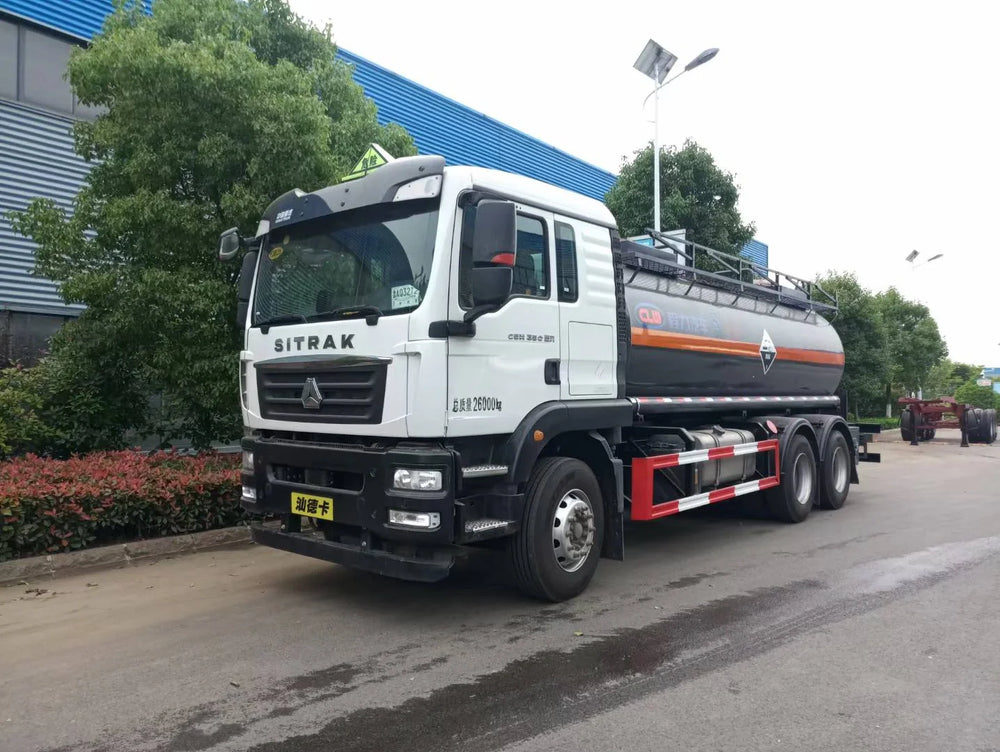

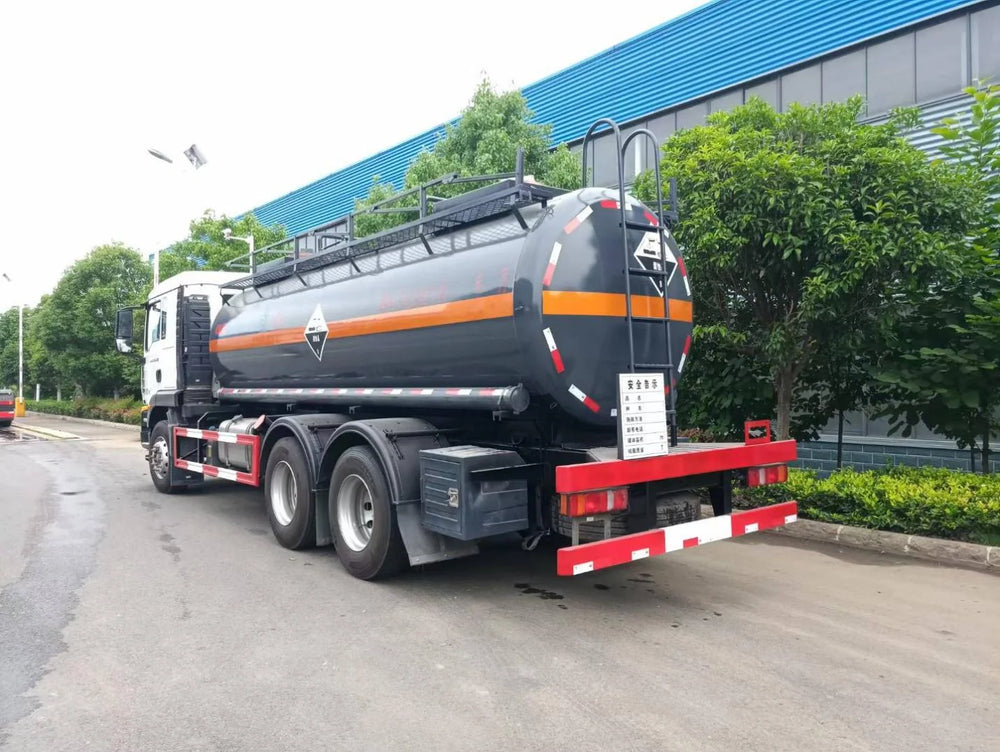

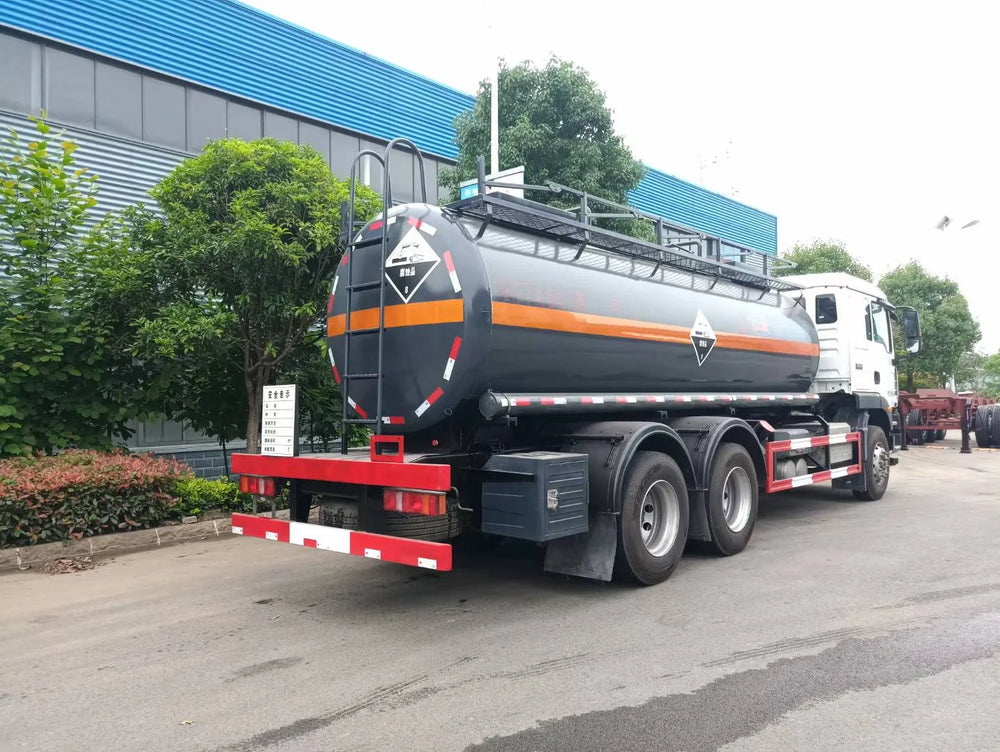

14-16 cubic chemical liquid transport truck

14-16 cubic chemical liquid transport truck
14-16 cubic chemical liquid transport truck
14-16 cubic chemical liquid transport truck
14-16 cubic chemical liquid transport truck
1 / 4
14-16 cubic chemical liquid transport truck
14-16 cubic chemical liquid transport truck
14-16 cubic chemical liquid transport truck
14-16 cubic chemical liquid transport truck

14–16 Cubic Meter Chemical Liquid Transport Truck – Key Specifications



Parameter Specification
Vehicle Type Chemical Liquid Tanker / Flammable Liquid Transport Vehicle
Chassis Options Dongfeng, FAW Jiefang, SINOTRUK HOWO
Drive Configuration 4×2 / 6×2 / 6×4
Emission Standard Euro V / China VI

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) 8,290 – 10,030 × 2,370 – 2,550 × 2,760 – 3,450 mm
Wheelbase 3,800 – 5,800 mm (varies by model)
GVWR (Total Mass) 16,000 – 25,500 kg
Curb Weight (Kerb Mass) 7,800 – 10,605 kg
Payload Capacity (Rated Load) 9,000 – 14,800 kg

Engine & Drivetrain



Parameter Specification
Engine Options Cummins / FAW / SINOTRUK / Yuchai
Max Horsepower 184 – 245 HP
Transmission 6-speed / 8-speed manual
Fuel Type Diesel

Chassis & Axles



Parameter Specification
Axles 2 – 3
Tire Specification 9.00R20 / 11.00R20 / 295/80R22.5
Tire Count 6 – 8
Brake System Front disc brakes, ABS / EBS
Suspension Leaf springs / Air suspension (rear axle optional)

Tank & Safety Equipment



Parameter Specification
Effective Tank Volume 14.2 – 15.9 m³
Tank Dimensions (L×Diameter / L×W×H) 6,000–7,200 × φ1,550–φ1,900 mm / 5,720×2,150×1,500 mm
Tank Material Q235/Q235B carbon steel / Stainless steel
Tank Thickness 4 – 6 mm
Transport Media Chemicals, acids, alkalis, gasoline, diesel, methanol, ethanol
Hazard Class Class 3 (Flammable Liquid) / Class 8 (Corrosive) / AT-type
Safety Features Speed limiter (80 km/h), GPS tracking, front exhaust pipe, disc brakes, anti-static grounding strap, emergency shut-off valve, anti-overflow probe
Exterior Markings Reflective tape + hazard diamond signs

Cab & Performance



Parameter Specification
Cab Capacity 2 – 3 persons
Air Conditioning Standard
Max Speed 80 – 90 km/h (governed)
