Name: Dongfeng New GKS32 Pro Aerial Work Platform
Brand: Shenbai
SKU: dongfeng-new-gks32-pro-aerial-work-platform
Availability: InStock

From China to the World — Trusted by 100+ Countries

20+ Years Experience

100+ Countries

100000+ Units Delivered

EXPLORE PRODUCTS → REQUEST QUOTE

0+ Years of experience

0+ Countries served

0+ Units delivered

0% Customer satisfaction

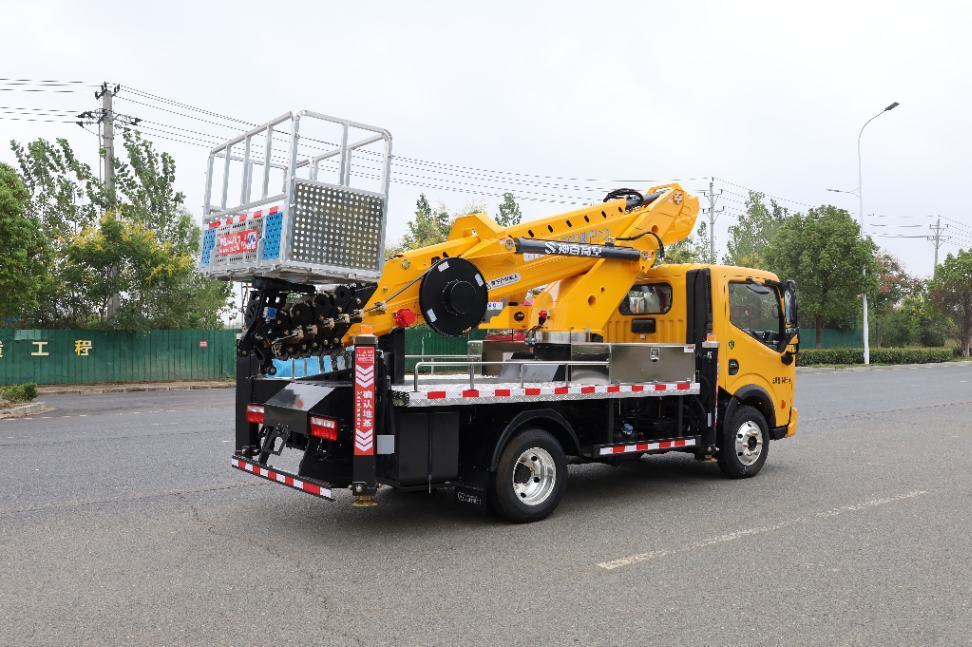

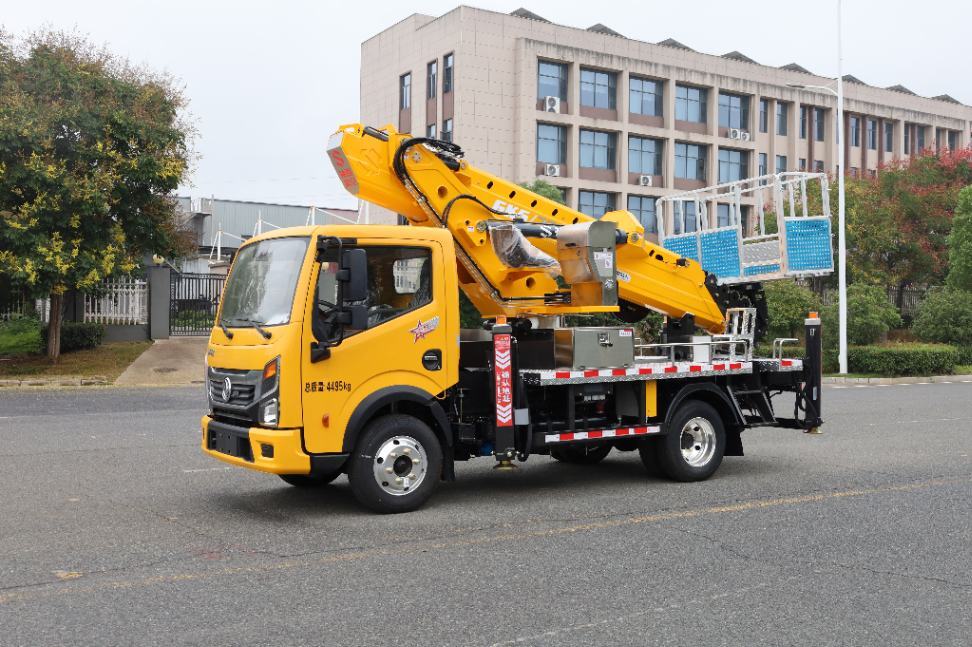

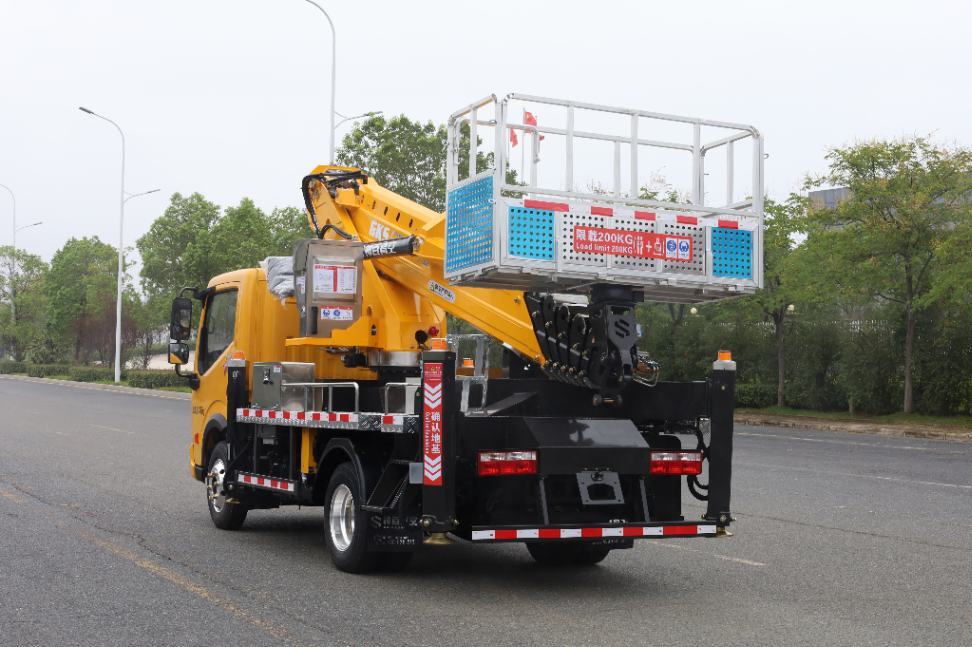

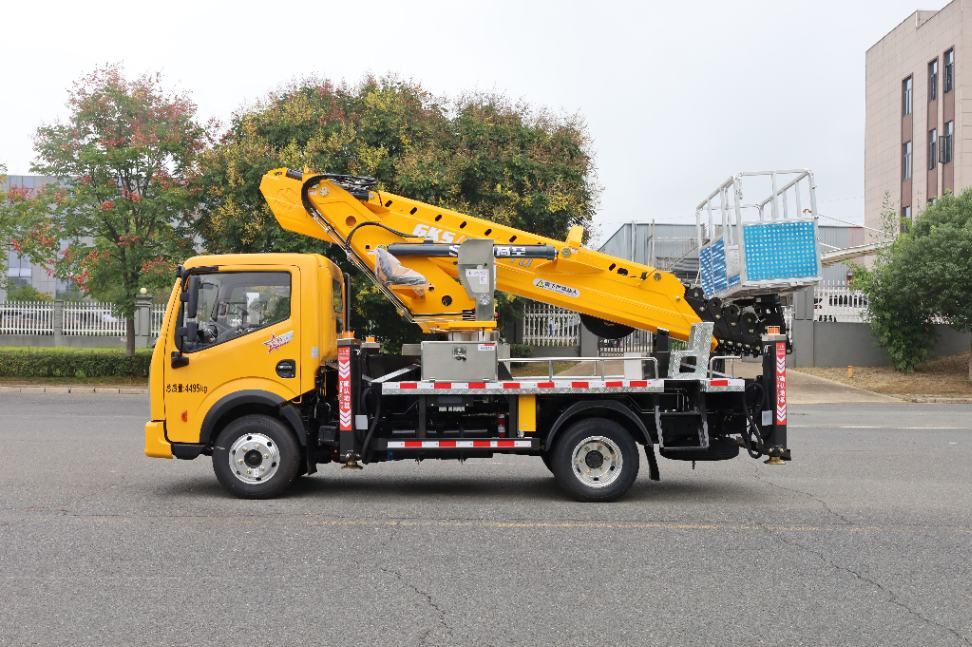

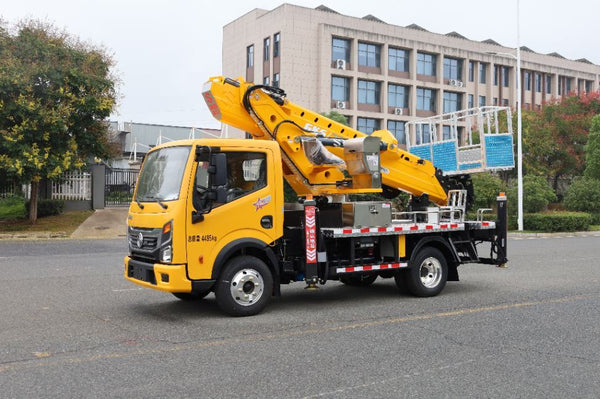

Dongfeng New GKS32 Pro Aerial Work Platform

1 / 4

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Item	Specification
Vehicle Model	Dongfeng New GKS32 Pro Aerial Work Platform (Dongfeng Nebula K5)
Approval Model	ABC5045JGKE6
Chassis Information
Chassis Brand & Model	Dongfeng Dolica K5
Gross Vehicle Mass	4495 kg
Curb Weight	4365 kg
Engine	Quanchai, 150 PS
Transmission	Wanliyang 5‑speed gearbox
Wheelbase	2950 mm
Overall Dimension	5995 mm × 2200 mm × 3100 mm
Tyre	650R16LT
Brake System	Air‑operated brake
Cab Accessories	Electric windows, air‑conditioner, central locking
Superstructure GKS32 PRO
Max. Working Height	30.6 m
Max. Working Radius	17 m
Boom Length	27 m
Platform Rated Load	200 kg
Boom Slewing Angle	360° continuous rotation
Platform Dimension	1800 mm × 700 mm × 1000 mm (extended: 3800 mm)
Platform Slewing Range	360° unlimited rotation
Boom Structure	7‑section boom with 6‑section synchronous extension; 14‑sided boom profile made of 960 high‑strength steel plate; backup steel wire rope, personnel can be lowered safely if main rope breaks
Lifting Cylinder	Dual heavy‑duty thickened lifting cylinders
Slewing Base	T‑type three‑layer reinforced box‑type frame slewing base
Outrigger	X‑type double‑section outriggers, 4‑pieces, individually adjustable; longitudinal span 6000 mm, transverse span 5800 mm
Walk‑on Platform	Anti‑slip aluminum alloy walk‑on plate
Control System	Famous domestic electric control system; wireless remote controller; upper‑level control with display screen
Hydraulic System	Electro‑hydraulic proportional valve, stepless speed regulation; emergency power source equipped
Safety Devices	Upper‑lower cab interlock, emergency power source, double‑way hydraulic balance valve, soft‑leg protection device
Optional Equipment	Upper‑operation cabin, 1 ton winch
