Name: Howo TX 6x4 Zoomlion 14T 5-section Boom Truck Mounted Crane
Brand: Shenbai
SKU: howo-tx-6x4-zoomlion-14t-5-section-boom-truck-mounted-crane
Availability: InStock

من الصين إلى العالم — موثوقة بها في أكثر من 100 دولة

أكثر من 20 عامًا من الخبرة

أكثر من 100 دولة

تم تسليم 100000+ وحدة

استكشاف المنتجات → طلب عرض سعر

0+ سنوات الخبرة

0+ الدول التي تُقدّم لها الخدمات

0+ الوحدات المسلّمة

0% رضا العملاء

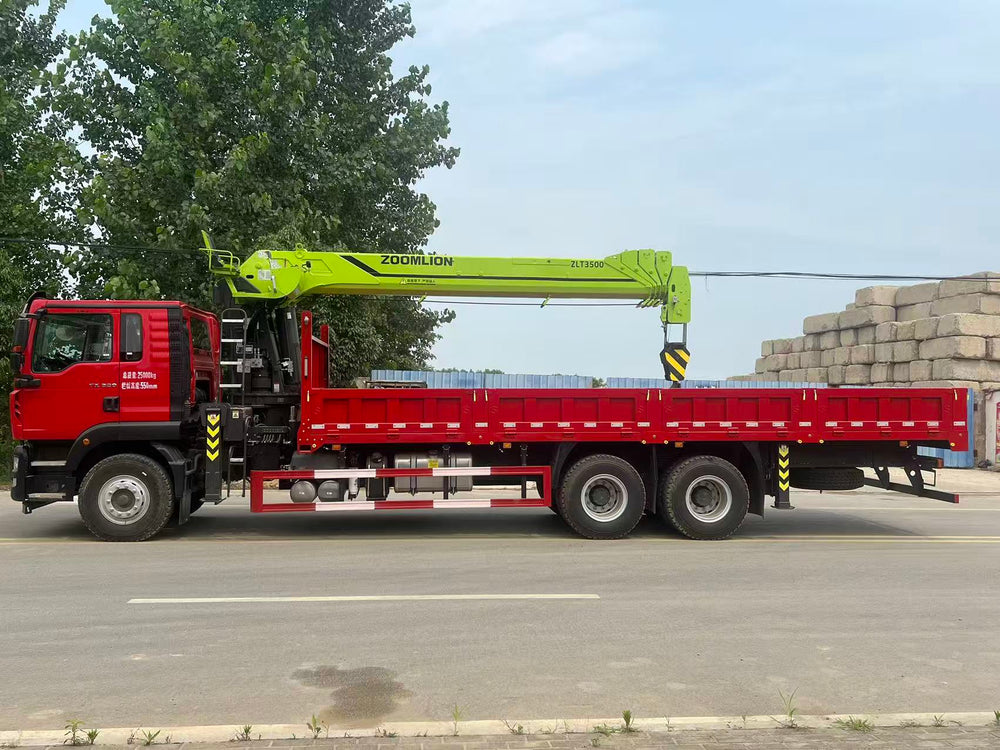

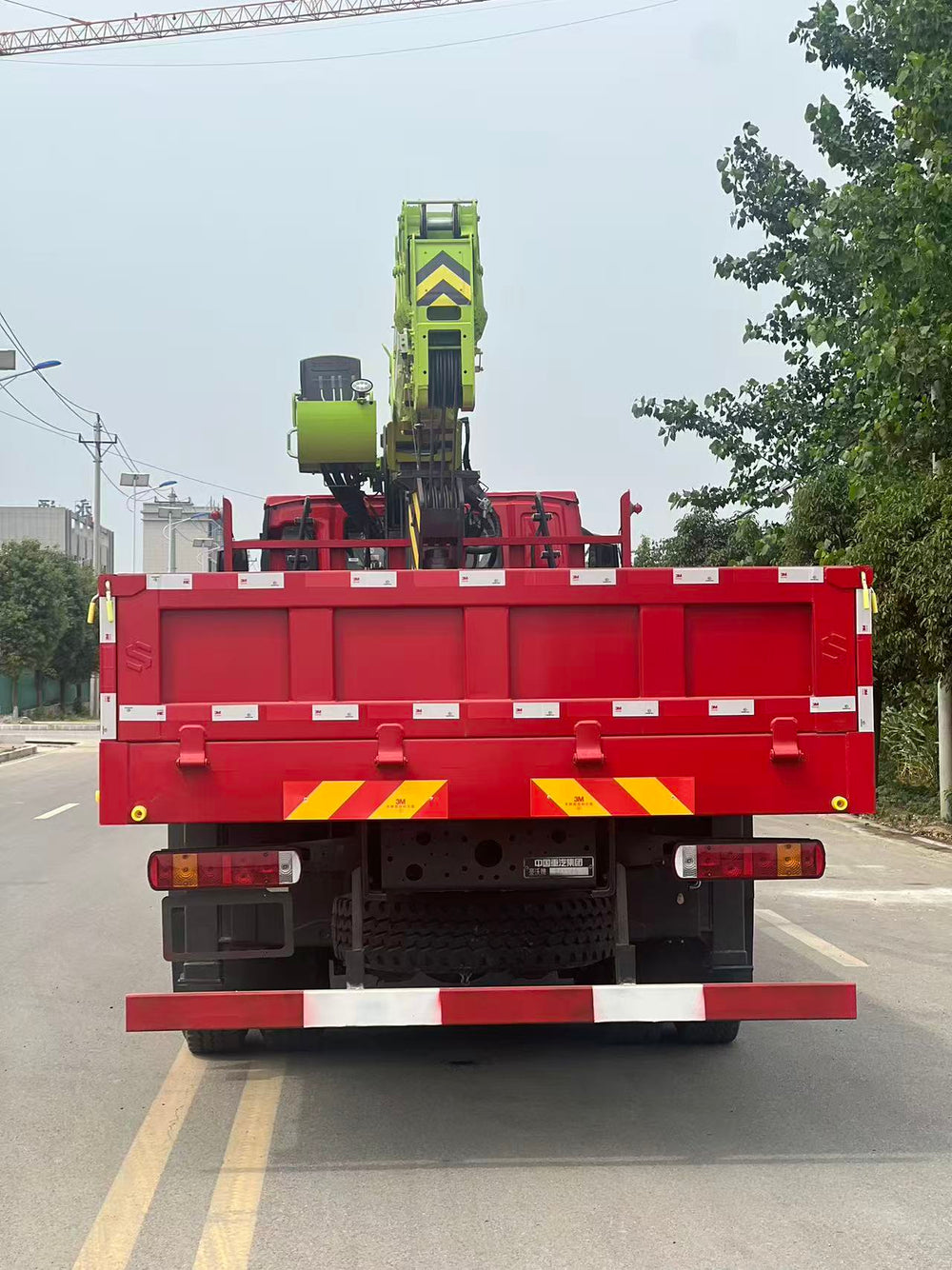

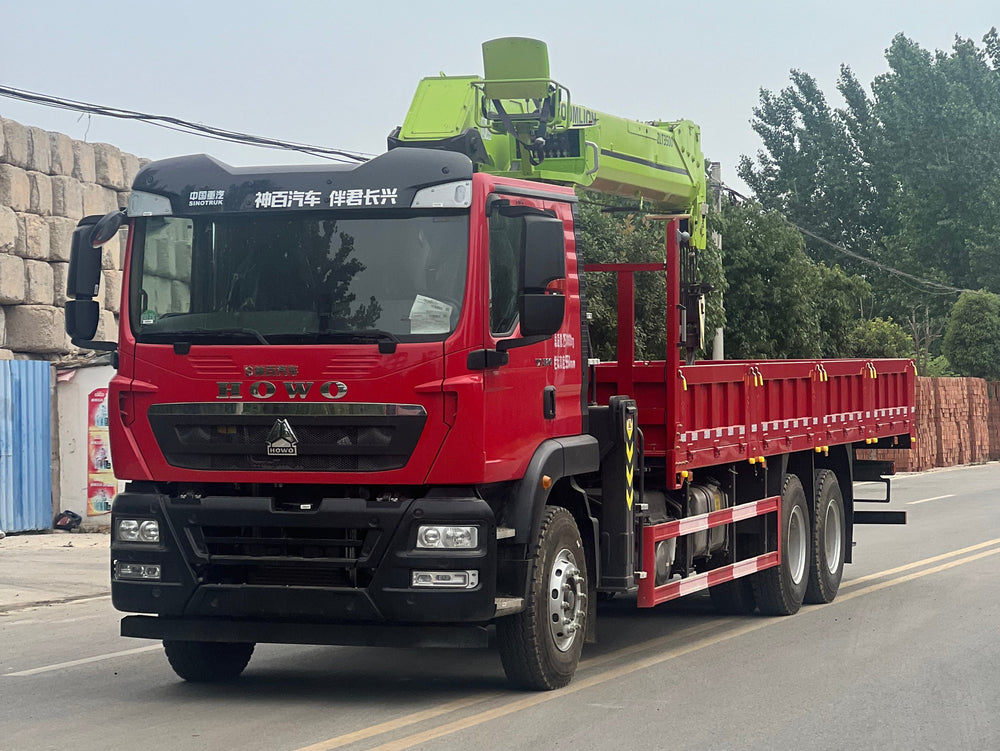

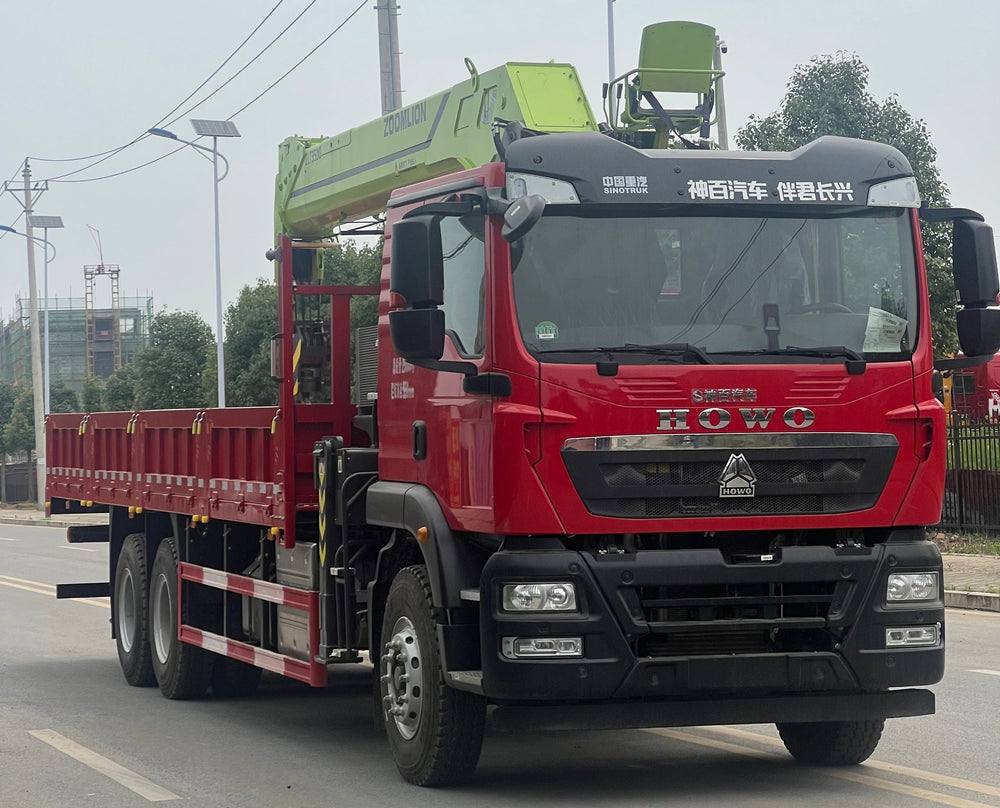

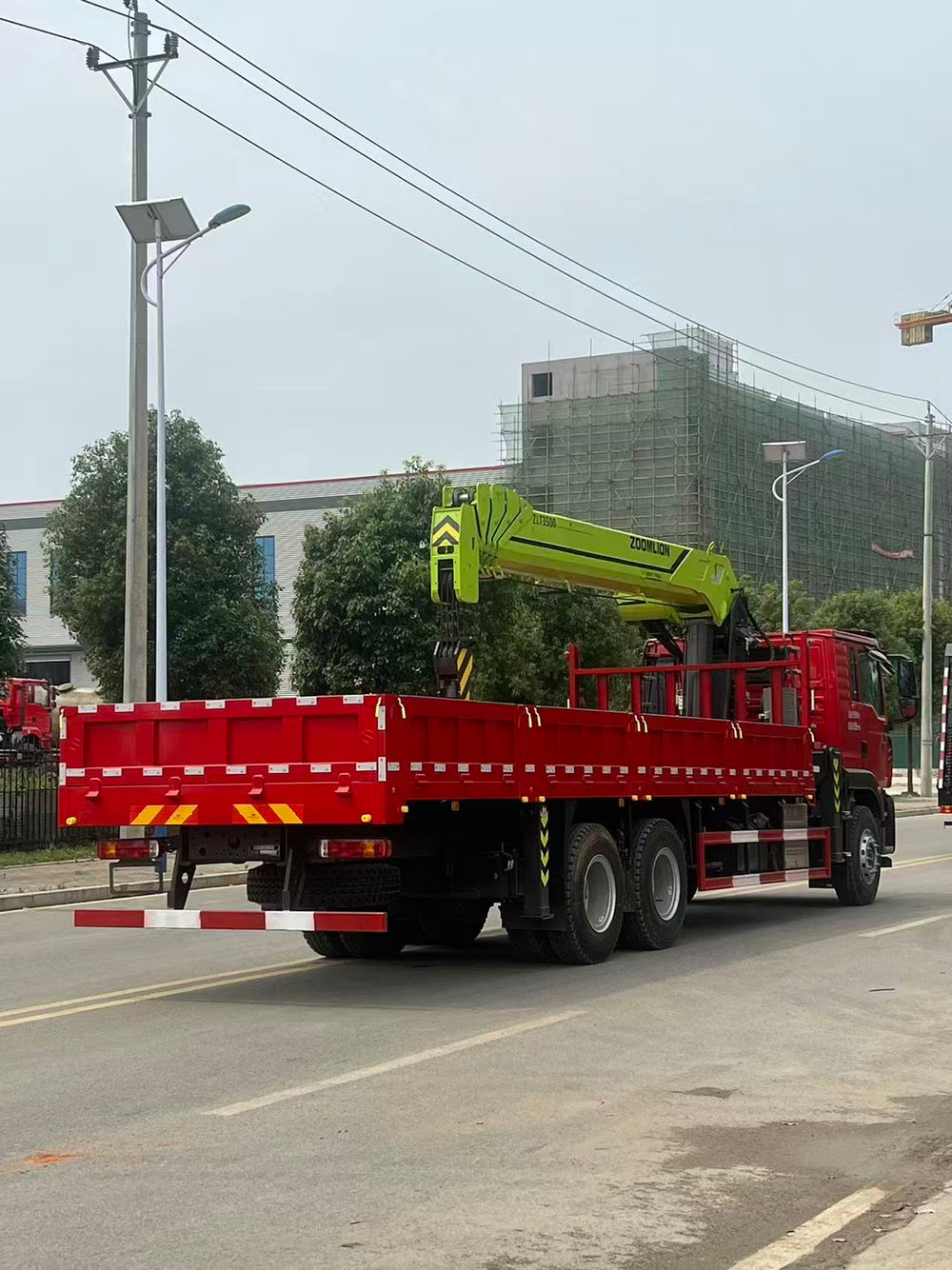

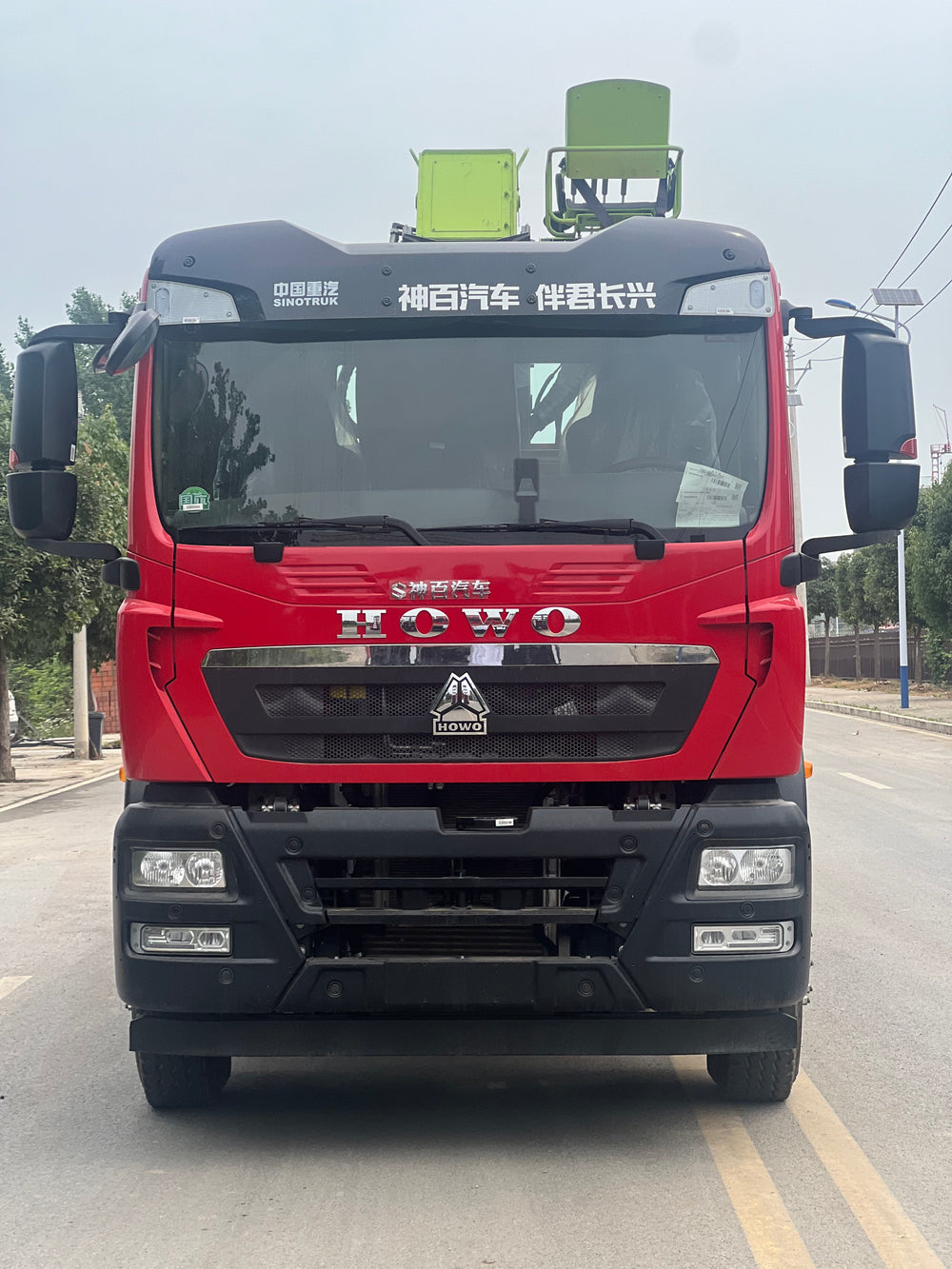

Howo TX 6x4 Zoomlion 14T 5-section Boom Truck Mounted Crane

1 / 6

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Category	Parameters
Complete Vehicle Approval Model	ABC5251JSQZZ6
Chassis Approval Model	ZZ1257N464GF1
Engine Model	WP7H320E62 Weichai Engine, 320 HP, Displacement: 6.8L
Wheelbase	5800 + 1350 mm
Axle Ratio	5.29 (Optional: 4.63 / 4.11)
Transmission & PTO	HW13709XSTC2 9-speed Synchronized Transmission + HW70 Flange Type PTO, Cable-controlled PTO
Front & Rear Axles	Sinotruk Howo Reinforced Axles (Front:7.5t, Rear:13t)
Frame	Through-type Triple-layer Frame (8+5+5mm, Height:300mm)
Leaf Spring	Front 10 pieces / Rear 12 pieces
Tires	11.00R20 Mixed Pattern Tires, 18PR
Cabin	TX-J Day Cab
Steering Wheel	Multi-functional Steering Wheel
Rearview Mirror	Electric Adjustable & Heated Rearview Mirror
Seating	Air Suspension Driver Seat + Standard Co-driver Seat; Cabin Middle Seat
Cabin Structure	Four-point Suspension Cabin with Crash Energy Absorption Structure
Speed Limiter	Max Speed Limited to 89 km/h
Exhaust System	U-type Exhaust System
Brake System	ABS (4S/4M)
Bumper	High-position Full Metal Bumper
Cabin Lifting	Manual & Electric Integrated Lifting System
Fuel Tank	300L Aluminum Alloy Fuel Tank
Battery	165AH Storage Battery
Fleet Management System	Sinotruk Intelligent Connect B Version
Chassis Highlights	Integrated matching of engine, transmission and axle for superior vehicle compatibility. Equipped with heavy-duty leaf springs and four U-bolts for outstanding torsion resistance on rough roads. Fitted with V-type thrust rod to stabilize the vehicle under heavy load. 13-ton rear axle with 3 differential locks to deliver higher torque and tackle harsh road conditions.
Crane Brand & Specification	Zoomlion 14-ton 5-section Boom Truck-mounted Crane
Boom Length	20 m
Max Lifting Height	21.5 m
Operation Mode	Upper Operation
Slewing System	Single Planetary Slewing Device
Boom Extension	Single Extension of 2nd Section Boom
Outrigger	Double-section Composite Front Outriggers
Crane Accessory	Equipped with Hydraulic Radiator
Auxiliary Beam	Through-type Auxiliary Beam
Cargo Box	8.4m Engineering Cargo Box (Side 3mm, Floor 5mm)
