The minimum order quantity is 1 unit. Volume discounts available for 5+ units.

Which emission standards do you support?

Euro II through Euro VI. We configure to match your country requirements.

What is the warranty period?

Standard 12-month or 30,000 km warranty covering upper structure. Extended packages available.

Can you customize for special requirements?

Yes. Full customization including chassis, LHD/RHD, paint colors, logos, and OEM/ODM.

What is the delivery time?

Standard: 15-25 working days. Custom: 30-45 working days. Popular models in stock.

Which shipping methods?

Sea freight, rail, road transport. FOB, CIF, CFR, DDP terms available.

Remote technical guidance, video troubleshooting, complete spare parts supply chain.

Compatible chassis brands?

Sinotruk HOWO, Shacman, Dongfeng, FAW, Foton, ISUZU, Mercedes-Benz.

How to get a quotation?

Contact via website form or email. Specify product type, configuration, chassis preference, destination country.

ISO 9001, CE, CCC, EAC certified. High-tech enterprise with invention patents.

الرائد العالمي للمركبات الخاصة

متخصص محترف مركبة المصدر

Name: Howo TX 6x4 with MAN 350 Engine - Zoomlion 14-ton Truck-mounted Crane
Brand: Shenbai
SKU: howo-tx-6x4-with-man-350-engine-zoomlion-14-ton-truck-mounted-crane
Availability: InStock

من الصين إلى العالم — موثوقة بها في أكثر من 100 دولة

أكثر من 20 عامًا من الخبرة

أكثر من 100 دولة

تم تسليم 100000+ وحدة

استكشاف المنتجات → طلب عرض سعر

0+ سنوات الخبرة

0+ الدول التي تُقدّم لها الخدمات

0+ الوحدات المسلّمة

0% رضا العملاء

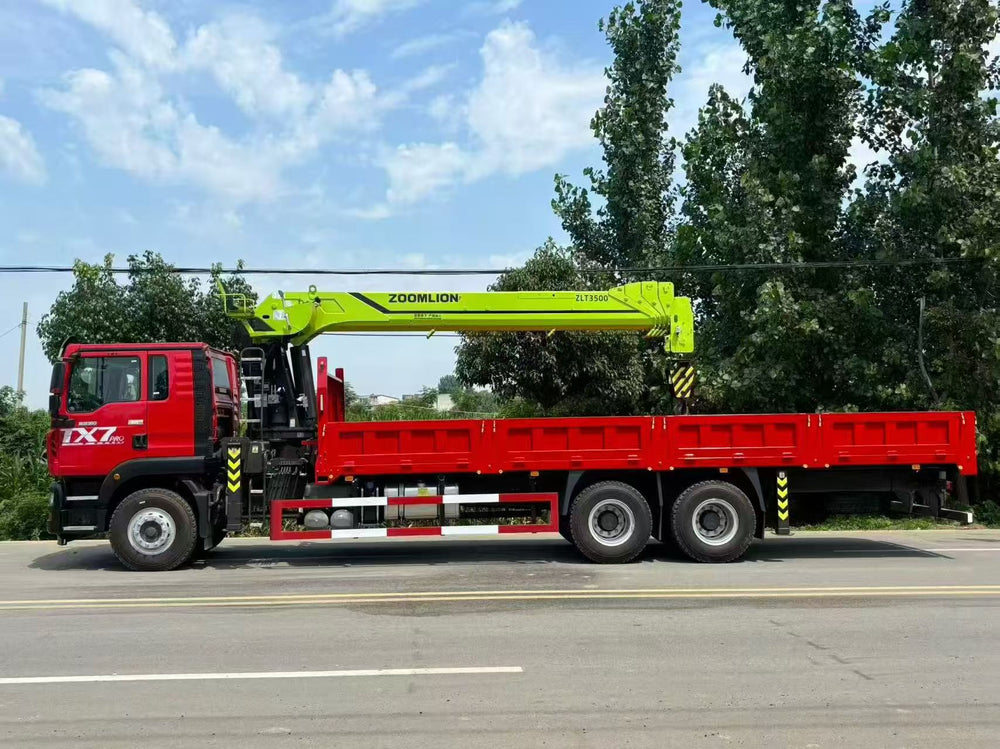

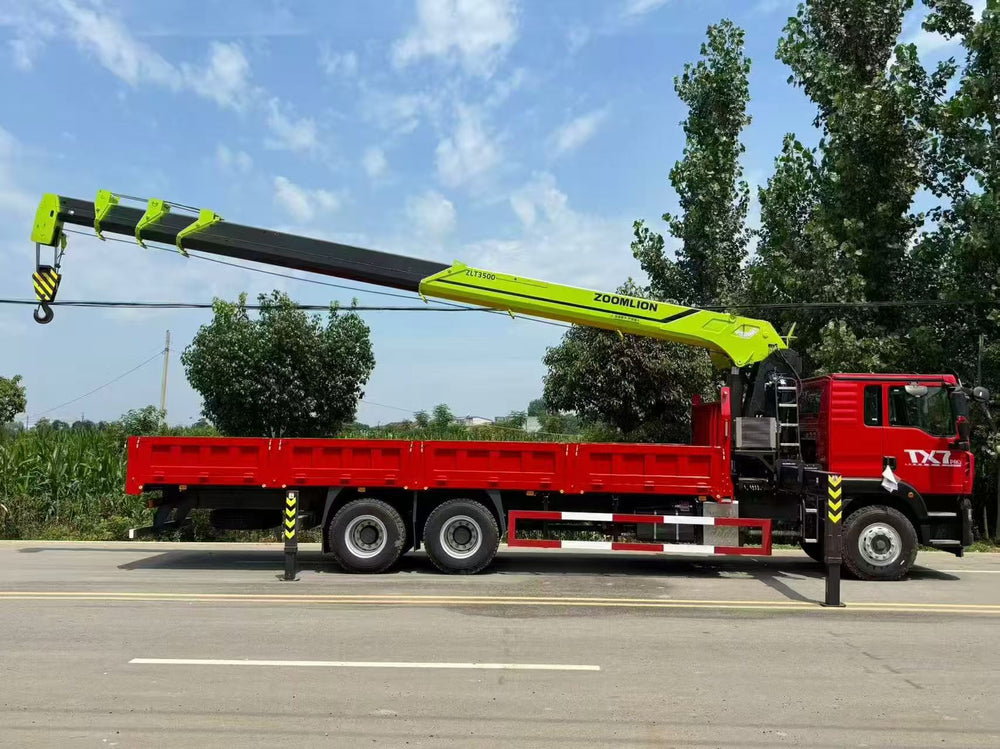

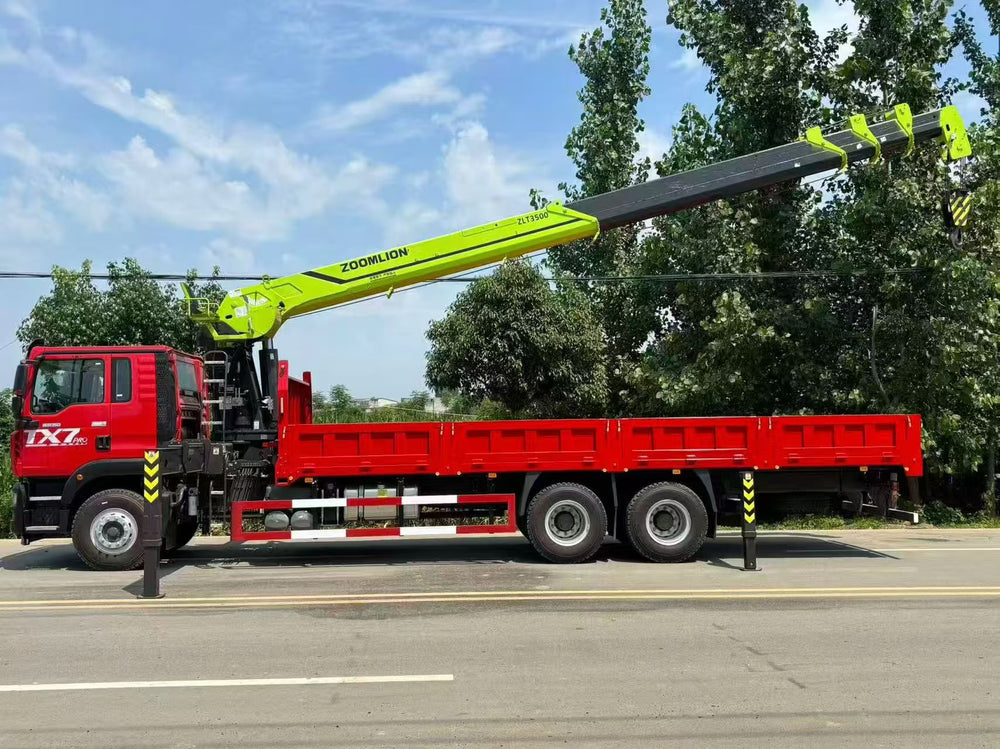

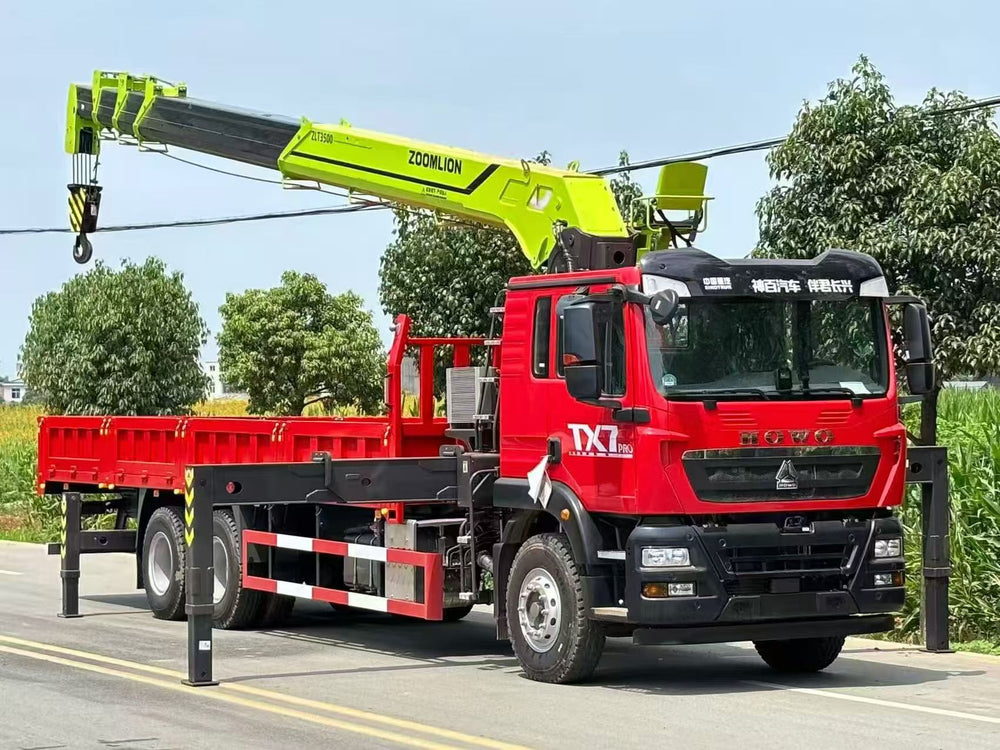

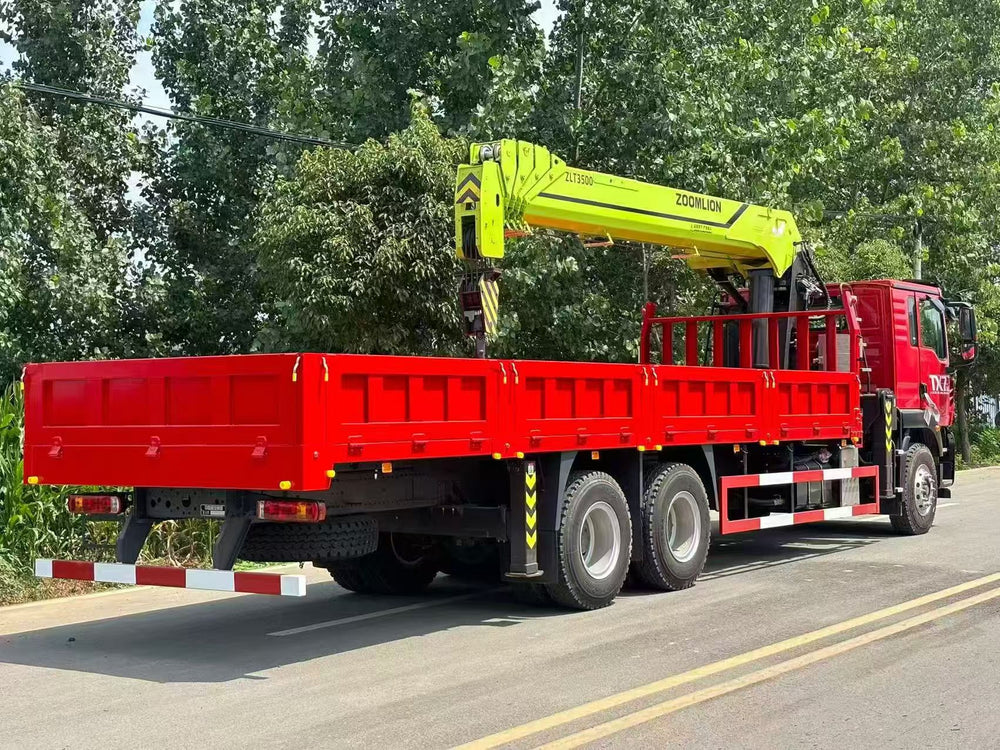

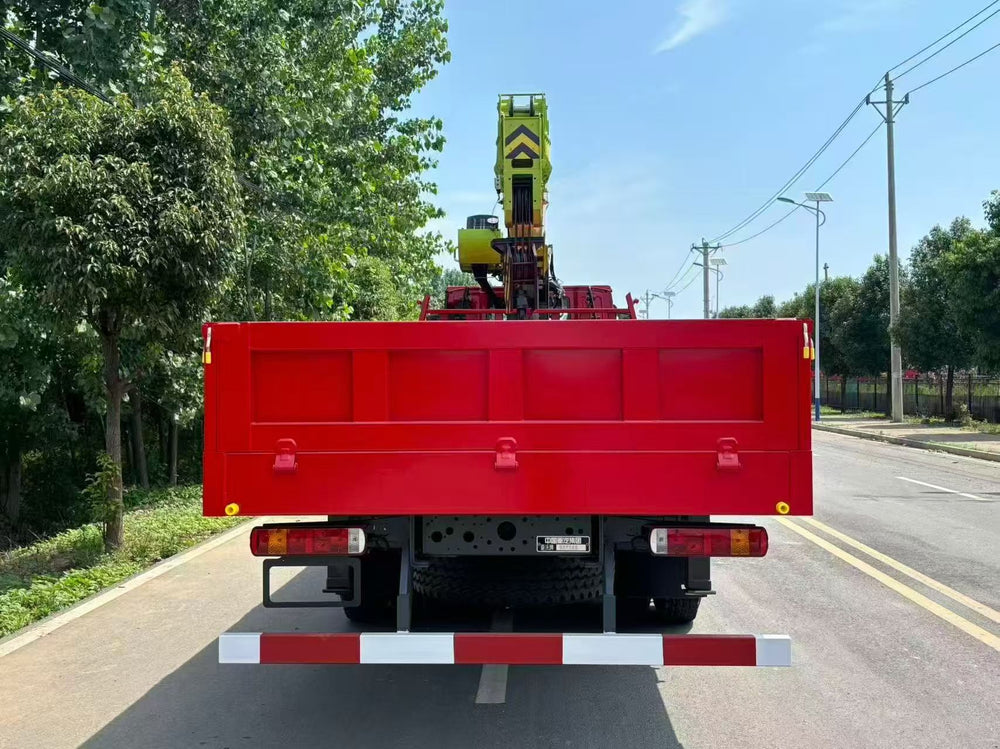

Howo TX 6x4 with MAN 350 Engine - Zoomlion 14-ton Truck-mounted Crane

1 / 7

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Category	Specification Details
Complete Vehicle Announcement Model	HHH5250JSQZZ6
Chassis Announcement Model	ZZ1257N464GF1
Engine	MC07H.35-61 MAN Engine, 350 HP, Displacement:7.36L
Wheelbase	5800 + 1350 mm
Transmission & PTO	HW14712XSTCL Transmission + HW70 Flange Type PTO
Front & Rear Axle	Reinforced Howo Axles (Front:7.5t, Rear:13t)
Axle Ratio	5.29
Frame	Triple-layer Frame (8+5+5mm, 300mm height)
Leaf Spring	10 pieces / 12 pieces (Front/Rear)
Tire	11.00R20 Mixed Pattern Tire, 18PR
Cabin	TX-J Day Cab, Woying Version
Steering Wheel	Multi-functional Steering Wheel
Rearview Mirror	Electric & Heating Rearview Mirror
Seats	Air Suspension Driver Seat + Basic Co-driver Seat; Middle Cabin Seat Available
Suspension Cabin	Four-point Suspension Cabin with Crash Energy Absorption Structure
Braking System	ABS (4S/4M)
Central Control	10.1-inch Full HD LCD MP5 Screen
Bumper	High-position Full Metal Bumper
Cabin Lifting	Manual & Electric Integrated Cabin Lifting System
Fuel Tank	300L Fuel Tank
Optional Accessory	Chassis-mounted Start-Stop Switch
Chassis Advantages	Integrated Matching of Engine, Transmission and Axle for better vehicle adaptability; V-type thrust rod improves body stability under heavy load; 13t rear axle equipped with 3 differential locks; Heavy-duty leaf springs with 4 U-bolts, excellent torsion resistance under rough road conditions
Crane Brand & Model	Zoomlion 14-ton 5-section Boom Truck-mounted Crane
Boom Length	20m
Maximum Lifting Height	21.5m
Operation Mode	Upper Cabin Operation
Slewing System	Single Planetary Slewing Mechanism
Boom Extension	Single Extension of the 2nd Section Boom
Outrigger	Double-section Composite Front Outriggers
Accessory for Crane	Hydraulic Radiator Equipped
Auxiliary Beam	Through-type Auxiliary Beam
Cargo Box	8.4m Engineering Cargo Box (Side 3mm, Floor 5mm)
