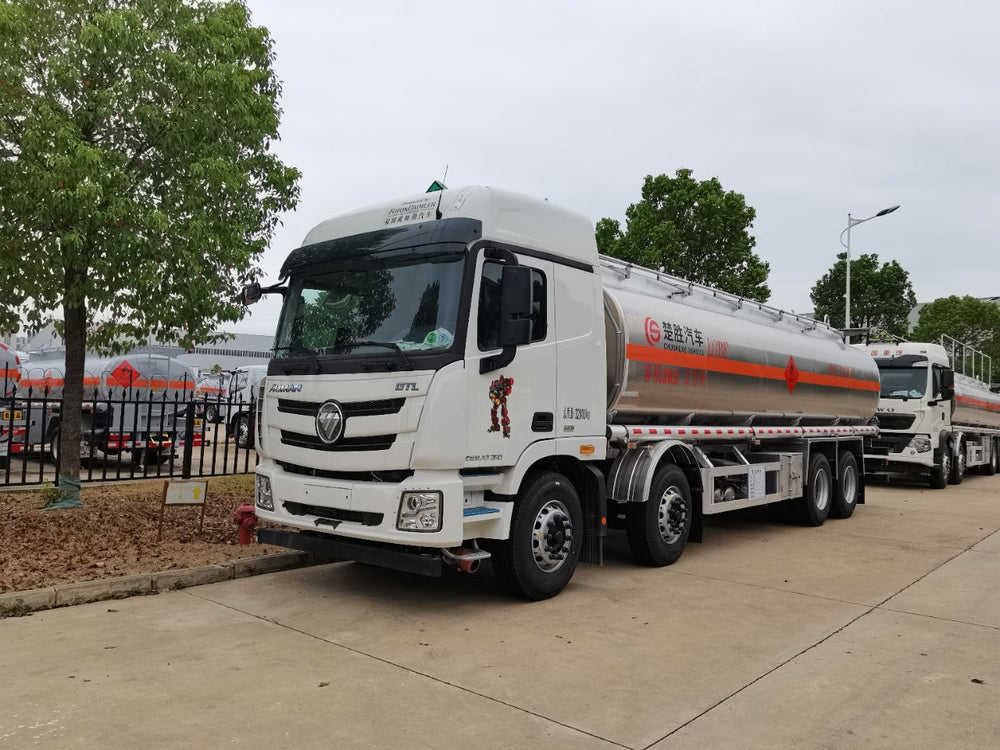

FOTON 8×4 30m³ Aluminum Alloy Fuel Tank Truck
Request a Quote Now
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Rated Load Capacity | 20.50 Tons |
| Transport Medium Capacity | Gasoline 30m³ / Diesel 26m³ |
| Engine Model | Cummins 360G / X11 |
| Transmission | 12JSD180TA Aluminum Gearbox |
| Cab Type | GTL-E Long Body, High Roof Standard Floor |
| Rear Axle Ratio | 4.111 |
| Tire Specification | 12R22.5 |
| Leaf Spring Configuration | 2 / – |
| Fuel Tank | 350L Aluminum Alloy Fuel Tank |
| Cab Interior | Electric Windows, Central Door Locking, Airbag Seat, Manual Rearview Mirror, MP3 + Radio |
| Exhaust System | Front-Mounted Exhaust Pipe |
| Speed Limiter | Equipped |
| Brake System | ABS, EBS (Electronic Braking System) |
| Wheelbase | 2100 + 4400 + 1350 mm |
2. Tank Body (Upper Structure) Configuration
| Parameter | Value |
|---|---|
| Vehicle Type | Aluminum Alloy Oil Tanker |
| Official Announcement Volume | 26 m³ |
| Transport Medium | Diesel, Gasoline |
| Tank Shape | Square-Round Tank with Bulging (Dished) Heads |
| Tank Material | Aluminum Alloy |
| Tank Wall Thickness | Per design specification |
| Compartment Layout | Single Compartment |
| Pump System | 80-60 Pump with Overflow Valve |
| European Standard Manholes | 2 units |
| Bottom Valve | 1 unit with intelligent control system |
| Vapor Recovery System | 1 unit |
| Bottom Loading System | 1 unit |
| Anti-Overflow System | Anti-overflow probe and socket |
| Drip Valve | Drip hole at front end of barrel pipe |
| Folding Guardrail | Manual folding guardrail |
| Fire Cap | 1 unit |
| Static Grounding | Static belt + Static reel |
| Oil Delivery Pipes | 2 equal-length pipes with male & female couplings |
| Fire Extinguishers | 2 units × 8 kg |
| Fire Extinguisher Bracket | Equipped |
| Pipe Plugs | 2 units |
| Safety Sign | Safety notice board |
| Climbing Ladder | Rear climbing ladder |
| Tank Top Safety | Aluminum alloy anti-slip net |
| Other Accessories | Remaining per aluminum tank standard configuration |
| Compliance Guarantee | Vehicle exterior dimensions, tank dimensions and shape fully consistent with official announcement |
