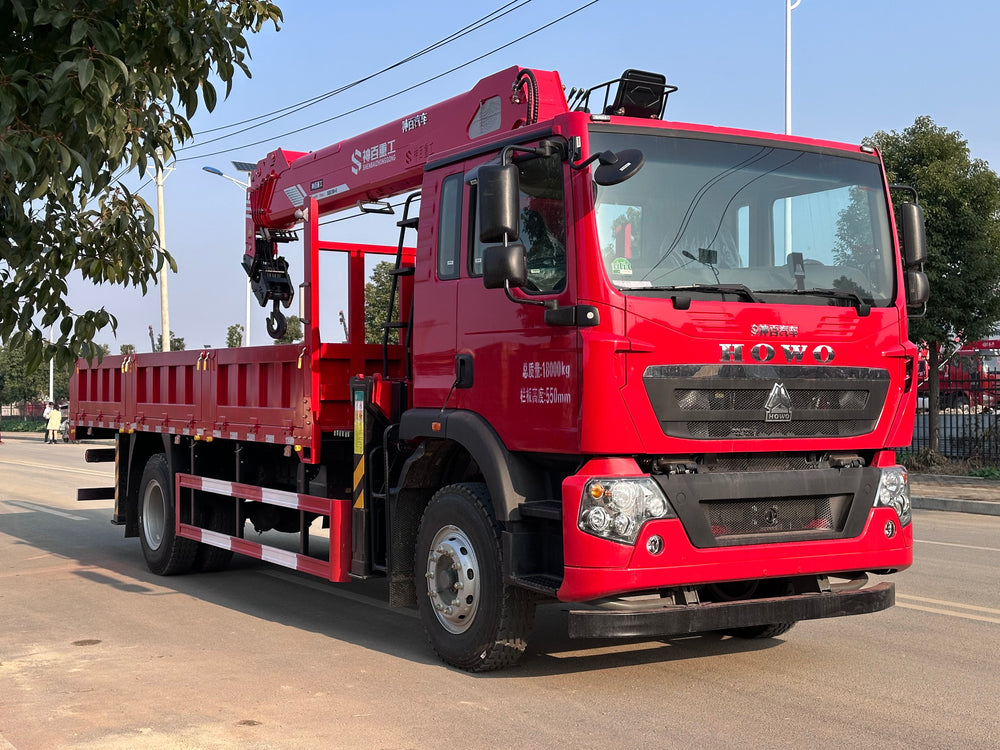

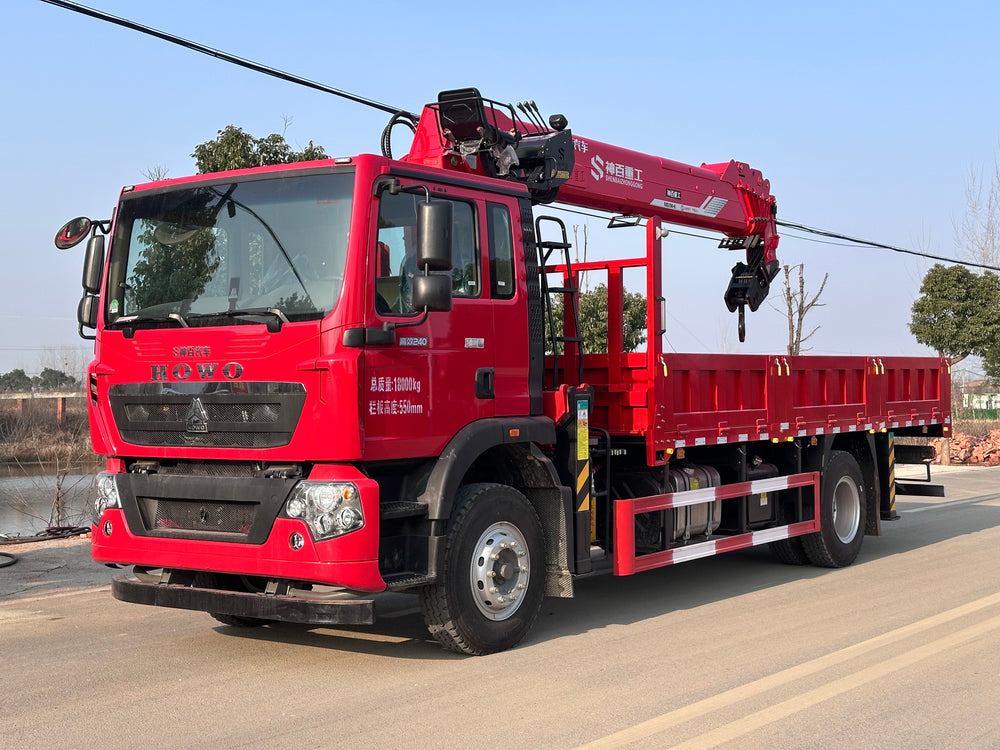

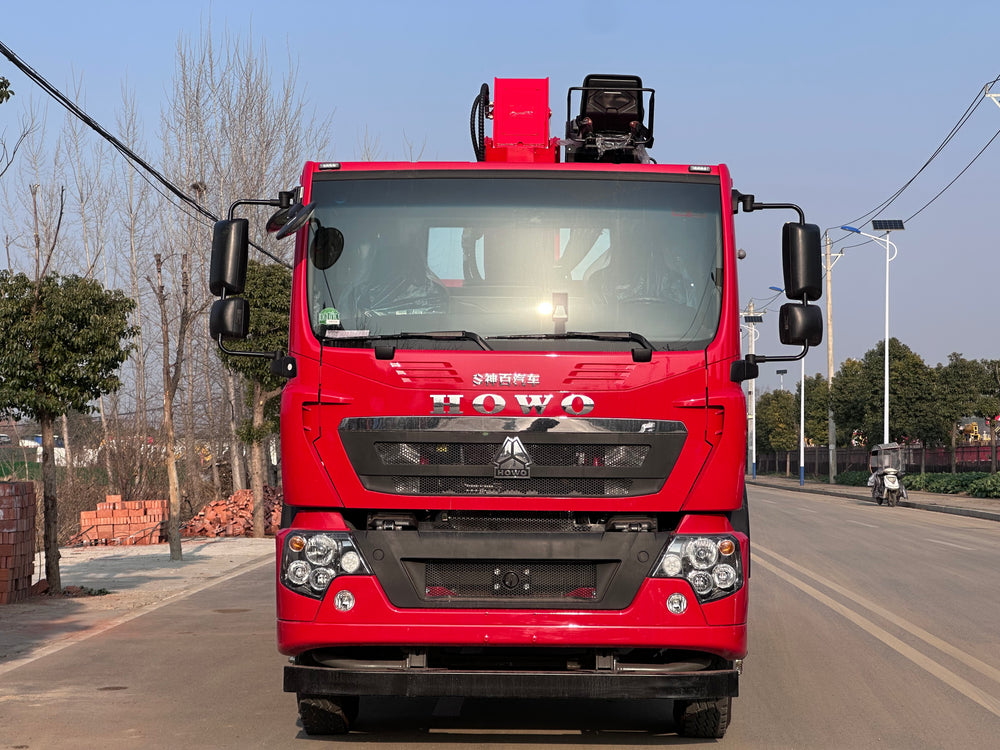

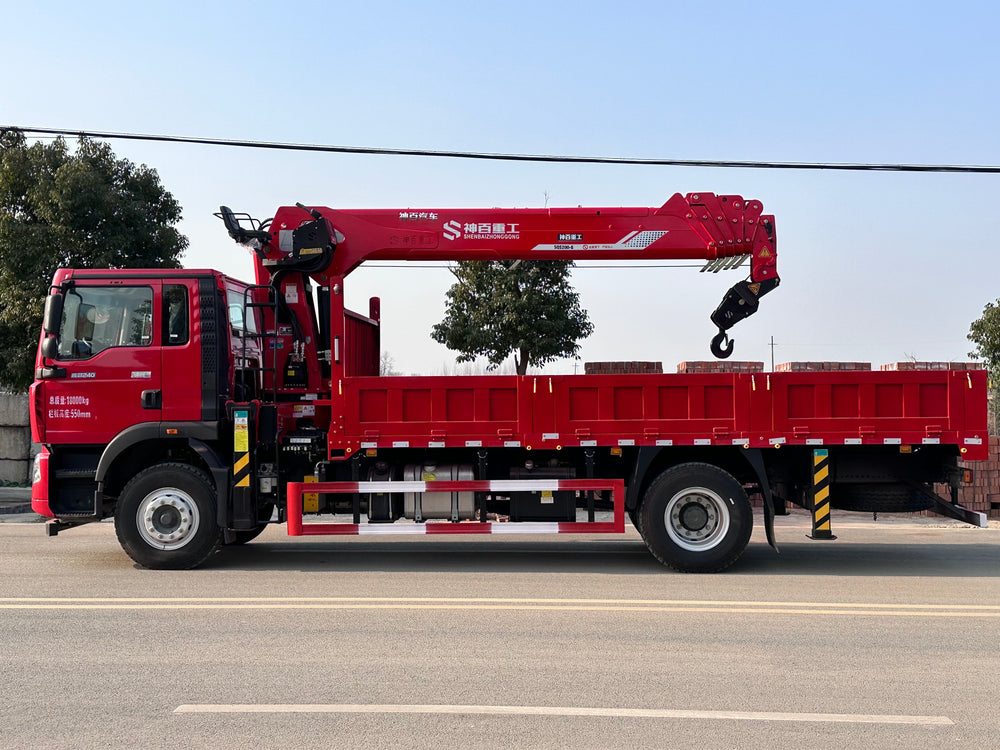

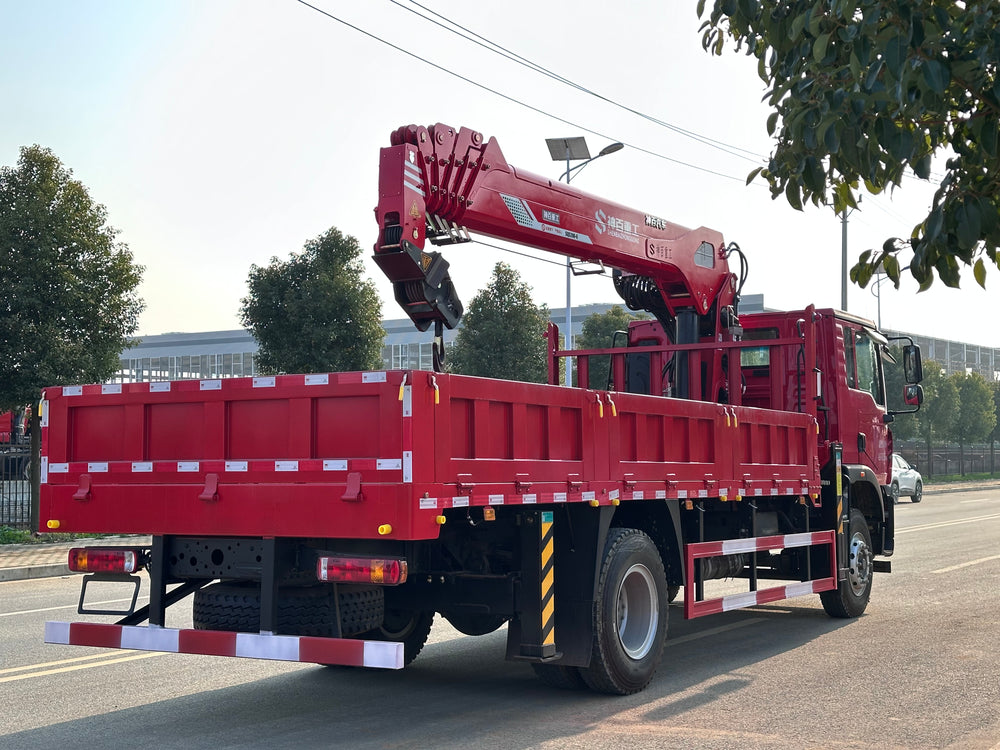

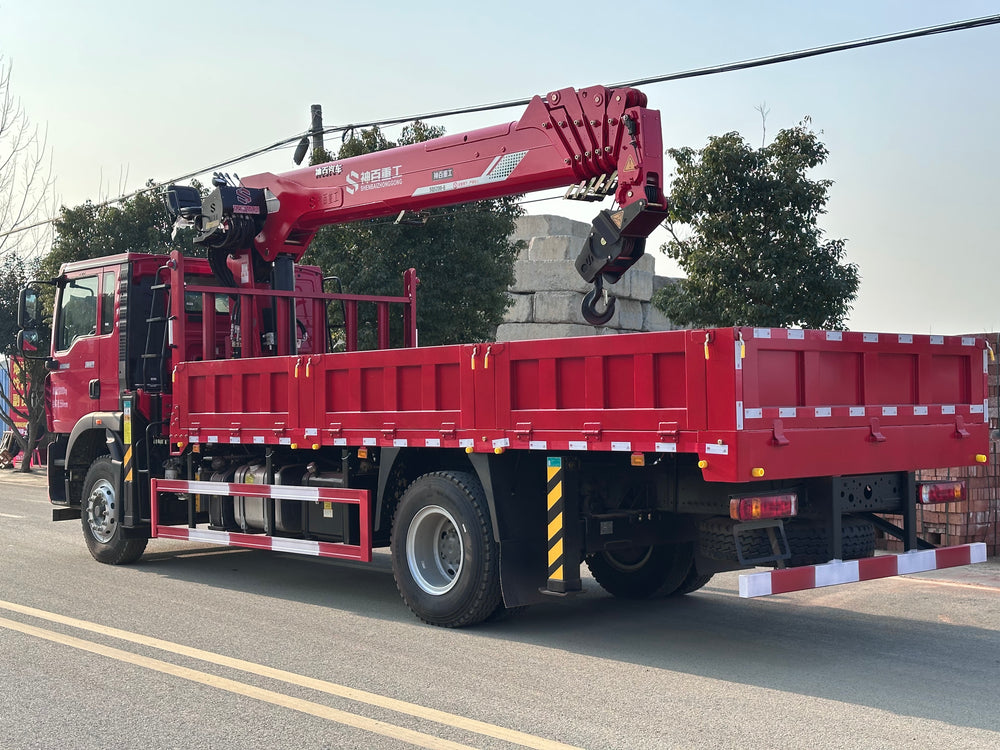

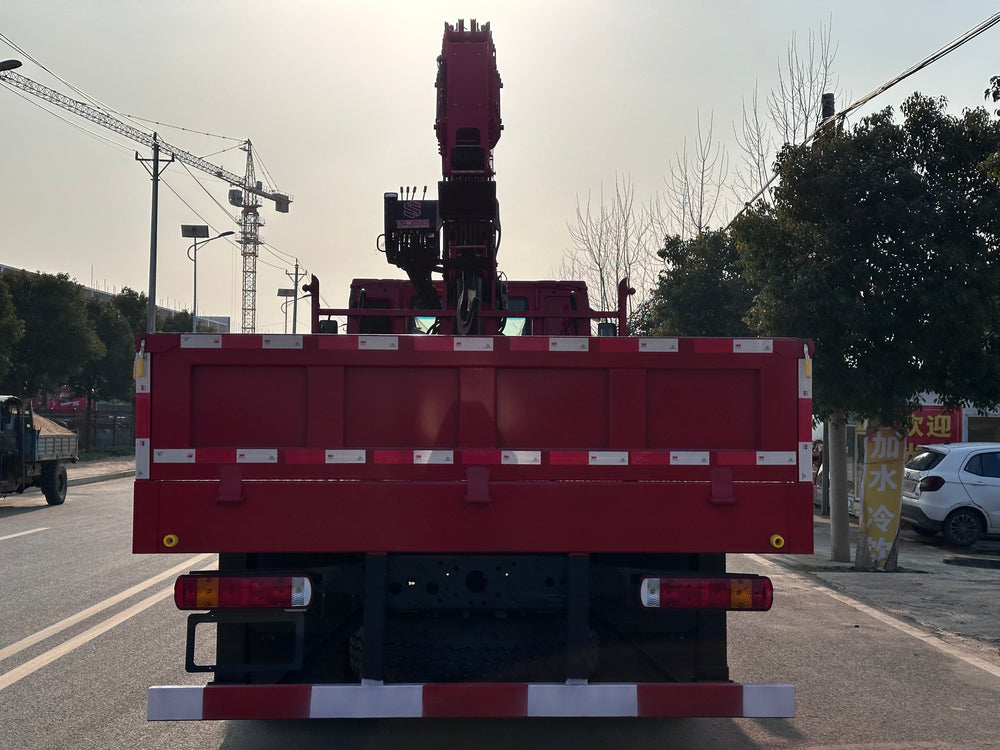

HoWo TX 4×2 Changxing 8-ton 6-section Boom Crane
| Item | Specification |
|---|---|
| Complete Vehicle Announcement No. | ABC5186JSQZZ6 |
| Chassis Announcement No. | ZZ1187K501GF1 |
| Engine Model & Power | Weichai WP4.6NQ240E62, 240 hp, 4.6 L displacement |
| Wheelbase | 5000 mm |
| Rear Axle Gear Ratio | 5.29 (4.63 optional) |
| Transmission & PTO | HW95508STC2 8-speed synchronized transmission + HW45ZC flange-type power take-off |
| Front / Rear Axle Rated Load | 7-ton front axle, 13-ton engineering rear axle |
| Frame | Triple-layer through frame (8+5+5 mm, 300/303 mm frame width) |
| Leaf Spring Layout | Front: 11 pieces; Rear: 9+8 pieces (standard version 10/9+8) |
| Tire Spec | 10.00R20 mixed pattern tires, 18PR |
| Chassis Model | Howo TX5 |
| Cab Type | TX-D cab with front & rear spring suspension |
| Cab Interior Configuration | Multi-function steering wheel; manual rearview mirrors; main airbag seat + auxiliary basic seat; 7-inch full HD MP5 LCD central control screen; middle passenger seat; mechanical master power switch; 120AH storage battery |
| Chassis Chassis Components | 1094 self-adjusting drum front axle; MCJ09BGY self-adjusting single drum rear axle; road-spec air intake system; speed limit 89 km/h; 4S/4M ABS; full metal medium-position bumper; 200L fuel tank; cable-type PTO; Sinotruk Intelligent Connect D system |
| Superstructure Brand & Lifting Capacity | Changxing 8-ton crane, 6-section boom |
| Boom Parameters | Max boom length 20 m, max working radius 22 m; octagonal U-shaped high-strength steel boom |
| Hydraulic & Control System | Upper cab operation; dual gear pump confluence; dual slewing mechanism; 2nd & 3rd sections single extension; swing motor winch; built-in radiator; automatic hook retraction; remote start-stop function |
| Outrigger & Subframe | Double-section outriggers; full-length auxiliary subframe |
| Cargo Box | Engineering cargo box (3mm side plates, 5mm bottom plates) |
